Bernstein 9-366-A. ESD personal gro withing set 5 pcs

Area of application

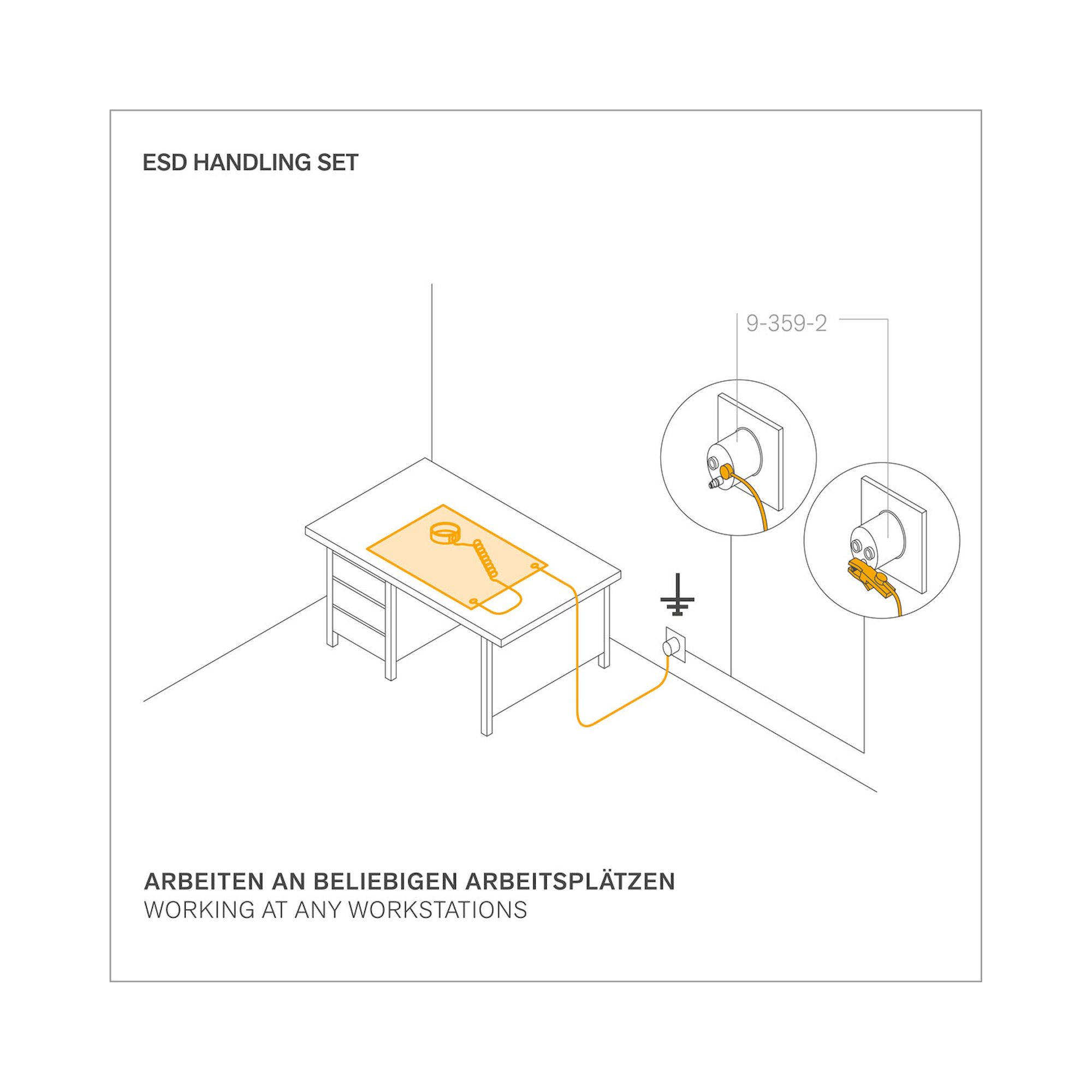

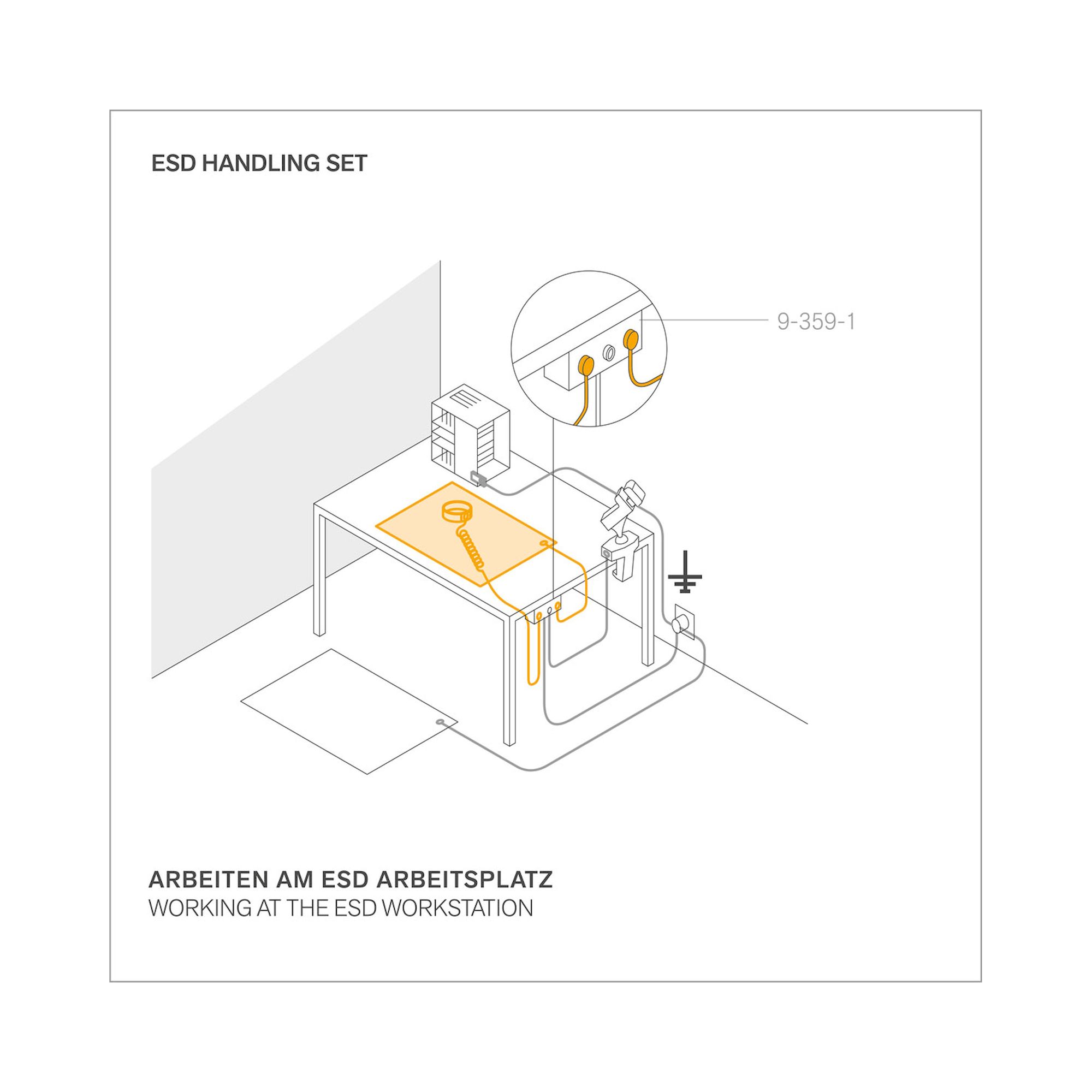

Wrist grounding, as a safe method to derive electrostatic charge from people, consists of an adjustable wrist strap with woven silver-plated plastic fibers (close skin contact necessary) and a spiral cable, which connects the wristband with the earthing point via press buttons, electrically dissipative. The coiled cable has a safety resistance of 1 MOhm on each connection side and is approved for workplaces with a rated voltage up to 250 VAC.

Technical description

Products meet the requirements of DIN EN 61340-5-1. Specifications of the mat: Abrasion (load: 5N) 130 mm³, hardness 80 Shore A, impression test 0.1 mm, temperature range of application up to + 60°C. Adjustable elastic wristband with woven in silver-plated synthetic fibers, allergy-free. Meets the safety requirements for wrist grounding according to BGFE. To ensure adequate insulation, the bracelet may only be stored in a dry place. Washing instructions for the bracelet: machine wash up to 30 ° C with soft washing powder, drying at low temperature (warm not hot), do not bleach! Avoid contact with acidic / alkaline solvents. ESD protection is retained for about 30 washing process.

General information

EPA suitable. For working in electrostatically protected areas (ESD workplace / ESD protection zone).

Content

ESD handling set consists of:

• 9-366-0 ESD grounding mat black 610x450x1.5mm
• 9-341-1 ESD contact bracelet yellow
• 9-341-2 ESD spiral cord for bracelet highly elastic 2400mm yellow
• 9-344-1 ESD earthing cable 1 MOhm, 1800mm 1DK 10mm and eyelet 4mm
• 9-359-2 ESD grounding plug 2x10mm and M5 connection
