SMC CDQSWB20-30DM. C(D)QSW, Compact Cylinder, Double Acting, Double Rod
€4,802.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
SMC-CDQSWB20-30DM
Manufacturer Nr.
CDQSWB20-30DM
Magnet: D (Built-in)
Mounting: B (Through Hole, Both Ends Tapped)
Bore Size: Ø20 mm
Stroke: 30 mm
Option: M (Rod End Male Thread)
Auto Switch: No Switch
Lead Wire or Prewired Connector: 0.5 m
Number: 2 pcs.
Rod End Options: None
Frequently Bought Together
-
This Item:
€4,802.00Excl. 19% VAT , excl. Shipping Cost
-

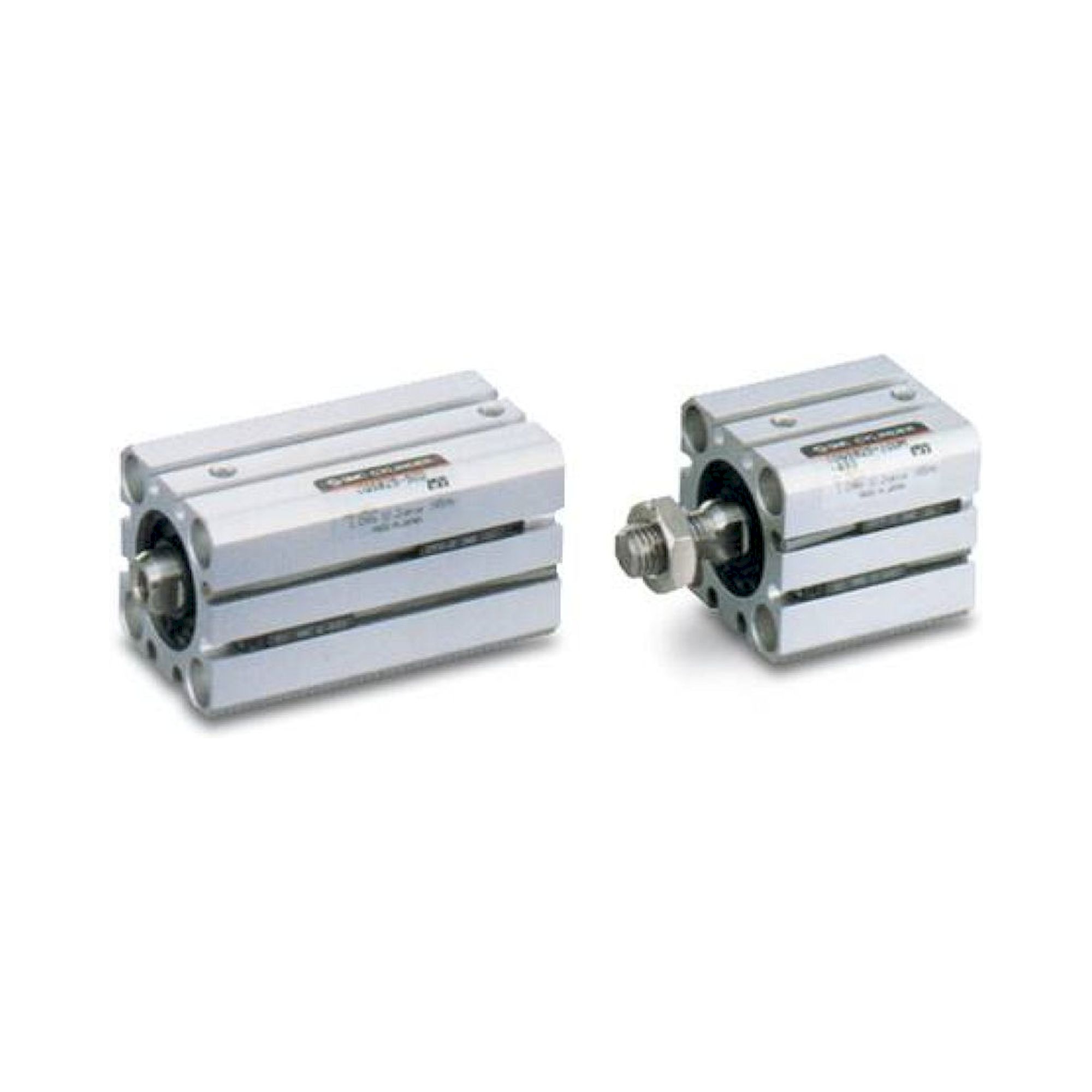

SMC CDQSB20-100DCM. C(D)QS, Compact Cylinder, Double Acting, Single Rod
€4,793.00Excl. 19% VAT , excl. Shipping Cost
-
SMC ITV2050-03F3N. ITV1000/2000/3000, Electro-Pneumatic Regulator
€4,075.00Excl. 19% VAT , excl. Shipping Cost
Total price
The CQS compact cylinder is available for those small bore cylinder applications where saving space is a concern. While sharing many of the outstanding features of the CQ2 series, the CQS offers standard long strokes (up to 300mm) in four bore sizes from 12 to 25mm. Long stroke versions incorporate a wear band and thicker piston to handle the increased bearing needs of the longer strokes. Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides. An increased side load version (CQS*S) is available for more demanding applications.
| Manufacturer Nr. | CDQSWB20-30DM |
|---|---|
| Manufacturer | SMC |
| Weight | 0.220000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | SMC Deutschland GmbH, Boschring 13-15, D-63329 Egelsbach, www.smc.com |
| Article authenticity | Original product |
| Condition of article | New |
