PCB frames

PCB racks are specialized conductive storage systems designed to protect printed circuit boards from mechanical damage and electrostatic discharge during manufacturing, testing, and storage operations. Electronics manufacturing facilities, semiconductor assembly plants, and PCB fabrication houses utilize these ESD-safe storage solutions to maintain product integrity throughout production workflows. The conductive materials ensure controlled dissipation of static charges while stackable designs optimize cleanroom and production floor space utilization in high-volume electronics manufacturing environments.

PCB rack selection depends primarily on board dimensions, with available sizes ranging from compact 175mmx500mm units like the DESCO 237215 to larger 355mmx268mmx128mm L-shaped configurations such as the DESCO 237200. Temperature resistance becomes critical for high-temperature applications, with specialized hi-temp versions like the DESCO 237225 handling elevated thermal conditions during reflow or wave soldering processes. Conductive material construction ensures surface resistance values typically between 10³ to 10⁶ ohms for proper ESD protection, while stackable designs maximize storage density in constrained manufacturing environments.

PCB storage racks must comply with IEC 61340-5-1 standards for electrostatic discharge control in electronics manufacturing environments, ensuring proper surface resistance values for ESD protection. ISO 9001 quality management certification ensures consistent manufacturing processes for rack production, while ANSI/ESD S20.20 compliance verifies proper handling procedures for sensitive electronic components. Additional certifications may include RoHS compliance for material composition and CE marking for European market conformity, particularly important for cleanroom and controlled environment applications in semiconductor manufacturing facilities.

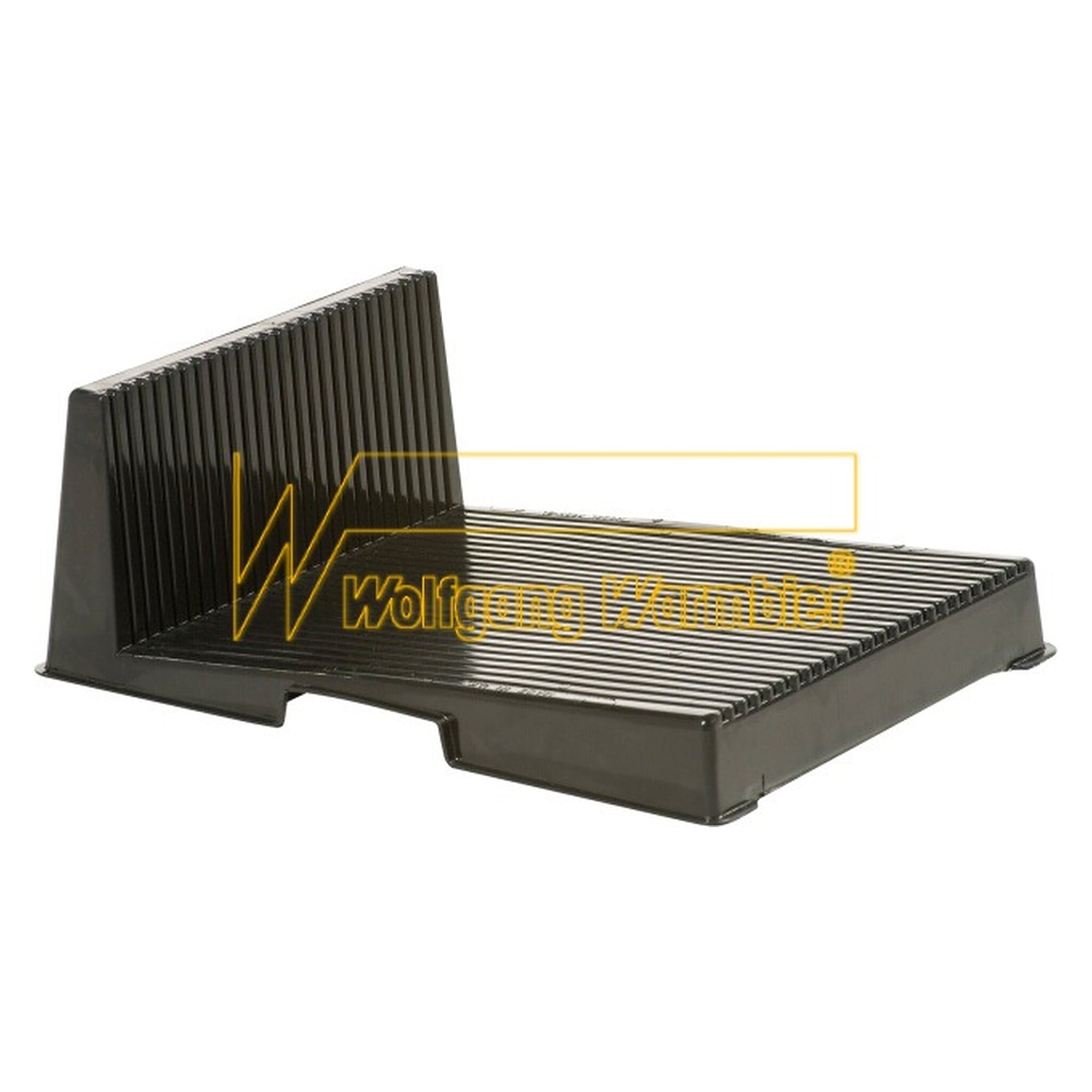

Flat PCB holders like the DESCO 237185 with dimensions 355mmx255mmx14mm provide horizontal storage for single boards or thin assemblies, ideal for temporary staging during assembly processes. L-shaped racks such as the DESCO 237195 measuring 208mmx272mmx93mm offer vertical board separation with multiple slot configurations, enabling higher density storage and improved accessibility for production line workflows. The Warmbier 5345.EL.V3 dual-sided design with aluminum construction and 8 mounting points provides enhanced stability for larger boards measuring up to 250x190x350mm, suitable for automated handling systems and high-throughput manufacturing operations.

PCB rack installation requires ESD-compliant work surfaces with proper grounding connections to maintain continuous static dissipation pathways throughout the storage system. Standard rack mounting configurations accommodate 19-inch industrial enclosures and modular workstation systems, with stackable designs requiring stable, level surfaces capable of supporting loaded weight distributions. Conductive rack materials must maintain electrical continuity with facility ESD grounding systems through dedicated grounding straps or conductive mounting hardware, ensuring surface resistance measurements remain within the 10³ to 10⁶ ohm range specified in IEC 61340-5-1 standards.

Conductive PCB racks typically operate within temperature ranges from -40°C to +120°C for standard applications, with high-temperature variants like the DESCO 237225 designed for elevated thermal environments up to 200°C during reflow processes. Surface resistance values maintain ESD protection between 10³ to 10⁶ ohms across humidity ranges from 12% to 90% relative humidity, ensuring consistent static dissipation performance. Material specifications meet UL 94 flammability ratings for cleanroom applications, while conductive carbon-loaded plastics or aluminum construction provides mechanical durability under continuous loading cycles in automated manufacturing environments.

PCB rack systems require quarterly ESD resistance testing using calibrated megohmmeters to verify surface resistance values remain within the 10³ to 10⁶ ohm specification range per IEC 61340-5-1 standards. Visual inspections for cracks, deformation, or contamination should occur monthly, with particular attention to contact points and grounding connections that ensure continuous static dissipation pathways. Conductive coatings may require annual renewal depending on usage intensity and environmental conditions, while aluminum rack variants typically maintain ESD properties for 10-15 years under normal manufacturing environments with proper cleaning using approved ESD-safe solvents.
