Soldering

Fume Extractions

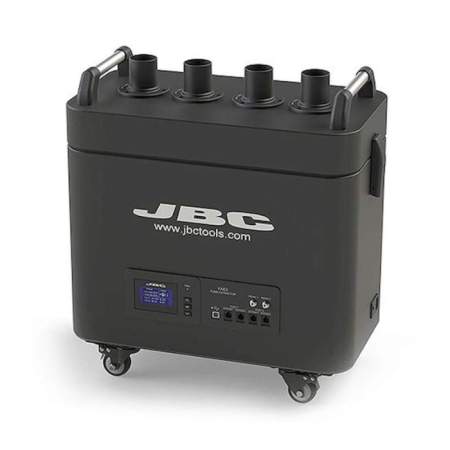

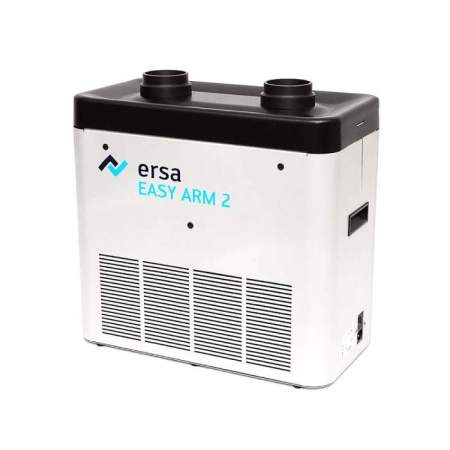

Solder fume extraction removes gases, fine dust and particles produced during hand and machine soldering directly at the solder joint. Activated-carbon and fine-dust filters protect operators from flux vapours and metal particles. The range covers equipment and accessories from JBC, Weller, Bofa (Donaldson), Ersa, ULT, Alsident, OKI and Quick for single workstations through to industrial fume extraction systems.

828 items
9 subcategories
10 manufacturers
Net prices plus VAT

View as Grid view List view

Show

per page

Buying guide

How to choose Fume Extractions

What matters when choosing: properties, comparison and typical applications.

Technical fundamentals of fume extraction

⚙ Activated-carbon filters - adsorb flux vapours and organic compounds; regular replacement required

✓ Fine-dust filters F7/M5/HEPA - retain metal particles and fine dust; filter class per EN 779 / EN 1822

⚡ ESD-safe extraction arms - Bofa arms D 32 and 50 mm with ESD properties for EPA areas

↕ Flexible extraction hose - JBC FAE010 (1.5 m, D 50 mm, ESD) and FAE020 (flexible arm with nozzle)

📦 Station integration - modular holders with integrated extraction connection (JBC FAE050/FAE060)

Extraction system comparison

Manufacturer	Product range	Filter principle	Typical use
JBC	FAE series (hoses/arms)	ESD accessories, no standalone unit	Connection to external extraction
Weller	WFE, WFE P, Zero Smog	Activated carbon, F7 fine dust, M5	Single workstation, bench-top
Bofa (Donaldson)	WLA 250, industrial	Multi-layer, HEPA option	Single station to industrial line
ULT	LRA 300, ASD 300	Multi-layer	Single and industrial workstation
Alsident	DN 75 articulated arm	Articulated extraction tube, no own filter	Central extraction connection

Typical applications

Typical applications: Hand soldering workstations in electronics manufacturing and rework, solder bath and wave soldering processes with central or local extraction, multi-station soldering lines with industrial extraction from Bofa or ULT, and specialised applications with ESD-safe extraction accessories in EPA-certified production areas.

FAQ

Frequently asked questions about Fume Extractions

What are soldering fume extractors and where are they used in industrial applications?

Soldering fume extractors are specialized ventilation systems designed to capture and filter hazardous particulates, gases, and vapors generated during soldering processes. These systems are essential in electronics manufacturing, automotive component assembly, aerospace wiring harnesses, and medical device production where lead-free solder alloys produce fine particulates below 0.3 microns. Industrial applications include PCB assembly lines, cable harness production, and component-level repairs where flux residues and metallic fumes pose respiratory hazards. Modern extractors like the ULT ASD series provide airflow rates from 120 to 1000 m³/h with static pressures up to 12,000 Pa for demanding industrial environments.

What technical specifications should be considered when selecting a soldering fume extractor?

Critical selection parameters include volumetric airflow rate matching your application requirements, with compact systems like the ULT ASD 300 providing 250 m³/h at 2,000 Pa for single workstations, while industrial units such as the ULT ACD 1200 deliver up to 1,000 m³/h at 1,800 Pa for multiple stations. Static pressure capability determines the extractor's ability to overcome filter resistance and ductwork losses, with values ranging from 1,400 Pa for basic applications to 12,000 Pa for high-resistance HEPA filtration systems. Filter efficiency specifications must address both particulate removal for metallic fumes and activated carbon capacity for organic flux vapors. Power consumption, noise levels below 65 dB(A), and motor protection ratings also influence operational costs and workplace acceptance.

Which safety standards and certifications apply to industrial soldering fume extraction systems?

Industrial soldering fume extractors must comply with EN 61010-1 for electrical safety in laboratory equipment and IEC 61000-6-2 for electromagnetic compatibility in industrial environments. ATEX certification is mandatory for units handling flammable solvent vapors, with Ex-rated models like the ULT ACD 400 Ex designed for Zone 1 and Zone 2 hazardous areas. Filter performance standards include EN 1822 for HEPA efficiency testing and ISO 29463 for EPA filter classification, ensuring minimum 99.95% efficiency at 0.3 micron particle size. Occupational exposure limits follow EN 689 guidelines, requiring extraction systems to maintain workplace concentrations below 0.1 mg/m³ for lead compounds and 5 mg/m³ for rosin-based flux fumes according to German MAK values.

What are the differences between ASD particulate extractors and ACD gas/vapor extraction systems?

ASD series extractors like the ASD 300 MD.14 are optimized for fine dust and metallic particulate removal using multi-stage filtration with pre-filters and HEPA final stages, achieving 99.97% efficiency at 0.3 microns with airflow rates of 250-400 m³/h. ACD series units such as the ACD 400-1-V target gases, vapors, and odors using activated carbon adsorption stages, providing 400-1000 m³/h airflow specifically designed for organic solvent vapors and flux decomposition products. LAS laser smoke extractors like the LAS 500.1 HD.14 combine both technologies with 200 m³/h capacity at 7,500 Pa static pressure for high-concentration applications. Ex-rated variants include explosion-proof motors and antistatic components for handling flammable vapor concentrations above lower explosive limits.

What installation requirements and connection options are available for soldering fume extraction systems?

Most industrial soldering fume extractors require single-phase 230V power supply with earthing connections meeting IEC 60204-1 standards, while high-capacity units like the ULT ASD 1200 may require 400V three-phase connections. Ductwork connections utilize standard 100mm, 160mm, or 200mm diameter flexible hoses with antistatic properties rated for continuous 60°C operation, while benchtop units accept 75mm diameter extraction arms with 360-degree articulation. Installation clearances require minimum 500mm service access around filter compartments and 200mm above units for maintenance operations. Control integration options include 4-20mA analog signals for airflow monitoring, digital I/O for filter change indication, and RS485 Modbus communication for integration with building management systems or production line controls.

What safety ratings and environmental specifications apply to industrial fume extraction equipment?

Industrial soldering fume extractors typically feature IP54 ingress protection rating for dust and splash resistance in manufacturing environments, with motor housings rated IP55 for enhanced moisture protection. Operating temperature ranges span -5°C to +40°C ambient conditions, while filtered air temperatures can reach 60°C continuous duty without derating airflow performance. Static pressure capabilities range from 1,400 Pa for basic applications to 12,000 Pa for high-resistance filtration systems, with variable frequency drives maintaining constant airflow despite filter loading. Sound emission levels remain below 65 dB(A) at 1 meter distance to comply with EN ISO 3744 workplace noise regulations. Units handling flammable vapors require ATEX Zone 1 certification with temperature class T3 (200°C surface temperature limit) and electrical equipment group IIA for most solvent applications.

What maintenance intervals and service requirements are needed for soldering fume extraction systems?

Pre-filter elements require replacement every 3-6 months depending on particulate loading, with differential pressure indicators triggering maintenance at 80% filter saturation typically around 800-1000 Pa pressure drop. HEPA final filters maintain efficiency for 12-18 months in normal soldering applications, with replacement intervals determined by airflow reduction below 80% of nominal capacity rather than fixed schedules. Activated carbon stages in ACD gas extraction units require renewal every 6-12 months based on breakthrough testing for target contaminants, with spent carbon disposal following hazardous waste regulations. Motor bearing lubrication follows manufacturer specifications typically requiring high-temperature grease application every 2000 operating hours, while fan impeller cleaning and electrical connection inspection occur during annual preventive maintenance cycles to ensure continued performance and safety compliance.
