Optical inspection in electronics manufacturing, quality assurance and research requires equipment with defined magnification, reproducible image quality and a stable mechanical structure. The range covers digital hand microscopes (Dino-Lite EDGE), stereomicroscopes (Vision Lynx EVO, Zeiss Stemi 305/508, Mantis Elite), digital and video microscopes (Vision EVO CAM II), stands from 4H Jena, Pulch & Lorenz and Zeiss, cold light sources (Schott, Starlight, Zeiss) as well as lenses, eyepieces and hand magnifiers from Eschenbach.
The product range extends from a simple handheld USB device for spot checks to a fully equipped stereo workstation with ergonomic stand, motorised focusing and an external cold light source for continuous inspection. Stands and illumination components are combinable across manufacturers provided objective diameter and connection geometry match.
Dino-Lite MicroscopesUSB hand microscopes EDGE, 5 Mpx, AMR/EDOF/EDR, polarised light

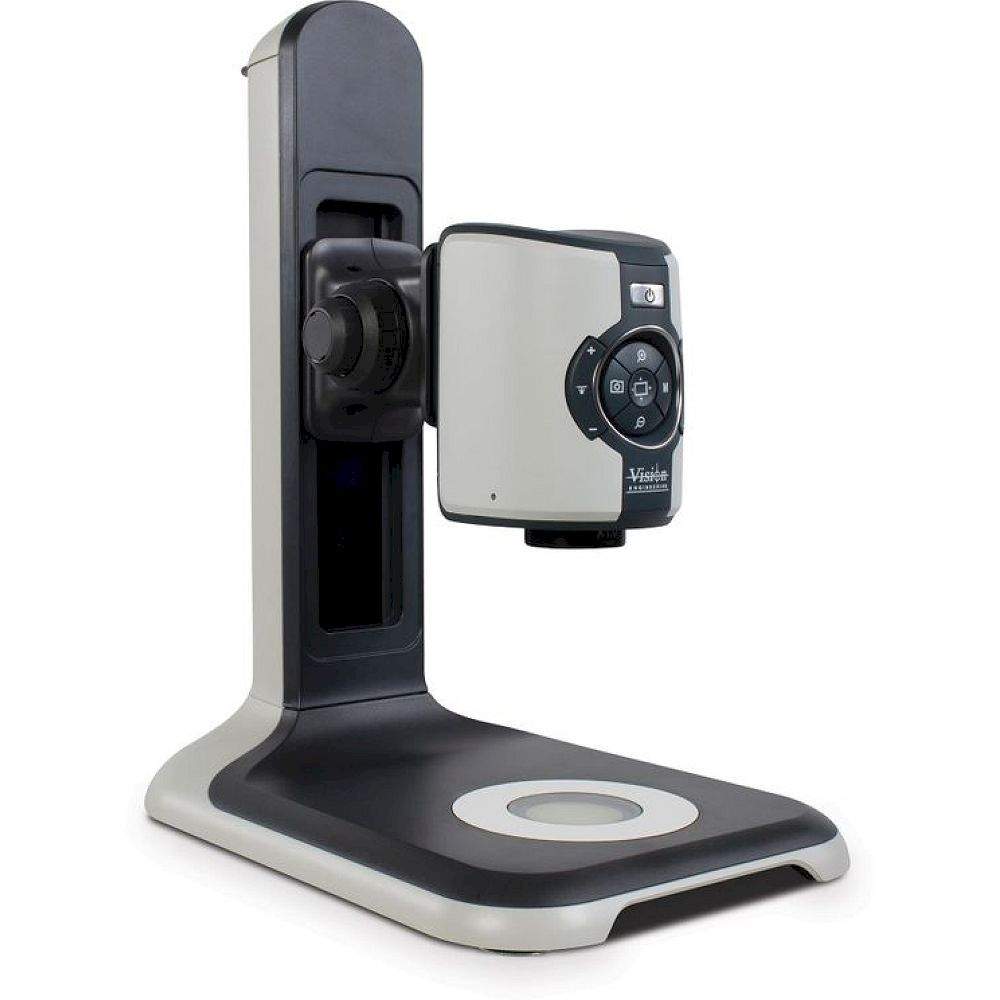

Digital microscopesVision EVO CAM II, Euromex 4K/1080p, VE CAM with monitor

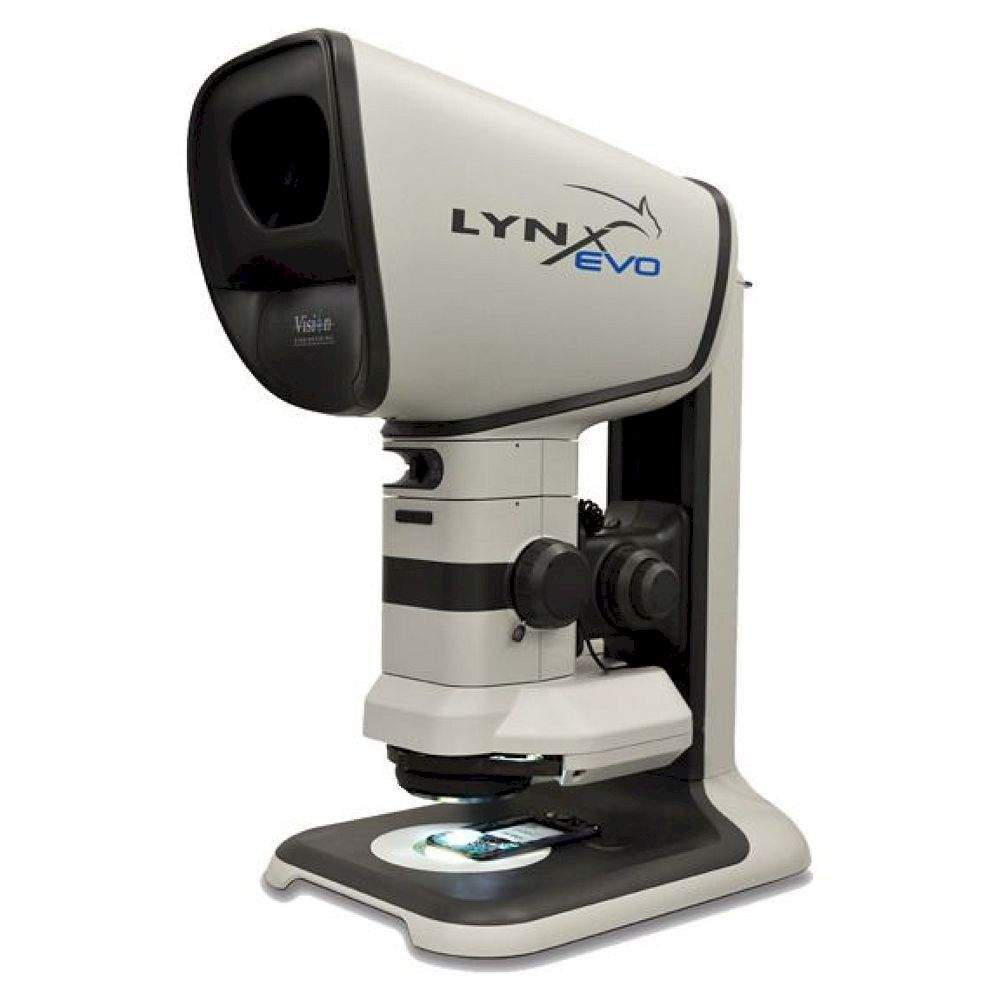

StereomicroscopesZeiss Stemi 305/508, Vision Lynx EVO, Mantis Elite, 4H Jena DSZ-44

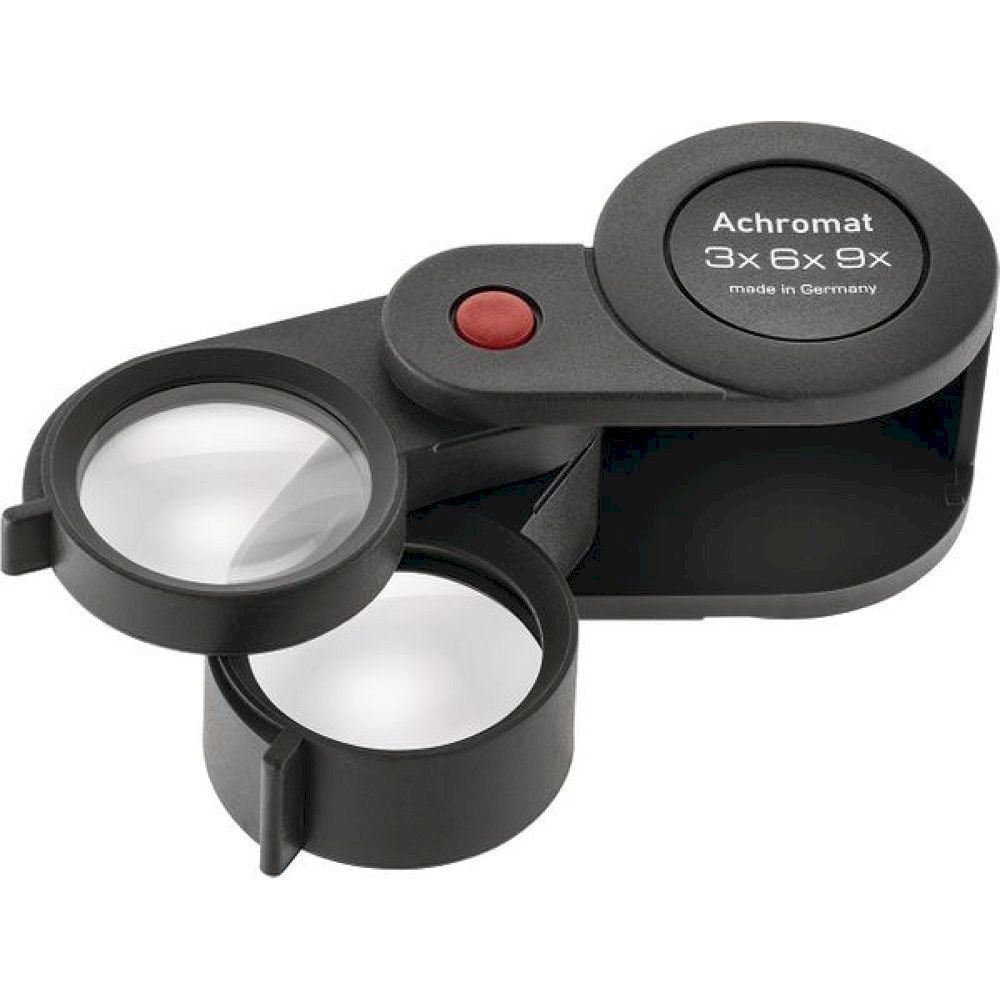

Hand magnifiers & mirrorsEschenbach folding loupes, watchmaker's loupes, scale loupes 3x-12x

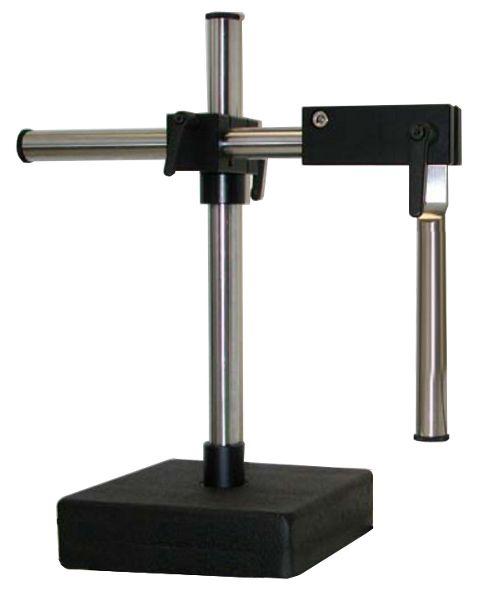

Stands4H Jena universal stands, Pulch & Lorenz Flexi, Zeiss N/K/M stands

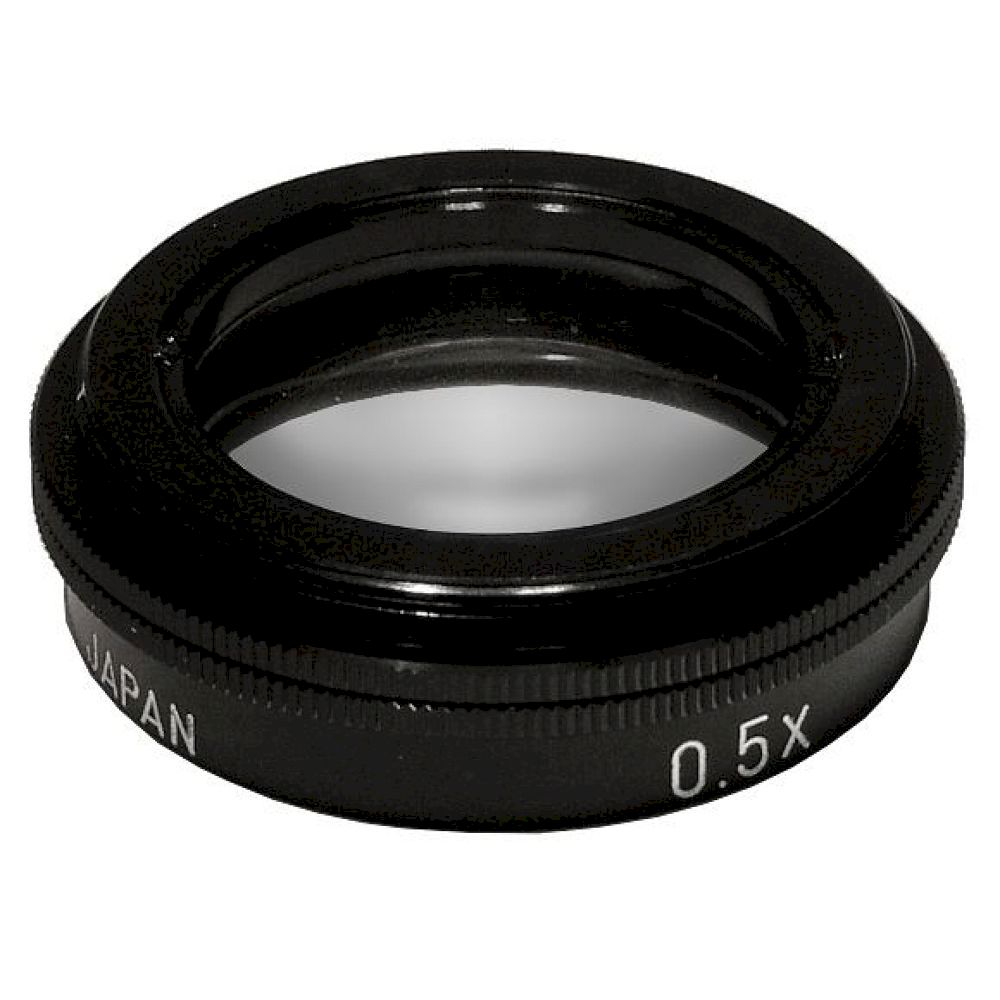

Lenses and objectivesAuxiliary objectives 0.3x-1.6x, measuring eyepieces, adapters, Vision MEO series

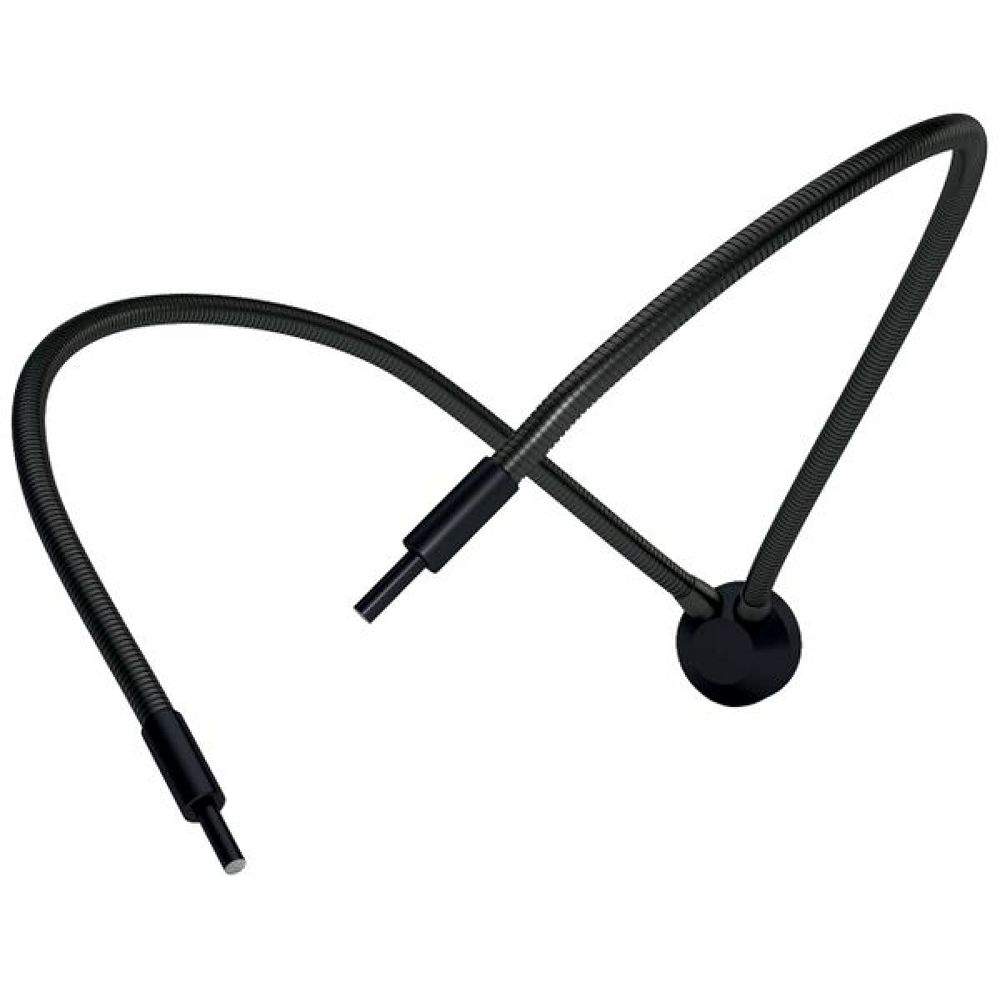

Cold light sourcesSchott KL 300/1600 LED, Starlight LED3, Zeiss CL 1500 with light guides
Other lightingFresnel lenses, LED ring lights, transmitted light modules, polarisation sets

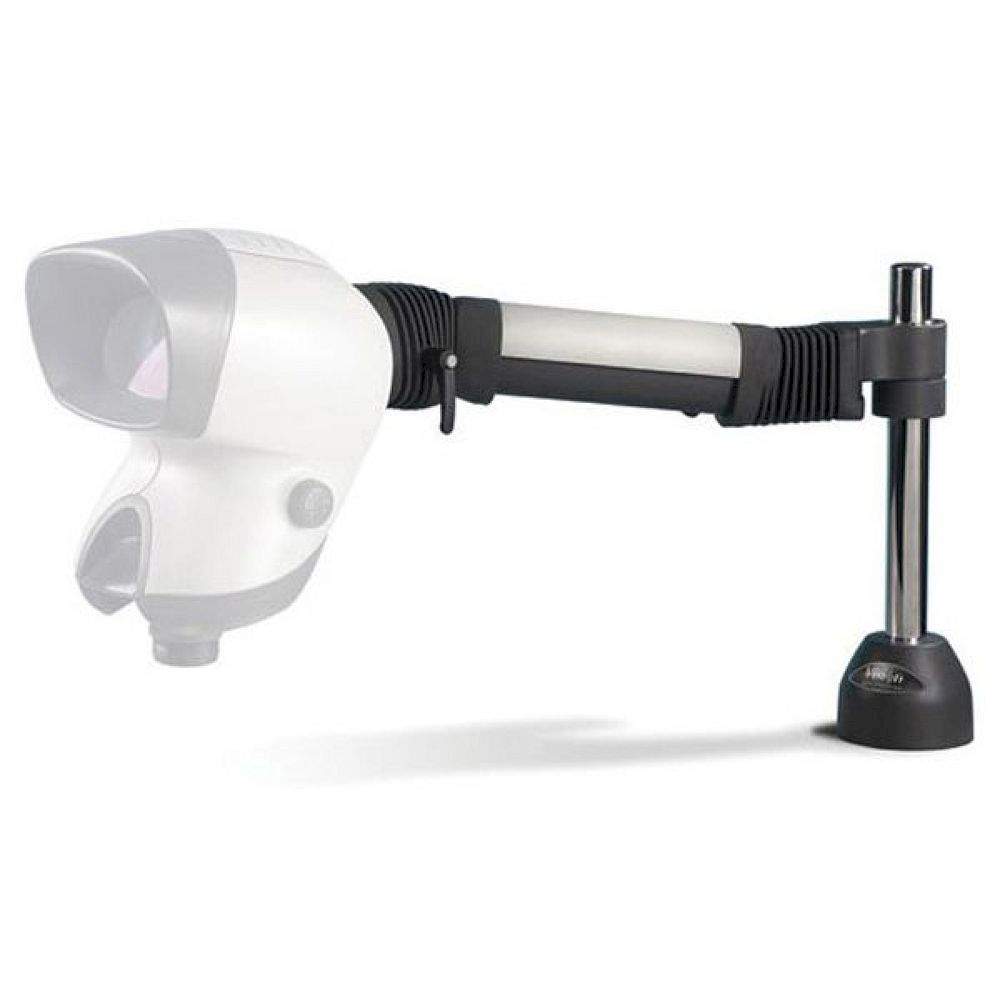

Accessories for microscopesStand heads, ball tables, focusing units, adapters, protective cases
| Device class | Magnification | Image output | Typical application |
|---|---|---|---|
| Dino-Lite EDGE USB | variable, up to approx. 220x | PC/monitor via USB | Spot checks, field inspection, documentation |
| Stereomicroscope (Zeiss Stemi / Vision Lynx EVO) | 6.5x-45x (zoom) | Eyepieces + optional camera | Solder joints, bond wires, component assembly |
| Digital microscope Vision EVO CAM II | configurable | HD/4K monitor, USB | Continuous inspection, team viewing, archiving |
| Hand magnifier (Eschenbach) | 3x-12x | Direct optics | Quick visual check, outside the laboratory |
| Cold light source (Schott / Starlight) | - | Fibre optics / goose-neck | Supplementary lighting for stereo and digital microscopes |
Typical applications: Solder joint and bond wire inspection in SMT manufacturing, incoming goods inspection and rework of electronic assemblies, quality control in precision mechanics and watchmaking, materials testing and surface analysis in research laboratories, and inspection of printed circuit boards, semiconductors and micro-optical components.
