What are ESD protection mats?

ESD protection mats are designed to prevent static electricity build-up and protect electronic components from electrostatic discharge.

How do ESD mats work?

ESD mats work by providing a controlled path to ground for any static charges, thereby preventing damage to sensitive electronic equipment.

What are the benefits of using ESD mats?

Using ESD mats helps prevent costly damage to electronics, ensures a safe work environment, and complies with industry standards for static control.

Where should ESD mats be used?

ESD mats should be used in any environment where electronic components are handled, such as workshops, assembly lines, and repair stations.

What types of ESD mats are available?

There are various types of ESD mats, including table mats, floor mats, and roller mats, each designed for specific applications and environments.

How do you clean ESD mats?

ESD mats should be cleaned with a mild detergent and water. Avoid using harsh chemicals that can degrade the mat’s conductive properties.

Can ESD mats be customized?

Yes, many suppliers offer custom sizes and shapes to fit specific workspace requirements, ensuring optimal coverage and protection.

ESD Mats

ESD equipment

ESD mats and surface coverings form the dissipative work surface and floor in EPA zones, providing controlled discharge of electrostatic charge via grounding cables and press-studs. The range is organised into table mats for individual workstations (individual mats 600x600 mm to 1220x610 mm and roll goods up to 10 m), table coverings in rubber (ProMAT corrugated rubber) and antistatic-coated materials, floor mats and interlocking tile systems, and particle-capture sticky mats for airlock areas. All products are designed for dissipative values per DIN EN 61340-5-1.

Categories

ESD Workstation SetsCombo sets with table mat, grounding cable and accessories

ESD Sticky matsParticle control at airlocks, multi-layer adhesive film

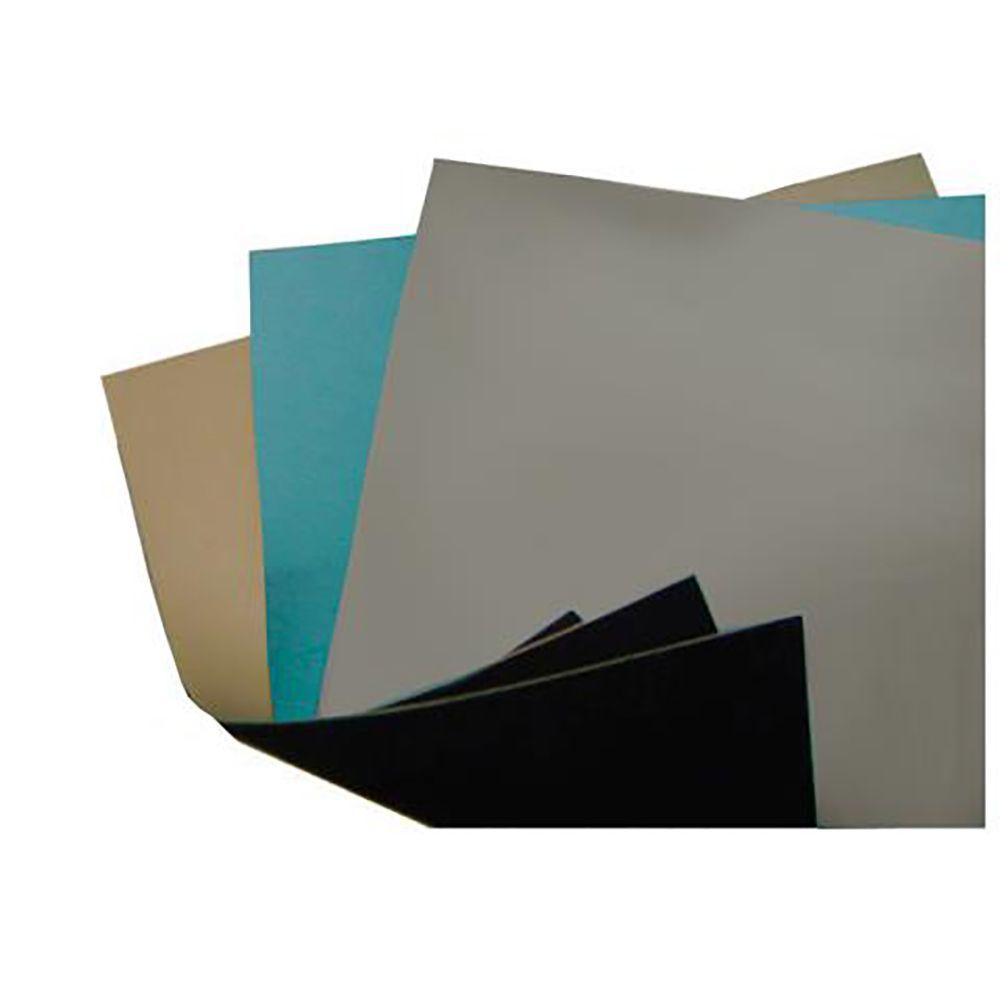

ESD Table matsIndividual mats and roll goods, 2x press-stud DK10/DK4

ESD Floor matsDesco, dissipative mats for the floor area of EPA zones

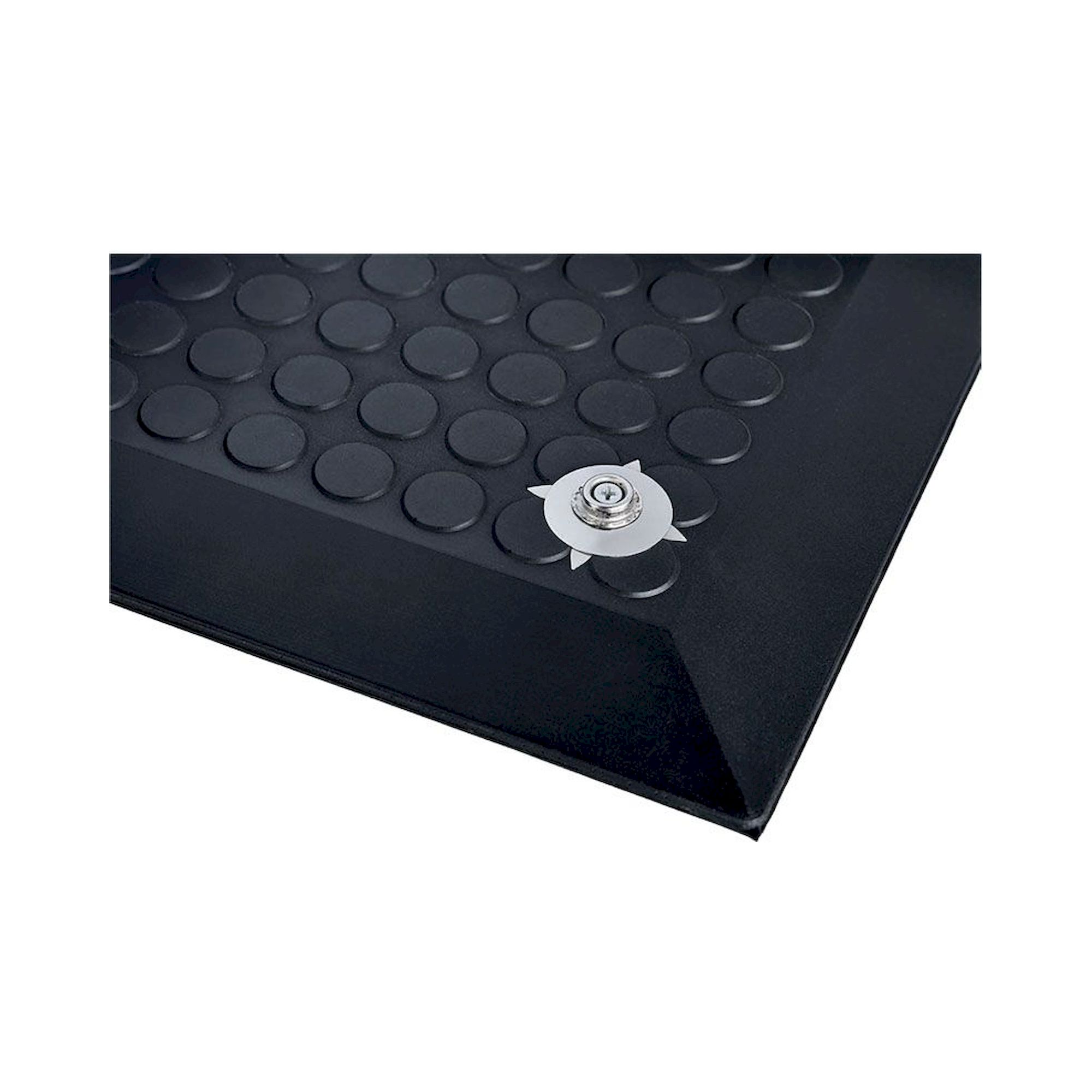

Ergolastec ESD floor matsErgonomic ESD floor mats for prolonged standing

ESD Table coveringsProMAT Premium and corrugated rubber, rolls up to 10 m

⚡ Dissipative surface - controlled charge dissipation per DIN EN 61340-5-1 for both table and floor

↕ Formats 600x600 mm to 1220x610 mm - individual mats and roll goods (up to 10 m) for any workstation

⚙ Press-stud DK10 and DK4 - standardised grounding connectors for coiled cords and grounding leads

✓ Sets with accessories - workstation sets combine table mat, grounding cable and wrist strap

📦 Sticky mats for airlocks - multi-layer PE adhesive film keeps particles out of EPA areas

Criterion	Table mats (individual)	Table coverings (roll goods)
Typical format	600x600 mm to 1220x610 mm	Width 1.00-1.20 m, length 10 m
Grounding connection	2x DK10 or 2x DK4 press-studs	Grounding lead under the covering
Material	Two-layer construction, dissipative top layer	Rubber (corrugated) or PVC composite
Application	Fixed individual workstations	Long benches, assembly tables, shelving
Colours	Grey, blue, beige, platinum grey	Grey, beige, blue, chip-green, light blue

Typical applications: SMT assembly and hand-soldering stations with table mat grounding systems, repair and rework benches for ESD-sensitive assemblies, goods-in inspection with floor mats at test stations, production lines with roll coverings on large work surfaces, and airlock areas with sticky mats for particle control.

✓ DIN EN 61340-5-1 compliantDissipative table and floor mats for EPA zones

⚡ Grounding via DK10 / DK4Standard press-stud connections for coiled cords
