Workplace lighting
Good light at the workstation decides whether assembly, inspection and maintenance run safely and without eye strain. Our range reaches from the articulated arm luminaire at the electronics bench and the machine luminaire inside the machining area to the high bay light with 25000 lm.
Manufacturers such as Glamox, LED2WORK, Starlight, Waldmann and Spelsberg cover the full demand. Luminous flux runs from 800 lm at a single station to 25000 lm in the hall, power input from 4 to 78 W, and IP ratings from IP20 for dry interiors to IP69K for high-pressure cleaning. Added to this are DALI-dimmable versions, Tunable White with adjustable light colour and ESD-compliant luminaires for the protected area.
Luminaire finder
Three steps to the right luminaire: first the application area, then luminous flux and light colour, finally mounting and IP rating.
Workbench and assembly stationGlare-free light directly above the working surface.Tunable White

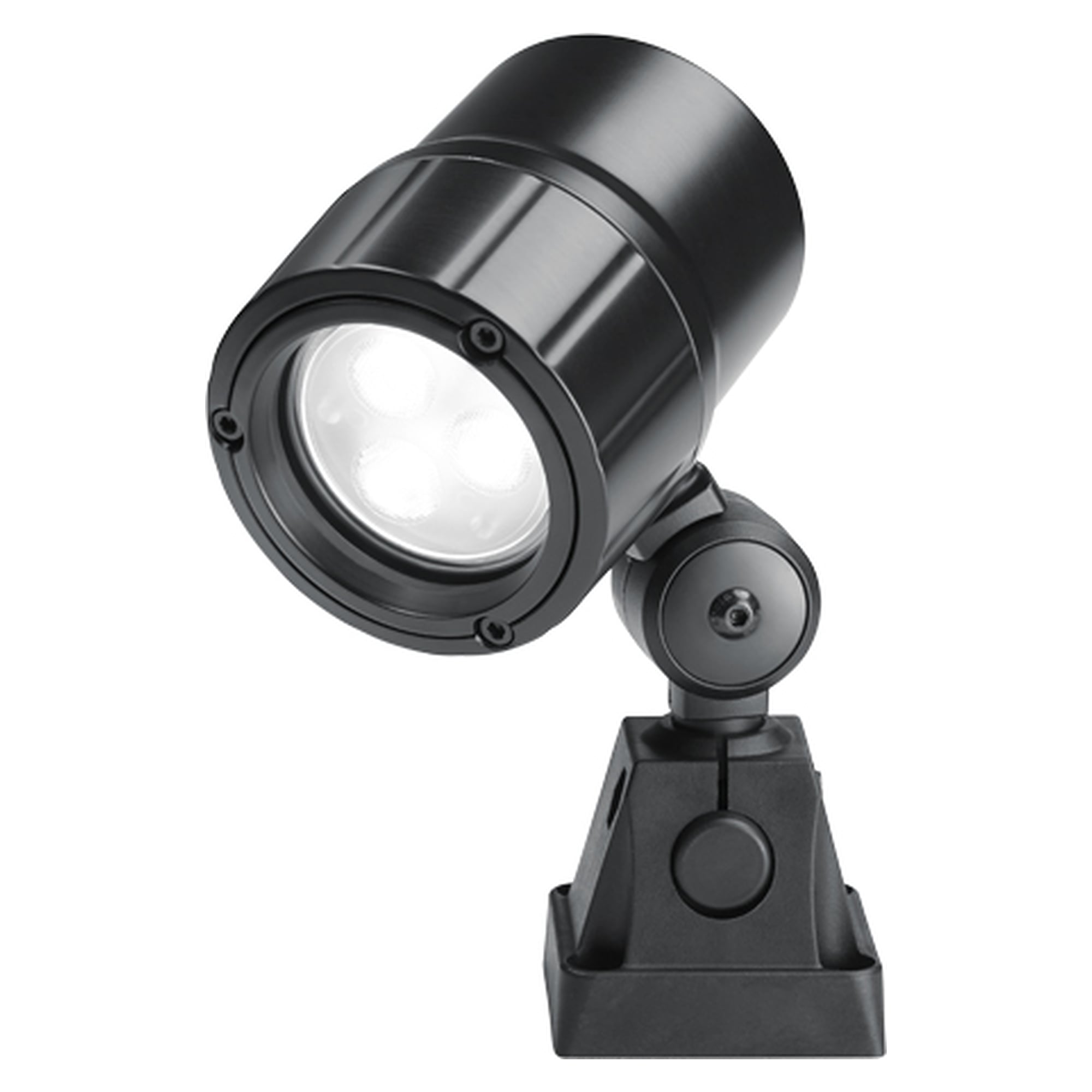

Machine and plantRugged versions for machining areas and control cabinets.24 V

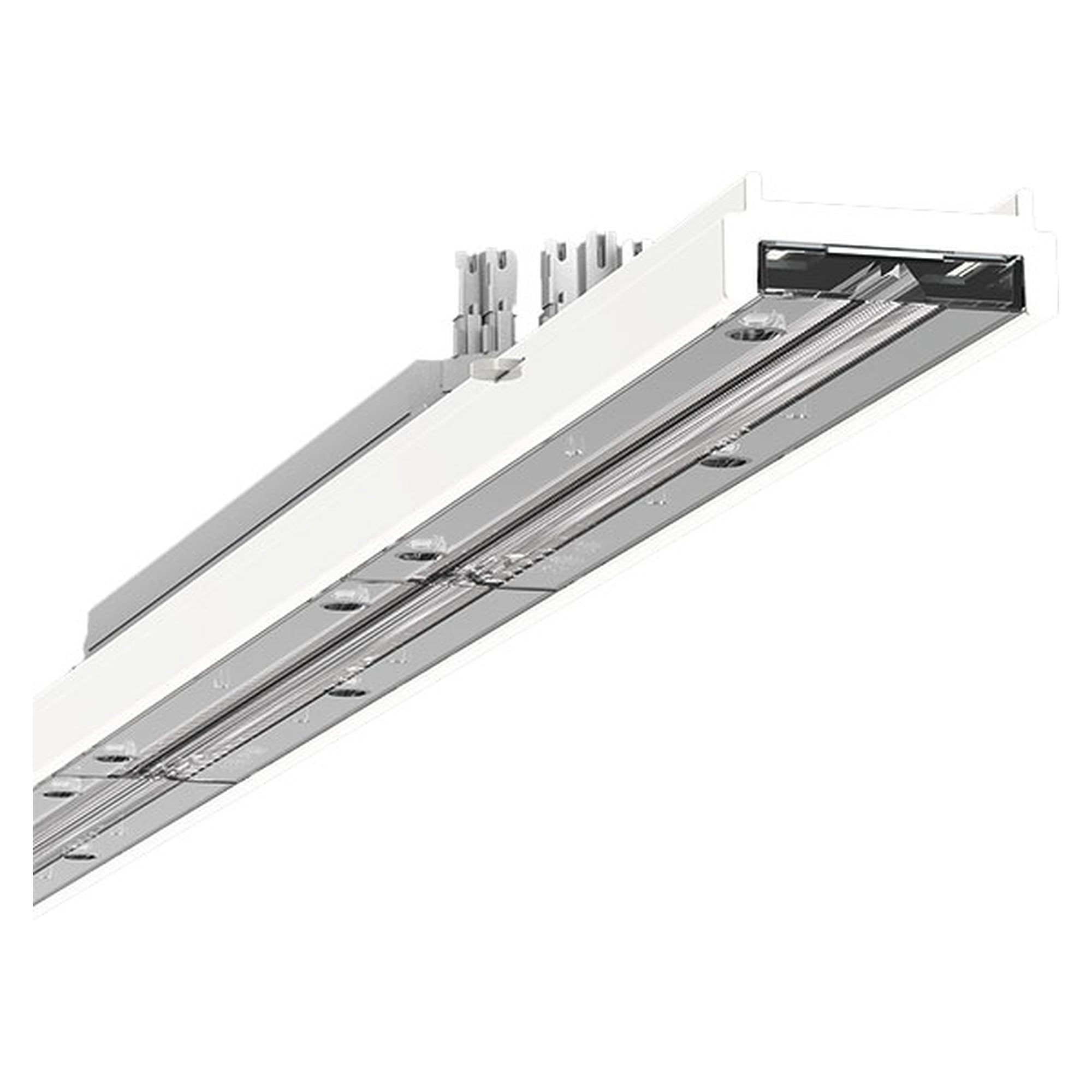

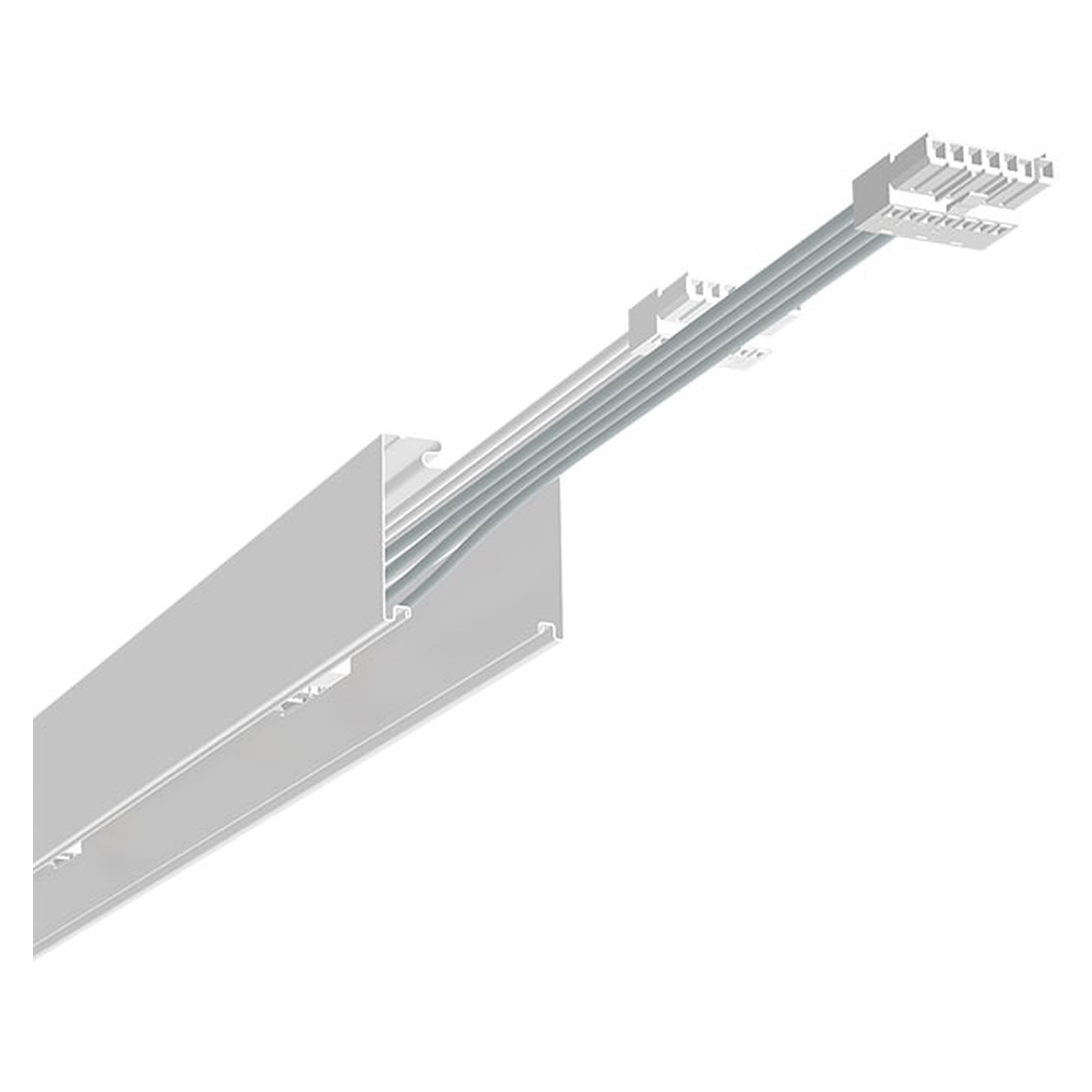

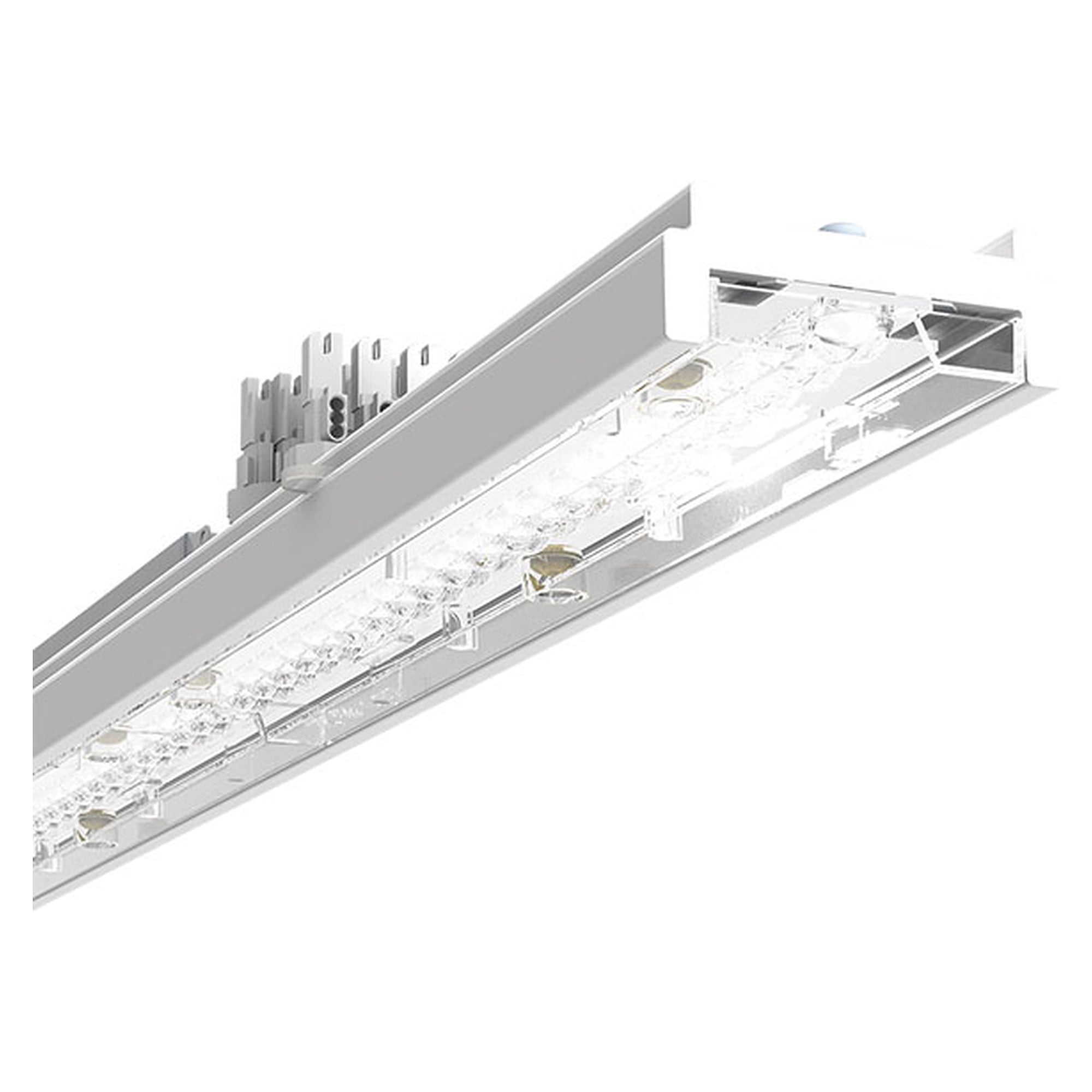

Work line and frameSystem luminaires for continuous light lines.T-slot / profile

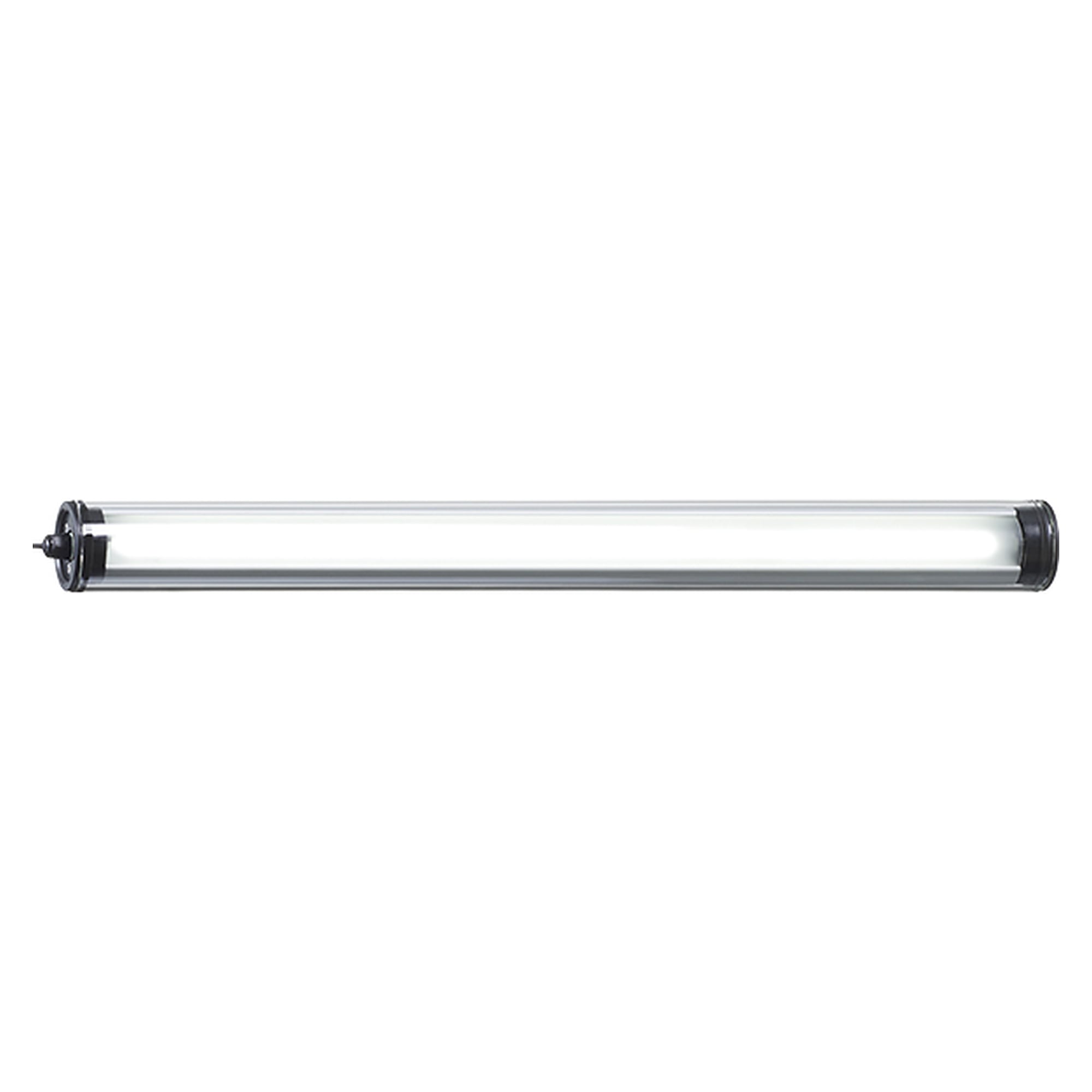

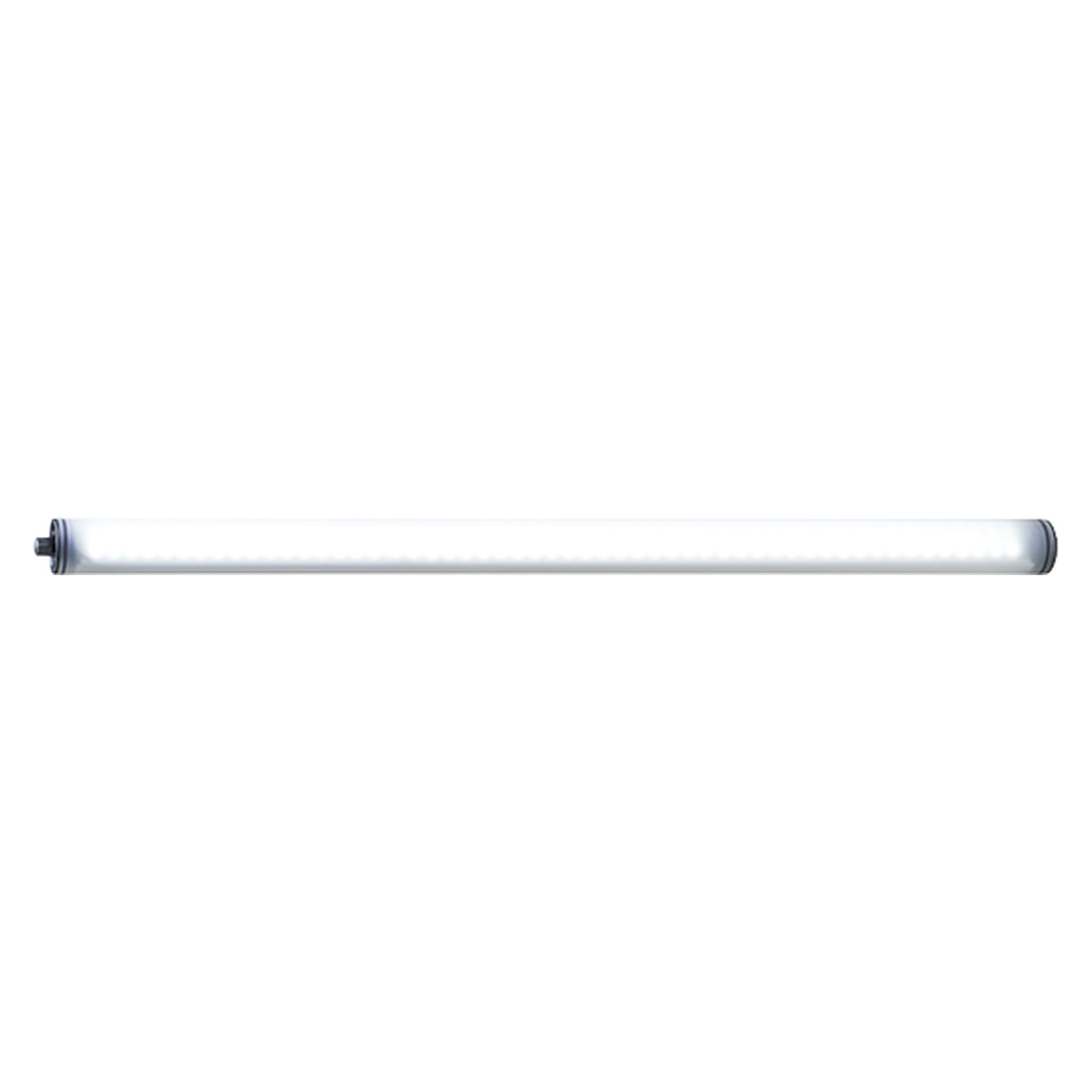

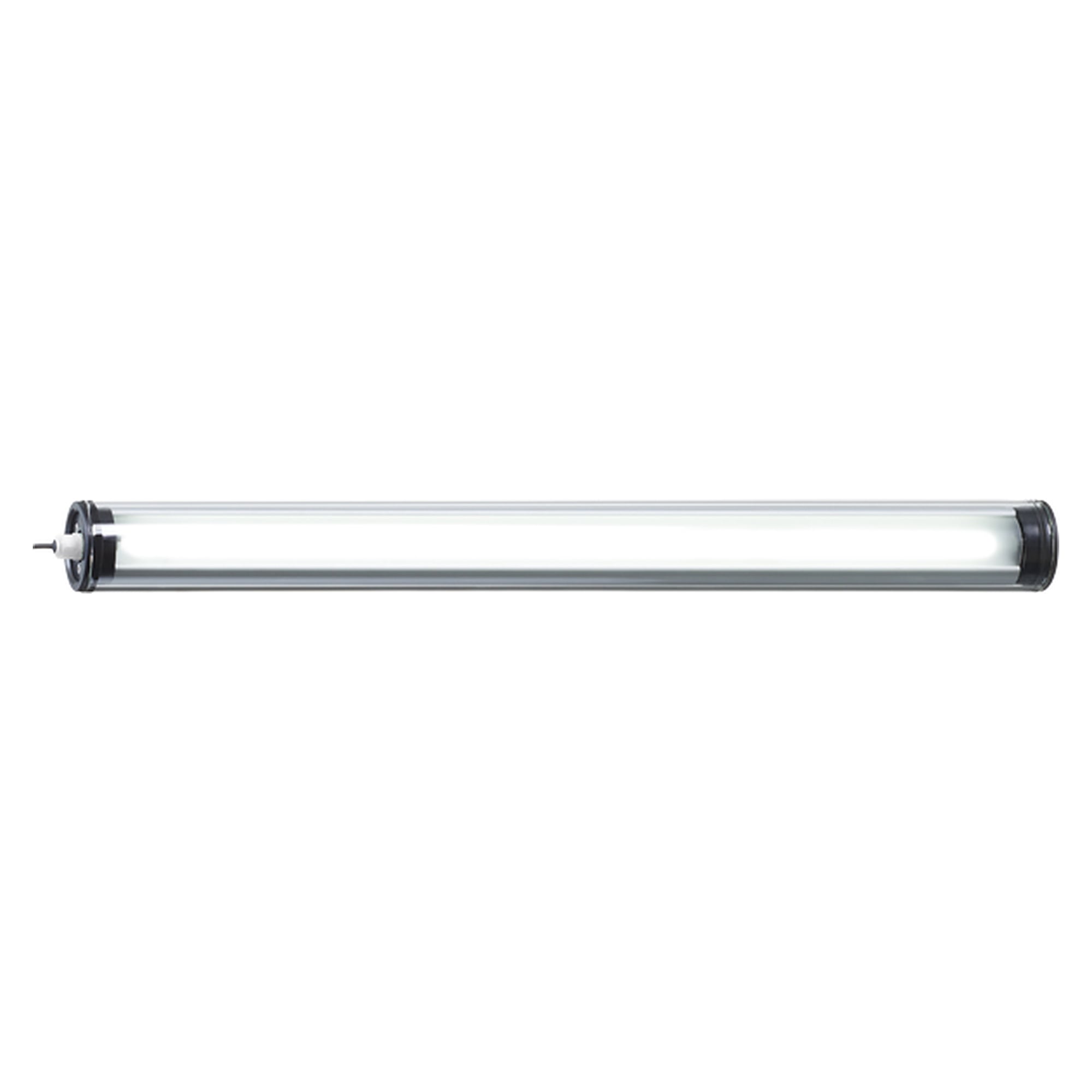

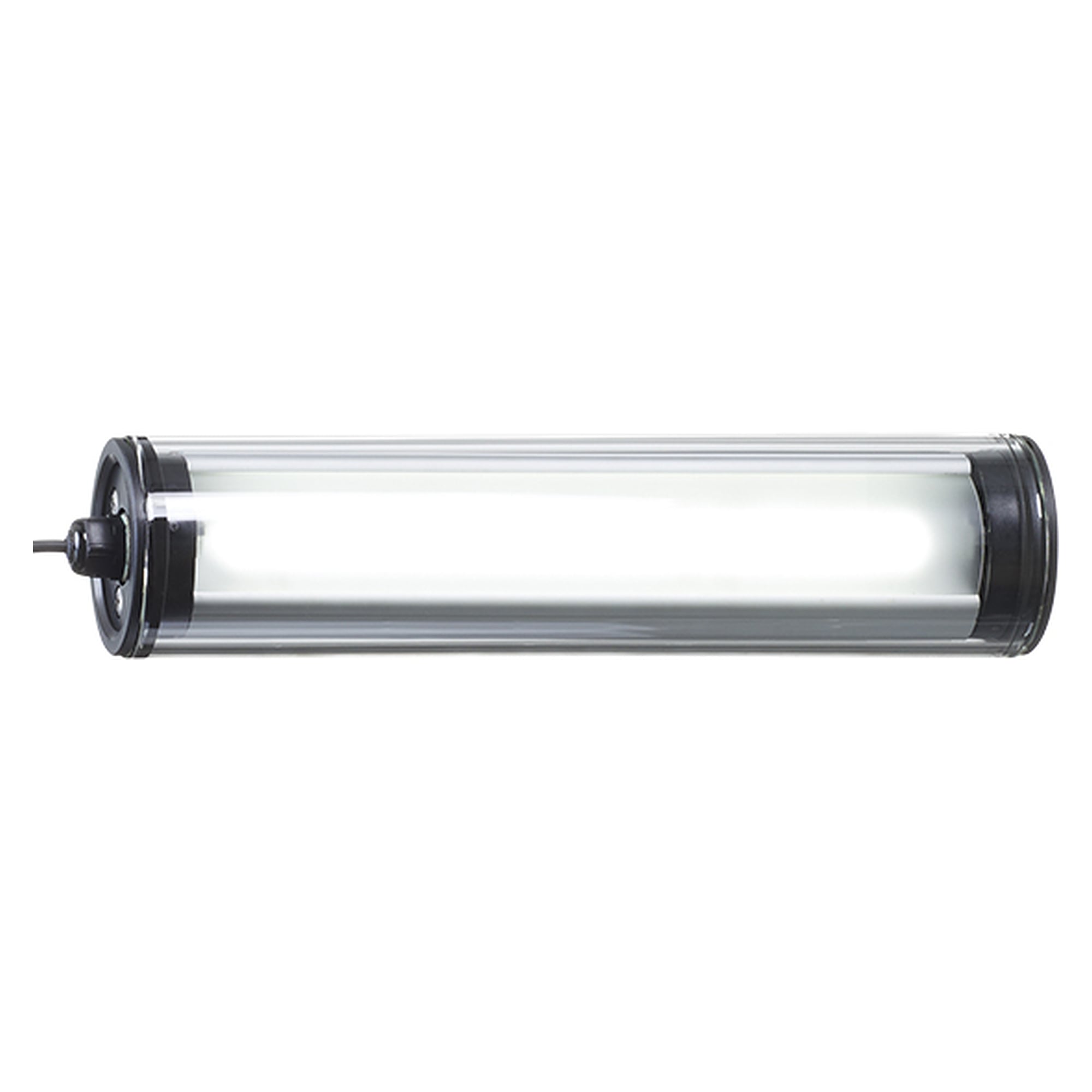

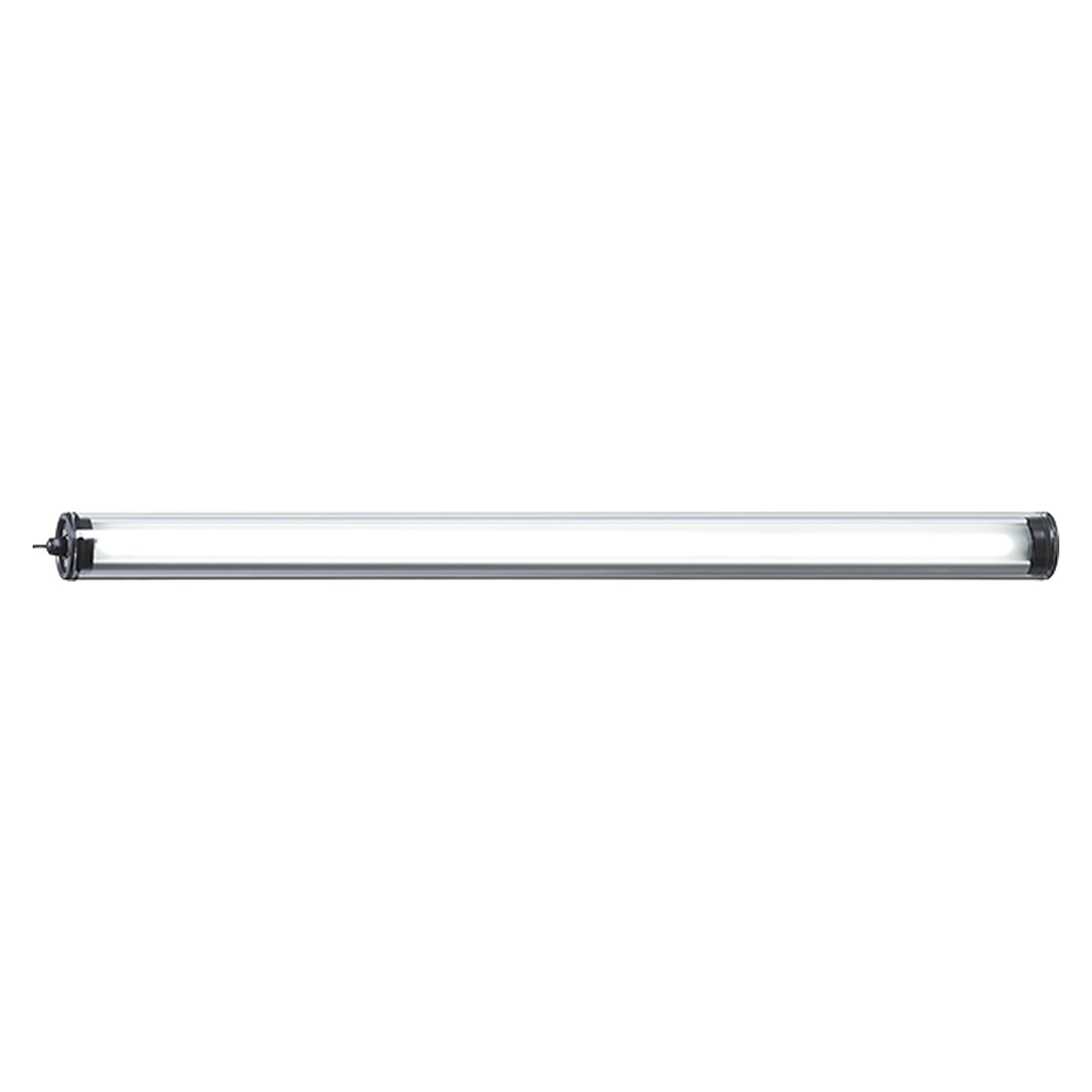

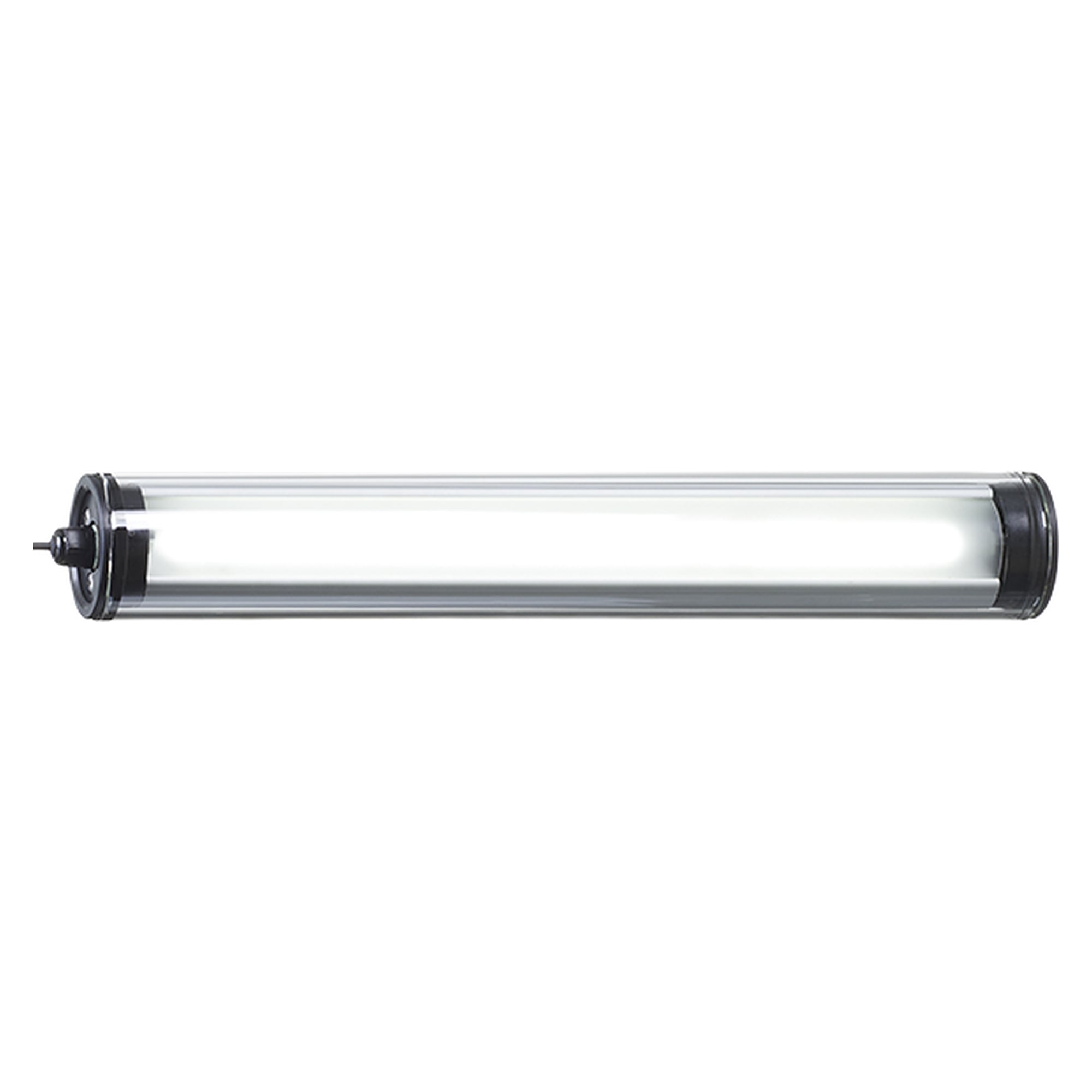

Narrow installation spacesTube luminaires for slim shafts and enclosed interiors.up to IP69K

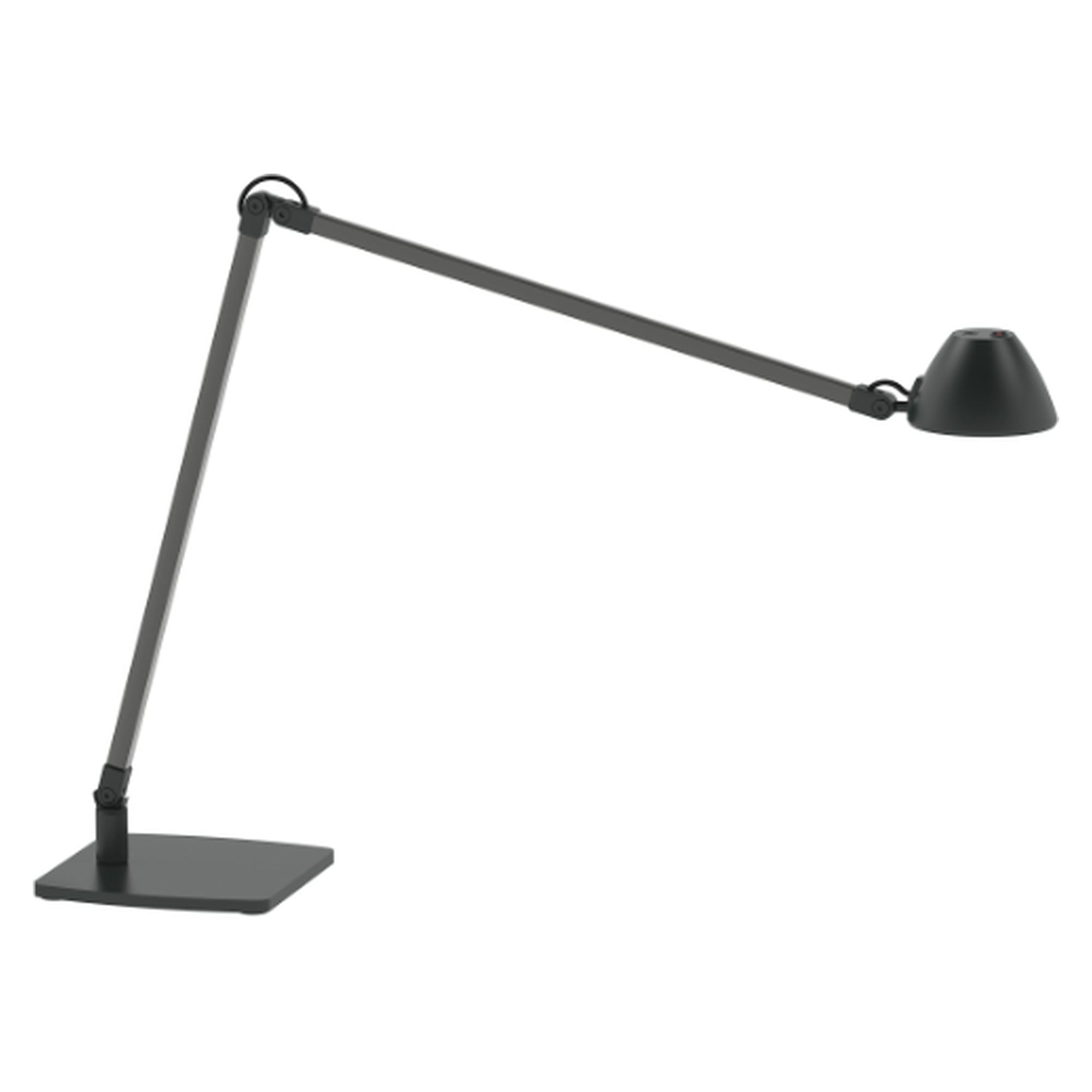

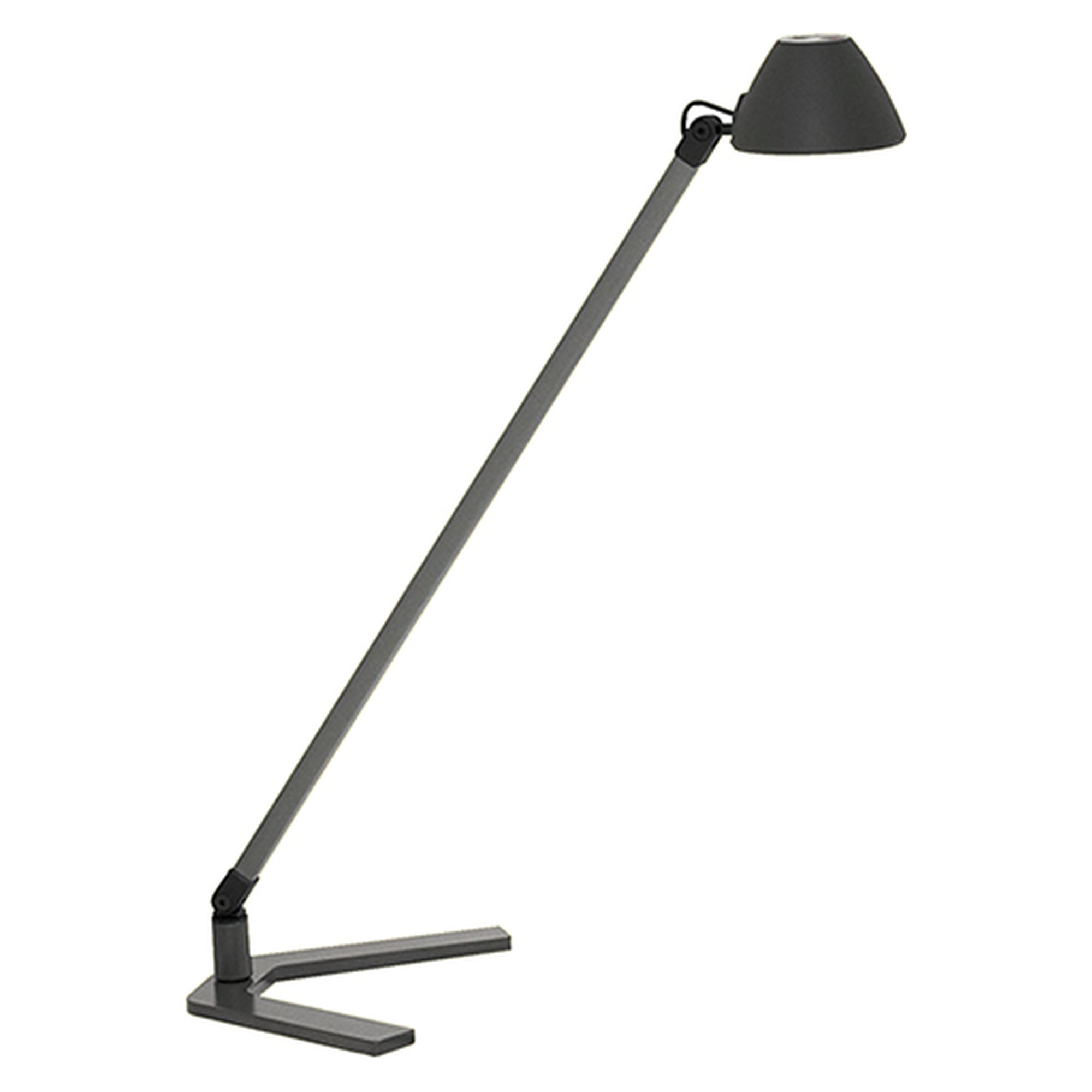

Freely positionableArticulated and flex arm lights for changing visual tasks.table clamp
Fine work with a magnifierMagnifier lights with ring-shaped illumination for small components.3 to 12 dpt
Visual inspectionRing lights and inspection lights with low-shadow illumination.
Status indicationSignal lights make plant states visible from a distance.

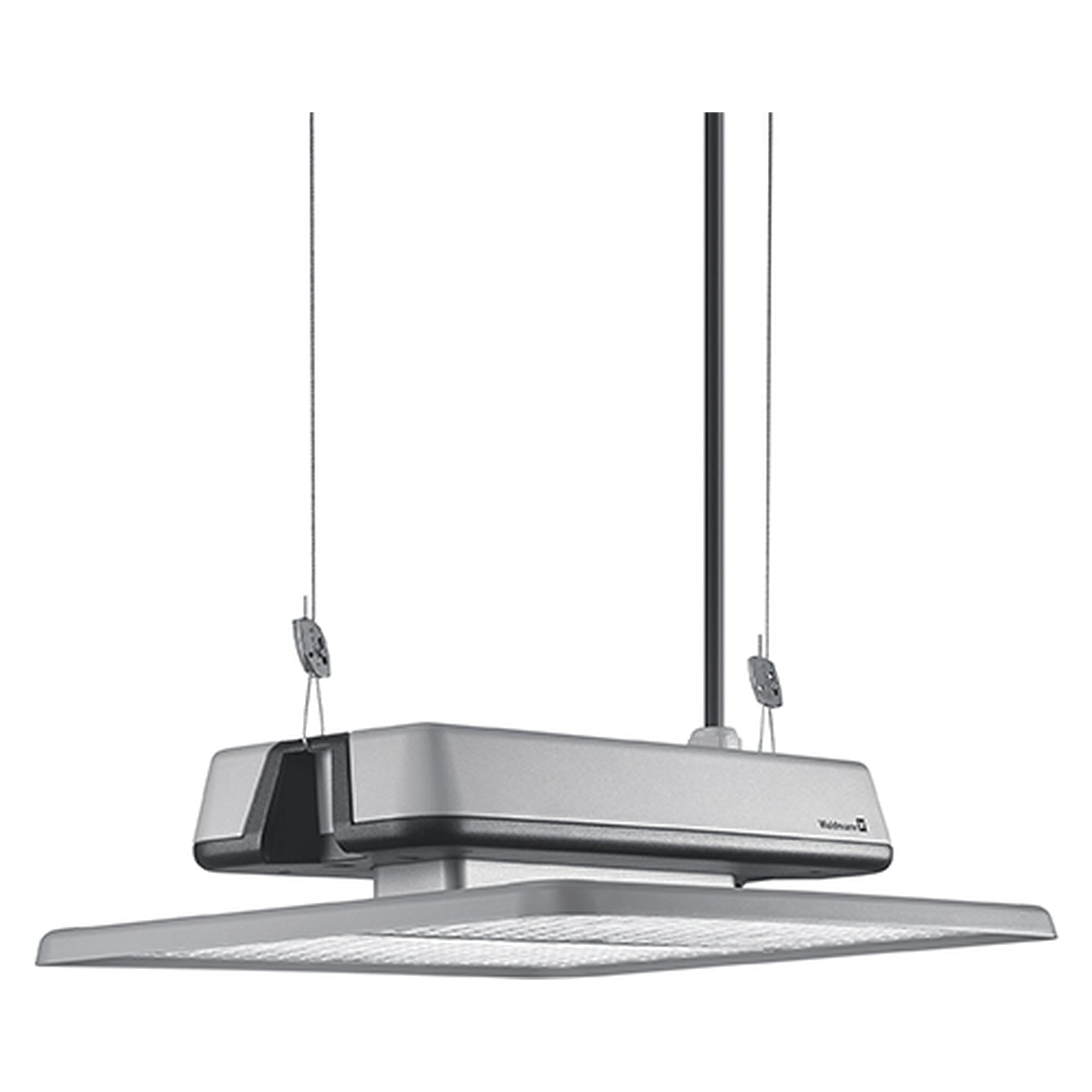

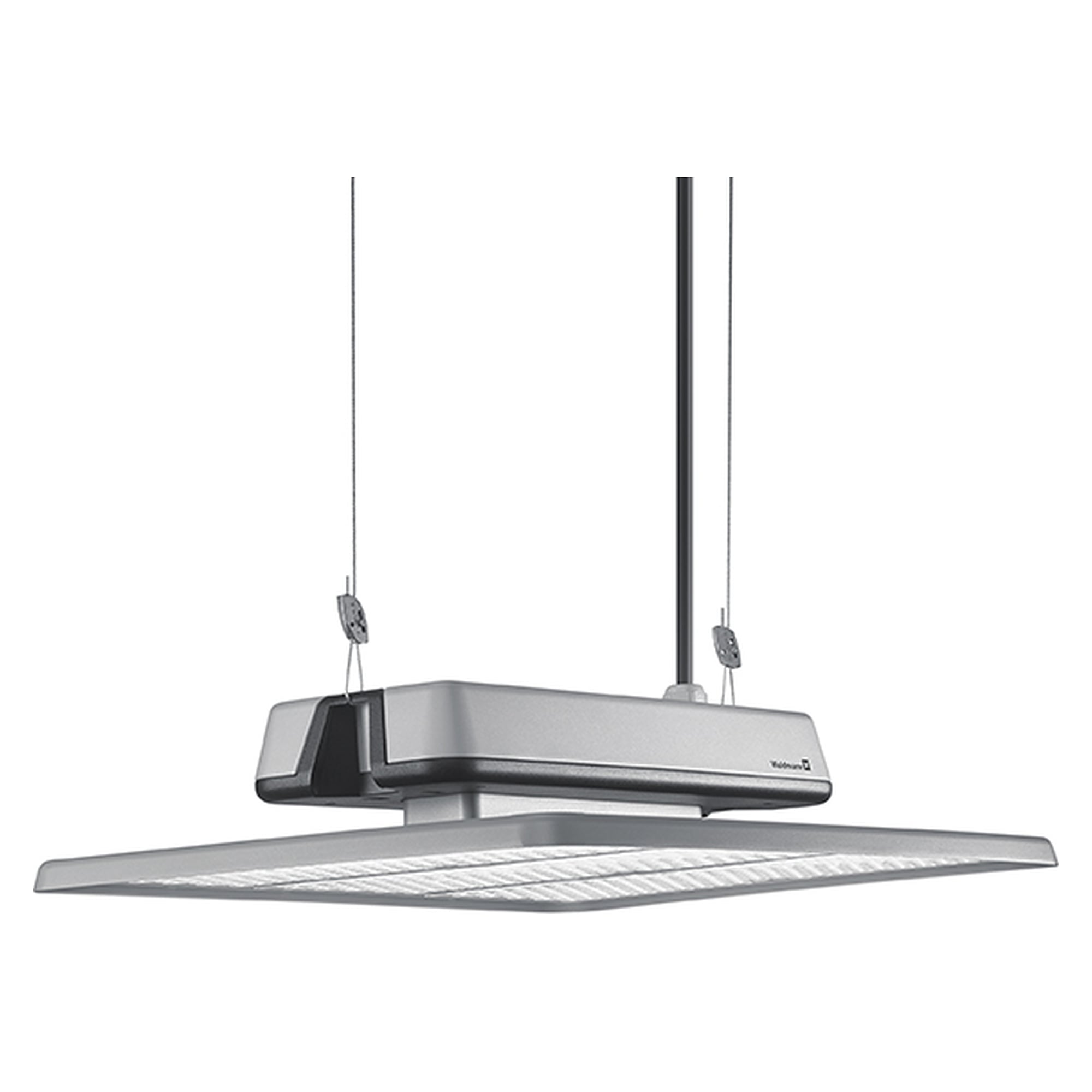

Hall and warehouseHigh bay lights for great heights and wide areas.up to 25000 lm
800 lmSupplementary light at a single station and at the magnifier.
4000 lmCommon size for workbench and assembly line.
6000 lmFor larger working surfaces and higher mounting.
12500 lmHall lighting at medium mounting height.
25000 lmTall halls and storage aisles with large spacing.
4000K neutral whiteStandard light colour for concentrated visual tasks.
3000K warm whiteCalmer light mood in ancillary and break areas.
Tunable WhiteAdapt light colour to time of day and task during operation.
Ra 90Precise colour judgement during inspection and soldering.
Surface-mountedFixed directly to ceiling, machine or rack.no suspension
Articulated armLight follows the workpiece and stays out of view.freely swivelling
PendantAbove bench, assembly line or hall floor.wire suspension
T-slot and profileMounted straight into the frame of benches and enclosures.aluminium profile
Table clampRetrofit on existing table tops and workbenches.no drilling
IP20 for interiorsDry workstations without splash water and dust.indoor
IP66 dust and jet proofProduction with chips, dust and cleaning water.water jets
IP69K for high-pressure cleaningWashdown and hygiene zones with daily wet cleaning.steam jet
DALI dimmableIntegration into the lighting control of hall and line.bus system
- 3,914 items
- 10 subcategories
- 24 manufacturers
- Net prices plus VAT
Buying guide
How to choose Workplace lighting
What matters when choosing: properties, comparison and typical applications.
Selection criteria for workplace lighting
| Criterion | What matters | Values in the range |
|---|---|---|
| Luminous flux | Guide value for area and mounting height | 800 lm to 25000 lm, frequently 4000 lm and 6000 lm |
| Light colour | Neutral white for visual tasks, warm white for ancillary areas | 4000K, 3000K, 5700K, 5000K, Tunable White |
| Colour rendering | Higher Ra value for inspection and colour judgement | Ra 80, Ra 90, Ra 85, Ra 95, Ra 98 |
| IP rating | Dust, chips, cooling lubricant and cleaning method | IP20, IP66, IP40, IP69K, IP67, IP54, IP65, IP68 |
| Mounting | Existing fixing on table, frame or ceiling | Surface-mounted, articulated arm, pendant, T-slot / profile, recessed, table clamp, wall, magnetic holder |
| Control | Dimming, switching and adjusting the light colour | DALI dimmable, switchable (HF), Tunable White, dimmable |
| Operating voltage | Machine luminaires often run on extra-low voltage | 24 V, 120-277 V, 100-240 V, 220-240 V, 48 V |
| Power input | Heat load and connected value at the workstation | 4 W to 78 W, frequently 15 W and 8 W |
| Beam angle | A narrow angle emphasises contrast, a wide angle covers surfaces | 100°, 120°, 40°, 30°, 90°, 60°, 10° |
| ESD suitability | Dissipative version for the ESD protected area | TEC, ESD (antistatic) |
Typical applications
Electronics production and EPA Luminaires in an ESD (antistatic) version and models carrying the TEC marking are intended for the ESD protected area. In addition there are articulated and flex arm lights and magnifier lights from 3 to 12 dpt for placement and rework.
Machine and plant engineering Machine luminaires mostly run on 24 V, versions for T-slot and profile sit straight in the frame, and IP66 withstands chips and cleaning water inside the machining area.
Visual inspection and quality assurance Ring lights and inspection lights provide low-shadow illumination. For colour judgement there are luminaires from Ra 90 to Ra 98, and beam angles run from 10° for tight contrast to 120° for surfaces.

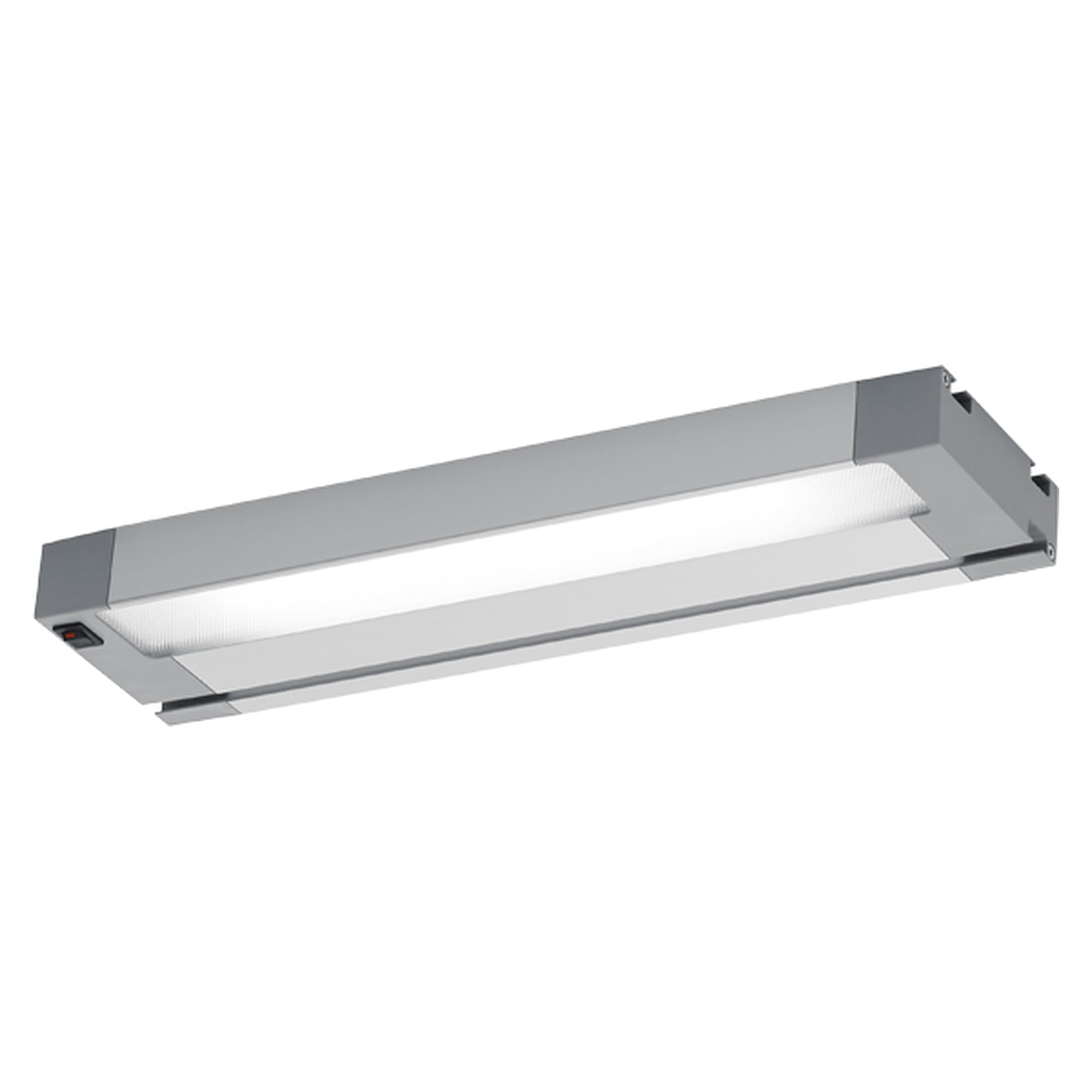

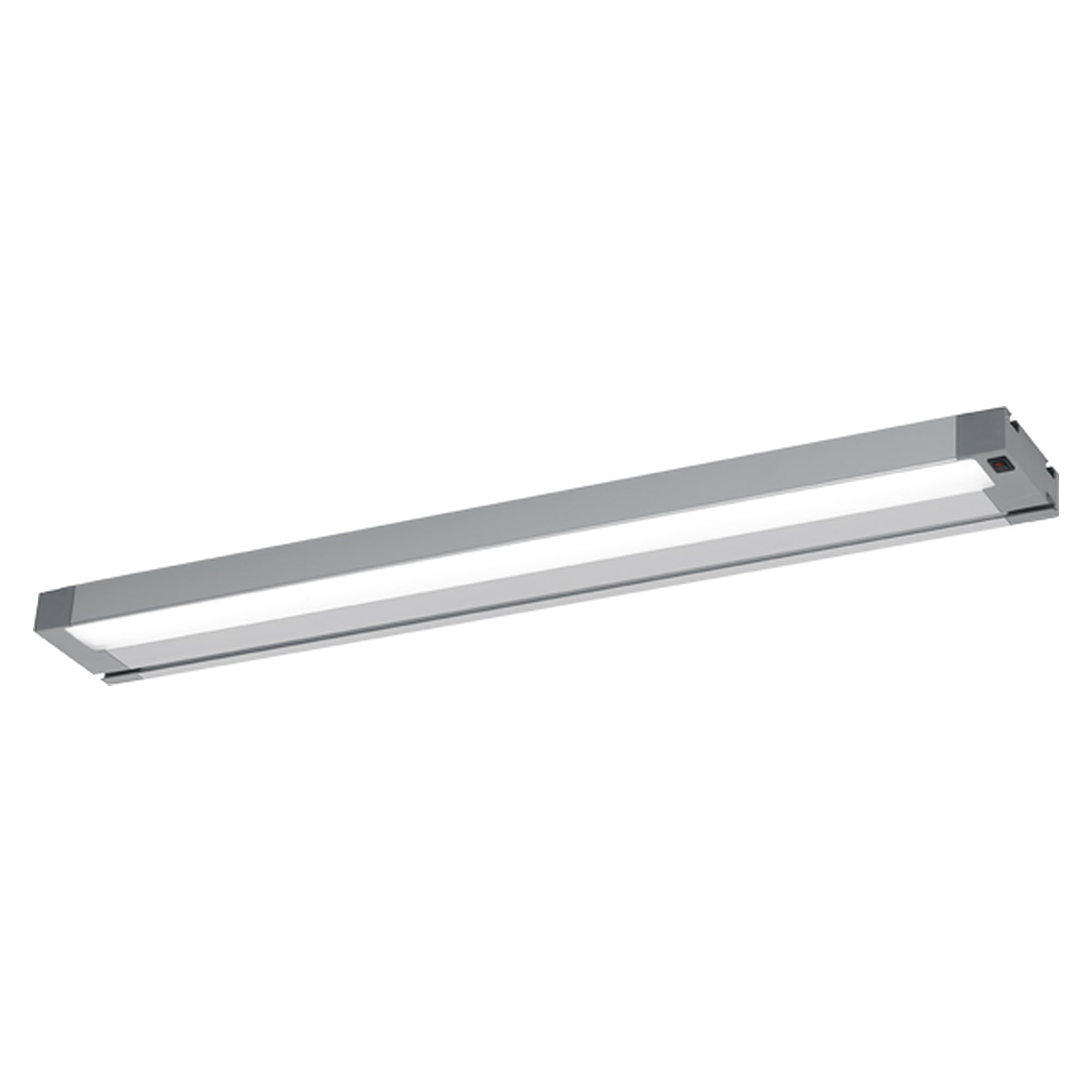

Workbench and assembly line System luminaires form continuous light lines on the frame, workplace luminaires light the individual station, and versions with a table clamp can be retrofitted without drilling.
Production hall and warehouse High bay and industrial lights cover large areas. For high mounting there are 12500 lm and 25000 lm, and DALI-dimmable versions integrate into the lighting control system.
Wet and washdown areas IP69K tolerates high-pressure and steam jet cleaning, while IP67 and IP68 are designed for splash water and permanent immersion.
