Barrier systems for EPA/ESD

ESD equipment

ESD barrier systems physically and visually demarcate EPA zones from unprotected areas, fulfilling a core requirement of IEC 61340-5-1 for access control to electrostatic protected areas. The range covers retractable belt post barriers (height 1,000 mm) in yellow and yellow-black, belt cassettes with 2.3 m and 3.6 m webbing (Warmbier 1801.G.K.23.DE / 1801.G.K.36.DE), wall-mounted cassette units, and plastic wall clips. Belt webbing is printed on both sides with "ESD Protected Area" or "EPA" in German, English, or bilingual DE/EN.

DIN A4 sign holders (Warmbier 1801.G.P.SA4) clip directly onto the posts to display additional warnings or procedural instructions. EPA floor marking tape and tamper-evident adhesive tape with tear-off effect (Warmbier 2850.SEC) for securing containers and packaging are also available.

✓ Belt post H 1,000 mm - yellow and yellow-black, post tube black with yellow base or reversed
⚙ Belt lengths 2.3 m and 3.6 m - steel cassette (50 mm belt width) or wall unit; single and dual belt versions
■ Double-sided print - German, English, and bilingual DE/EN; black print on yellow webbing
✦ DIN A4 sign holder - clip-on variant (Warmbier 1801.G.P.SA4) for posts; also suitable for dual-belt posts
📦 Floor marking and tamper tape - EPA floor marking tape and tamper-evident tape with tear-off effect (2850.SEC)
ItemVersionLanguage / Feature
Belt post yellowH 1,000 mm, single beltEPA print
Belt post yellow-blackH 1,000 mm, dual belt (2 m)EPA print
Warmbier 1801.G.K.23.DECassette 2.3 m, double-sidedGerman + English
Warmbier 1801.G.K.36.DECassette 3.6 m, double-sidedGerman + English

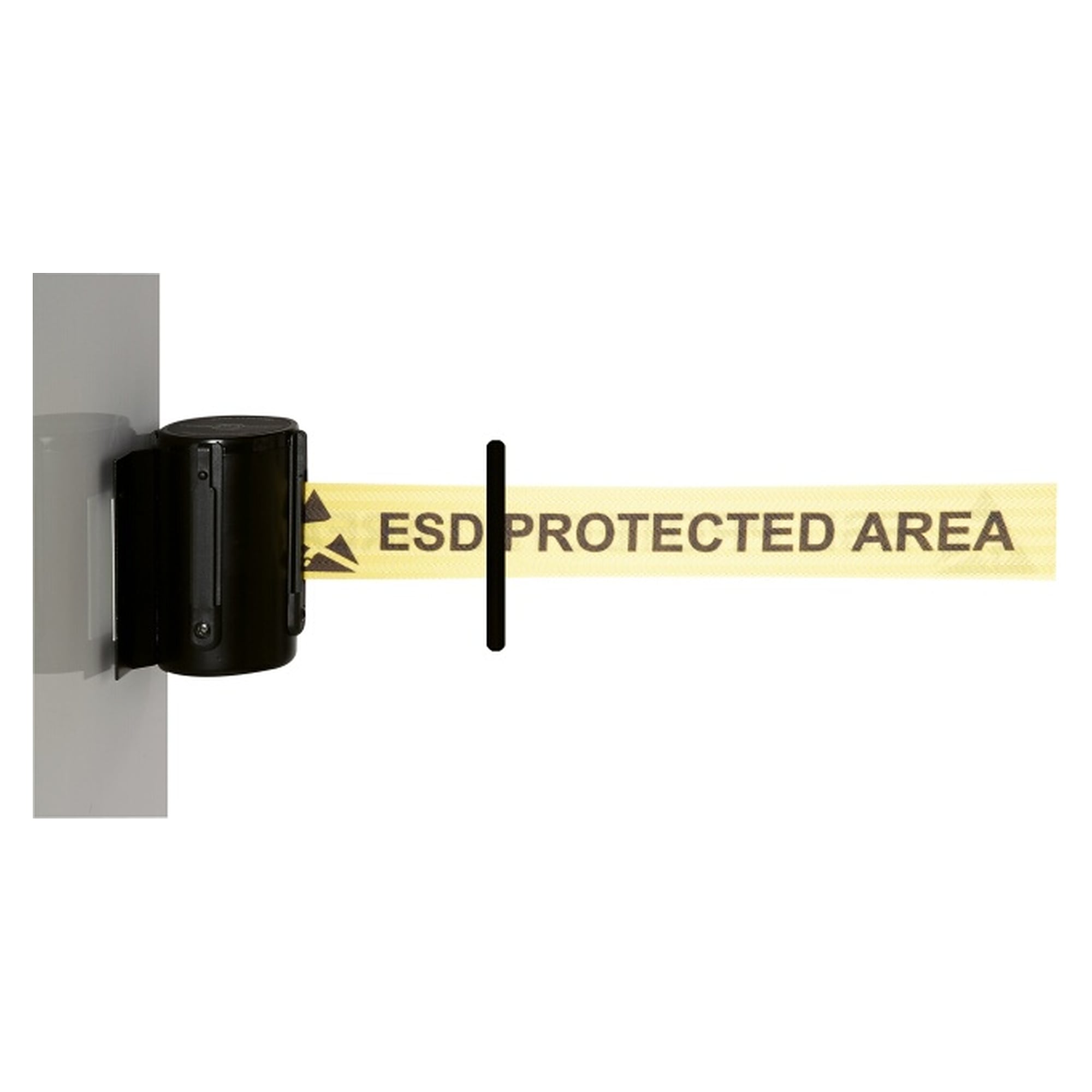

Warmbier 1801.G.W23Wall unit 2.3 mDE + EN
Warmbier 1801.G.W36.DEWall unit 3.6 mGerman + English
Warmbier 1801.G.P.SA4DIN A4 sign holderClips onto post

Typical applications: Securing and marking EPA entrances in SMT manufacturing areas, demarcating ESD protection zones in warehouses and quality assurance, temporary cordoning during maintenance and cleaning in EPA areas, and floor marking for walkways and zone boundaries in electronics production.

View as Grid List

Items 1-24 of 94

Set Ascending Direction
  1. EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 8.000 - A1-ESD EP0301069
    Add to Wish List Add to Compare
    EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 8.000 - A1-ESD EP0301069
    €14,480.00
    Excl. 19% VAT , excl. Shipping Cost
  2. EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 8.000 - A1-ESD EP0301070
    Add to Wish List Add to Compare
    EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 8.000 - A1-ESD EP0301070
    €14,480.00
    Excl. 19% VAT , excl. Shipping Cost
  3. EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 7.000 - A1-ESD EP0301078
    Add to Wish List Add to Compare
    EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 7.000 - A1-ESD EP0301078
    €13,480.00
    Excl. 19% VAT , excl. Shipping Cost
  4. EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 7.000 - A1-ESD EP0301079
    Add to Wish List Add to Compare
    EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 7.000 - A1-ESD EP0301079
    €13,480.00
    Excl. 19% VAT , excl. Shipping Cost
  5. EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301083
    Add to Wish List Add to Compare
    EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301083
    €13,280.00
    Excl. 19% VAT , excl. Shipping Cost
  6. EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301082
    Add to Wish List Add to Compare
    EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301082
    €13,280.00
    Excl. 19% VAT , excl. Shipping Cost
  7. EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301085
    Add to Wish List Add to Compare
    EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301085
    €12,600.00
    Excl. 19% VAT , excl. Shipping Cost
  8. EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301084
    Add to Wish List Add to Compare
    EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301084
    €12,600.00
    Excl. 19% VAT , excl. Shipping Cost
  9. EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 6.000 - A1-ESD EP0301068
    Add to Wish List Add to Compare
    EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 6.000 - A1-ESD EP0301068
    €12,380.00
    Excl. 19% VAT , excl. Shipping Cost
  10. EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 6.000 - A1-ESD EP0301067
    Add to Wish List Add to Compare
    EPA Kombi-Gate entrance system with turnstile, barrier and EPA-RESIST 6.000 - A1-ESD EP0301067
    €12,380.00
    Excl. 19% VAT , excl. Shipping Cost
  11. Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301065
    Add to Wish List Add to Compare
    Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301065
    €11,780.00
    Excl. 19% VAT , excl. Shipping Cost
  12. Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301066
    Add to Wish List Add to Compare
    Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301066
    €11,780.00
    Excl. 19% VAT , excl. Shipping Cost
  13. EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301087
    Add to Wish List Add to Compare
    EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301087
    €10,950.00
    Excl. 19% VAT , excl. Shipping Cost
  14. EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301086
    Add to Wish List Add to Compare
    EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301086
    €10,950.00
    Excl. 19% VAT , excl. Shipping Cost
  15. Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301072
    Add to Wish List Add to Compare
    Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301072
    €10,780.00
    Excl. 19% VAT , excl. Shipping Cost
  16. Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301073
    Add to Wish List Add to Compare
    Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301073
    €10,780.00
    Excl. 19% VAT , excl. Shipping Cost
  17. Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301097
    Add to Wish List Add to Compare
    Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301097
    €9,780.00
    Excl. 19% VAT , excl. Shipping Cost
  18. Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301098
    Add to Wish List Add to Compare
    Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301098
    €9,780.00
    Excl. 19% VAT , excl. Shipping Cost
  19. Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301064
    Add to Wish List Add to Compare
    Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301064
    €9,680.00
    Excl. 19% VAT , excl. Shipping Cost
  20. Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301063
    Add to Wish List Add to Compare
    Three-Arm Turnstile EPA-GO 212 with Droparm Emergency Opening, Stainless Steel - A1-ESD EP0301063
    €9,680.00
    Excl. 19% VAT , excl. Shipping Cost
  21. EPA Entrance System Protect Gate Complete with Swing-Arm Barrier - A1-ESD EP0301053
    Add to Wish List Add to Compare
    EPA Entrance System Protect Gate Complete with Swing-Arm Barrier - A1-ESD EP0301053
    €8,960.00
    Excl. 19% VAT , excl. Shipping Cost
  22. EPA Entrance System Protect Gate Complete with Swing-Arm Barrier - A1-ESD EP0301054
    Add to Wish List Add to Compare
    EPA Entrance System Protect Gate Complete with Swing-Arm Barrier - A1-ESD EP0301054
    €8,960.00
    Excl. 19% VAT , excl. Shipping Cost
  23. EPA Entrance System Protect Gate Complete with Swing-Arm Barrier - A1-ESD EP0301074
    Add to Wish List Add to Compare
    EPA Entrance System Protect Gate Complete with Swing-Arm Barrier - A1-ESD EP0301074
    €8,200.00
    Excl. 19% VAT , excl. Shipping Cost
  24. EPA Entrance System Protect Gate Complete with Swing-Arm Barrier - A1-ESD EP0301075
    Add to Wish List Add to Compare
    EPA Entrance System Protect Gate Complete with Swing-Arm Barrier - A1-ESD EP0301075
    €8,200.00
    Excl. 19% VAT , excl. Shipping Cost
Page
per page
What are ESD barrier systems and where are they primarily used in industrial applications?
ESD barrier systems are specialized access control and area demarcation solutions designed to protect Electrostatic Protected Areas (EPA) in electronics manufacturing, semiconductor production, and precision assembly environments. These systems create physical boundaries that prevent unauthorized access to sensitive ESD-controlled zones while maintaining proper grounding protocols according to IEC 61340-5-1 standards. Primary applications include cleanroom entrances, production line perimeters, and critical component handling areas where electrostatic discharge could damage sensitive electronic components worth thousands of euros per unit.
What are the key technical selection criteria for choosing ESD barrier systems?
Critical selection parameters for ESD barrier systems include surface resistance values between 10^6 to 10^9 ohms per square to ensure proper static dissipation, gate width ranging from 600mm for single-person access to 1200mm for equipment passage, and integration capability with existing EPA monitoring systems. Systems like the EPA-FLOW two-arm barrier and EPA-GO 212 three-arm turnstile offer different throughput capacities, with three-arm systems providing higher security for restricted areas while two-arm variants allow faster personnel flow in high-traffic zones. Material selection must consider chemical compatibility with cleaning agents used in cleanroom environments.
Which international standards and certifications apply to ESD barrier systems?
ESD barrier systems must comply with IEC 61340-5-1 for electrostatic control in electronics manufacturing and ISO 14644 series for cleanroom compatibility where applicable. European installations require CE marking under EMC Directive 2014/30/EU, while materials must meet flame retardancy standards according to UL 94 V-0 classification. Additional certifications include ANSI/ESD S20.20 for comprehensive ESD control programs and DIN EN 100015 for packaging and handling of electrostatic sensitive devices, ensuring complete integration with existing quality management systems.
What are the main differences between EPA barrier system variants like gates versus turnstiles?
EPA gate systems like the Protect Gate LED provide bi-directional access with integrated ESD testing capabilities and visual status indicators, making them ideal for areas requiring frequent equipment movement and flexible access patterns. Three-arm turnstiles such as the EPA-GO 212 offer unidirectional control with higher security levels, processing one person per 2-3 second cycle while maintaining positive access logging. Two-arm barriers like EPA-FLOW provide intermediate security with faster throughput rates suitable for production areas where personnel movement frequency exceeds 100 passages per hour during peak shifts.
What installation requirements and system compatibility considerations apply to ESD barrier systems?
ESD barrier system installation requires dedicated 24VDC power supply with backup capability, ethernet connectivity for integration with facility management systems, and proper grounding connections to the EPA common point ground network with resistance values below 1 ohm. Floor mounting typically requires 4-point anchor bolt patterns with M12 hardware suitable for both concrete and raised floor installations. Systems must interface with existing access control infrastructure through standard protocols like TCP/IP or RS-485, while maintaining compatibility with wrist strap testers and personnel grounding verification equipment already deployed in the EPA environment.
What safety ratings and environmental specifications do ESD barrier systems meet?
Professional ESD barrier systems typically achieve IP54 protection rating for resistance to dust and water ingress, enabling operation in industrial environments with occasional cleaning procedures using approved antistatic solutions. Operating temperature range extends from +5°C to +40°C with relative humidity tolerance up to 85% non-condensing, matching standard cleanroom environmental conditions. Electrical safety compliance includes low voltage operation under 48VDC with integrated overcurrent protection, while mechanical safety features prevent pinch points and ensure emergency egress capability within 3 seconds of power failure or alarm activation.
What maintenance schedule and inspection requirements apply to ESD barrier systems?
ESD barrier systems require weekly visual inspections for physical damage and monthly electrical testing of grounding connections using calibrated resistance meters to verify values remain below 1 ohm to facility ground. Quarterly cleaning with approved antistatic cleaning solutions maintains surface conductivity within the required 10^6 to 10^9 ohm range, while annual calibration of integrated ESD testing equipment ensures continued compliance with IEC 61340-5-1 verification requirements. Mechanical components including motors and sensors typically achieve 5-year service life under normal industrial use conditions, with replacement parts availability guaranteed for minimum 10 years from initial installation.
