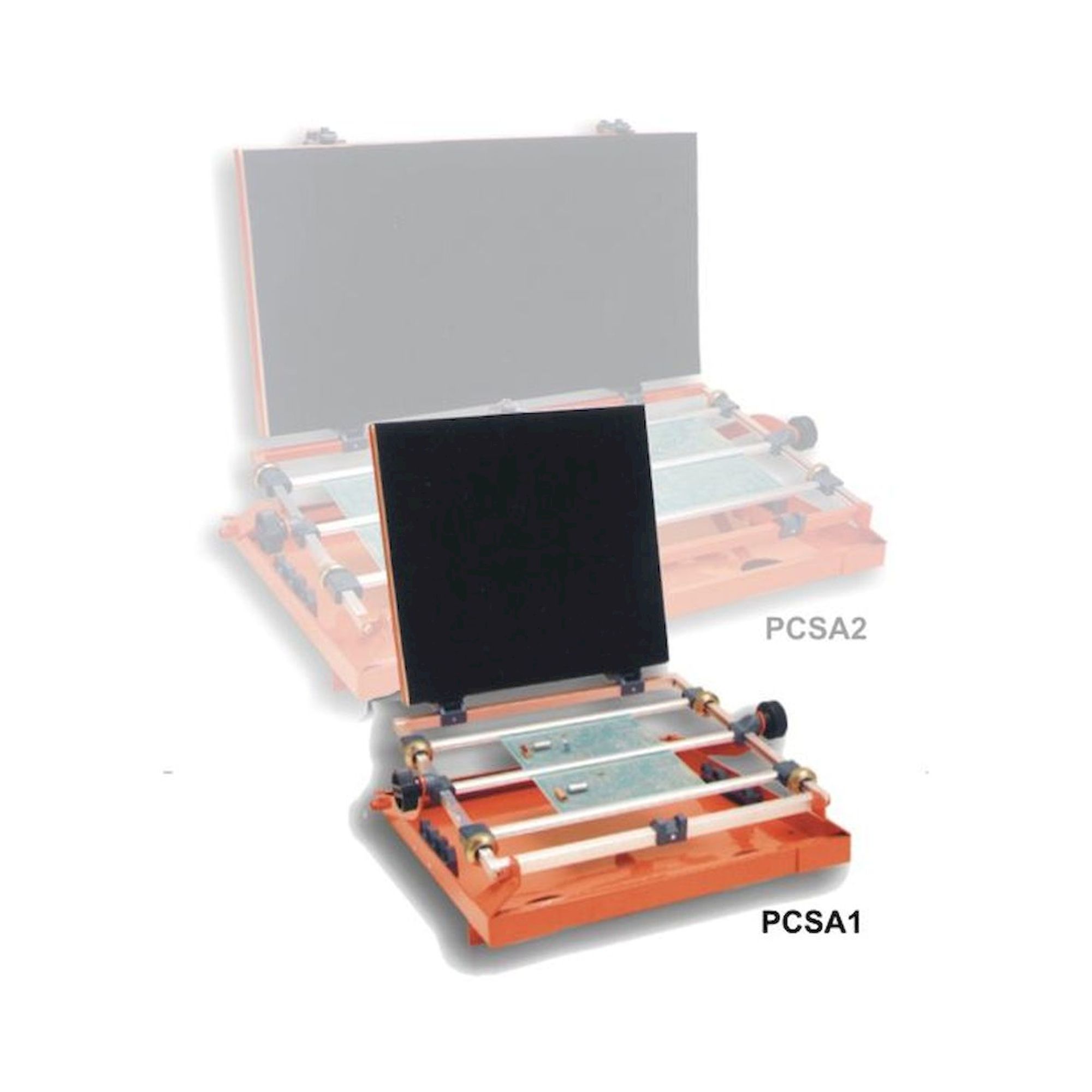

Cadre d'équipement pour circuits imprimés, max. 270 x 220 mm

PCB's holder for placing
• max working dimensions 270 x 220 mm
• designed to simplify placing and soldering of electronic components
• supplied with central and two sliding rails as standards
• additional rails may be added to accomodate a large number of small boards
• frame and lid assembly may be detached from the mounting base
• after mounting the components on the PCB's, the foam back lid is attached and closed, and the whole assembly is lifted and rotated for soldering
• ingenious design of the base permit an adjustable working angle on both side of the PCB's
• jig is varnished steel, and the component pressing foam is in conductive material
