19 249,00 €
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-536030
Fabricant Nr.
VL/O-3-1/2-EX

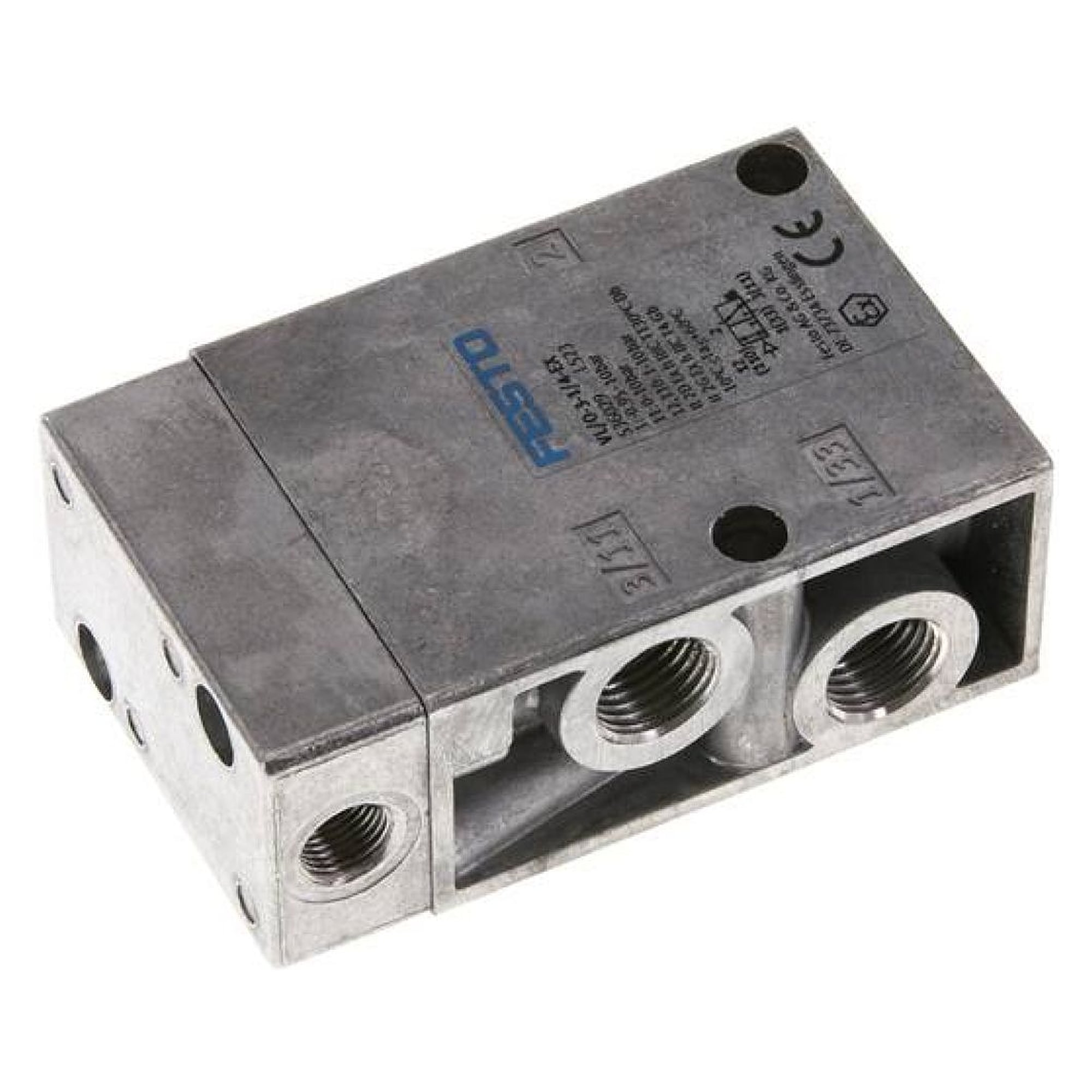

(536030) Pneumatikventil
Les images sont fournies à titre de référence et peuvent ne pas être exactes, le produit réel peut différer.
Fréquemment achetés ensemble
-
Cet article:
19 249,00 €Excl. 19% VAT , excl. Shipping Cost
-
Festo MFH-3-1/2-EX (535899) Magnetventil
22 176,00 €Excl. 19% VAT , excl. Shipping Cost
-
Festo JH-5-1/2 (10165) Pneumatikventil
24 443,00 €Excl. 19% VAT , excl. Shipping Cost
Total price
| Ventilfunktion | 3/2 offen/geschlossen monostabil |
| Betätigungsart | pneumatisch |
| Baubreite [mm] | 52,0 |
| Normalnenndurchfluss [l/min] | 3.700 |
| Betriebsdruck [bar] | -0,95 bis 10 |
| Konstruktiver Aufbau | Teller-Sitz |
| Rückstellart | mechanische Feder |
| Nennweite [mm] | 14 |
| Abluftfunktion | drosselbar |
| Dichtprinzip | weich |
| Einbaulage | beliebig |
| Steuerart | direkt |
| Steuerluftversorgung | extern |
| Strömungsrichtung | reversibel |
| Überdeckung | negative Überdeckung |
| Steuerdruck [bar] | 1 bis 10 |
| Schaltzeit aus [ms] | 30 |
| Schaltzeit ein [ms] | 17 |
| Betriebsmedium | Druckluft nach ISO 8573-1:2010 [7:4:4] |
| Hinweis zum Betriebs- und Steuermedium | Geölter Betrieb möglich (im weiteren Betrieb erforderlich) |
| Korrosionsbeständigkeitsklasse KBK | 1 - niedrige Korrosionsbeanspruchung |
| Lagertemperatur [°C] | -20 bis 60 |
| Mediumstemperatur [°C] | -10 bis 60 |
| Steuermedium | Druckluft nach ISO 8573-1:2010 [7:4:4] |
| Umgebungstemperatur [°C] | -10 bis 60 |
| Produktgewicht [g] | 860 |
| Befestigungsart | mit Durchgangsbohrung wahlweise: auf Anschlussleiste |
| Anschluss Steuerluft 110 | G1/4 |
| Anschluss Steuerluft 12 | G1/4 |
| Pneumatischer Anschluss 1 | G1/2 |
| Pneumatischer Anschluss 11 | G1/2 |
| Pneumatischer Anschluss 2 | G1/2 |
| Pneumatischer Anschluss 3 | G1/2 |
| Pneumatischer Anschluss 33 | G1/2 |
| Werkstoffhinweis | RoHS konform |
| Werkstoff Dichtungen | NBR |
| Werkstoff Gehäuse | Aluminium-Druckguss |
| Rastermaß [mm] | 69 |
| Handhilfsbetätigung | keine |
| b-Wert | 0.3 |
| CE-Zeichen (siehe Konformitätserklärung) | nach EU-Ex-Schutz-Richtlinie (ATEX) |
| ATEX-Kategorie Gas | II 2G |
| ATEX-Kategorie Staub | II 2D |
| Ex-Zündschutzart Gas | Ex h IIC T4 Gb |
| Ex-Zündschutzart Staub | Ex h IIIC T130°C Db |
| Ex-Umgebungstemperatur | -10°C <= Ta <= +60°C |
| Anschluss Atmungsöffnung | M5 |
| Fabricant Nr. | VL/O-3-1/2-EX |
|---|---|
| Fabricant | Festo |
| EAN | 4052568170592 |
| Poids | 0.800000 |
| Numéro de tarif douanier | 84812090 |
| Informations sur le fabricant du GPSR | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Authenticité de l'article | Produit original |
| Estado del artículo | Nuevo |
