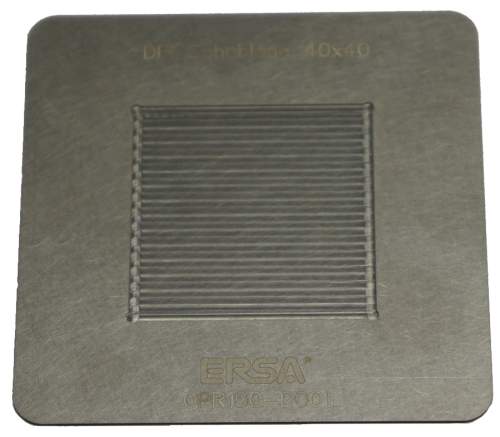

The product may differ from the illustration
Dip stencil 40 x 40 mm with a 300 µm foil thickness for the Ersa Dip and Print Station 0PR100. By dipping the component it deposits a defined amount of flux or solder paste at the solder joints. Suitable for BGA and most fine-pitch components.
Dip Stencil 40 x 40 mm, 300 µm, for Dip and Print Station - Ersa 0PR100-D001
ERSA
Original product
Net price (excl. VAT)
€446.25
Excl. 19% VAT ,
excl. Shipping Cost
Available
Fast shipping
Item
ER-0PR100-D001
Manufacturer no.
0PR100-D001
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.0PR100-D001
EAN4003008090796
Country of originGermany
ConditionNew
Article
ER-0PR100-D001
Frequently Bought Together
-
This Item:
€446.25Excl. 19% VAT , excl. Shipping Cost
-
Control Cable i-Con C to HP100A - Ersa 0IRHP100A-14
€36.75Excl. 19% VAT , excl. Shipping Cost
-
Extension for Flexpoint Thermocouple Holder - Ersa 0IR5500-36
€299.25Excl. 19% VAT , excl. Shipping Cost
Total price
The Ersa dip stencil 40 x 40 mm is used for component preparation on the Ersa Dip and Print Station 0PR100. By dipping the component, a defined depot of flux or solder paste is created at the solder joints - suitable for BGA and most fine-pitch components.
Technical data
| Type | Dip stencil |
| Dimensions | 40 x 40 mm |
| Foil thickness | 300 µm |
| Compatible with | Ersa Dip and Print Station 0PR100 |
| Application | Flux or solder paste application, BGA and fine-pitch |
| Manufacturer part number | 0PR100-D001 |
| EAN | 4003008090796 |
| Execution | TEC |
|---|---|
| Manufacturer Nr. | 0PR100-D001 |
| Manufacturer | Ersa |
| Country of Manufacture | Germany |
| EAN | 4003008090796 |
| ESD equipment | ESD Lötstationen |
| Weight | 0.100000 |
| GPSR manufacturer information | Ersa GmbH, Leonhard Karl Str. 24, DE-97877 Wertheim, www.kurtzersa.de |
| Article authenticity | Original product |
| Condition of article | New |
