Rework Systems

Ersa Soldering Technology

Ersa rework systems combine IR bottom heating, hot-air top heating and precise temperature control in a single unit for safe removal and re-soldering of BGA, QFP and CSP components. The Hybrid Rework System HR100A at 200 W heating power combines IR and hot-air heating and is available with an integrated heating plate (HR100A-HP) or as a pure handpiece system. The i-Con C control cable connects the control unit to the HP100A handpiece, while the Y-adapter 0IRHP100A-15 enables simultaneous operation of the HP100A and solder extraction.

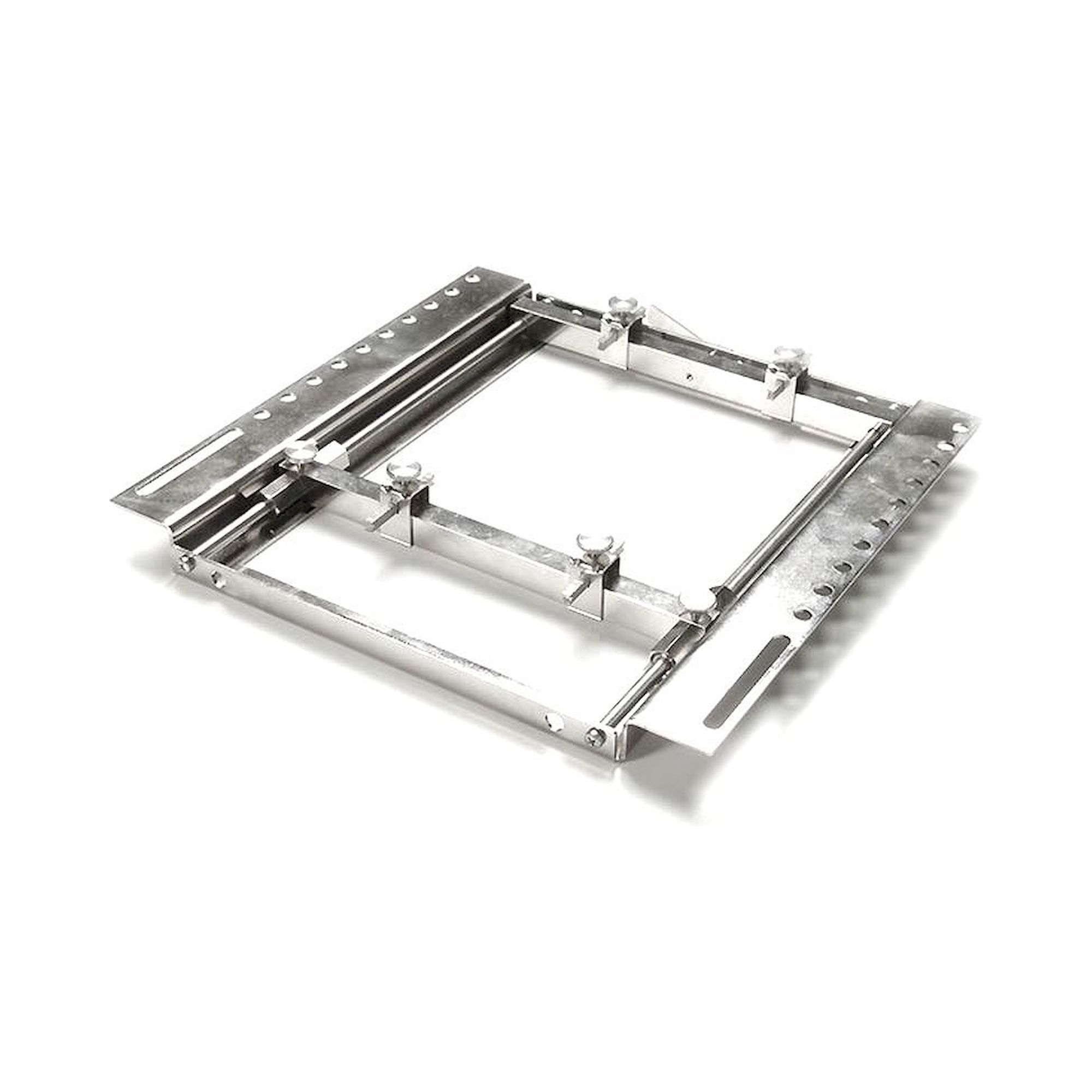

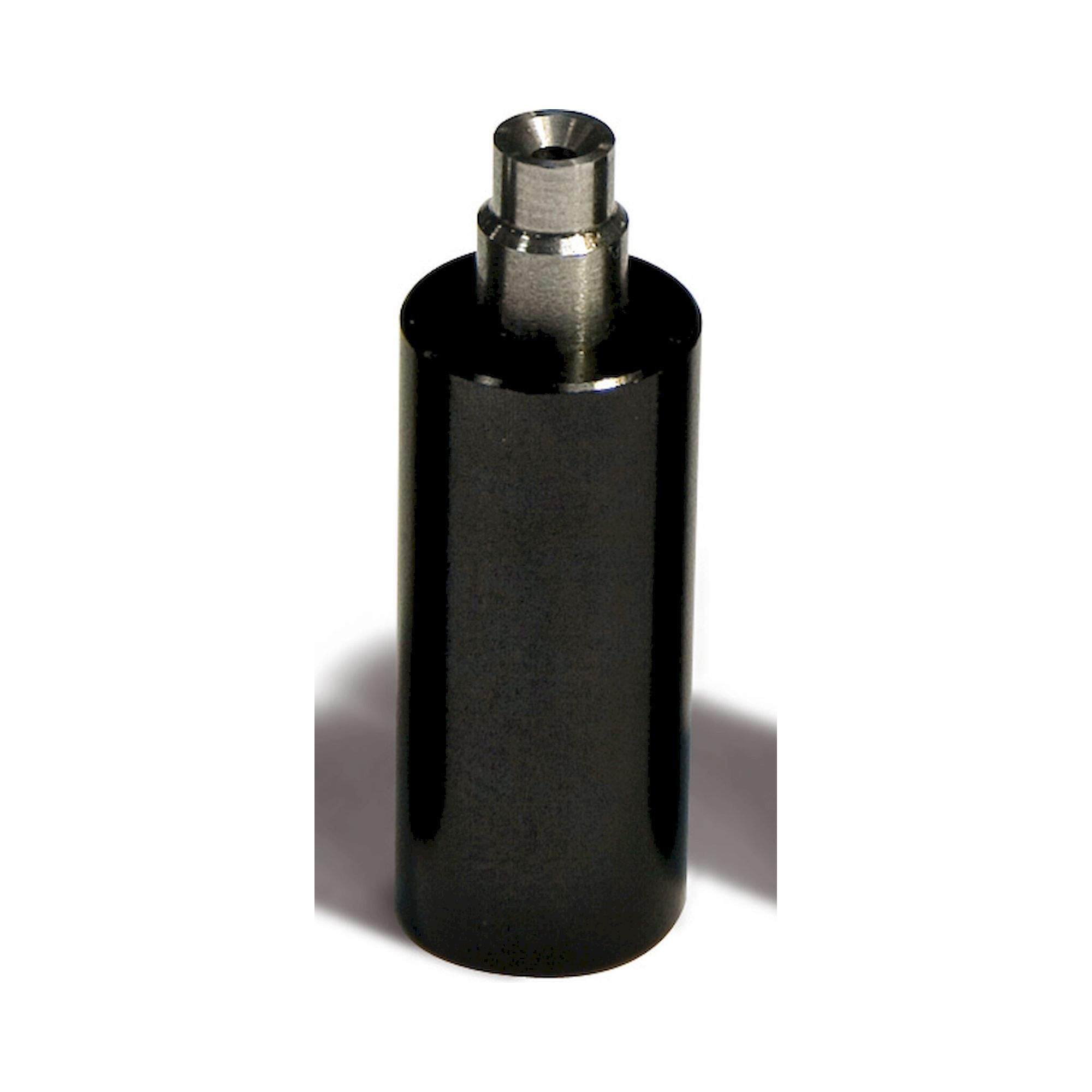

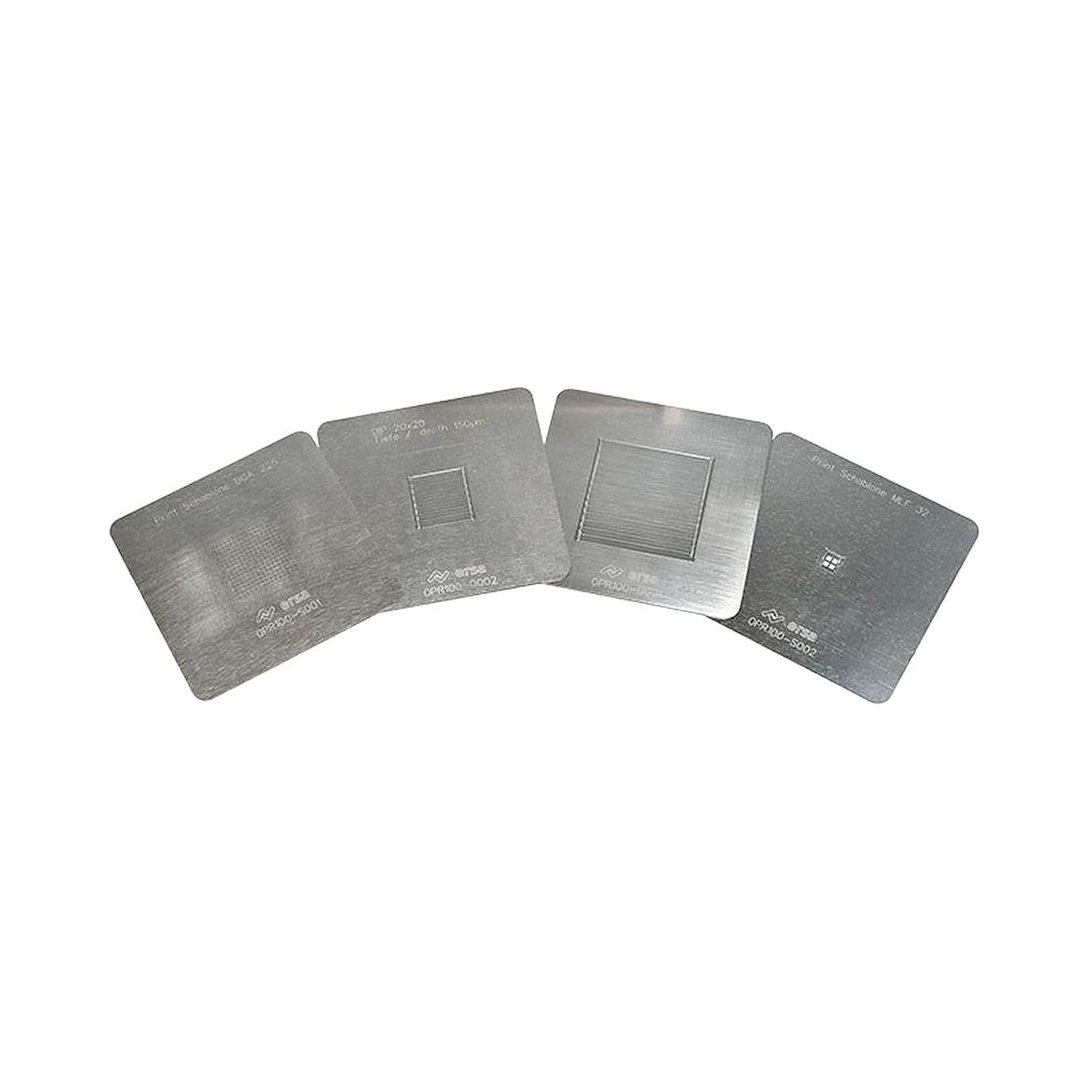

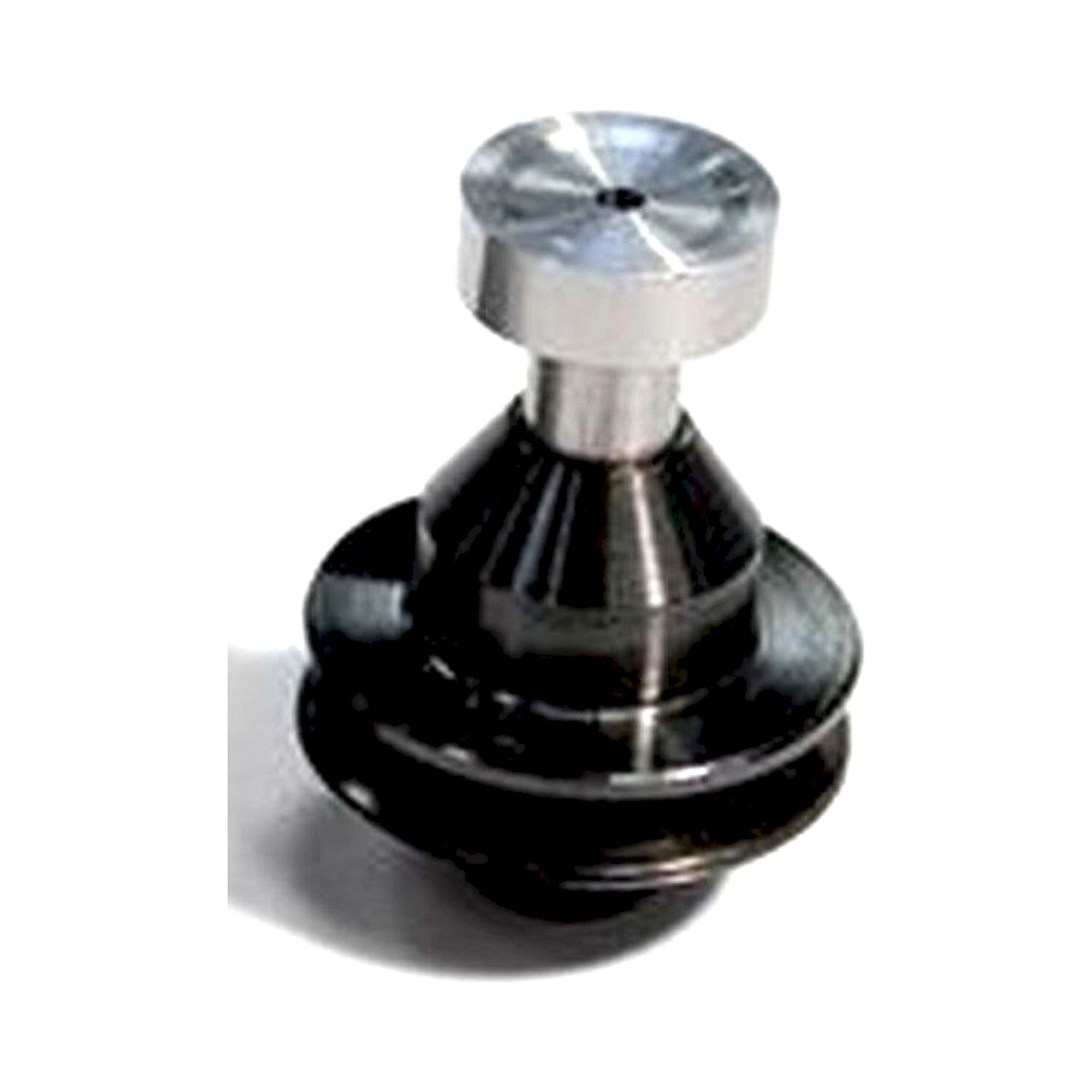

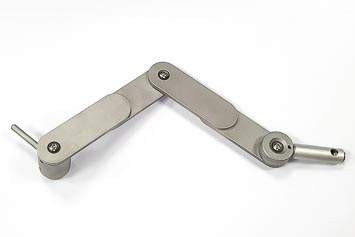

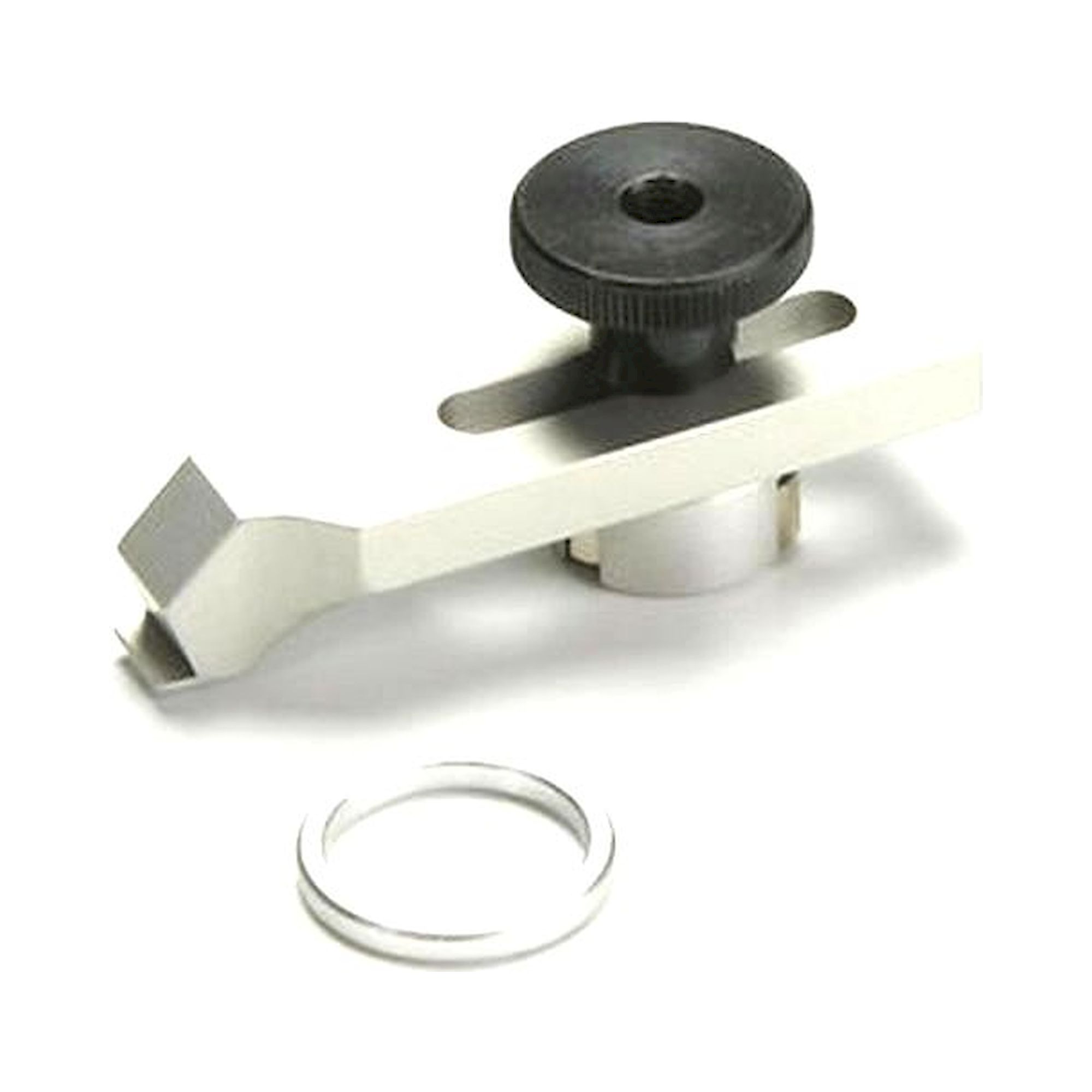

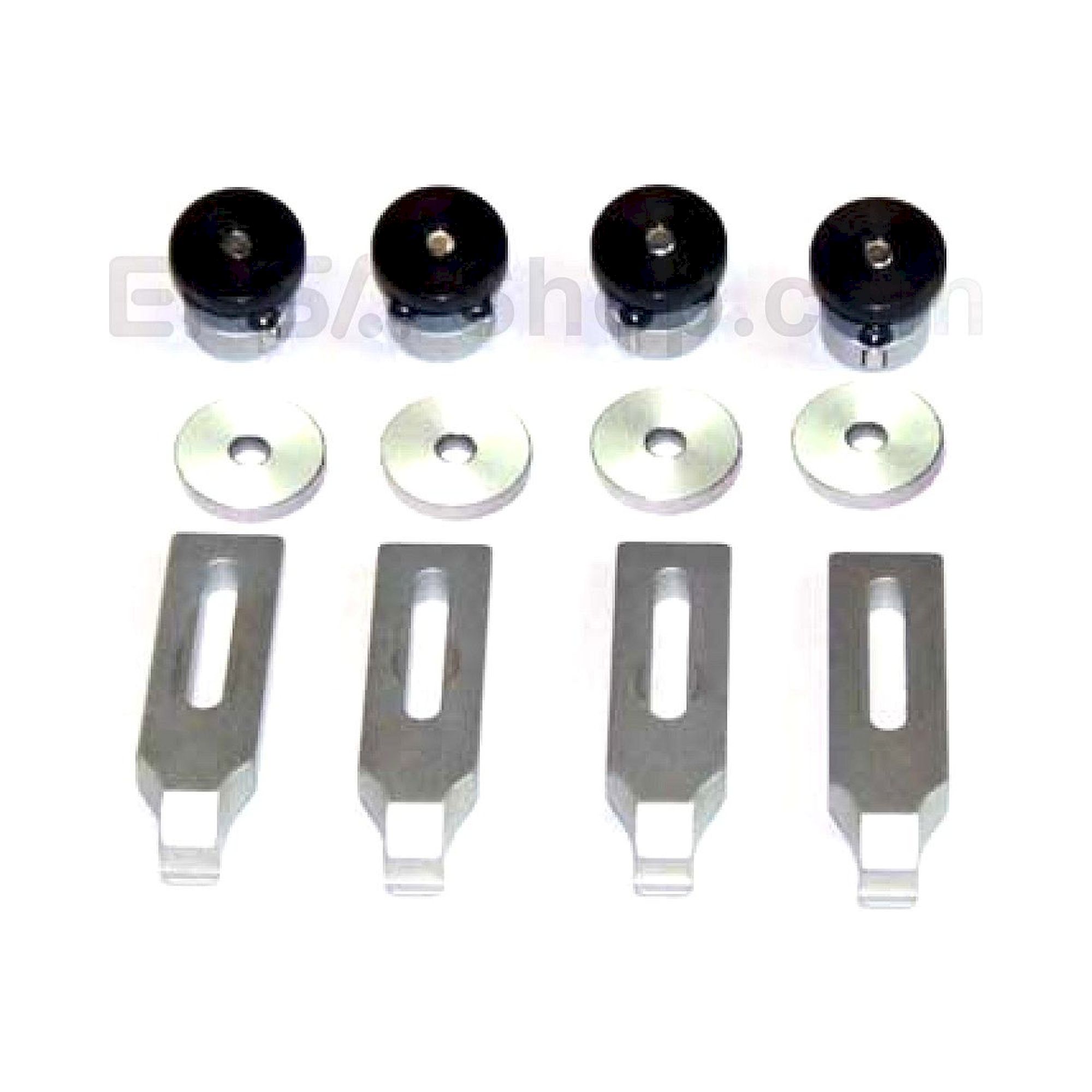

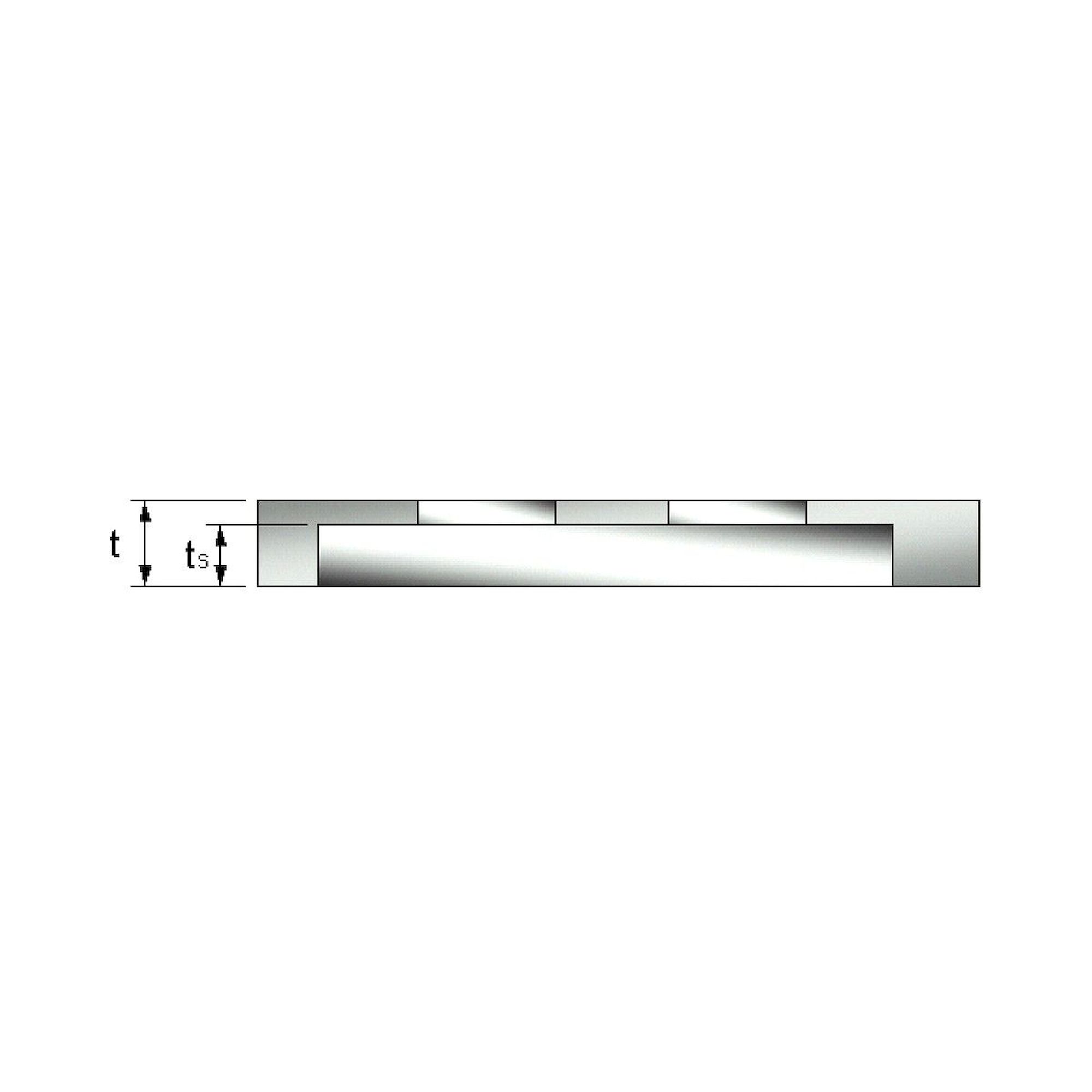

The range covers 128 articles including complete systems, stands, cables and accessories. The dedicated rework stand for the HR 100 A holds the handpiece in position above the component, reducing operator fatigue during sustained use.

⚡ 200 W heating power (HR100A) - combined IR and hot-air heating for even heat distribution

⚙ Hybrid IR + hot-air principle - gentle heating of BGA, QFP and CSP without thermal stress

✓ Heating plate option HR100A-HP - integrated bottom heater stabilises the thermal gradient across the board

✦ Modular system cabling - Y-adapter 0IRHP100A-15 for simultaneous extraction and HP100A operation

📦 Complete stands available - rework stand 0IRHR-ST050 for precise, low-fatigue handpiece positioning

Part number	Description	Notes
0IRHR100A	Hybrid Rework System HR100A, IR + hot-air, 200 W	Without heating plate
0IRHR100A-HP	HR100A with integrated heating plate, 200 W	Bottom heater for BGA rework
0IRHP100A-14	Control cable i-Con C to HP100A	Connects control unit to handpiece
0IRHP100A-15	Y-adapter i-Con C	HP100A + extraction simultaneously

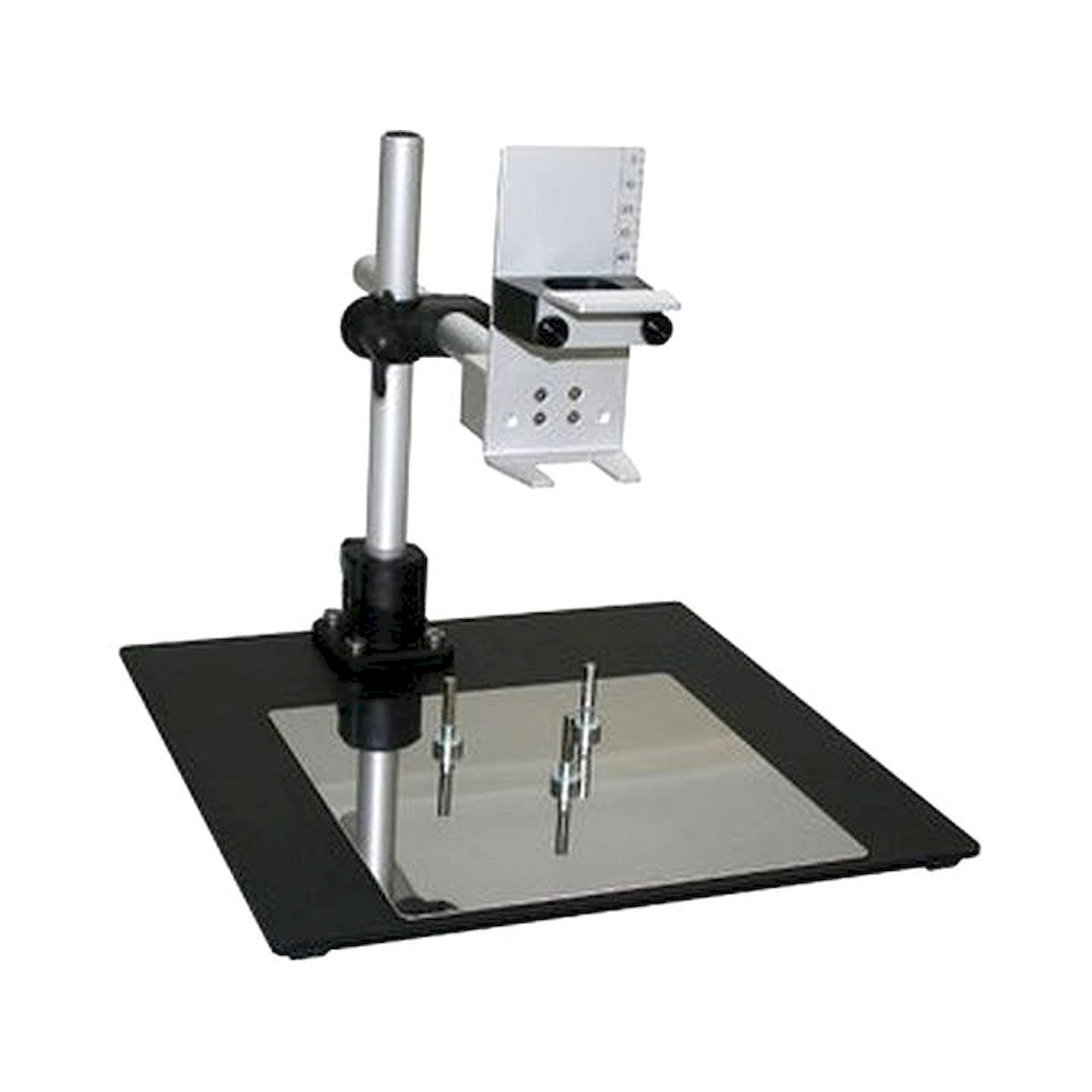

0IRHR-ST050	Hybrid rework stand, complete	For HR 100 A, precise positioning

Typical applications: BGA reballing and rework in SMT production, repair of QFP- and CSP-populated boards, maintenance in power electronics and drive technology, rework on prototype boards in R&D areas, and after-sales service for complex assemblies.

✓ 128 articles availableSystems, stands, cables, accessories in stock

⚙ Authorised Ersa distributorOriginal spare parts and system accessories
