HIOS - Electric Screwdrivers and Torque Control from Japan
HIOS is a Japanese manufacturer of electric screwdrivers, torque control tools, power supplies and screw-feeding systems for precision assembly in electronics. The tools are built for repeatable, gentle fastening on sensitive components.
The range spans brushless handheld drivers, automation screwdrivers, digital torque testers and the matching power supplies. At esd.equipment you get HIOS as a coordinated system for assembly lines in production, laboratory and repair.
HIOS best sellers
Fine Torque Tester up to 0.1 Nm - HIOS HPN-1-C
View product ->
Digital Torque Meter 0.15-18 Nm - HIOS HIT-200
View product ->
Digital Torque Tester 0.015-1 Nm - HIOS HPN-10-C
View product ->
Digital Torque Tester 0.15-5 Nm - HIOS HDPN-50-C
View product ->
Brushless Plug-in Electric Screwdriver 4.0-10.0 Nm - HIOS VBH-3012
View product ->
Brushless Plug-in Electric Screwdriver 3.0-7.0 Nm - HIOS VBH-1820 PS
View product ->
Digital Torque Meter 0.015-1 Nm - HIOS HP-10
View product ->
Power Supply for Automatic BLF Screwdrivers UK Plug - HIOS BLT-AY61E-UKSP
View product ->
The HIOS product lines
Electric screwdrivers (handheld)
Brushless ESD High-Torque Electric Screwdriver 0.7-3.5 Nm - HIOS BL-7000X-HT-ESD
View product ->
Brushless Electric Screwdriver 0.2-1.2 Nm with Screw Counter - HIOS BLG-5000BC2
View product ->
Electric Screwdriver with Brushed Motor 1.2-5.0 Nm - HIOS CL-9000NL
View product ->
Brushless ESD Electric Screwdriver 0.7-2.8 Nm - HIOS BL-7000-ESD
View product ->
Brushless ESD Electric Screwdriver 0.7-2.8 Nm - HIOS BL-7000X-ESD
View product ->
Brushless Electric Screwdriver High Torque 0.5-2.0 Nm - HIOS BLG-5000BC1-HT
View product ->
Brushless Electric Screwdriver 0.7-2.8 Nm with Screw Counter Port - HIOS BL-7000X-OPC
View product ->
Brushless Electric Screwdriver High Torque 0.5-2.0 Nm - HIOS BLG-5000XBC2-HT
View product ->
Choosing the right HIOS driver
Define the torque range
The most important choice is the torque you need. HIOS covers very small values for fine mechanics up to higher values for stronger fastening. Pick a model whose range keeps your target torque near the middle, so the setting stays stable and repeatable.
Handheld or automation

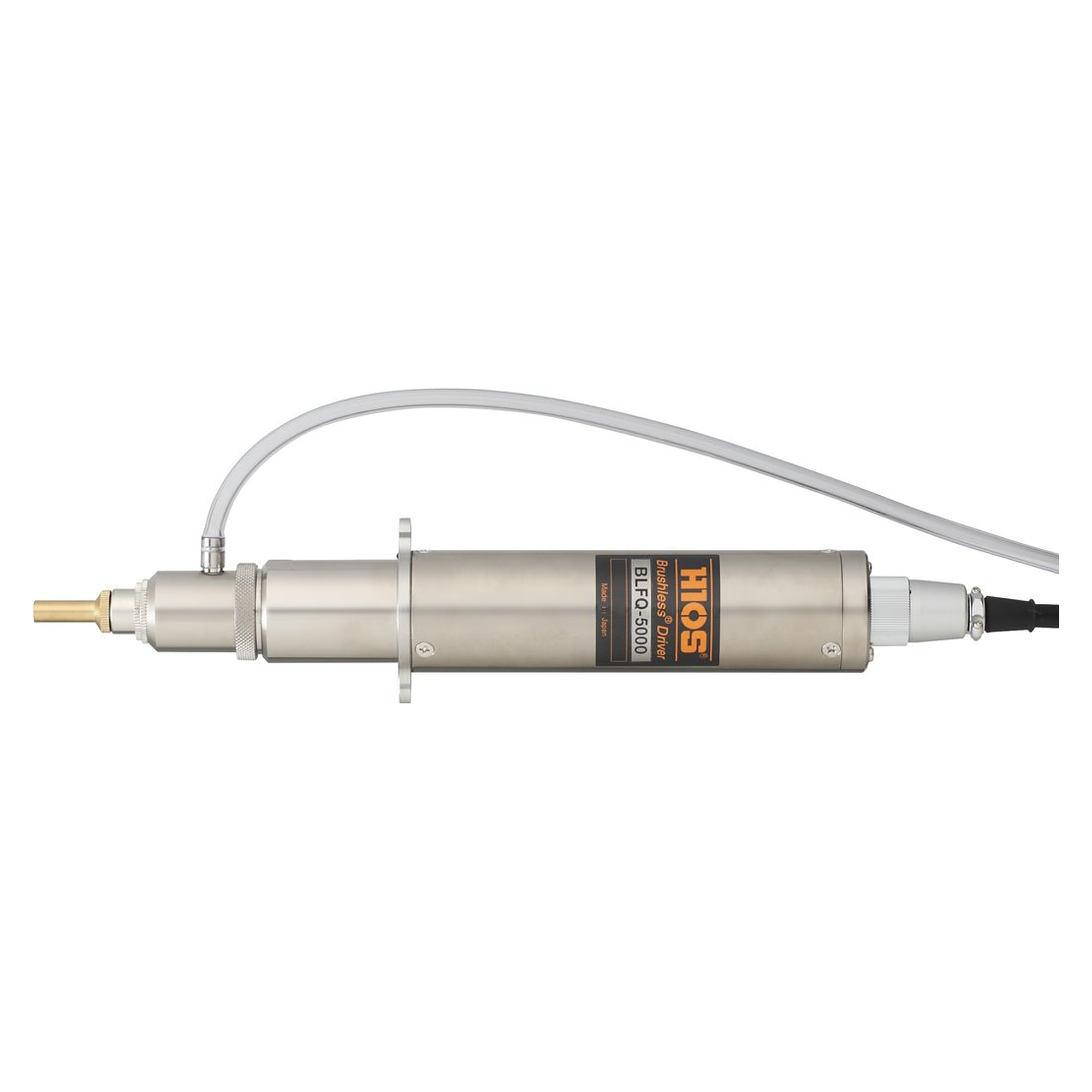

For manual workstations the brushless handheld drivers are the right choice. For cycled or automated lines the BLF built-in drivers with a matching controller are intended.
- Manual assembly: ergonomic brushless models
- Automation: BLF drivers with controller and power supply
Test and document
With the digital torque testers you verify and document the set values. This secures a consistent fastening quality and helps you meet inspection requirements in production.
Which HIOS line fits?
| Criterion | Handheld drivers | Automation drivers | Testers |
|---|---|---|---|
| Use | Manual assembly | Automated line | Control and testing |
| Operation | Hand guided | Fixed built-in | Meter at the test bench |
| Drive | Mostly brushless | Brushless | Not applicable |
| Control | Power supply | Controller and power supply | Standalone digital |
| Task | Fastening | Fastening in cycle | Measuring torque |
| Typical models | VBH, BL, CL | BLF | HPN, HIT, HDPN |
HIOS at a glance
Frequently asked questions about HIOS
Where does HIOS come from?
HIOS is a Japanese manufacturer of electric screwdrivers, torque control tools, power supplies and screw-feeding systems for precision assembly in electronics.
What are HIOS screwdrivers used for?
They are mainly used in electronics and fine mechanical assembly, where sensitive components must be fastened with precise, repeatable torque, for example in production, laboratory and repair.
What is the benefit of brushless HIOS screwdrivers?
Brushless motors offer a long service life, low maintenance and stable torque, which matters for consistent fastening quality in series assembly.
Do I also need a power supply or controller?
The HIOS BL and BLF screwdrivers run from matching power supplies and controllers. For automated applications there are controllers with functions such as screw counting and reversing.
How do I check the set torque?
With the digital HIOS torque testers and meters you can measure, verify and document the set torque to ensure consistent quality.
Need advice or a trade price?
Our team helps you select the right HIOS system for your assembly. Contact us for an individual quote.
