Weidinger - workplace equipment for soldering and rework

Preheat, hold, reball - equipment for electronics production and repair.

Weidinger supplies workplace equipment for soldering, rework and repair in electronics production. The range covers IR preheaters, board holders and matching accessories for the workbench setup.

For reballing and prebumping it offers stencils and masks for BGA and QFN components along with solder balls. The programme is rounded out by ESD accessories such as PCB magazines, vacuum cleaners and antistatic coatings for a protected workstation.

🔧Rework equipmentBoard holders, mounting frames and table mounting for a stable repair station.
✅ESD-safeAntistatic accessories such as PCB magazines, vacuum cleaners and coatings for a protected workstation.
🔥IR preheatingIR preheaters bring assemblies up to temperature in a controlled way and ease the soldering process.
📦Reballing & prebumpingStencils and masks for BGA and QFN plus solder balls for clean bumps.
Selection

Weidinger best sellers

View all products ->

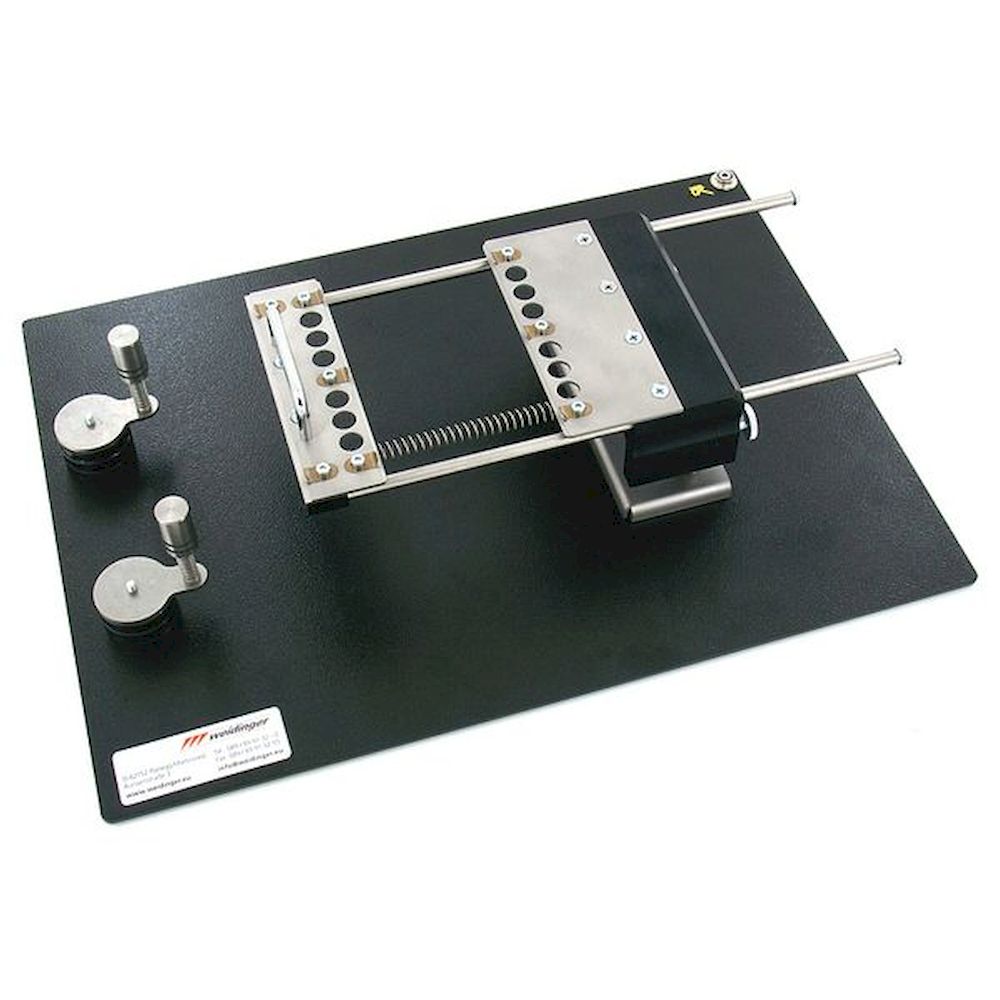

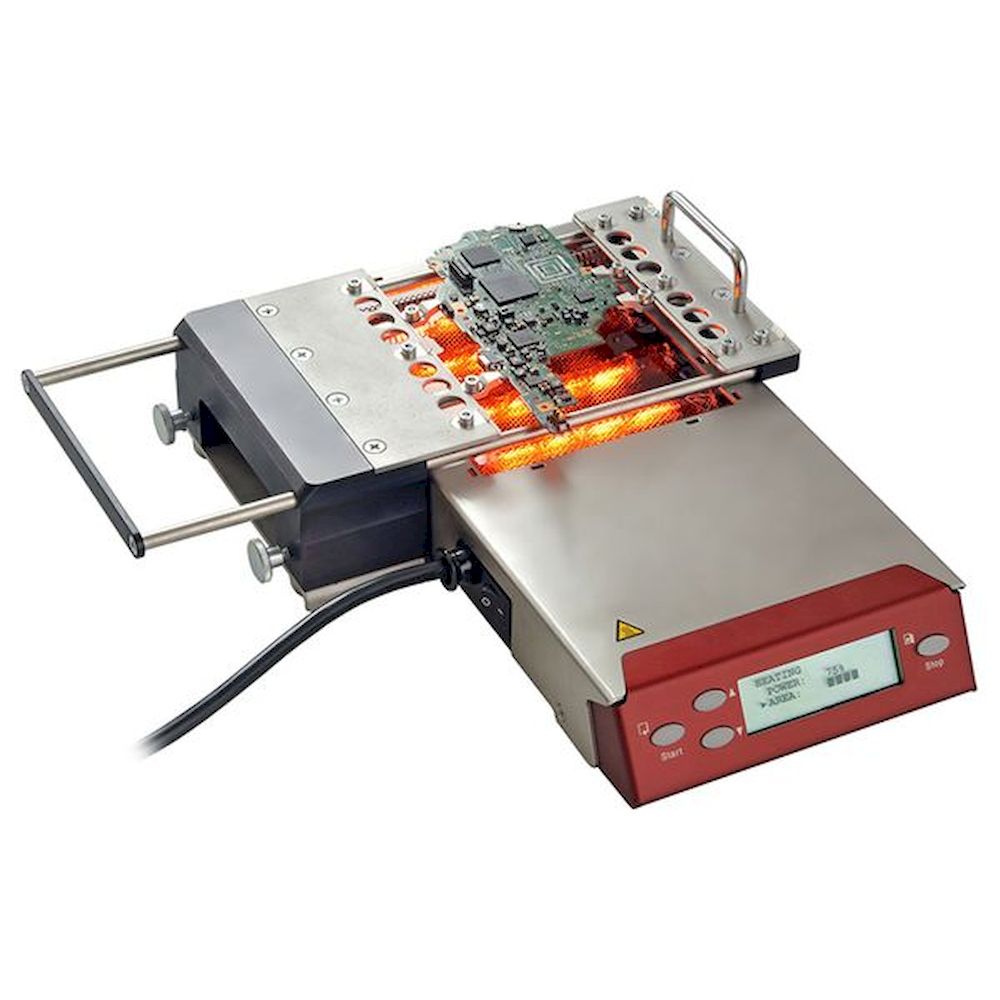

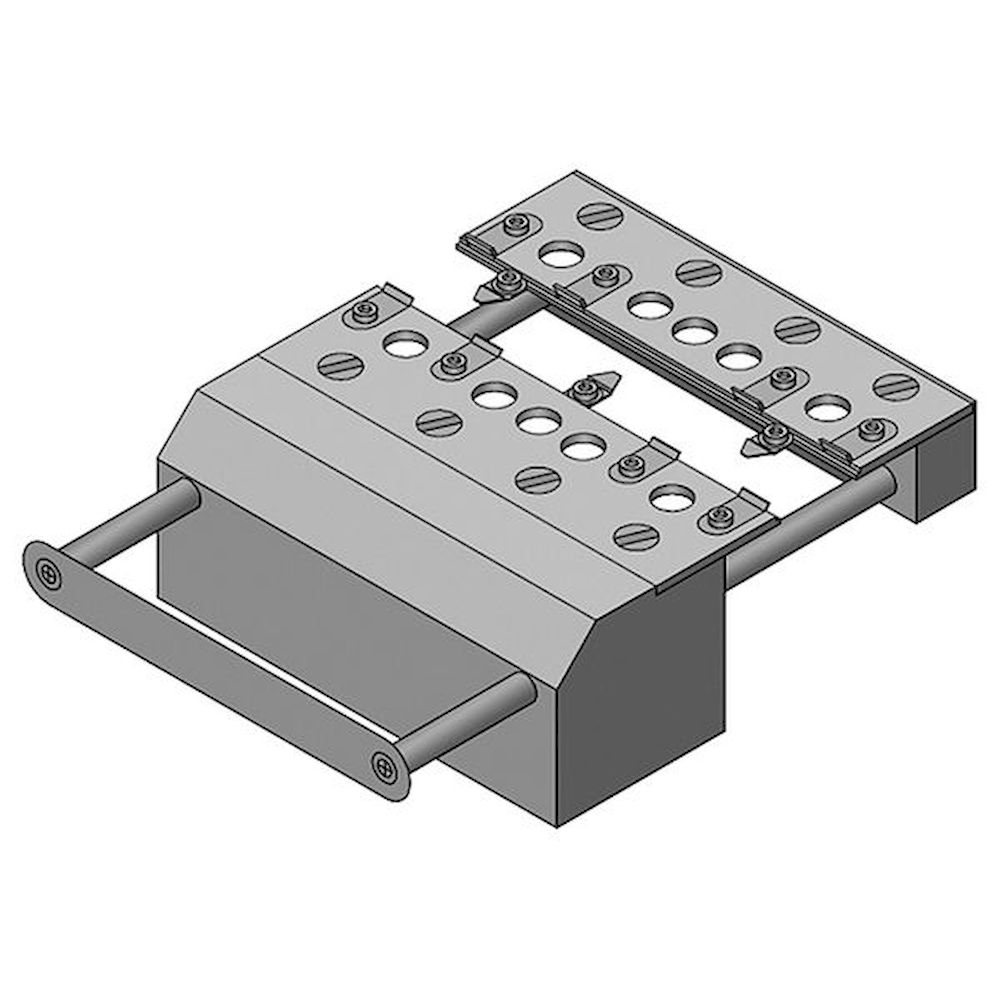

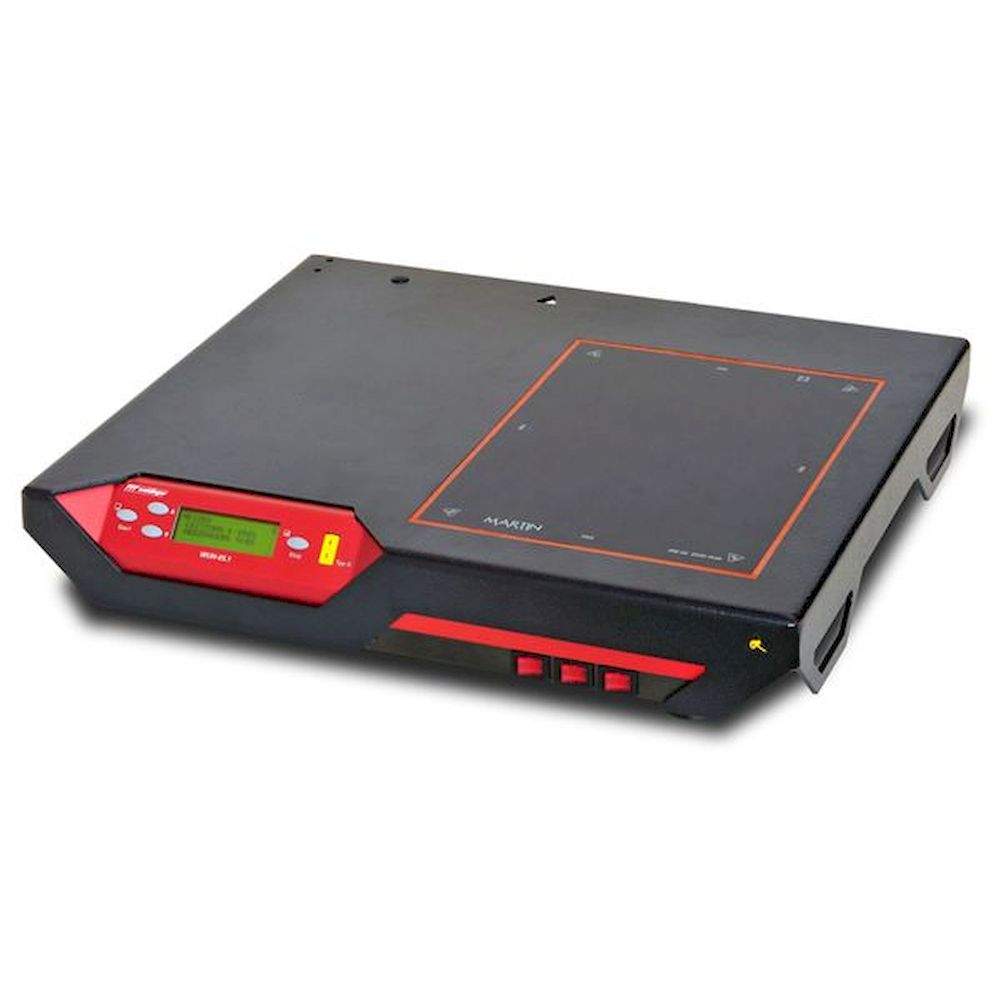

IR preheater 2000 W IR preheater 2000 W View product -> Board holder for WUH-1 Board holder for WUH-1 View product -> IR preheater W IR preheater W View product -> Board holder for WUH-5 Board holder for WUH-5 View product -> ESD PCB magazine ESD PCB magazine View product -> ESD vacuum cleaner Silent Vac, 800 W, 8 L, black - Weidinger WL32597 ESD vacuum cleaner Silent Vac, 800 W, 8 L, black - Weidinger WL32597 View product -> LW50.0593. Reballing stencil for BGA LW50.0593. Reballing stencil for BGA View product -> LW50.0510. Reballing stencil for BGA LW50.0510. Reballing stencil for BGA View product ->
Assortment

The Weidinger product lines

View category ->
IR preheaters 2 products Infrared preheating for controlled warm-up of assemblies during rework. Board holders & mounting 5 products Holders and table mounting for the WUH-1 and WUH-5 series. Reballing & prebumping stencils 12 products Masks and stencils for BGA and QFN components for reballing and bumping. ESD workstation accessories 3 products PCB magazines, ESD vacuum cleaners and antistatic coatings for the workplace.
Popular

Reballing & prebumping stencils

View category ->
LW51.0624. Reballing stencil for BGA LW51.0624. Reballing stencil for BGA View product -> LW50.0536. Reballing stencil for BGA LW50.0536. Reballing stencil for BGA View product -> LW51.0564. Reballing mask BGA 45x45 LW51.0564. Reballing mask BGA 45x45 View product -> LW50.0251. Prebumping stencil QFN 10x10 LW50.0251. Prebumping stencil QFN 10x10 View product -> LW50.0204. Prebumping stencil, QFN 6,0X6,0 mm LW50.0204. Prebumping stencil, QFN 6,0X6,0 mm View product -> LW50.0208. Prebumping stencil, QFN 7,0X7,0 mm LW50.0208. Prebumping stencil, QFN 7,0X7,0 mm View product -> LW40.0446. Reballing frame for BGA LW40.0446. Reballing frame for BGA View product -> LW40.0452. Reballing frame for BGA LW40.0452. Reballing frame for BGA View product ->
Buyer's guide

Setting up a rework workstation

Preheat before rework

When removing or fitting larger components, IR preheating helps bring the assembly evenly up to temperature. This reduces thermal stress and shortens the time local heat acts on the board. Choose a heating output that suits the board size.

Hold the board securely

A suitable board holder keeps the assembly stable and accessible. Check compatibility with the relevant device series:

  • Board holders for WUH-1 and WUH-5

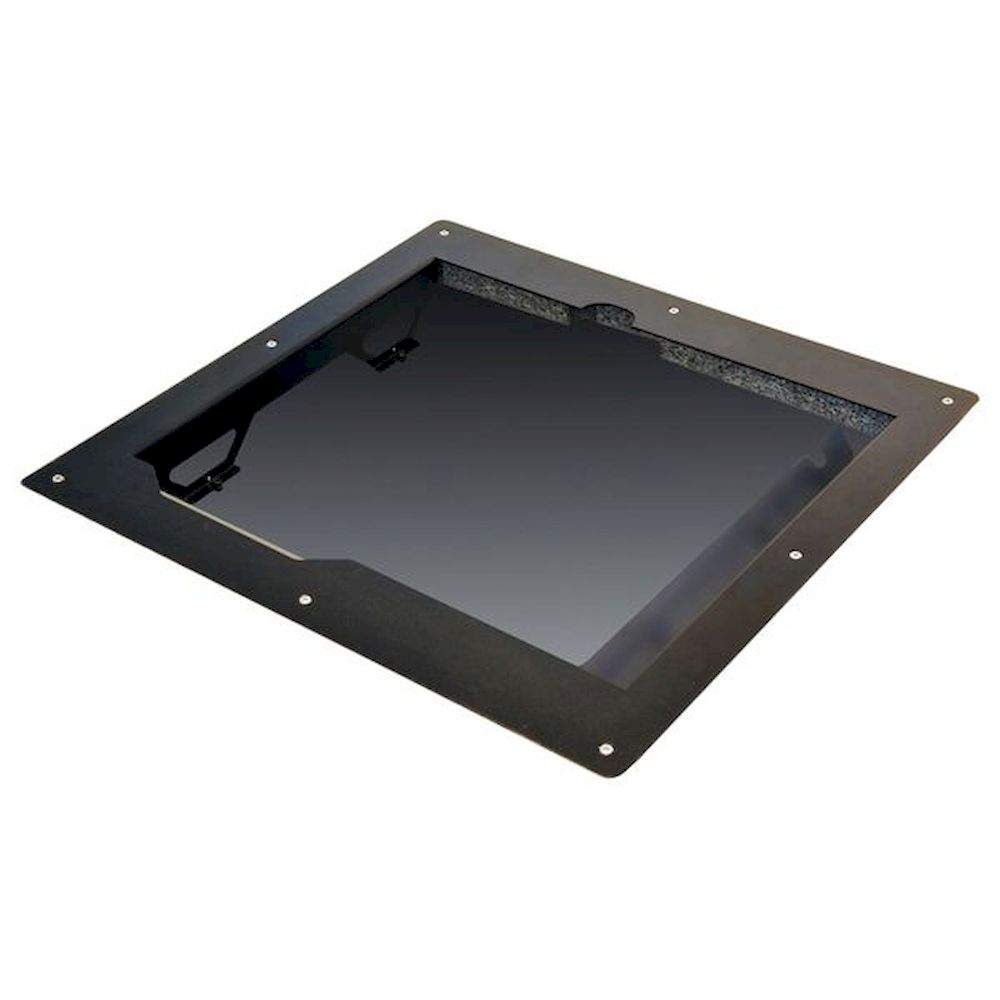

  • Mounting frames and table mounting for a fixed station

Reballing and prebumping

Re-fitting BGA and QFN components requires matching stencils or masks and solder balls. Select the stencil by component and pitch, for example BGA 45x45 or QFN 6.0 to 10 mm.

ESD protection at the bench

Additional ESD accessories such as PCB magazines, antistatic vacuum cleaners and coatings protect sensitive assemblies from electrostatic discharge during handling and storage.

Comparison

Which equipment for what?

CriterionIR preheatingBoard holderReballing stencils
PurposeHeat the assemblyFix the boardRe-fit BGA/QFN
UsedBefore reworkDuring repairDuring bumping
Depends onBoard size, outputDevice series WUH-1/WUH-5Component, pitch
ConsumablesnonenoneSolder balls
Typical usersRework stationsRepair workshopsBGA rework, lab
Good to know

Weidinger at a glance

ReworkEquipment for soldering and repair
IRPreheaters for the assembly
BGA/QFNReballing and prebumping masks
ESDAntistatic workstation accessories
FAQ

Frequently asked questions about Weidinger

What products does Weidinger offer?

Weidinger supplies workplace equipment for soldering and rework: IR preheaters, board holders and mounting accessories, reballing and prebumping stencils for BGA and QFN, solder balls, and ESD accessories such as magazines, vacuum cleaners and antistatic coatings.

What is an IR preheater used for?

An IR preheater brings the assembly up to temperature in a controlled, even way before soldering or desoldering. This reduces thermal stress on the board and supports rework of larger components.

Which board holders fit WUH-1 and WUH-5?

Weidinger offers board holders matched to the WUH-1 and WUH-5 series, along with mounting-frame sets and table mounting. When choosing accessories, check the stated device series.

What is needed for reballing and prebumping?

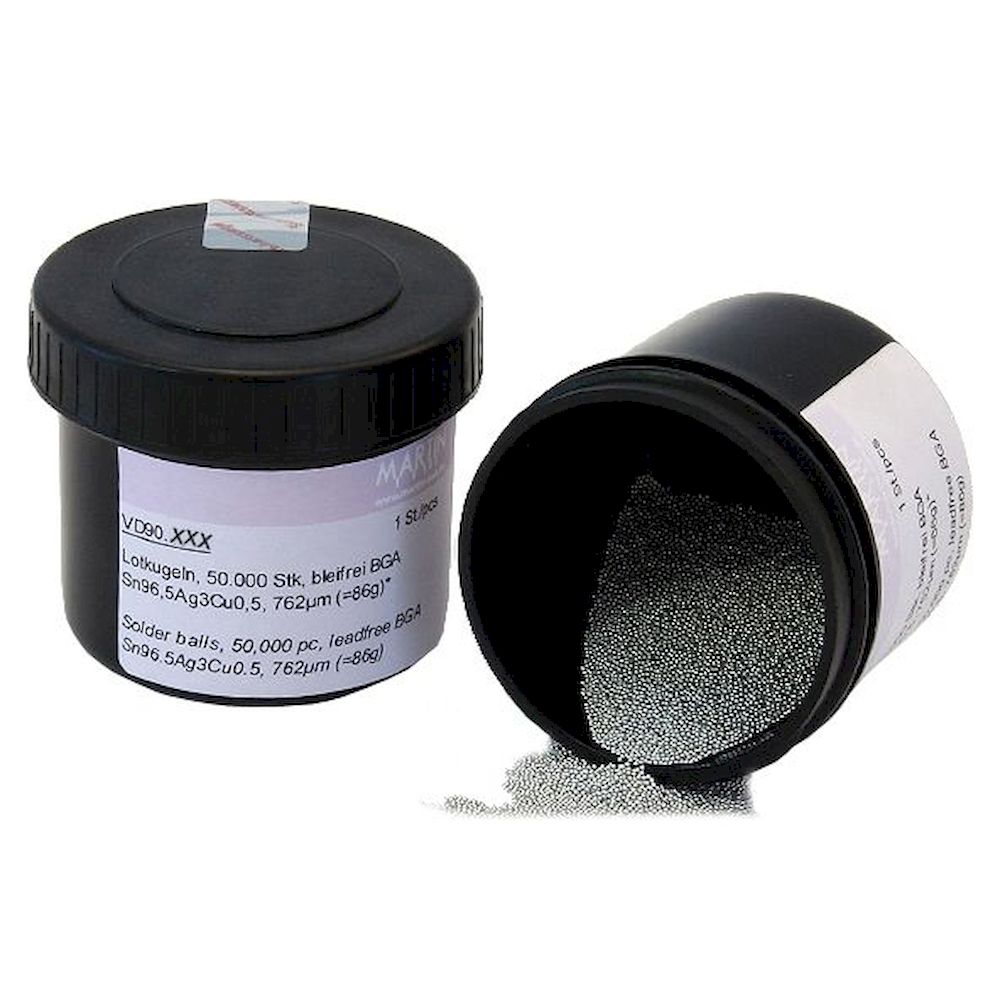

Reballing and prebumping require stencils or masks matched to the component plus solder balls. Weidinger offers versions for BGA, for example 45x45, and for QFN in sizes from 6.0 to 10 mm.

Is the accessory range ESD-safe?

Yes, Weidinger offers ESD accessories such as PCB magazines, antistatic vacuum cleaners and coatings that protect sensitive assemblies from electrostatic discharge during handling and storage.

Need advice or a professional price?

Our team helps you select and match preheating, board holders and reballing accessories. Contact us for a quote.
