Festo SIED-M30B-ZS-K-L (538288) Proximity Sensor
€7,942.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-538288
Manufacturer Nr.
SIED-M30B-ZS-K-L
Proximity Sensor
Frequently Bought Together
-
This Item:
€7,942.00Excl. 19% VAT , excl. Shipping Cost
-
Festo SIEF-M30NB-NS-S-L-WA (538304) Proximity Sensor
€10,087.00Excl. 19% VAT , excl. Shipping Cost
-

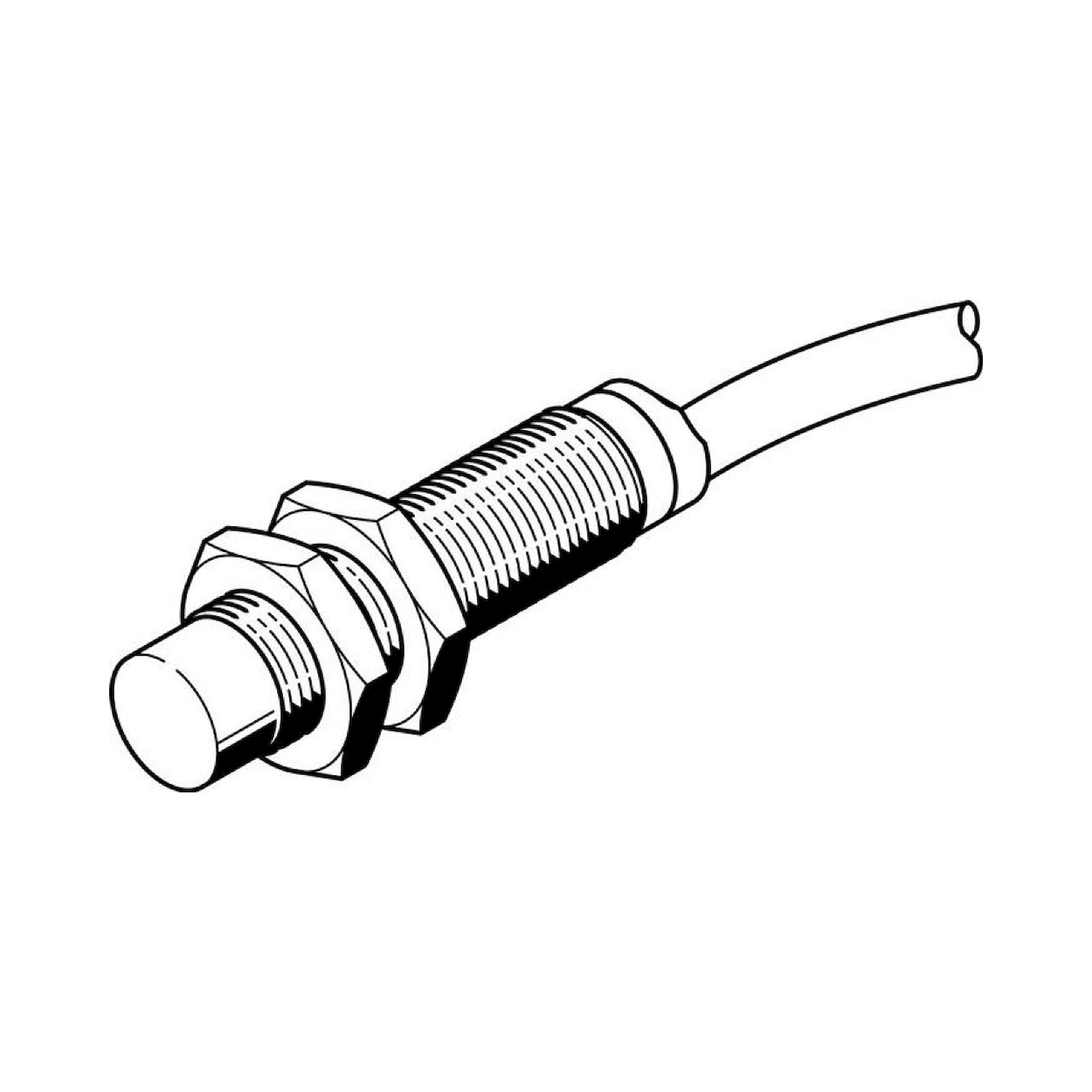

Festo SIEF-M12NB-NS-K-L (538314) Proximity Sensor
€6,513.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | round |
| Complies to standard | EN 60947-5-2 |
| Permission | RCM mark c UL us - Listed (OL) |
| CE certificate (see declaration of conformity) | to EU EMC directive to EU low voltage directive |
| Material information | Copper and PTFE-free |
| Measurement principle | Inductive |
| Measurement switching distance [mm] | 10 |
| Secured safety distance [mm] | 8,10 |
| Reduction factors | aluminium = 0,4 stainless steel St 18/8 = 0,7 Copper = 0.3 brass = 0,4 Steel pc. 37 = 1.0 |
| ambient temperature [°C] | -25 to 85 |
| Repeatability [mm] | 0,30 |
| Control output | Contactless 2-wire |
| Switching element function | NO contact |
| Hysteresis [mm] | 0.05 to 2.2 |
| Max. switching frequency DC [Hz] | 200 |
| Max. switching frequency AC [Hz] | 25 |
| Max. output current [mA] | 300 |
| Voltage drop [V] | <= 8 V |
| Minimum load current [mA] | 5 |
| Short circuit resistance | no |
| Operating voltage range AC [V] | 20 to 265 |
| Operating voltage range DC [V] | 20 to 320 |
| Network frequency [Hz] | 50 |
| Empty run current [mA] | <= 1,5 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | 2-wire cable |
| size | M30 |
| Fastening type | With locking nut |
| Torque [Nm] | 30 |
| Integration type | flush |
| Product weight [g] | 190 |
| Housing material | PA brass nickel-plated |
| Switching status indicator | LED yellow |
| Protection category | IP67 |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| Cable length [MTR] | 2,5 |
| Cable sleeve material | TPE-U(PUR) |
| Insulation sleeve material | PVC |
| Ambient temperature for moving cable placements [°C] | -5 to 50 |
| Manufacturer Nr. | SIED-M30B-ZS-K-L |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568175665 |
| Weight | 0.200000 |
| HS-Code | 85365019 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought

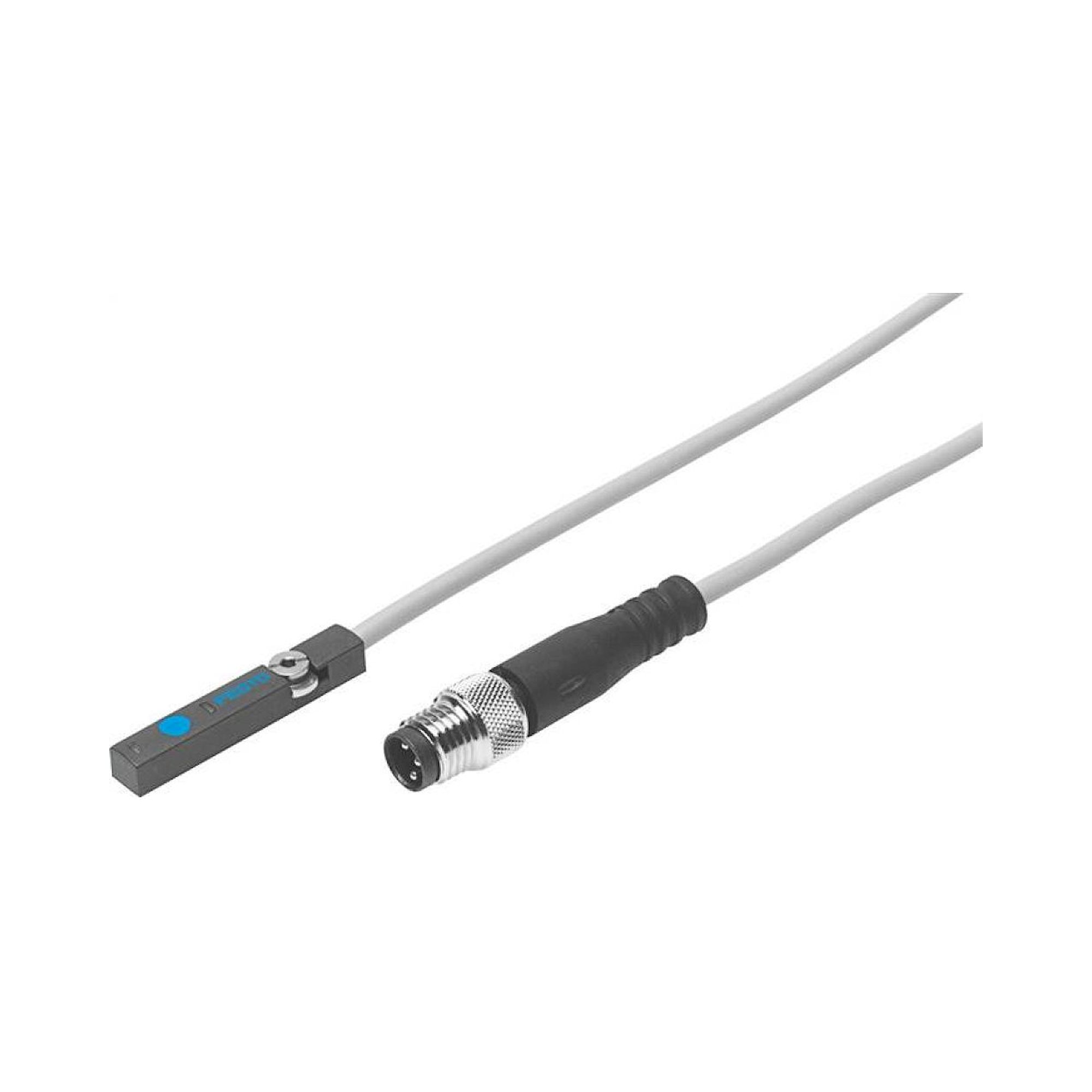

Festo SIES-8M-PO-24V-K-2,5-M8D (551393) Proximity Sensor
