Inductive sensors

Festo inductive proximity sensors are non-contact devices that detect ferrous and non-ferrous metallic objects within their sensing field using electromagnetic induction principles. These sensors are extensively deployed in automotive manufacturing for position feedback on cylinder rods, packaging machinery for detecting metal caps and closures, logistics systems for tracking metallic containers, and general manufacturing for part presence verification. The SIEH and SIEF sensor series from Festo provide reliable switching signals when metallic targets enter their detection zone, making them essential components in automated production lines where precise object detection is critical for process control and quality assurance.

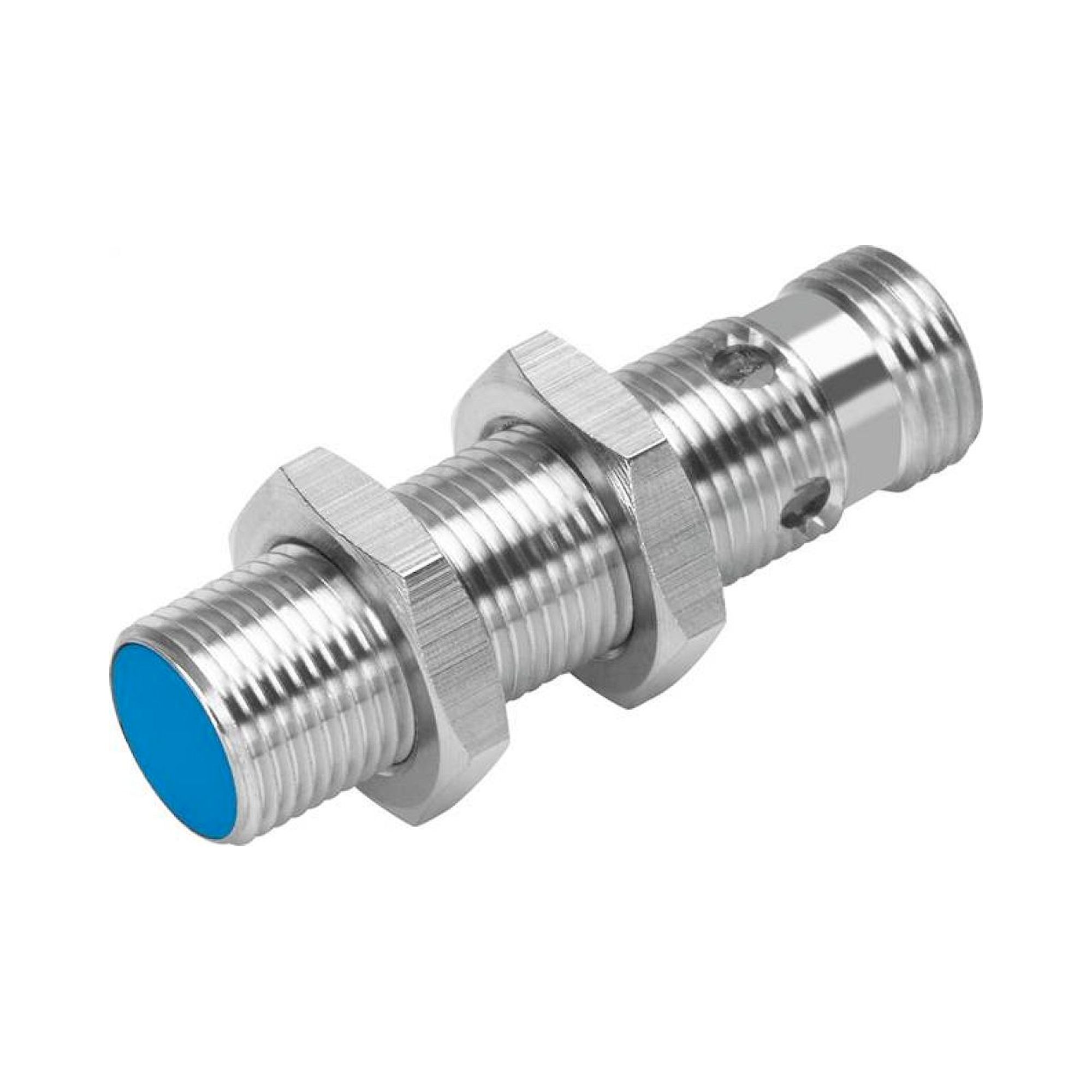

Selection of Festo inductive proximity sensors depends on sensing distance requirements, with M12 variants like SIEH-M12B offering shorter detection ranges suitable for compact applications, while M30 models such as SIEF-M30B provide extended sensing distances for larger target detection. Thread size compatibility is critical, with M12x1, M18x1, and M30x1.5 options available to match mounting requirements. Output configuration varies between PNP (P-type) and NPN (N-type) switching, with normally open (PS) or normally closed (NS) contact behavior. Connection methods include 2-meter integral cables (L designation) or M12 connector versions (CR suffix) for flexible system integration, while housing materials range from standard plastic to stainless steel for harsh environment applications.

Festo inductive proximity sensors comply with IEC 60947-5-2 standards for proximity switches and detectors, ensuring reliable performance in industrial control circuits up to 250V AC or 300V DC. CE marking confirms conformity with European EMC Directive 2014/30/EU for electromagnetic compatibility and Low Voltage Directive 2014/35/EU for electrical safety. Many models achieve IP67 or IP68 ingress protection ratings per IEC 60529, providing dust-tight sealing and protection against temporary immersion. ATEX certification is available for selected variants operating in potentially explosive atmospheres, while UL recognition enables integration into North American industrial installations requiring agency approval for safety-critical applications.

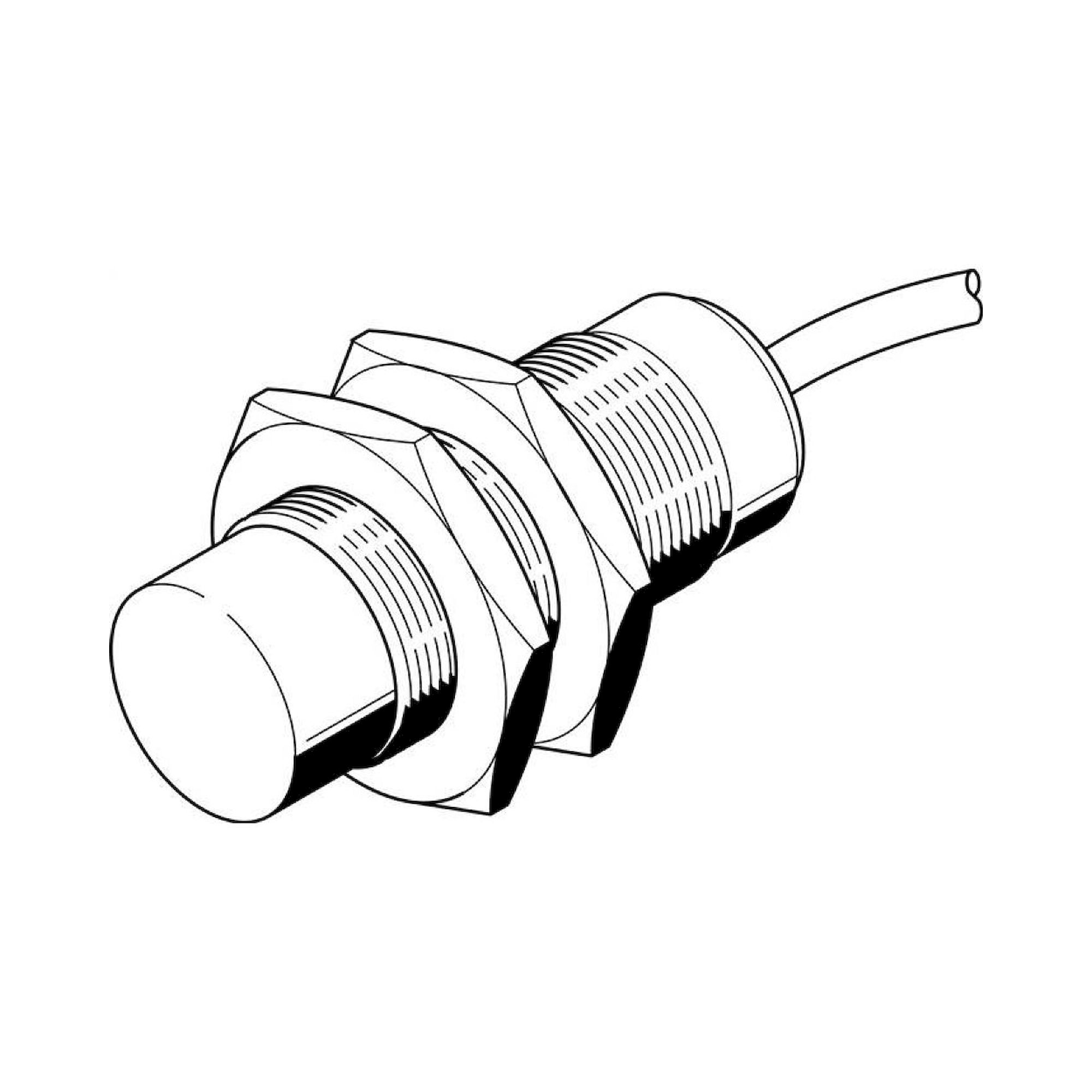

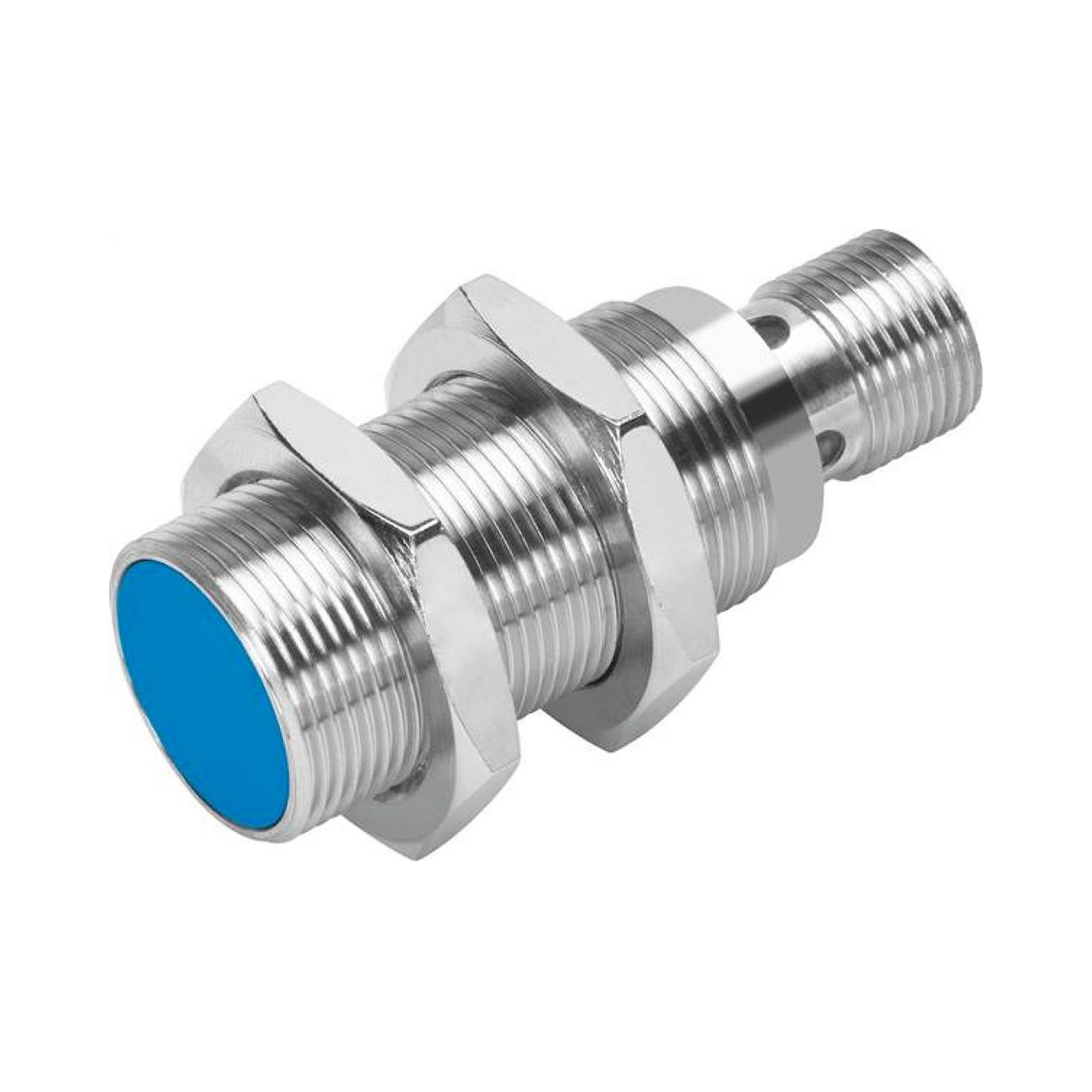

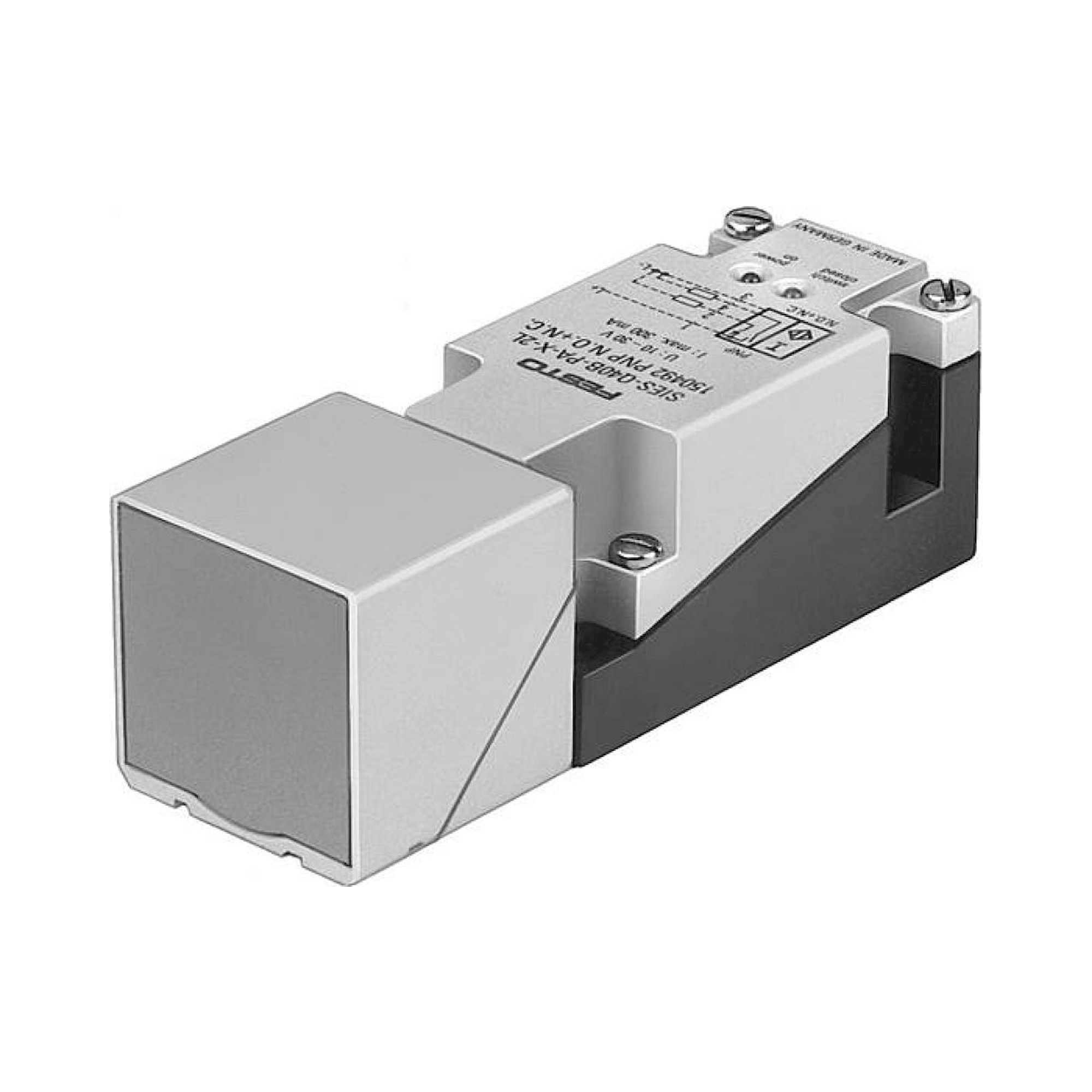

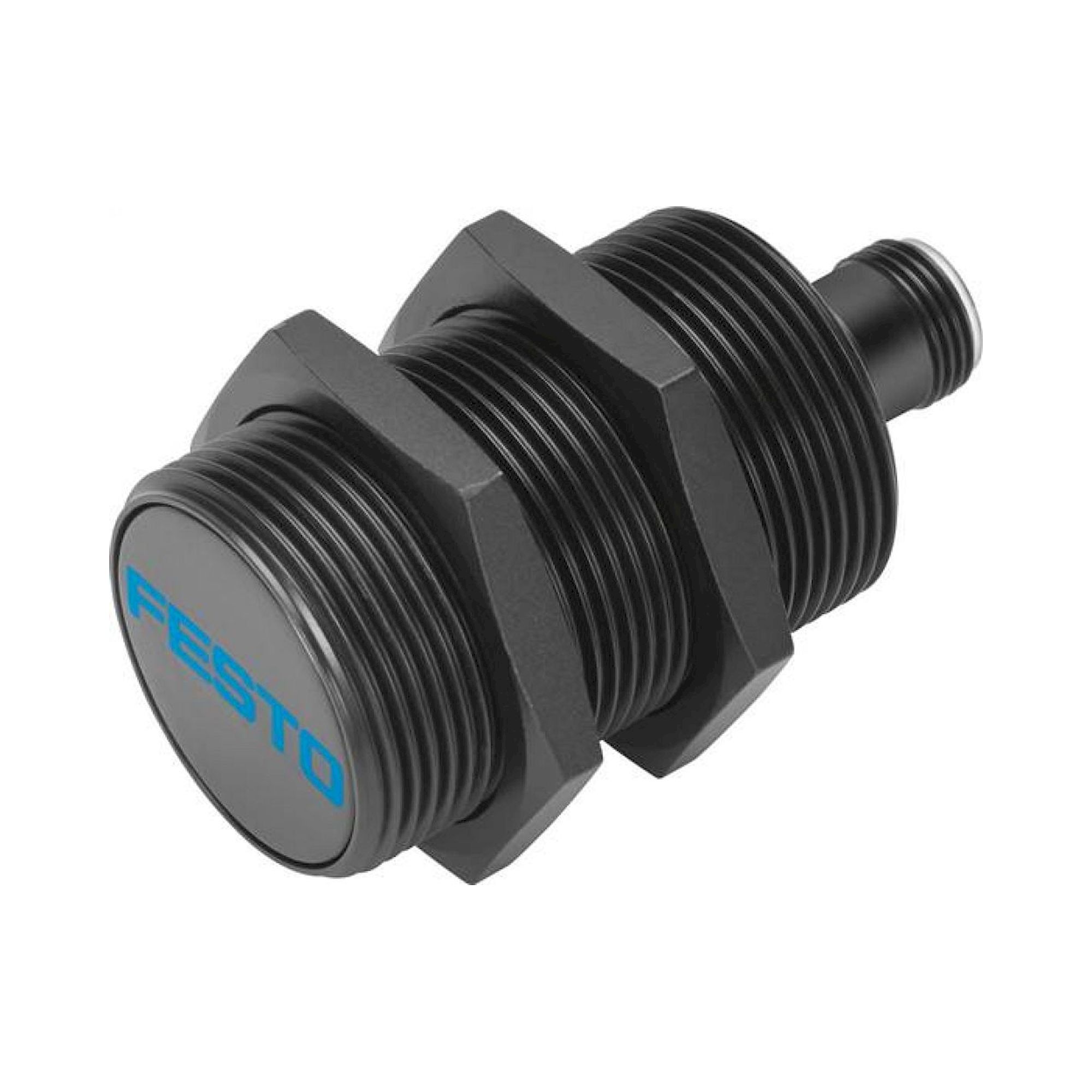

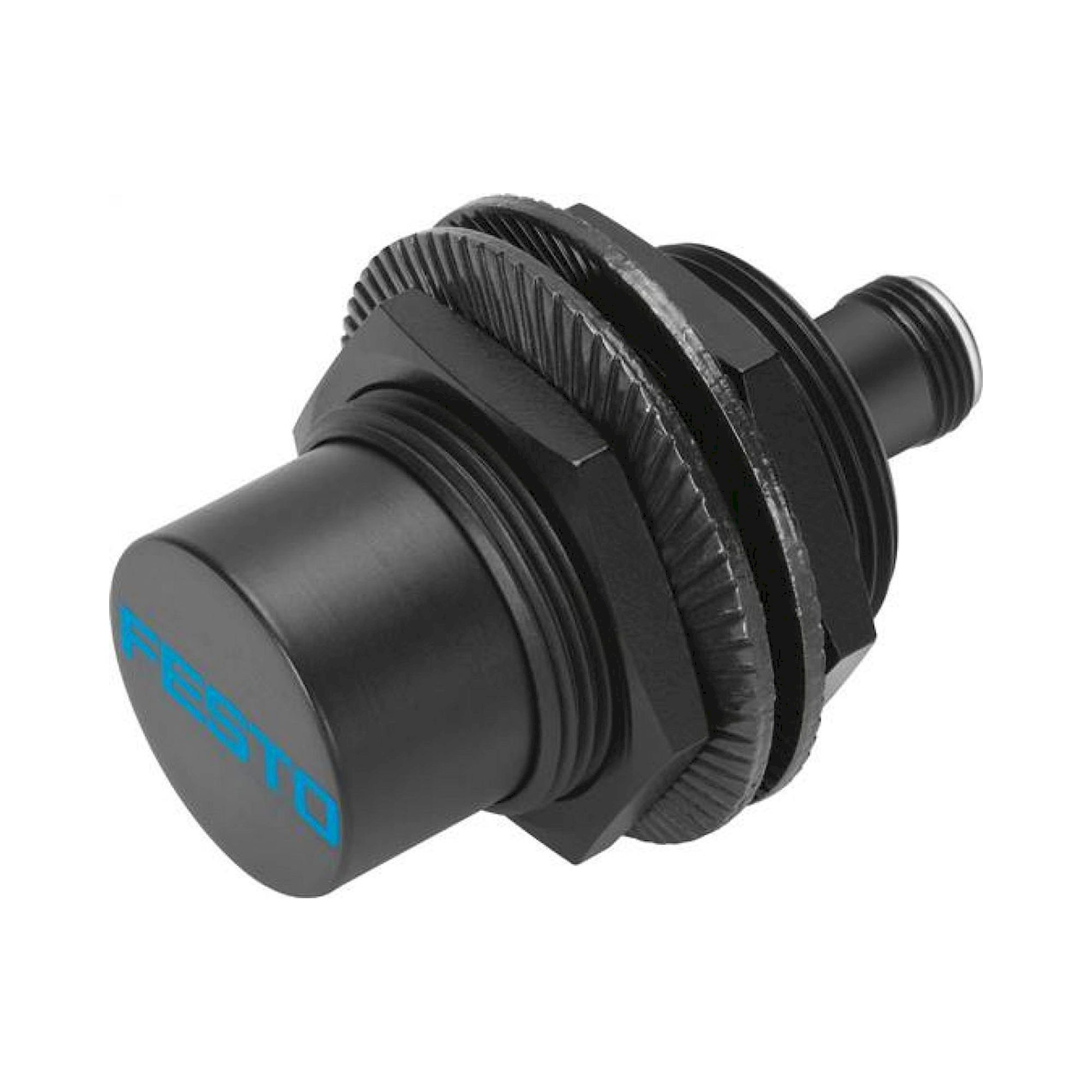

The SIEH series represents Festo's standard inductive proximity sensors with M12 and M18 thread sizes, featuring integral 2-meter cables and available in both PNP and NPN output configurations with normally open or normally closed switching behavior. SIEF models are enhanced variants offering M18, M30, and specialized mounting options with improved electromagnetic immunity and extended temperature ranges, typically specified for demanding industrial environments. The SIES-Q40B series provides larger 40mm cubic housings for applications requiring extended sensing distances, while the suffix designations indicate specific features like PS for normally open PNP output, NS for normally closed NPN output, and WA suffix denoting enhanced specifications for particular application requirements.

Festo inductive sensors require DC supply voltage typically between 10-30V for PNP variants or 6-36V for NPN models, with current consumption ranging from 8-15mA depending on the specific model. Installation involves standard metric threading (M12x1, M18x1, or M30x1.5) with tightening torques between 10-25Nm to ensure proper mounting without sensor damage. Cable versions feature 2-meter PUR jacketed leads with color-coded wires for power, ground, and switching output, while connector versions use standard M12x1 coupling for quick system integration. Minimum target approach speeds should not exceed 10m/s for reliable switching, and metallic mounting surfaces require isolation rings to prevent sensing field distortion and ensure accurate detection performance.

Festo inductive sensors typically achieve IP67 ingress protection rating, providing complete dust protection and temporary immersion resistance up to 1 meter depth for 30 minutes per IEC 60529 standards. Operating temperature ranges span -25°C to +70°C for standard models, with extended range variants operating from -40°C to +85°C for harsh environment applications. Maximum switching current ratings vary from 100mA to 200mA depending on output type, with voltage drop specifications typically below 2.5V for reliable signal transmission. Safety integrity level SIL2 compliance is available for selected models used in functional safety applications, while vibration resistance meets IEC 60068-2-6 standards with 10-55Hz frequency range and 1.5mm amplitude for reliable operation in high-vibration industrial environments.

Festo inductive proximity sensors are designed for maintenance-free operation with expected service life exceeding 10 million switching cycles under normal industrial conditions, with MTBF ratings typically exceeding 500,000 hours at 40°C ambient temperature. Quarterly visual inspections should verify housing integrity, cable condition, and mounting security, while annual functional testing confirms proper switching distances and response times remain within specification. Environmental contamination of the sensing face should be cleaned with isopropyl alcohol to maintain detection accuracy, and cable strain relief connections require periodic inspection to prevent wire fatigue. Temperature cycling and vibration exposure may reduce service life, requiring more frequent inspection intervals in applications exceeding +60°C ambient temperature or 2g acceleration levels per manufacturer specifications.
