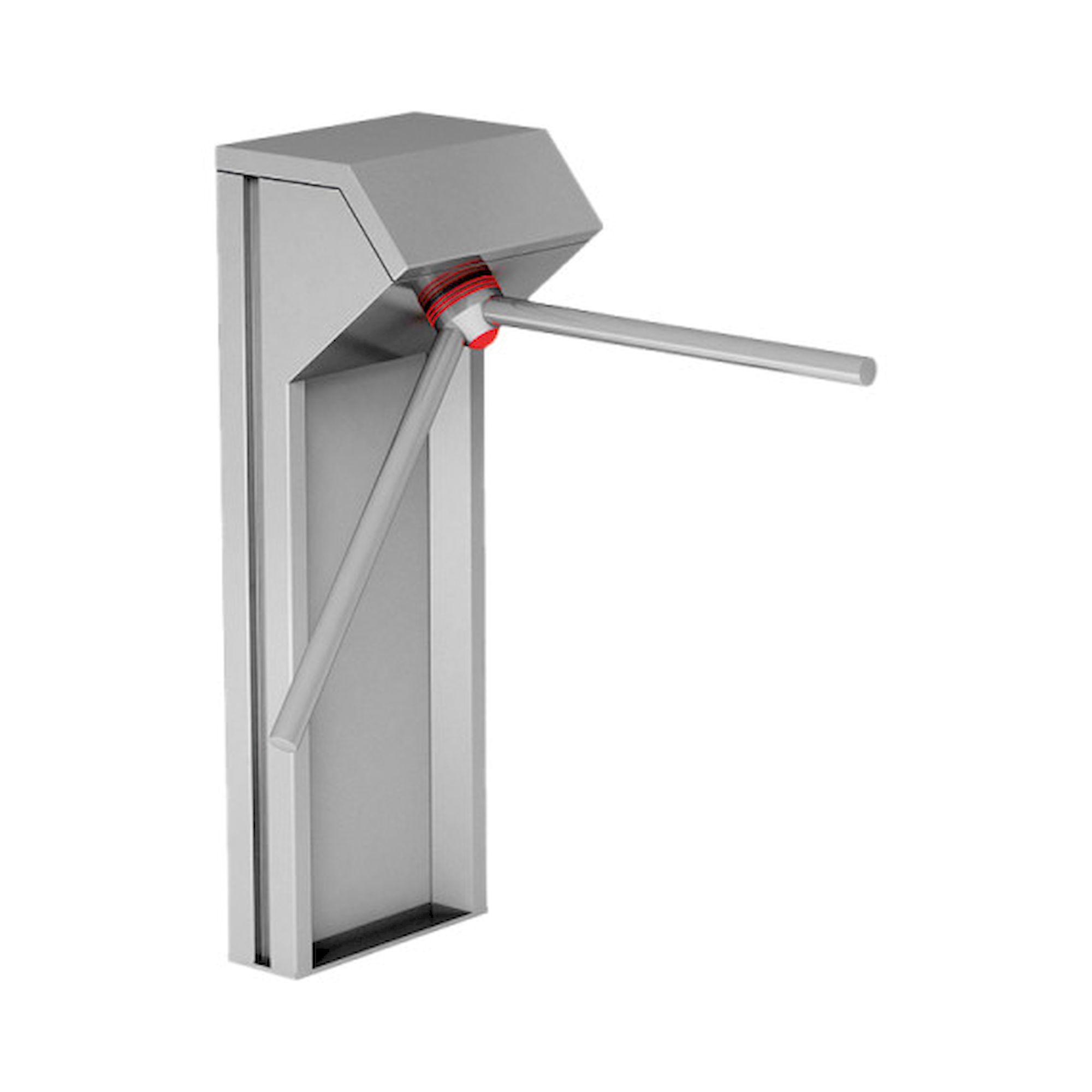

EPA-FLOW two-arm turnstile with motor-driven gate - A1-ESD EP0301087

The EPA-FLOW two-arm turnstile controls access to an ESD protected area and ensures that only correctly grounded persons enter the EPA. The motor-driven gate releases the passage only after the personnel test is passed, and its comfortable run suits high foot traffic.

Benefits

• Motor-driven two-arm gate for comfortable, guided passage
• Pedestal with integrated foot electrode for grounding verification
• Barrier-free escape function in an emergency
• Uninterruptible power supply (UPS)
• Left or right running by choice
• Optional EPA-RESIST personnel tester

Technical data

• Type: two-arm turnstile, motor-driven
• Width: approx. 91 cm
• Length: approx. 139 cm
• Power: with UPS
• Running direction: left or right

Application

Entrance control for EPA areas in electronics manufacturing and industrial environments where electrostatic discharge must be reliably prevented.

Standards and compliance

Supports an ESD control program in line with IEC 61340-5-1.
