Mobile Digital Microscope 1.3 MP 10-90x LWD with 5-inch Recorder - Dino-Lite AMK4112TL-D15

Mobile microscope set with long working distance

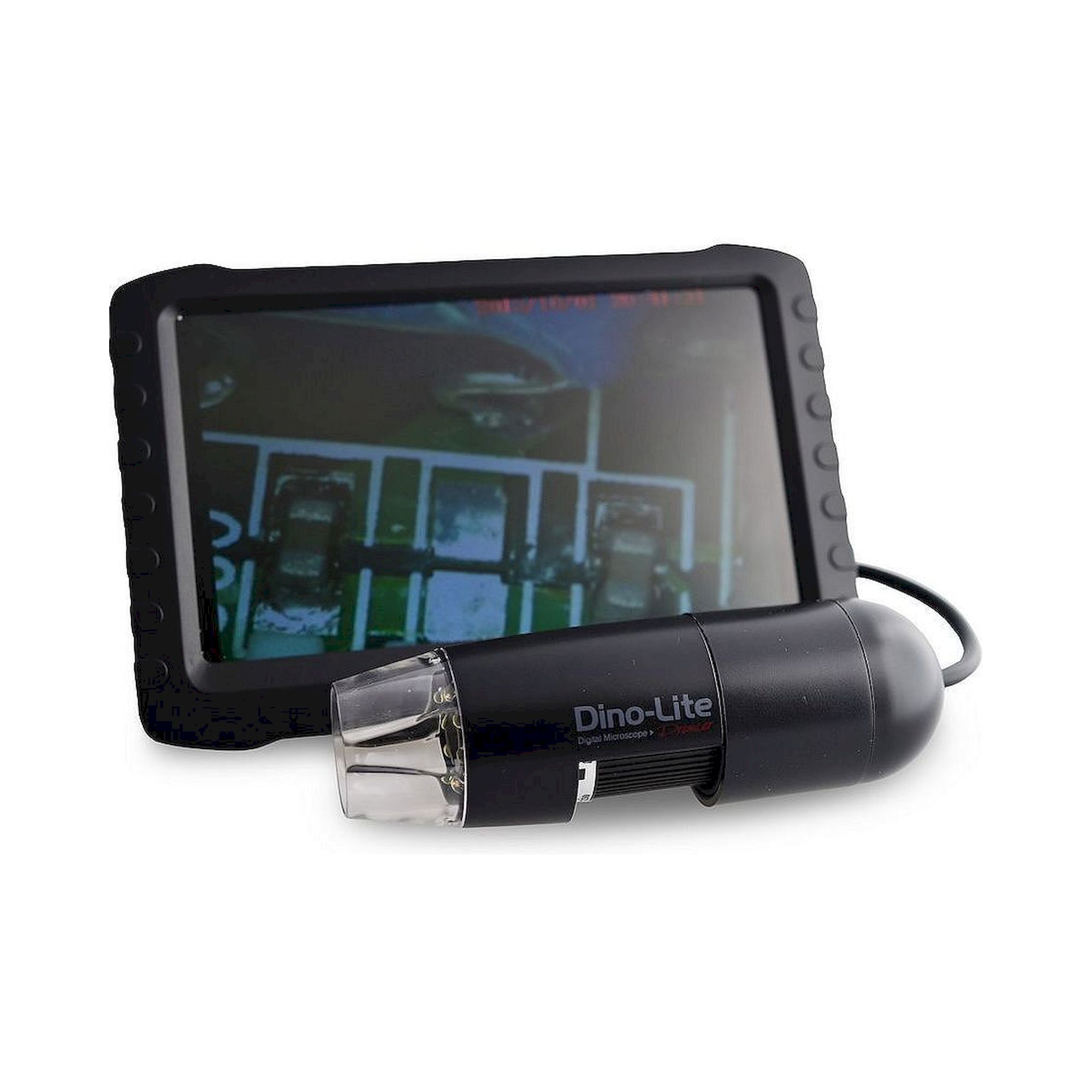

The Dino-Lite AMK4112TL-D15 pairs a long working distance USB microscope with the portable D15 recorder, which has a 5-inch display and an SD card slot. The working distance of around 51 mm leaves room for tools and eases inspection of raised or hard-to-reach objects, with no computer.

Key benefits

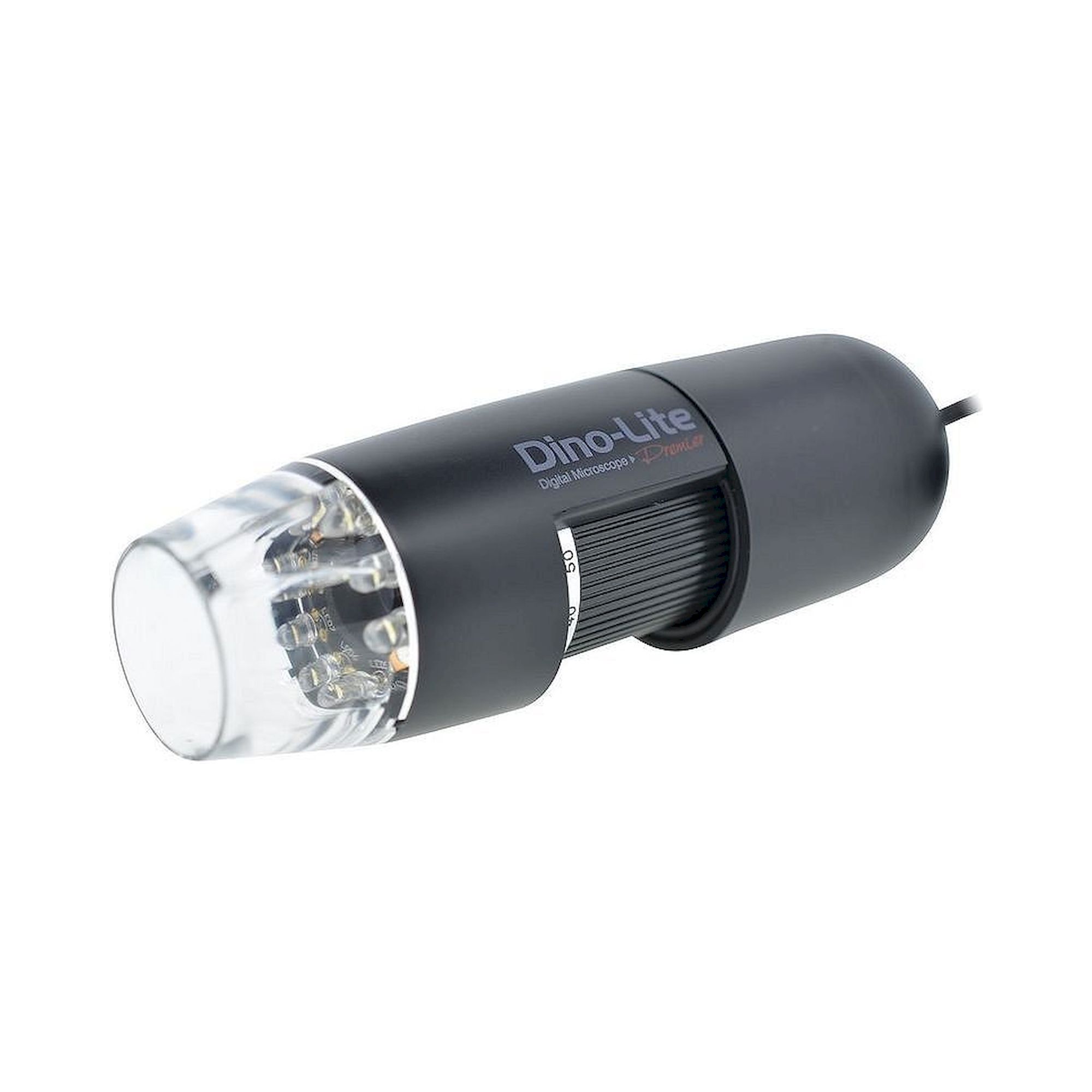

• 1.3 megapixel microscope with 10-90x magnification.
• Long working distance of around 51 mm for free access to the sample.

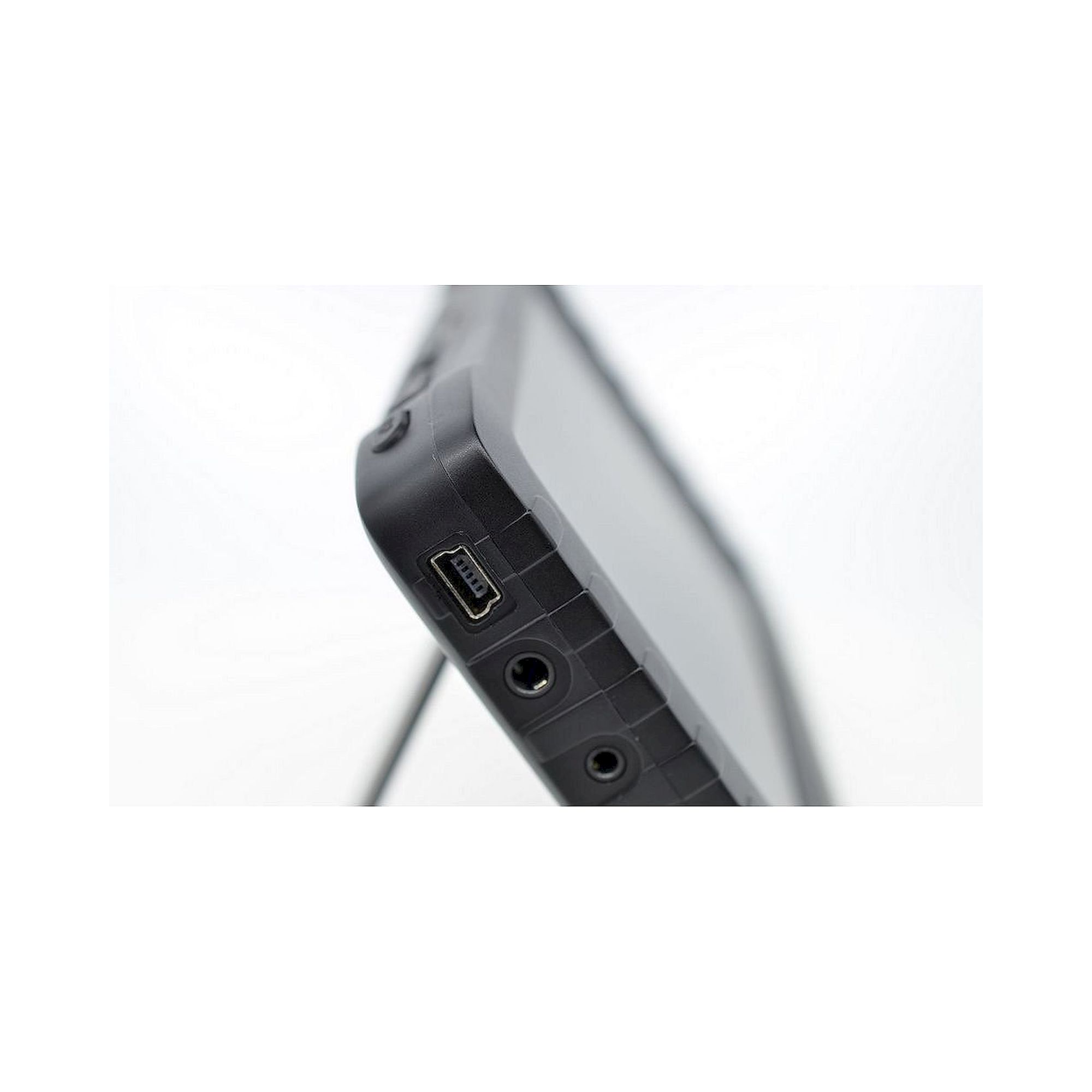

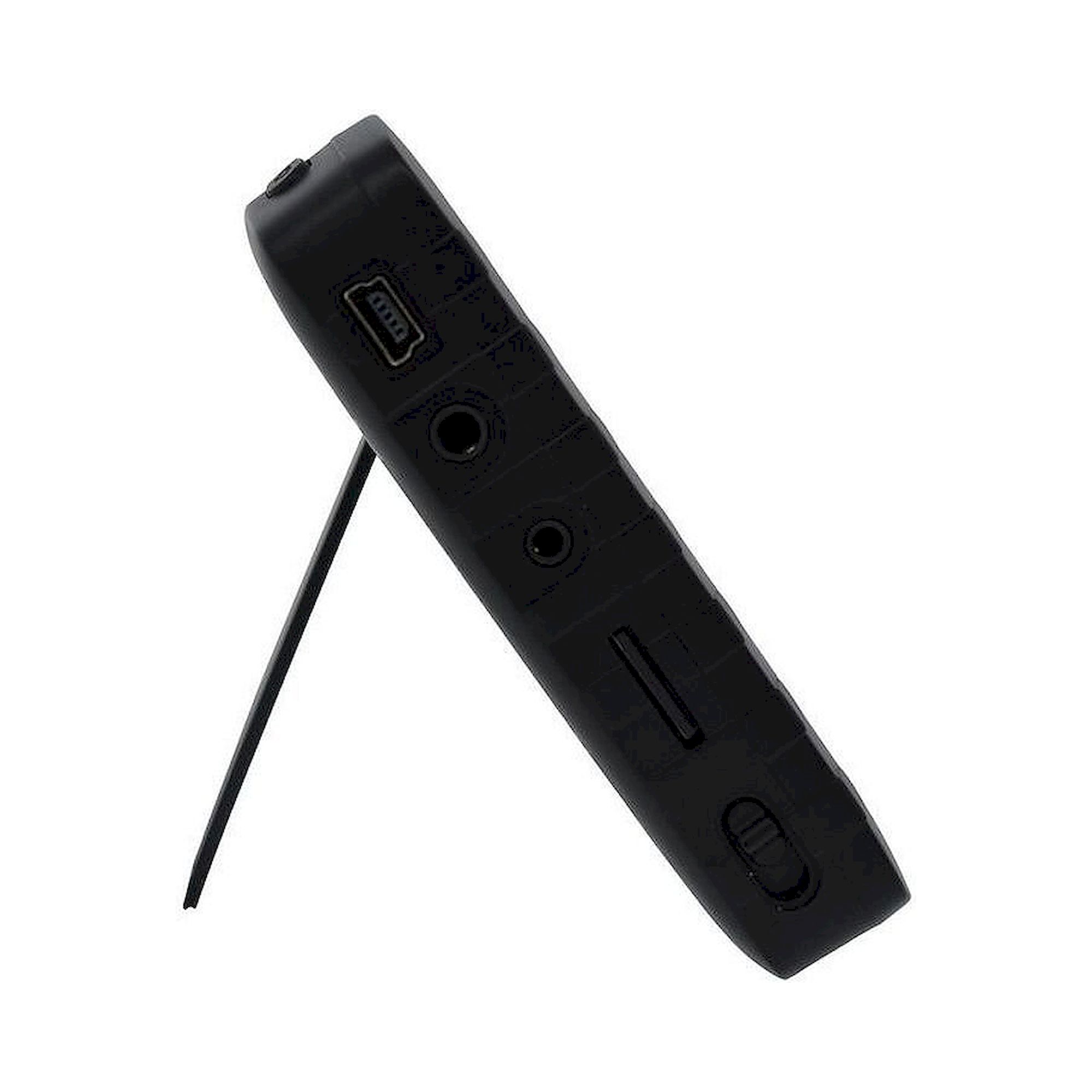

• Portable D15 recorder with a 5-inch display, recording straight to SD card, no PC needed.
• 8 switchable white LEDs for even illumination.
• Battery operation and a carrying case for mobile use.

Technical specifications

• Sensor: 1.3 megapixel
• Magnification: 10-90x
• Working distance: long (LWD), around 51 mm
• Interface: USB 2.0 (microscope), recording via D15 recorder
• Recorder: 5-inch display, up to 30 fps, SD card slot
• Illumination: 8 switchable white LEDs
• In the box: D15 recorder, carrying case, USB cable, power adapter, battery, bracket

Applications

Mobile inspection in service and maintenance, on-site examination in forensics, field material control, and inspection of raised components that need free working space.

Compatibility

The microscope works either on the D15 recorder or on a PC with DinoCapture 2.0 software. MS and RK series stands provide stable captures.

Standards and origin

Made in Taiwan.
