The Dino-Lite AM4815ZT fills the screen with components, solder joints and surfaces without a stereo microscope on the bench. The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards. Two year manufacturer warranty, shipped from Germany.
USB Handheld Microscope 1.3 MP 20-220x with Polarizer and FLC - Dino-Lite AM4815ZT
DINO-LITE
Original product
Net price (excl. VAT)
€676.80
Item
AM4815ZT
Manufacturer no.
AM4815ZT
RoHS 2011/65/EU
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.AM4815ZT
EAN4712805478019
Country of originTaiwan
Customs tariff number90118000
ConditionNew
Article
AM4815ZT
Frequently Bought Together
-
This Item:
€676.80
-
USB Handheld Microscope 1.3 MP 500-550x Fixed Magnification - Dino-Lite AM4515T5
€522.00
-
USB UV digital microscope 1.2 MP 10-220x with AMR - Dino-Lite AM4517MT-FUW
€848.40
Total price
The Dino-Lite AM4815ZT fills the screen with components, solder joints and surfaces without a stereo microscope on the bench.
What it does for you
- A 1.3 MP sensor and a 20-220x magnification range, so overview and detail come from the same device.
- The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards.
- Measurement function with calibration via the supplied calibration target.

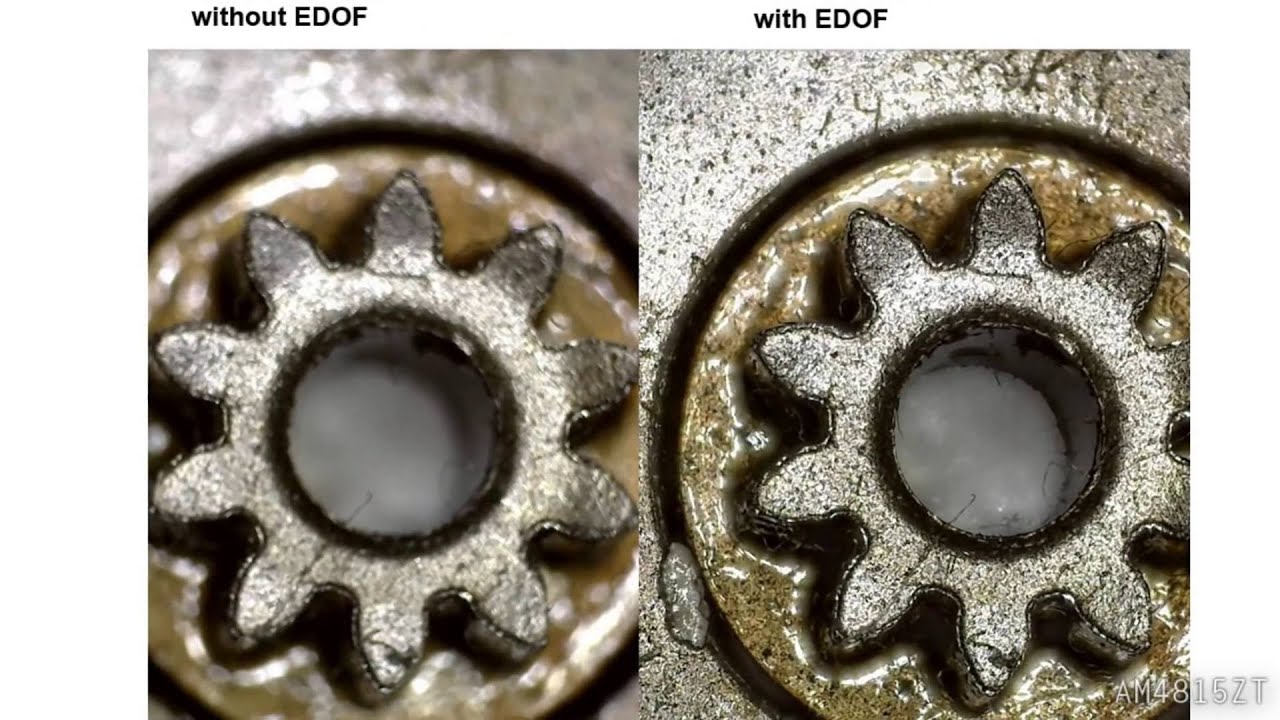

- EDOF stacks images at different focus levels and EDR at different exposures, keeping rough surfaces and hard contrast readable.
- The MicroTouch trigger on the housing captures the image without shaking the camera.
- Wireless ready: with the WF-10 adapter the microscope runs cable free on tablet and phone.
Technical data
| Property | Value |
|---|---|
| Magnification | 20x ~ 220x |
| Working distance | Standard |
| Macro zoom | No |
| Lens type | Glass with anti-reflection coating |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280x1024) |
| Frame rate | 30 fps |
| Illumination | White |
| Number of LEDs | 8 |
| LEDs switchable | Yes |
| Polarizer | Yes, linear |
| Infrared filter | IR cut-filter >650 nm |
| Emission filter | No |
| Diffuser cap | Yes (N3C-D included) |
| Extended depth of field (EDOF) | Yes |
| Extended dynamic range (EDR) | Yes |
| Measurement | Yes |
| Calibration | Yes |
| MicroTouch sensor | Yes |
| Magnification lock | Yes |
| Interface | USB 2.0 |
| Imaging standards | DirectShow, UVC |
| Wi-Fi | Wireless-ready, requires the WF-10 WiFi streamer (optional) |
| Operating system | Windows 7,8,10 & 11, MacOS 10.9 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Housing | Metal housing |
| Dimensions | 10.5cm (L) x 3.2cm (D) |
| Weight | 105g |
| Cable length | 1.8m |
| ESD safe | No |
| Country of origin | Taiwan |
| Warranty | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Package contents | Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap,N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap |
Magnification, working distance and field of view
| Magnification | Working distance (mm) | Field of view X (mm) | Field of view Y (mm) | Depth of field (mm) |
|---|---|---|---|---|
| 20 | 52.7 | 60.2 | 19.5 | 15.6 |
| 30 | 26.0 | 33.5 | 13.0 | 10.4 |
| 40 | 13.4 | 20.9 | 9.8 | 7.8 |
| 50 | 6.4 | 13.9 | 7.8 | 6.3 |
| 60 | 2.2 | 9.7 | 6.5 | 5.2 |
| 70 | - | 7.1 | 5.6 | 4.5 |
| 80 | - | 5.5 | 4.9 | 3.9 |
| 90 | - | 4.5 | 4.3 | 3.5 |
| 100 | - | 4.1 | 3.9 | 3.1 |
| 110 | - | 4.0 | 3.6 | 2.8 |
| 120 | - | 4.1 | 3.3 | 2.6 |
| 130 | - | 4.5 | 3.0 | 2.4 |
| 140 | - | 5.0 | 2.8 | 2.2 |
| 150 | - | 5.6 | 2.6 | 2.1 |
| 160 | - | 6.3 | 2.4 | 2.0 |
| 170 | - | 7.1 | 2.3 | 1.8 |
| 180 | 0.5 | 8.0 | 2.2 | 1.7 |
| 190 | 1.4 | 8.9 | 2.1 | 1.6 |
| 200 | 2.4 | 9.9 | 2.0 | 1.6 |
| 210 | 3.4 | 10.9 | 1.9 | 1.5 |
| 220 | 4.4 | 11.9 | 1.8 | 1.4 |
Values without front cap, as published by the manufacturer.
Typical uses
- Electronics manufacturing and repair: solder joints, BGA edges, tracks, placement errors.
- Quality control and incoming inspection: surface defects, burrs, coatings, dimensional checks.
- Materials testing: fracture surfaces, welds, corrosion, microstructure.
- Print and textiles: halftone dots, fibre orientation, ink build-up.
| Certification | RoHS 2011/65/EU |
|---|---|
| ESD version | TEC |
| Manufacturer Nr. | AM4815ZT |
| Manufacturer | Dino-Lite |
| Country of Manufacture | Taiwan |
| EAN | 4712805478019 |
| ESD equipment | USB Mikroskop |
| Weight | 0.105000 |
| HS-Code | 90118000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Warranty | 2 years |
| Material | Metal |
| Polarizer | Ja |
| Long Working Distance | No |
| Interface | USB 2.0 |
