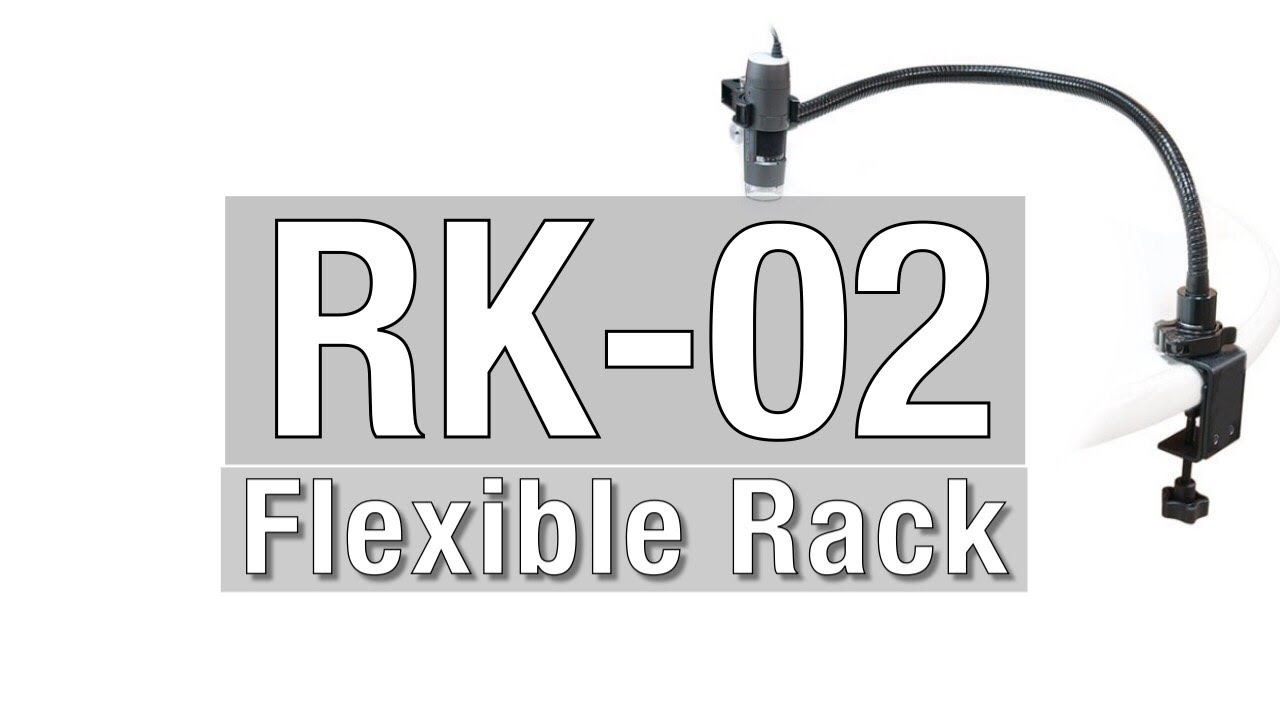

Gooseneck stand with table clamp 60 cm - Dino-Lite RK-02

At a workbench, on a rack or next to a large assembly, a stand with a base often cannot get close enough to the inspection point. The Dino-Lite RK-02 clamps on instead. Its C-clamp grips desks or poles up to 7 cm thick, horizontally or vertically. The 60 cm gooseneck bends into shape and the head with the microscope holder rotates.

The base rotates as well and can be locked with a quick release fastener, for example on uneven surfaces. For frequent refocusing and high magnification work the manufacturer recommends a precision stand such as the RK-06A.

What it does in practice

• Mount the microscope where a stand base will not fit: on the edge of a desk, on a shelf or on a pole.
• Angled views without rebuilding the setup. Bend the arm, turn the head and the microscope stays put.
• The space under the object stays clear because there is no base in the way.

Works with

Microscopes: according to the manufacturer, all Dino-Lite models except the high magnification models. That covers the Edge, Edge PLUS, Edge 3.0, DinoConnect (AF) and Basic series, for example the AM4115T, AM4115ZT, AM7115MZT, AF4115ZT and AM3111.

Holders: the HD-P1 holder is included and takes every Dino-Lite handheld microscope.

Not suitable: high magnification models of the T4, ZT4, T5, T8, MT4A and MT8A types, for example the AM4515T5, AM4515T8, AM4515ZT4, AF4515ZT4, AM7515MT4A and AM7515MT8A. The manufacturer also does not recommend the gooseneck for constant or fine magnification adjustment.

Combines with: if you need more stability and fine focus, the RK-06A and RK-10A precision stands provide both.
