Soldering tips LT-SMT

Weller Soldering tips

Add to Wish List Add to Compare

Weller T0054450299N. SMT02 waver soldering tip for PAD cleaning, width 16.8 mm
€139.95
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Weller T0054450399N. SMT03 waver soldering tip for PAD cleaning, 20.8 mm
€139.95
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Weller T0054446789N. Waver soldering tip for PAD Cleaning, width 35 mm
€112.96
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Weller T0054450499. SMT04 waver soldering tip for chip, width 1,8 mm
€89.97
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

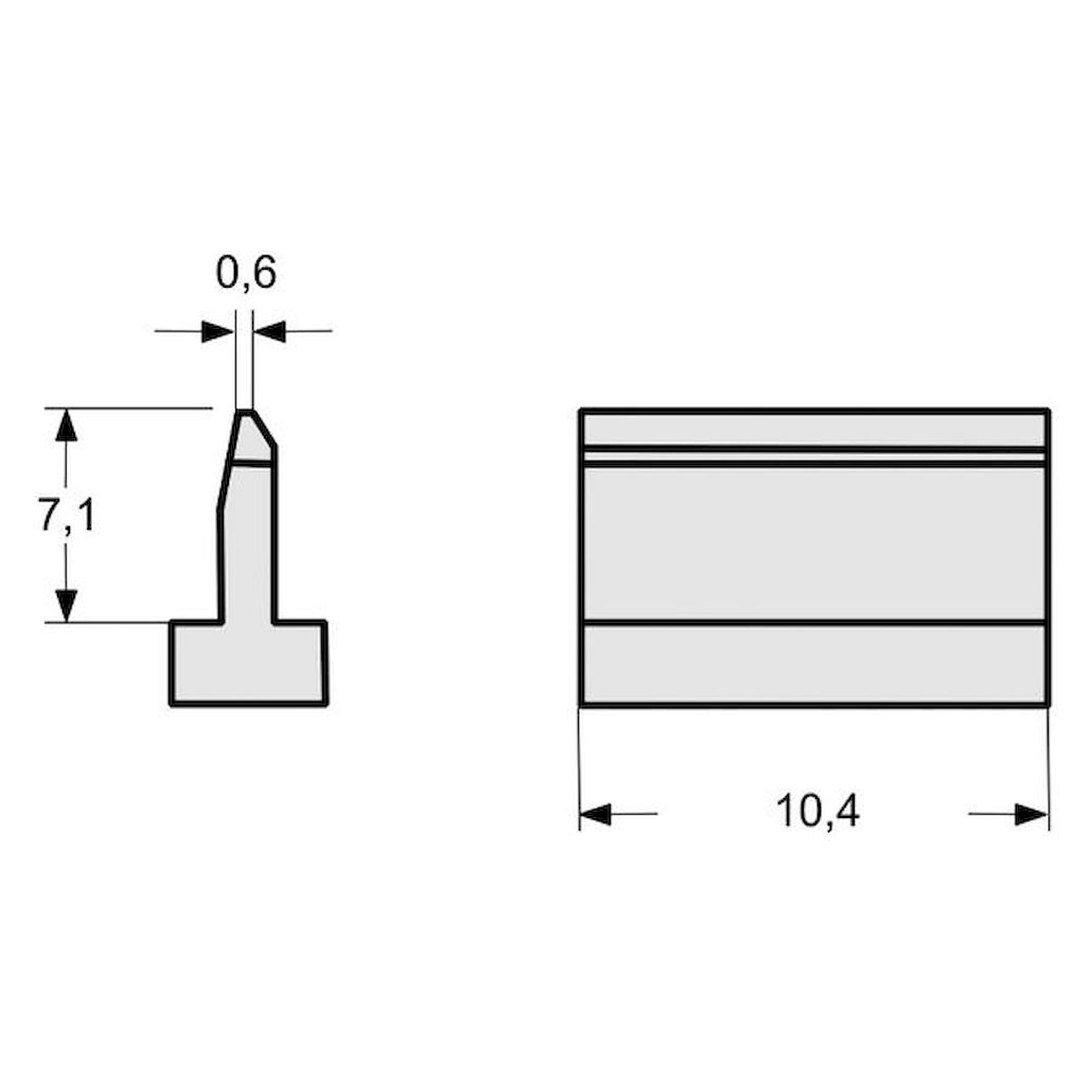

Weller T0054450199N. SMT01 waver soldering tip for PAD cleaning, width 10.4 mm
€51.98
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

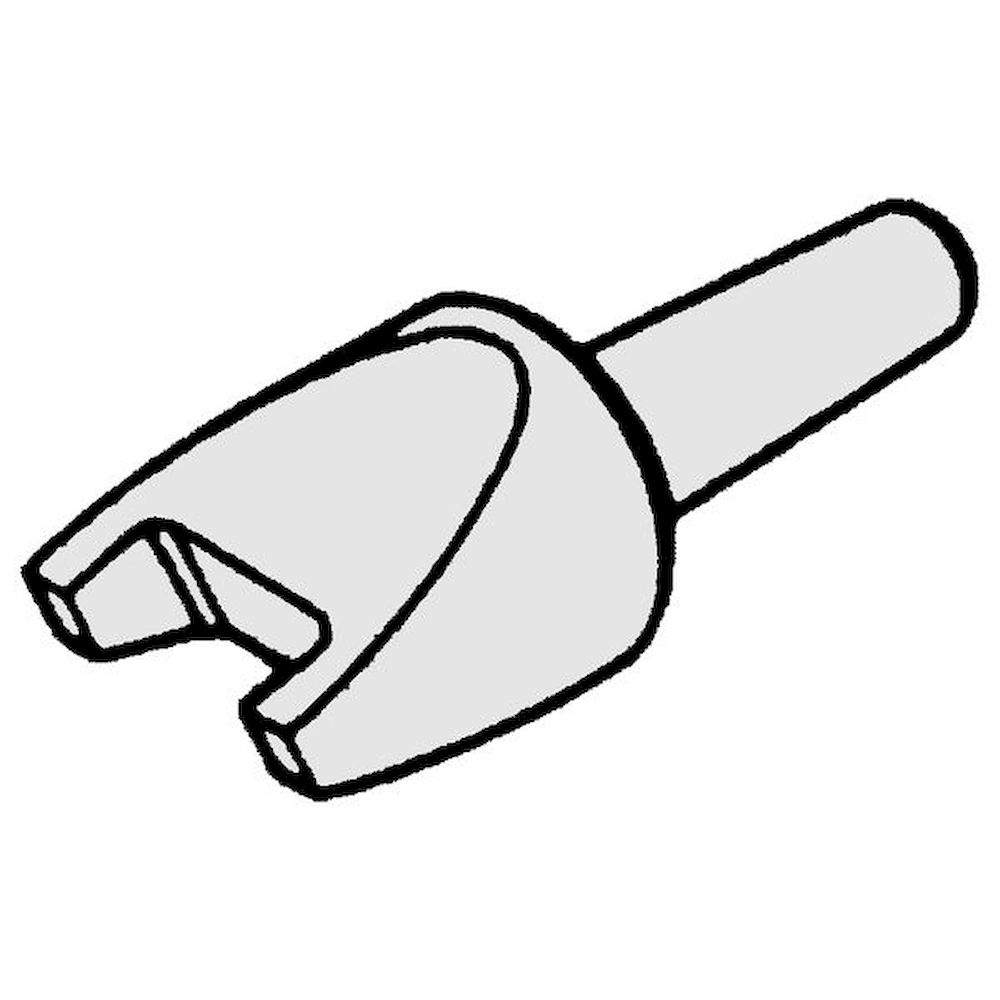

Weller SMT1206D. Waver soldering tip D/1, for components 3.2x1.6 mm, 3.2x2.5 mm
€32.91
Excl. 19% VAT , excl. Shipping Cost

Weller LT-SMT soldering tips are precision-engineered for surface-mount technology rework and assembly, delivering operating temperatures from 50 °C to 450 °C with a temperature stability of ± 6 °C at the tip. Each tip is manufactured with a copper core and iron-plated, chrome- and silver-coated working surface, achieving a thermal recovery that sustains consistent joint quality even at high throughput rates. The LT-SMT series is fully compatible with Weller WS 51, WS 61, and WS 81 soldering stations and complies with IEC 60900 and ESD-safe handling requirements per IEC 61340-5-1.

As an authorized Weller distributor, esd.equipment stocks 6 LT-SMT tip geometries - including chisel, conical, and SMT-specific blade profiles - ready for immediate dispatch. All tips carry Weller OEM certification and are traceable to DIN EN ISO 9001 quality management standards, ensuring reliable process documentation for regulated production environments.

Key technical advantages - LT-SMT Weller Soldering Tips at a glance

⚡ 50 - 450 °C operating range - covers all common Pb-free and leaded solder alloys

◼ ± 6 °C tip stability - consistent joint quality across high-volume SMT rework

🛠 Iron-plated copper core - fast thermal recovery, extended service life

⚙ WS 51 / WS 61 / WS 81 compatible - direct fit, no adapter required

🛡 ESD-safe design - leakage voltage < 2 mV per IEC 61340-5-1

✓ Weller OEM certified - DIN EN ISO 9001 traceable, authorized distributor stock

LT-SMT Series - Tip Geometry Overview

Tip Type	Application	Tip Width / Angle	Best Use Case
Chisel (screwdriver)	General SMT & through-hole	ca. 0.8 - 3.2 mm	Pads, drag soldering, component replacement
Conical (pointed)	Fine-pitch SMD rework	ca. 0.2 mm tip diameter	0402 / 0201 components, QFP leads
Blade / knife	SOT, SOIC, drag soldering	ca. 45° bevel	Multi-lead ICs, flat cable connectors
Bent chisel	Angled access rework	ca. 30° / 60° offset	Tight-clearance PCB areas, confined joints
Round / cylindrical	Through-hole & wire tinning	ca. 1.0 - 2.4 mm	DIP packages, lead tinning, wire harness
Micro chisel	Ultra-fine SMT precision work	ca. 0.4 mm flat face	BGA reballing, micro-BGA, CSP rework

Typical application areas: Electronics manufacturing and SMT assembly (IPC-A-610, IEC 61340-5-1), semiconductor back-end rework (SEMI S1/S2), medical device PCB assembly (ISO 13485), automotive electronics production (VDA 6.3, IATF 16949), aerospace and defense soldering operations (AS9100), R&D prototyping and laboratory repair environments.

✓

Authorized Weller Distributor OEM-certified LT-SMT tips, ISO 9001 traceable, genuine Weller quality

📦

6 Tip Geometries in Stock Chisel, conical, blade, bent, round, micro - ready for immediate dispatch

🛡

ESD-Safe by Design Leakage voltage < 2 mV, compliant with IEC 61340-5-1 EPA requirements
