Other versions
| item number | tether attachment point |
| WL61680 | ja |
| WL61681 | nein |

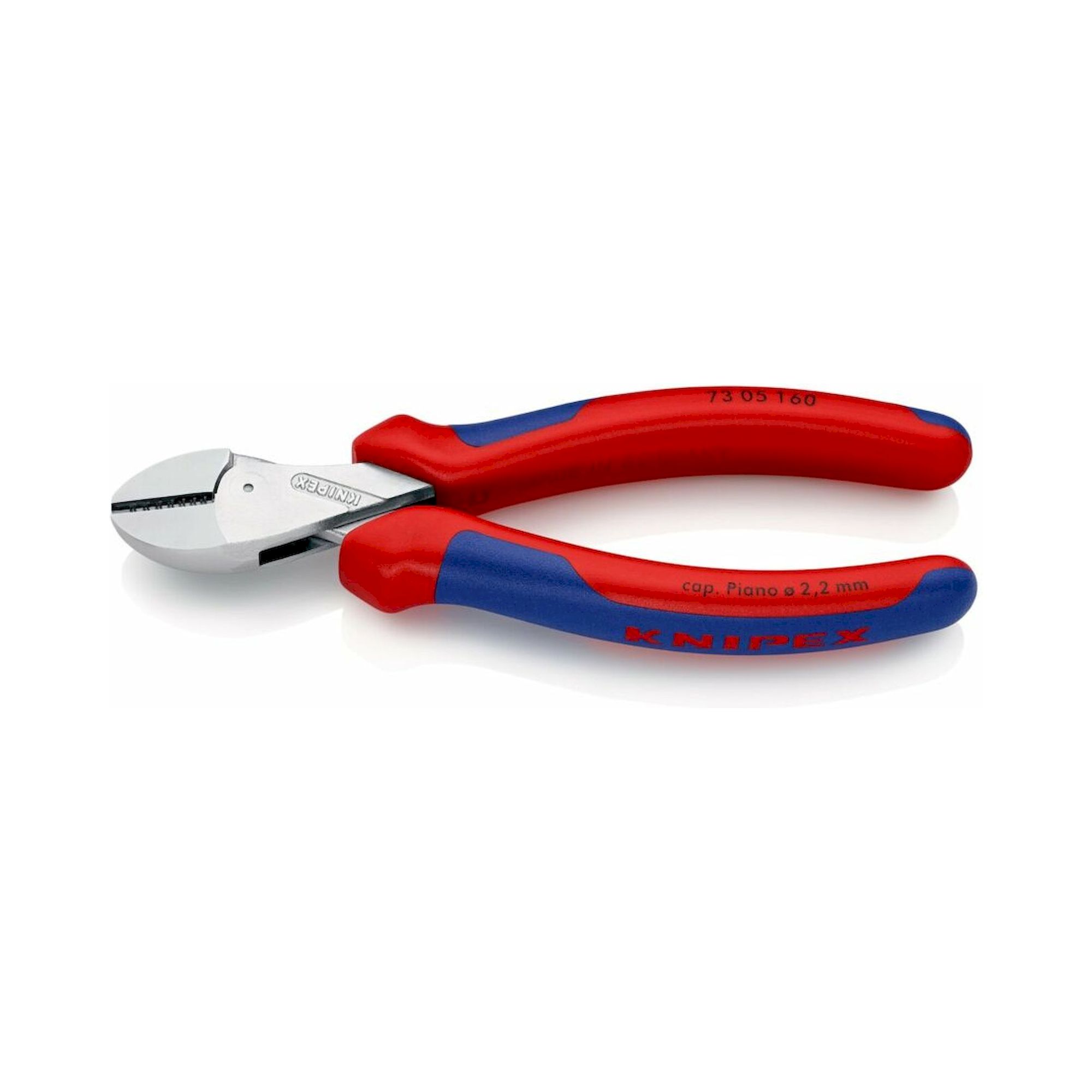

X-Cut® precisely cuts the finest wires as well as multi-strand cables and hard piano wire. Powerful, light and universal. High cutting performance with low effort due to optimum coordination of cutting edge angle and transmission ratio. Through-hole joint: maximum stability with low weight. Double-bearing joint axle for hard, permanent use. Large opening width for thicker cables. Precise cut even with fine copper wires. Compact, weight-saving design. Universally applicable in assembly, maintenance and production. 40 % force savings compared to standard side cutters of the same length. Pliers with fastening eye for attaching a fall protection device. - Cutting values medium-hard wire (diameter): Ø 3.8mm - Cutting values hard wire (diameter): Ø 2.7mm - Cutting values piano wire (diameter): Ø 2.2mm - Cutting values Cu-cable, stranded: Ø 12.0mm - Cutting values soft wire (diameter): Ø 4.8mm - Fall protection: Yes
- High cutting performance with low effort due to optimum coordination of cutting edge angle and transmission ratio
- Through-hole joint: highest stability with low weight
- Double-bearing joint axle for hard, permanent use
- Large opening width for thicker cables
- Precise cut even with fine copper wires
- Compact, weight-saving design
- Universally applicable, in assembly, maintenance and production
- 40 % force saving compared to standard side cutters of the same length
Product details
| item number | WL61680 |
| model | 73 05 160 T |
| manufacturer | KNIPEX |
| manufacturer item number | 73 05 160 T |
| dimensions (LxWxH) | 160 mm x 55 mm x 23 mm |
| dimensions with packaging (LxWxH) | 177 mm x 61 mm x 30 mm |
| Packaging volume | 0.315 dm³ |
| order unit | piece |
| type of packaging | single pack |
| standards | DIN ISO 5749 |
| product series | X-Cut® |
| RoHS conform | no |
| surface | chrome-plated |
| VDE | no |
| tether attachment point | ja |
| ESD safe | no |
| tool length | 160 mm |
| description head | chrome-plated |
| type of handle | Tethered Tools | with multi-component sleeves, with integrated fastening eyelet for attaching a fall protection device |
| Cutting value copper cable, multistranded (diameter) | 12 mm |
| cutting value wire diameter hard | 2.7 mm |
| cutting value wire diameter medium | 3.8 mm |
| cutting value wire diameter soft | 4.8 mm |
