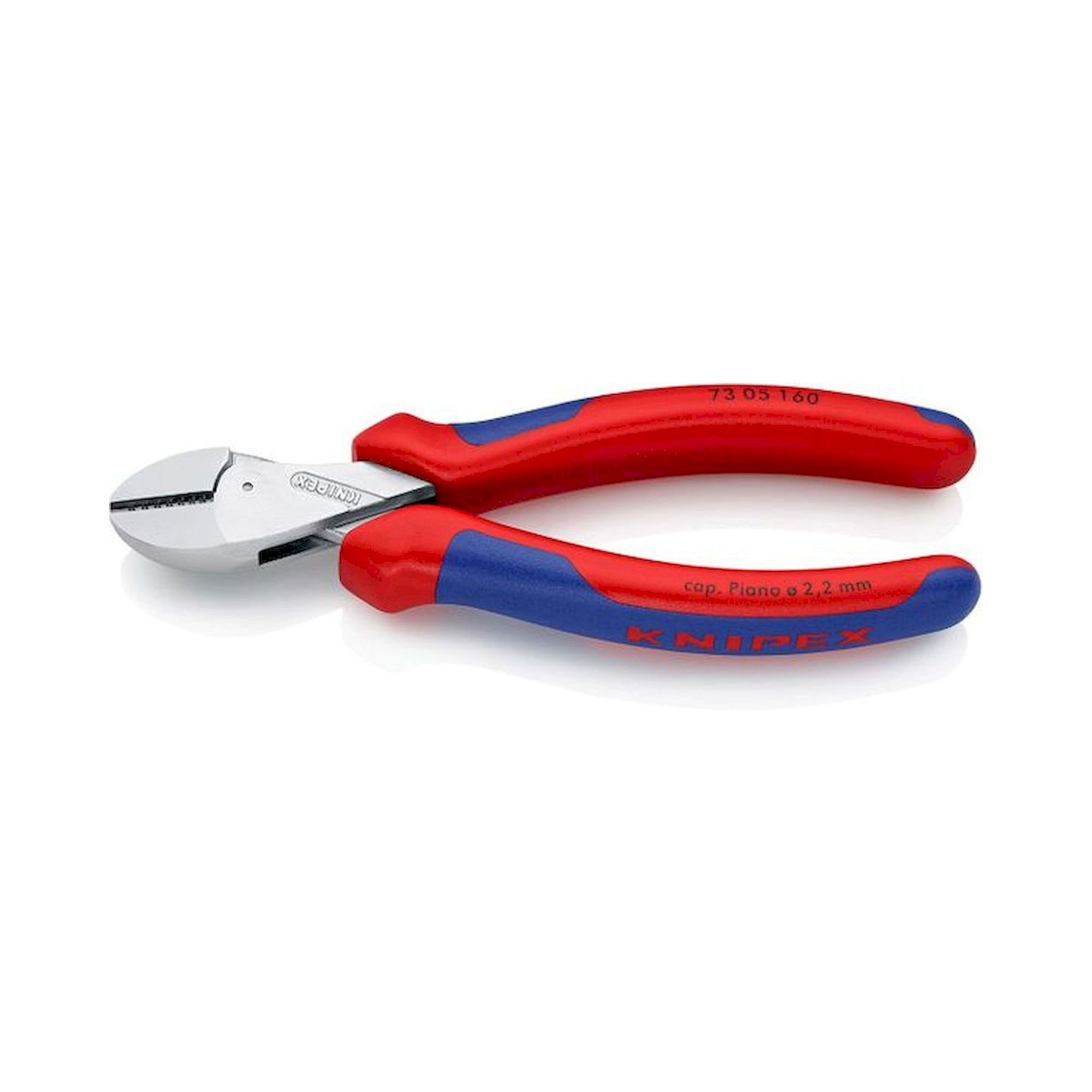

X-Cut® precisely cuts the finest wires as well as multi-strand cables and hard piano wire. Powerful, light and universal. High cutting performance with low effort due to optimum coordination of cutting edge angle and transmission ratio. Through-hole joint: maximum stability with low weight. Double-bearing joint axle for hard, permanent use. Large opening width for thicker cables. Precise cut even with fine copper wires. Compact, weight-saving design. Universally applicable in assembly, maintenance and production. 40 % force savings compared to standard side cutters of the same length. - Cutting values medium-hard wire (diameter): Ø 3.8mm - Cutting values hard wire (diameter): Ø 2.7mm - Cutting values piano wire (diameter): Ø 2.2mm - Cutting values Cu-cable, stranded: Ø 12.0mm - Cutting values soft wire (diameter): Ø 4.8mm
High cutting performance with low effort due to optimum coordination of cutting edge angle and transmission ratio
Through-hole joint: highest stability with low weight
Double-bearing joint axle for hard, permanent use
Large opening width for thicker cables
Precise cut even with fine copper wires
Compact, weight-saving design
Universally applicable, in assembly, maintenance and production
40 % force saving compared to standard side cutters of the same length
Product details
item number
WL61681
model
73 05 160
manufacturer
KNIPEX
manufacturer item number
73 05 160
dimensions (LxWxH)
165 mm x 60 mm x 21 mm
dimensions with packaging (LxWxH)
264 mm x 94 mm x 51 mm
Packaging volume
1.205 dm³
order unit
piece
type of packaging
single pack
standards
DIN ISO 5749
product series
X-Cut®
RoHS conform
no
surface
chrome-plated
VDE
no
tether attachment point
nein
ESD safe
no
tool length
160 mm
description head
chrome-plated
type of handle
with multi-component sleeves
Cutting value copper cable, multistranded (diameter)
