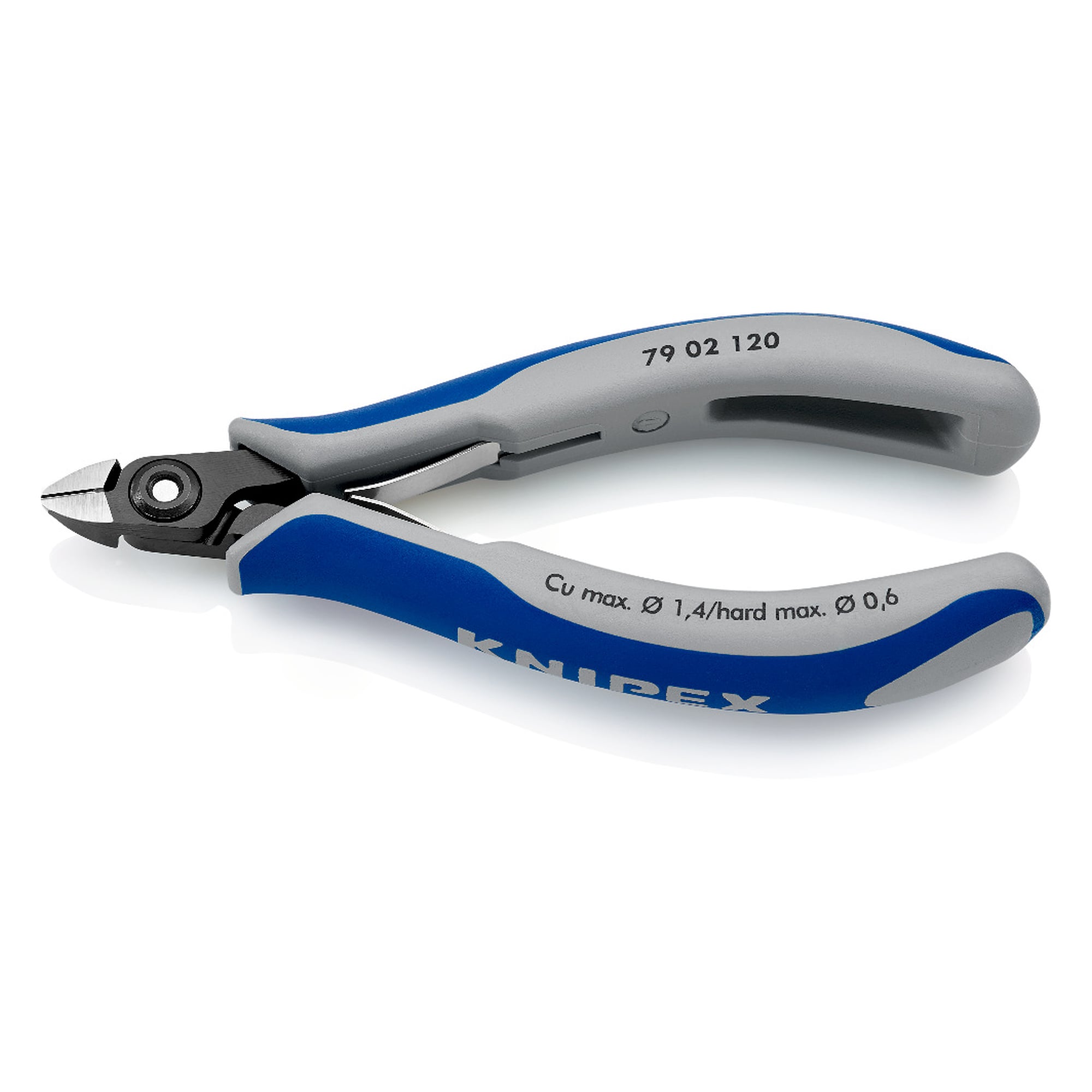

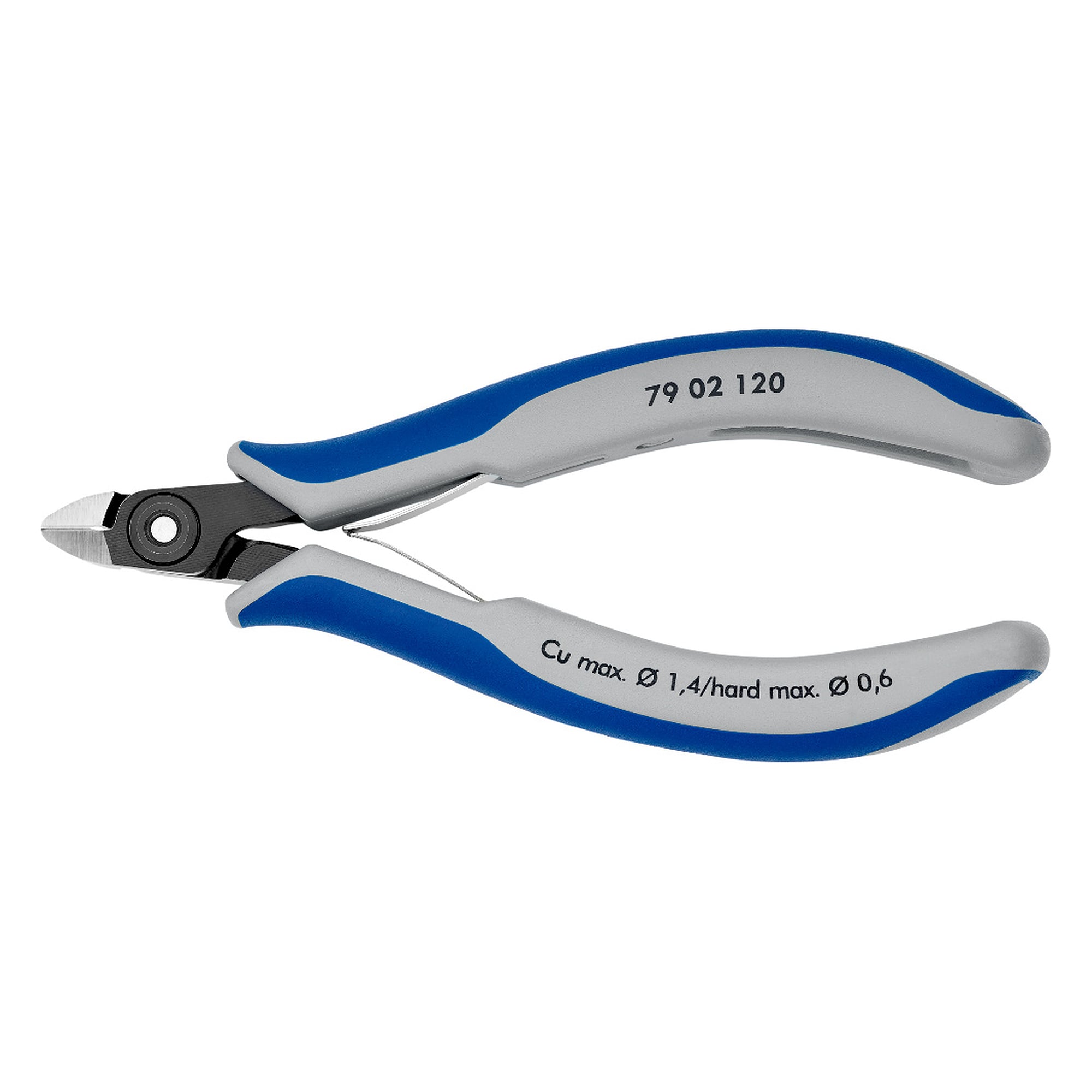

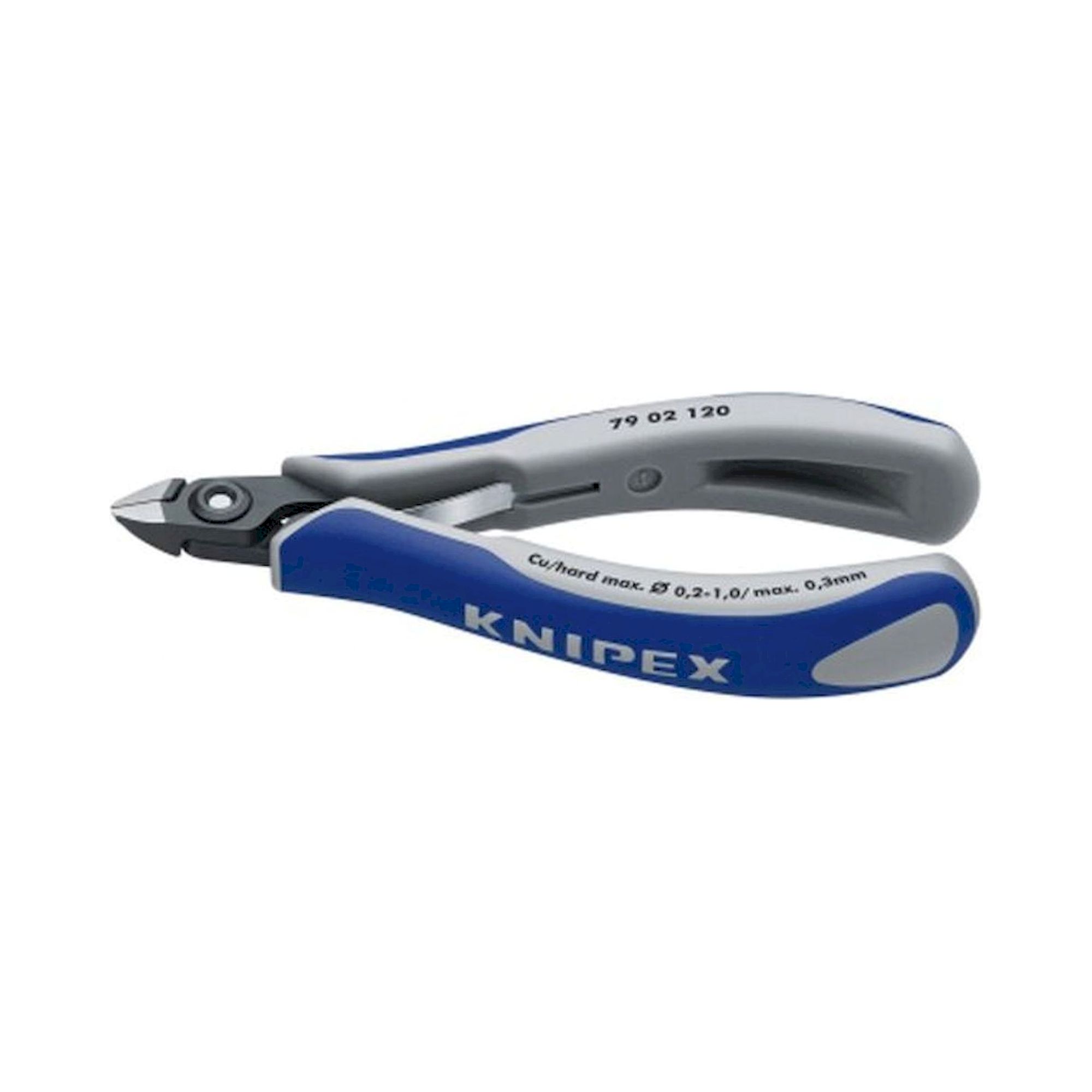

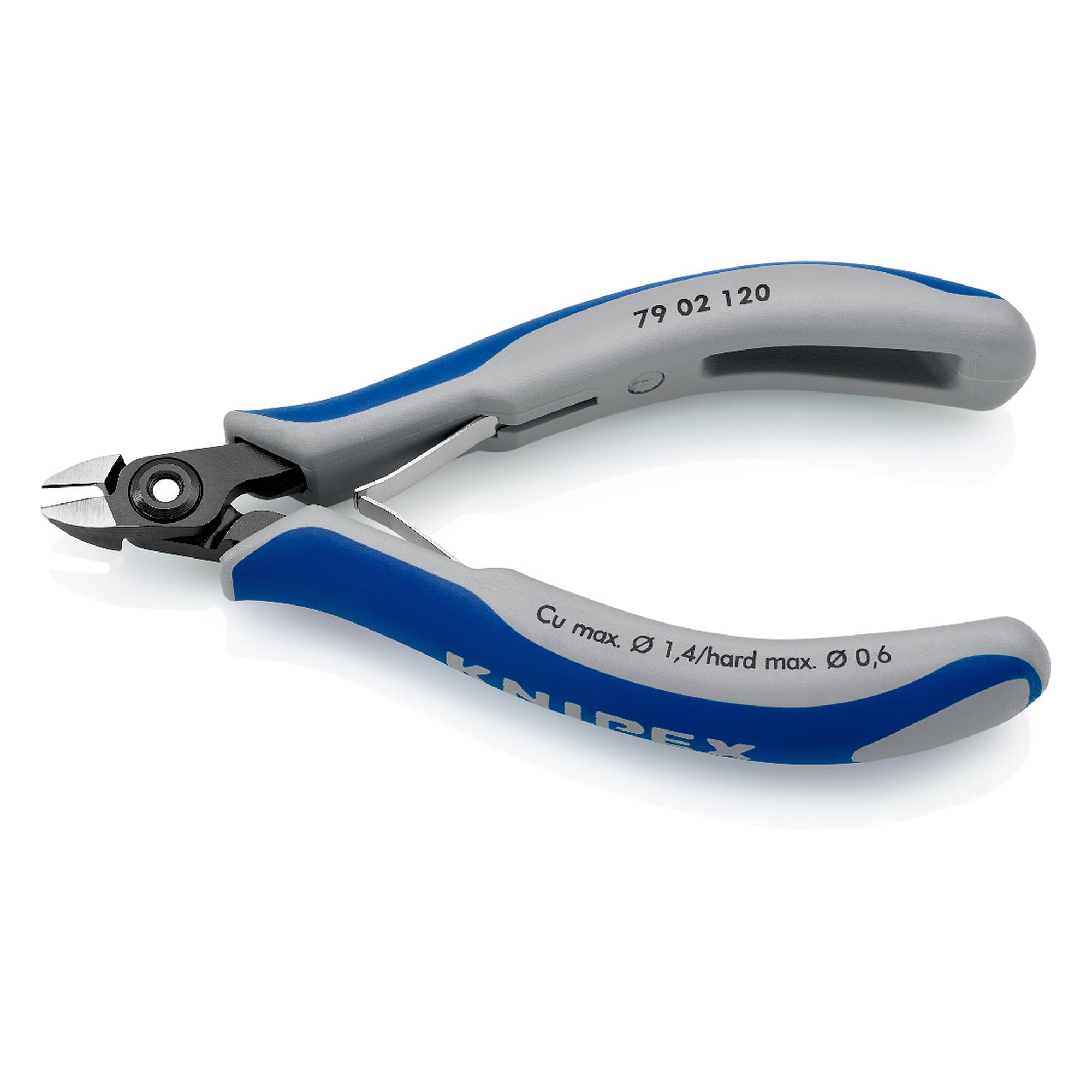

Precision electronics diagonal cutter, mini head, small bevel, 64 HRC, 120 mm - Knipex 79 02 120

Between closely spaced components, head width decides whether the cutting edge reaches the wire at all. The 79 02 120 precision electronics diagonal cutter answers that with a mini head of only 9 mm width and cutting edges of approx. 64 HRC that cut soft wire from 0.2 to 1.4 mm dia. cleanly.

Benefits

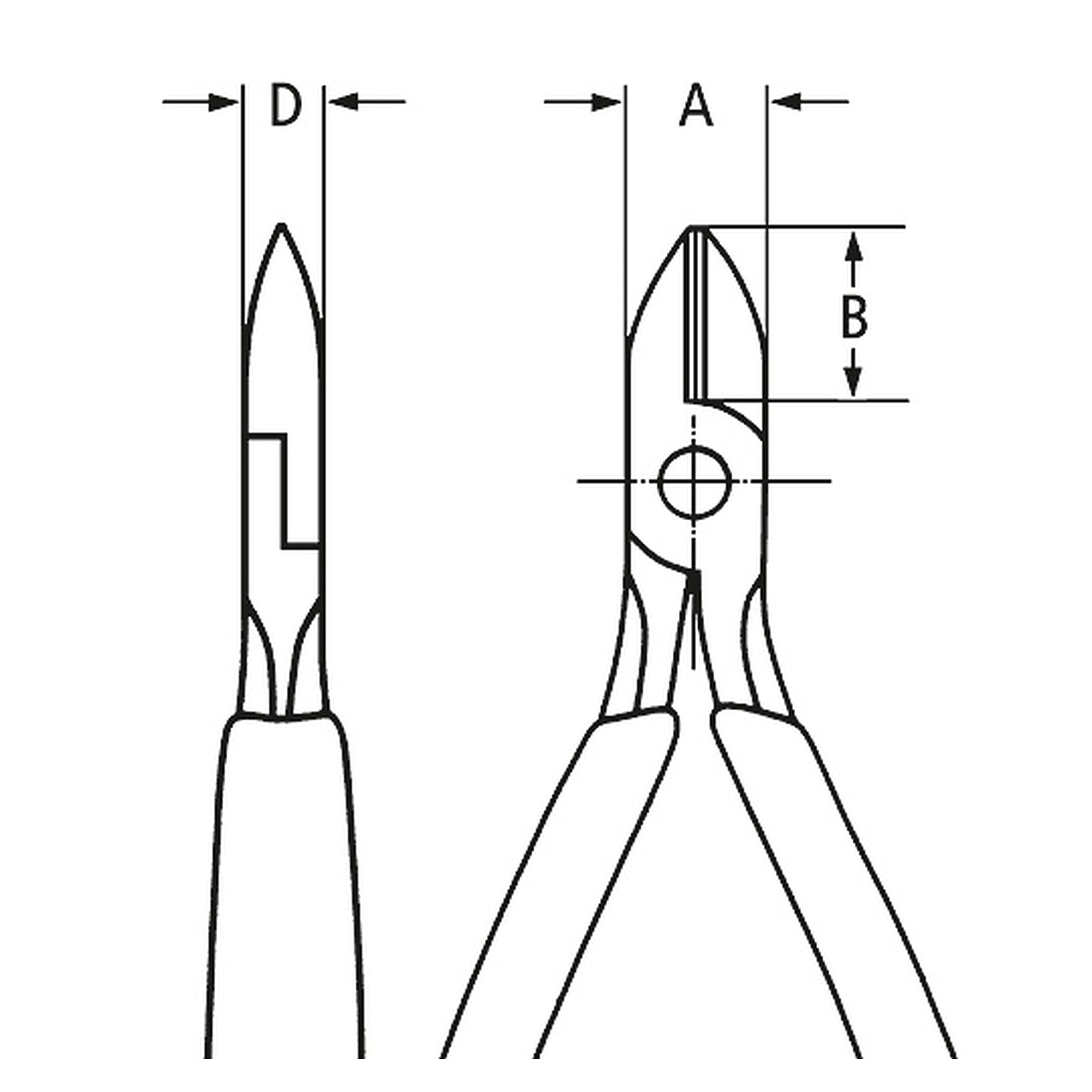

• Mini head with 9 mm head width and 6.5 mm jaw length reaches wires that a standard electronics cutter is too wide for.
• Very precisely ground, sharp cutting edges for exact cuts on sensitive electronic components.
• Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC, with a very small bevel for cuts close to the board.
• Bolted joint with particularly carefully machined joint surfaces for even, low-friction movement across the whole opening range.
• Smooth-running double spring opens the pliers gently and evenly, while ergonomically optimised multi-component sleeves sit quietly in the hand.
• Approx. 20 percent lighter than conventional electronics pliers, here 57 g at 120 mm length.

Areas of use

Board assembly and repair, precision mechanics, laboratory work, model making and prototyping. The mini head suits every job where there is hardly any room for a plier head between components and heat sinks.

Standards and conformity

The cutter complies with DIN ISO 9654. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
