Festo ADVC-63-15-I-P-A (188285) Short-Stroke Cylinder

Name: Festo ADVC-63-15-I-P-A (188285) Short-Stroke Cylinder
Brand: Festo
SKU: FES-188285
Price: 13899 EUR
Availability: InStock

€13,899.00

Excl. 19% VAT , excl. Shipping Cost

Article

FES-188285

Manufacturer Nr.

ADVC-63-15-I-P-A

Short-Stroke Cylinder

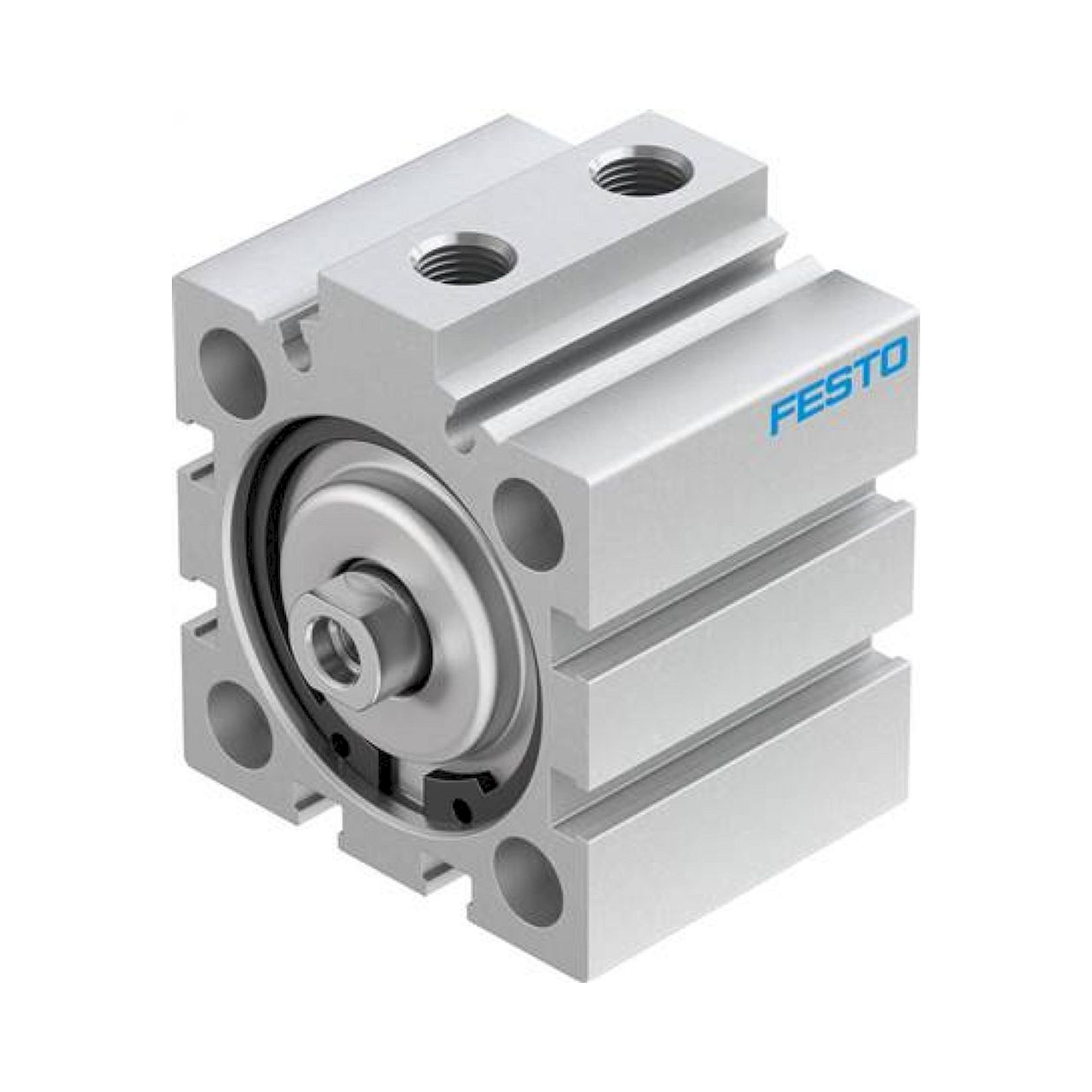

The product may differ from the illustration

Frequently Bought Together

This Item: Festo ADVC-63-15-I-P-A (188285) Short-Stroke Cylinder
€13,899.00
Excl. 19% VAT , excl. Shipping Cost
Festo ADVC-4-5-P (526898) Short-Stroke Cylinder
€3,442.00
Excl. 19% VAT , excl. Shipping Cost
Festo ADVC-25-20-I-P (188180) Short-Stroke Cylinder
€5,459.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Stroke [mm]	15,0
Piston diameter	63 mm
Dampening	P: Elastic silencer rings / plates double-sided
installation position	arbitrary
Principle of operation	double acting
Construction set up	Piston piston rod
Position detection	For proximity switch
Operating pressure [bar]	0.6 to 10
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation possible (required in further operations)
Corrosion resistant class KBK	1 - low corrosion stress
ambient temperature [°C]	-20 to 80
Theoretical force at 6 bar, flow [N]	1.870,0
Moving mass [g]	158,00
Product weight [g]	710,0
Fastening type	With throughway bores With Accessories Selectively:
Pneumatic connection	G1/8
Material information	Copper and PTFE-free
Cover material	Aluminium wrought alloy anodized
Seals material	TPE-U(PU)
Housing material	Aluminium wrought alloy anodized
Piston rod material	High-alloyed steel
Theoretical force at 6 bar, Return flow [N]	1.750,0
Based on standard	ISO 6431 VDMA 24562 hole pattern

More Information
Manufacturer Nr.	ADVC-63-15-I-P-A
Manufacturer	Festo
EAN	4052568148904
Weight	0.700000
HS-Code	84123100
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Article authenticity	Original product
Condition of article	New
