What are Festo ADVC and AEVC short-stroke cylinders and where are they primarily used in industrial applications?

Festo ADVC and AEVC short-stroke cylinders are compact pneumatic actuators designed for precise linear motion control in space-constrained automation applications. These cylinders deliver controlled linear movement with strokes ranging from 10mm to 25mm, making them ideal for pick-and-place operations, component positioning, and workpiece clamping in manufacturing environments. The ADVC series features adjustable cushioning while the AEVC series provides basic positioning functionality, both operating efficiently in automotive assembly lines, packaging machinery, and precision manufacturing equipment where compact dimensions and reliable performance are critical requirements.

What technical specifications should I consider when selecting between Festo ADVC-100 and AEVC-100 cylinder variants?

When selecting between Festo ADVC-100 and AEVC-100 cylinders, the primary technical considerations include bore diameter of 100mm, available stroke lengths of 10mm, 15mm, 20mm, and 25mm, and cushioning options. The ADVC series incorporates adjustable pneumatic cushioning on both stroke ends, indicated by the 'A' designation for adjustable cushioning, while AEVC models provide standard end position cushioning. Both series operate with standard compressed air at 6 bar working pressure and feature identical mounting configurations with threaded rod connections, but the ADVC series offers superior deceleration control for applications requiring precise positioning and reduced impact forces.

Which international standards and certifications apply to Festo ADVC and AEVC short-stroke cylinders?

Festo ADVC and AEVC short-stroke cylinders comply with ISO 15552 standard for pneumatic cylinders, ensuring dimensional compatibility and interchangeability with other manufacturers' products. The cylinders meet CE marking requirements according to the Machinery Directive 2006/42/EC and are designed to operate safely within the pressure equipment directive PED 2014/68/EU framework. Additionally, these cylinders conform to ISO 8573 compressed air quality standards and incorporate materials compliant with RoHS directive 2011/65/EU, making them suitable for integration into automated systems requiring regulatory compliance in European industrial environments.

What are the main differences between Festo ADVC and AEVC cylinder series variants?

The primary difference between Festo ADVC and AEVC cylinder series lies in their cushioning capabilities and construction features. ADVC cylinders incorporate adjustable pneumatic cushioning systems that allow fine-tuning of deceleration characteristics at both stroke ends, providing superior control for applications requiring gentle positioning and reduced mechanical stress. AEVC cylinders feature fixed cushioning without adjustment capability, offering a more cost-effective solution for standard applications where basic end-position dampening is sufficient. Both series share identical bore diameters of 100mm and mounting configurations, but ADVC models include additional cushioning adjustment screws and enhanced sealing systems for improved performance in high-cycle applications.

What installation requirements and system compatibility considerations apply to Festo ADVC and AEVC cylinders?

Festo ADVC and AEVC cylinders require compressed air supply at 1.5 to 10 bar operating pressure with air quality compliant to ISO 8573-1 class 7.4.4 or better, including filtration to 40 microns and oil content below 1mg/m³. The cylinders feature standard G1/8 pneumatic connections compatible with push-in fittings and threaded adaptors, while mounting utilizes M8 threaded holes on 125mm centers according to ISO 15552 specifications. Installation requires adequate clearance for piston rod extension plus 20mm minimum service access, and the cylinders integrate directly with Festo valve terminals, individual solenoid valves, and standard pneumatic control systems through conventional 5/2-way directional control valves.

What safety ratings and environmental operating conditions do Festo ADVC and AEVC cylinders support?

Festo ADVC and AEVC cylinders operate safely within ambient temperatures from -20°C to +80°C and provide IP65 protection rating against dust ingress and water jets from all directions. The cylinders withstand operating pressures up to 10 bar with proof pressure testing at 15 bar, incorporating NBR sealing materials resistant to standard pneumatic lubricants and compressed air contaminants. Maximum piston rod side loads should not exceed 5% of theoretical cylinder force to prevent premature bearing wear, and the cylinders include integrated magnetic piston position sensing compatibility for proximity switch mounting, enabling safe position feedback in automated safety circuits.

What maintenance intervals and service life expectations apply to Festo ADVC and AEVC short-stroke cylinders?

Festo ADVC and AEVC cylinders require preventive maintenance inspection every 2 million cycles or annually under normal operating conditions with filtered compressed air at 6 bar pressure and ambient temperatures below 60°C. Service life expectancy reaches 10 million cycles when operated within specified parameters, with seal replacement typically required after 5 million cycles depending on duty cycle severity and air quality. Maintenance procedures include visual inspection of piston rod coating for wear, verification of cushioning adjustment settings on ADVC models, and compressed air quality monitoring to prevent contamination-related seal degradation, with complete seal kit replacement recommended every 24 months in continuous operation applications.

Short-stroke cylinder ADVC, AEVC

Compact, short-stroke and flat cylinders

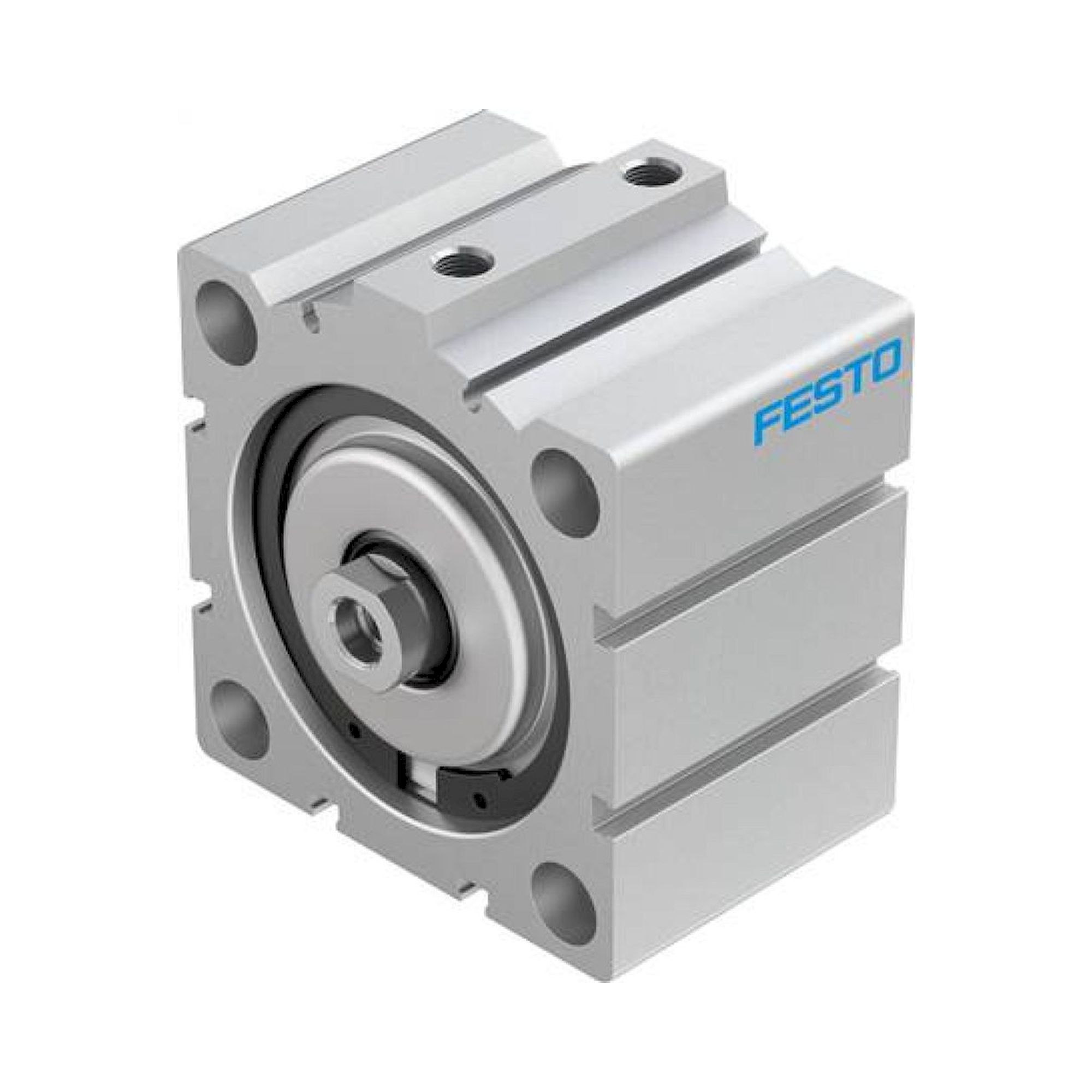

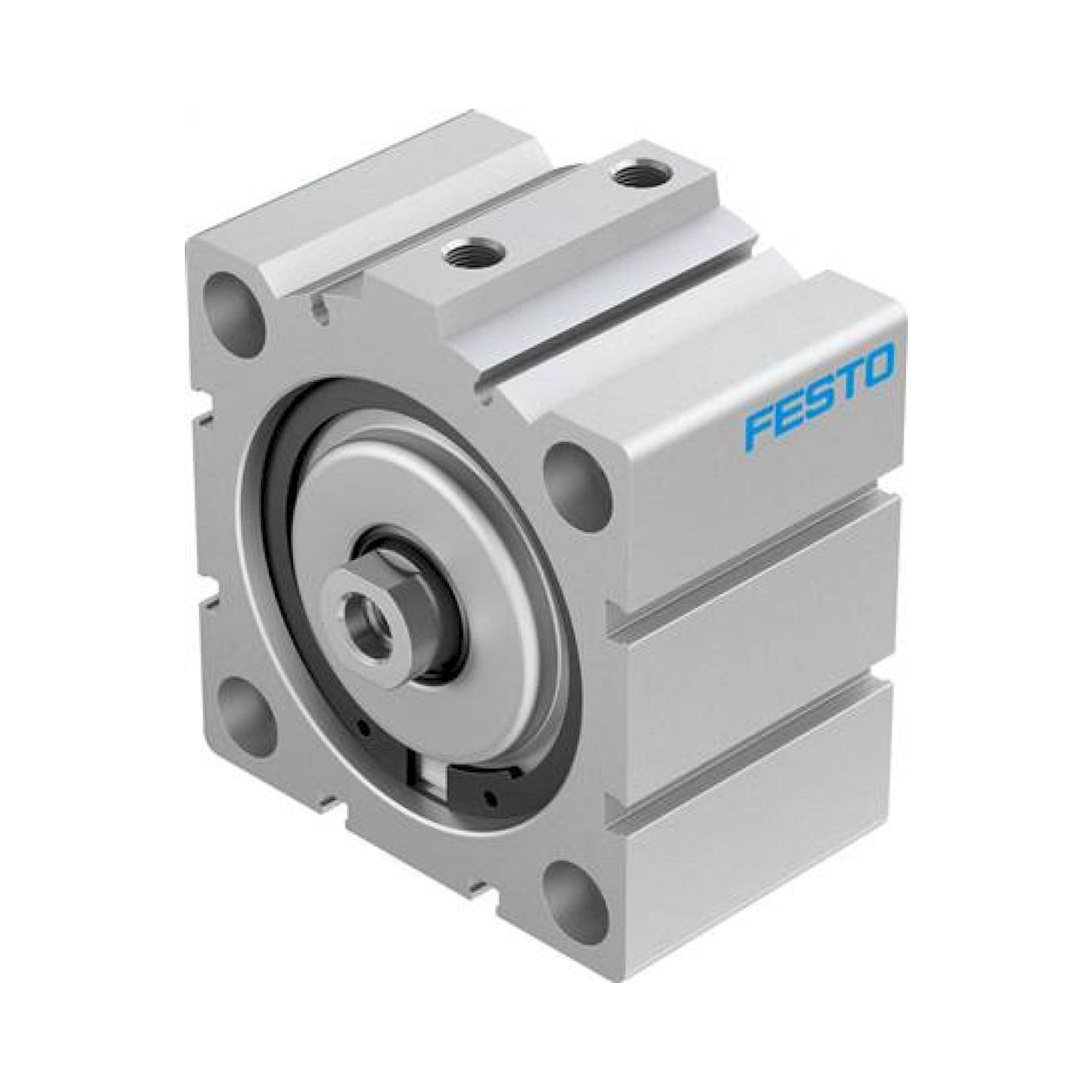

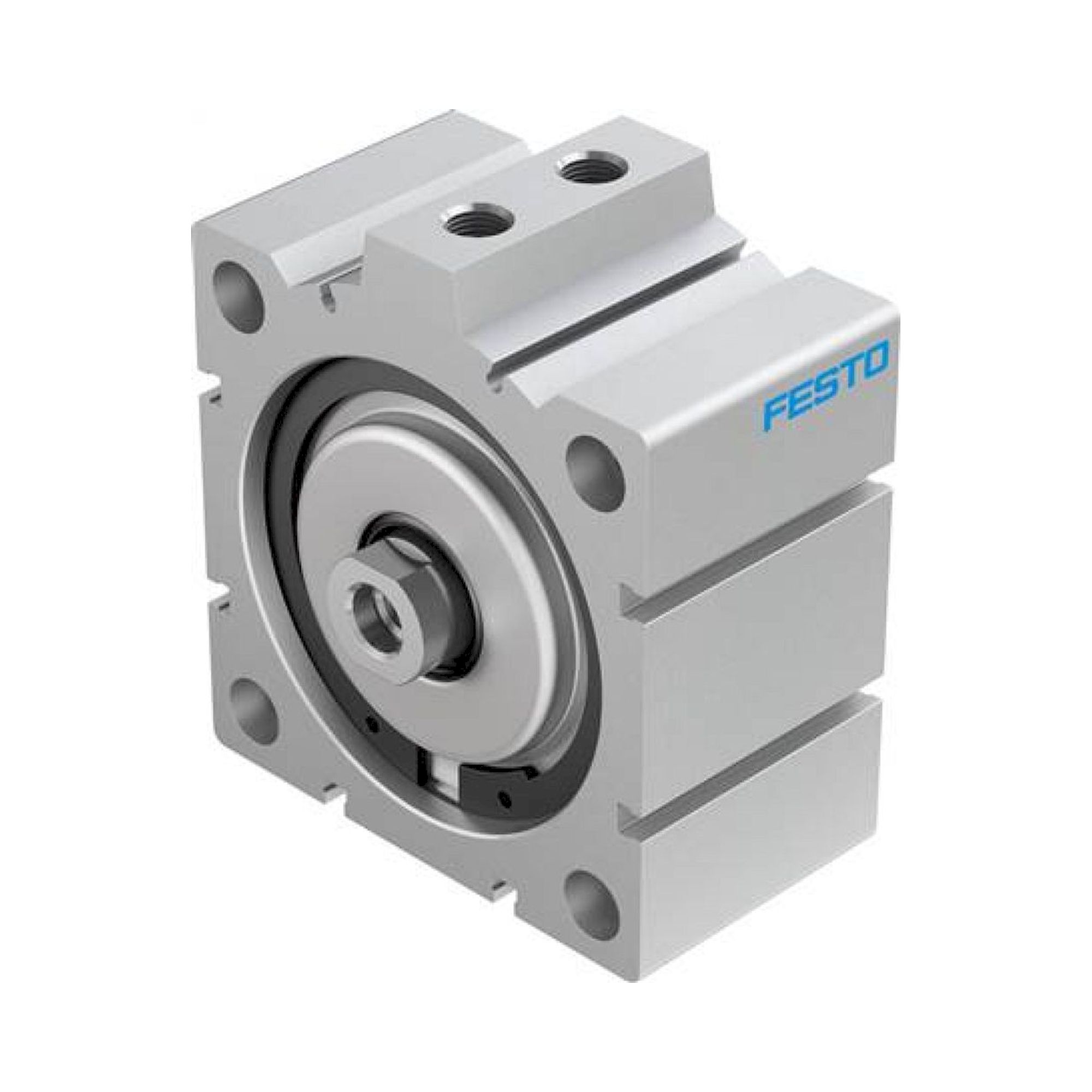

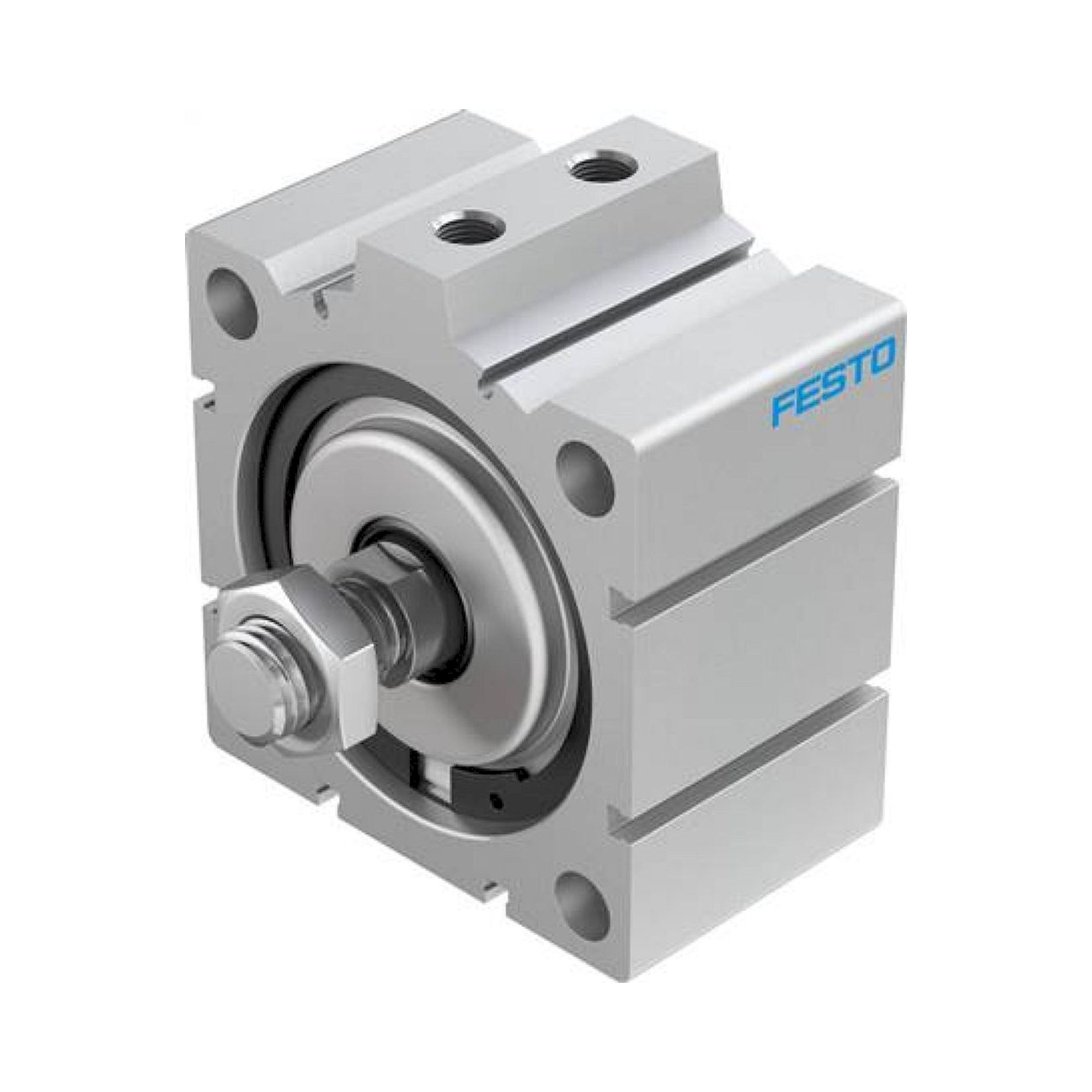

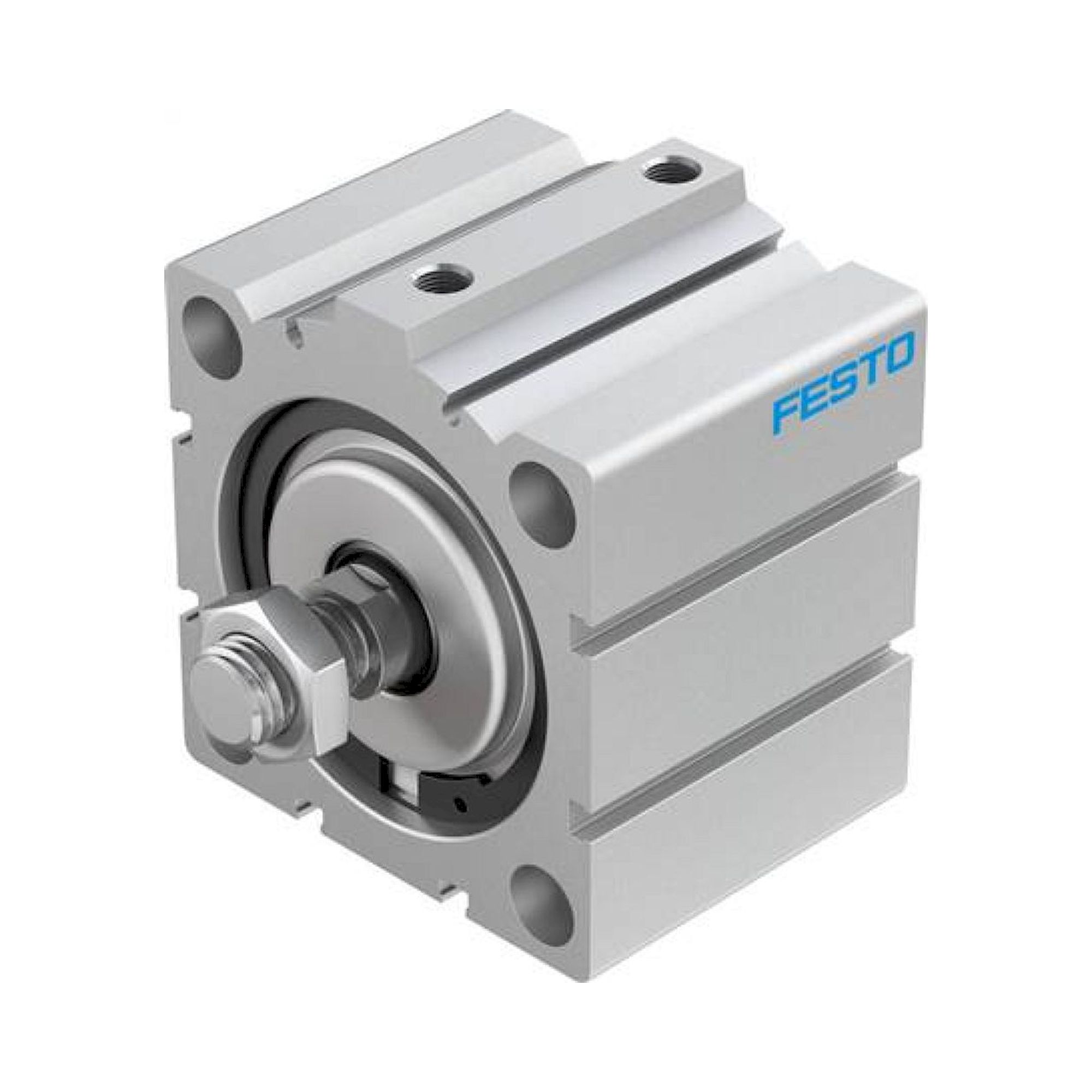

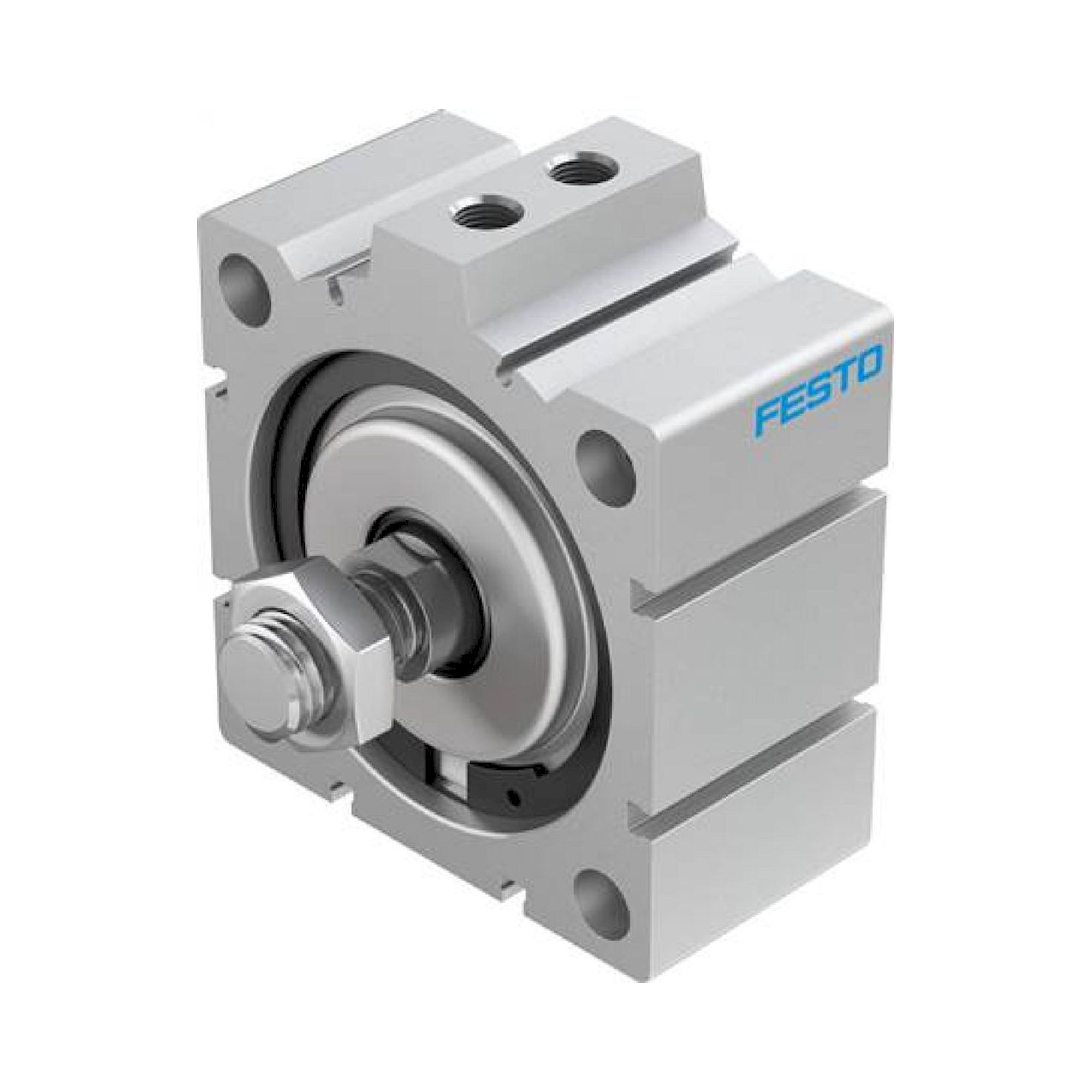

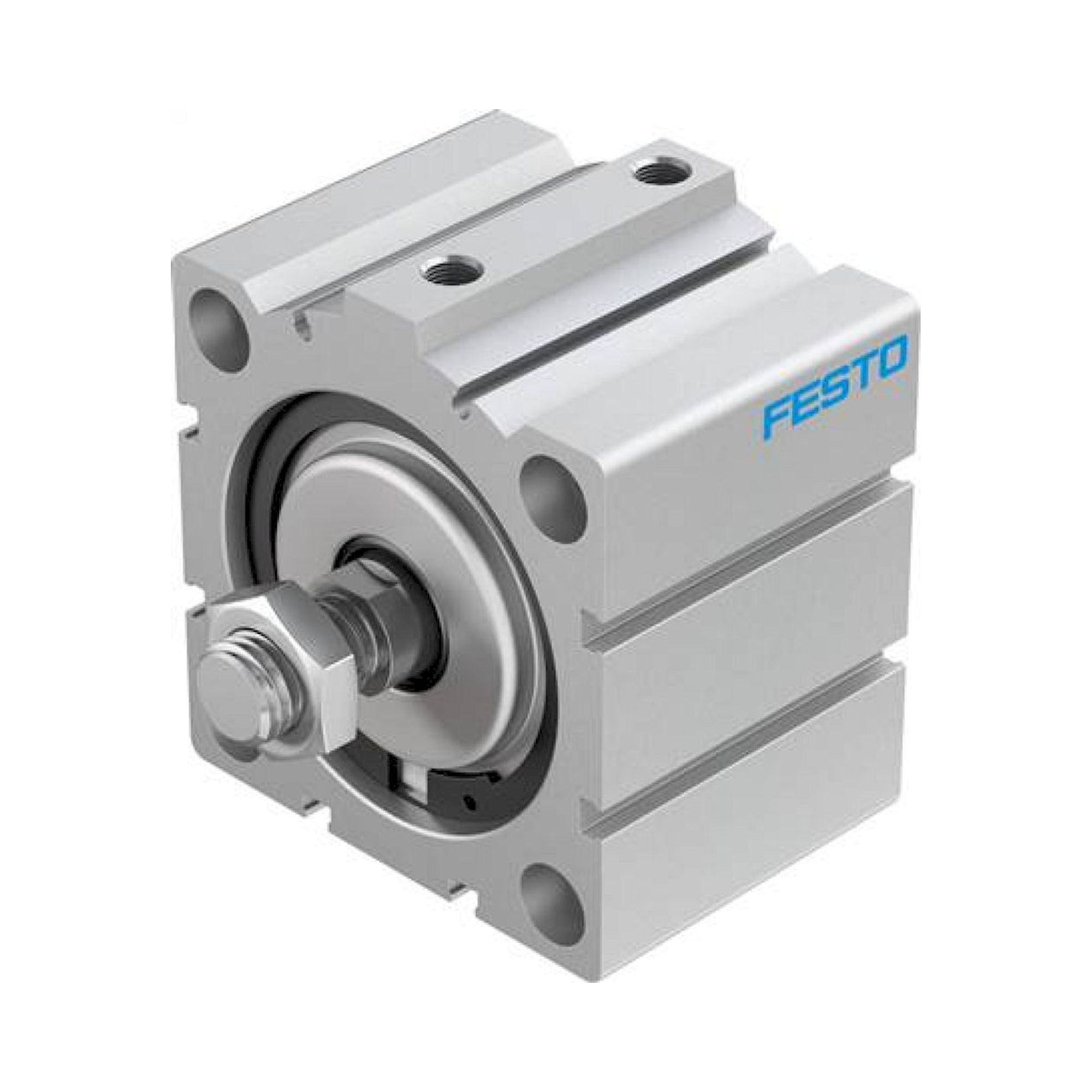

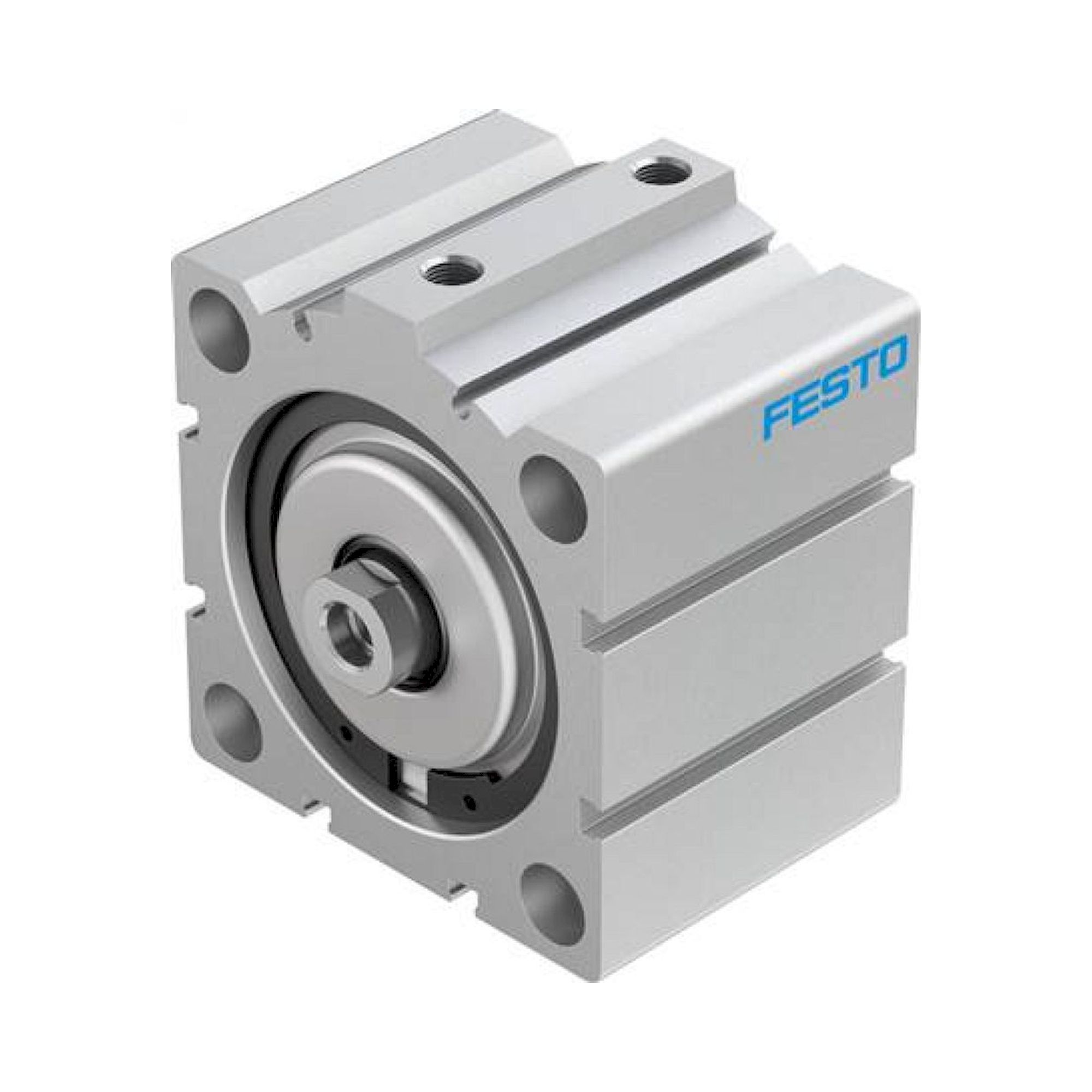

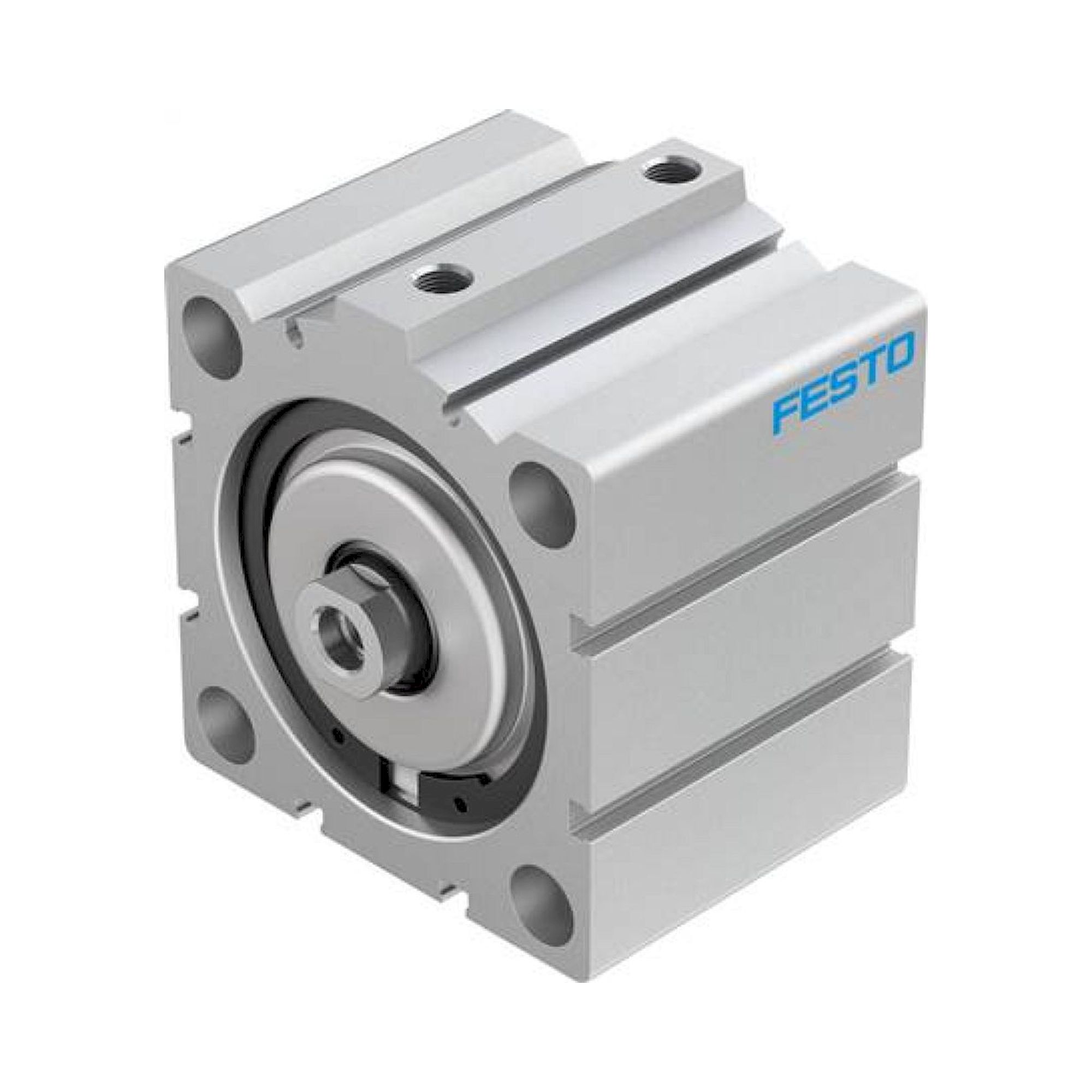

Festo short-stroke cylinders ADVC and AEVC are double-acting pneumatic cylinders with strokes from 5 to 25 mm and bore diameters from 10 to 100 mm. The compact rectangular profile allows space-saving mounting via threaded holes directly on the face plate or through pivot bracket assembly. The short strokes make these cylinders suited to fast positioning and clamping tasks where a long stroke would be unnecessary.

↕ Bore Ø 10-100 mm - stroke 5-25 mm per size; e.g. ADVC-10-5 through ADVC-100-25

⚙ Compact rectangular profile - direct face mounting, sensor slot for position detection

✓ Variants A-P and I-P - external thread (A) or internal thread (I) on piston rod depending on attachment

⚡ Magnetic piston suffix -A - for inductive and magnetic position sensors at sensor slot

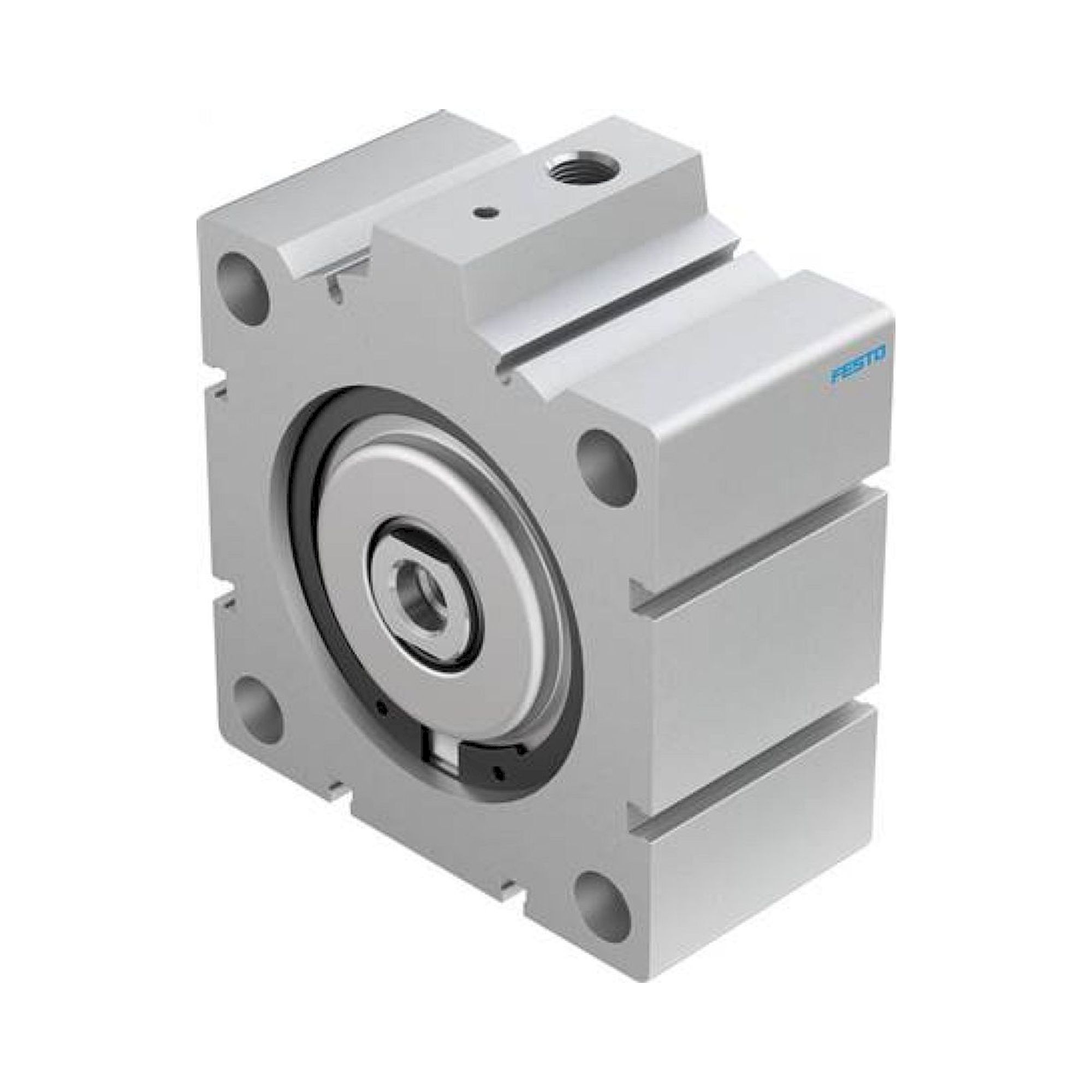

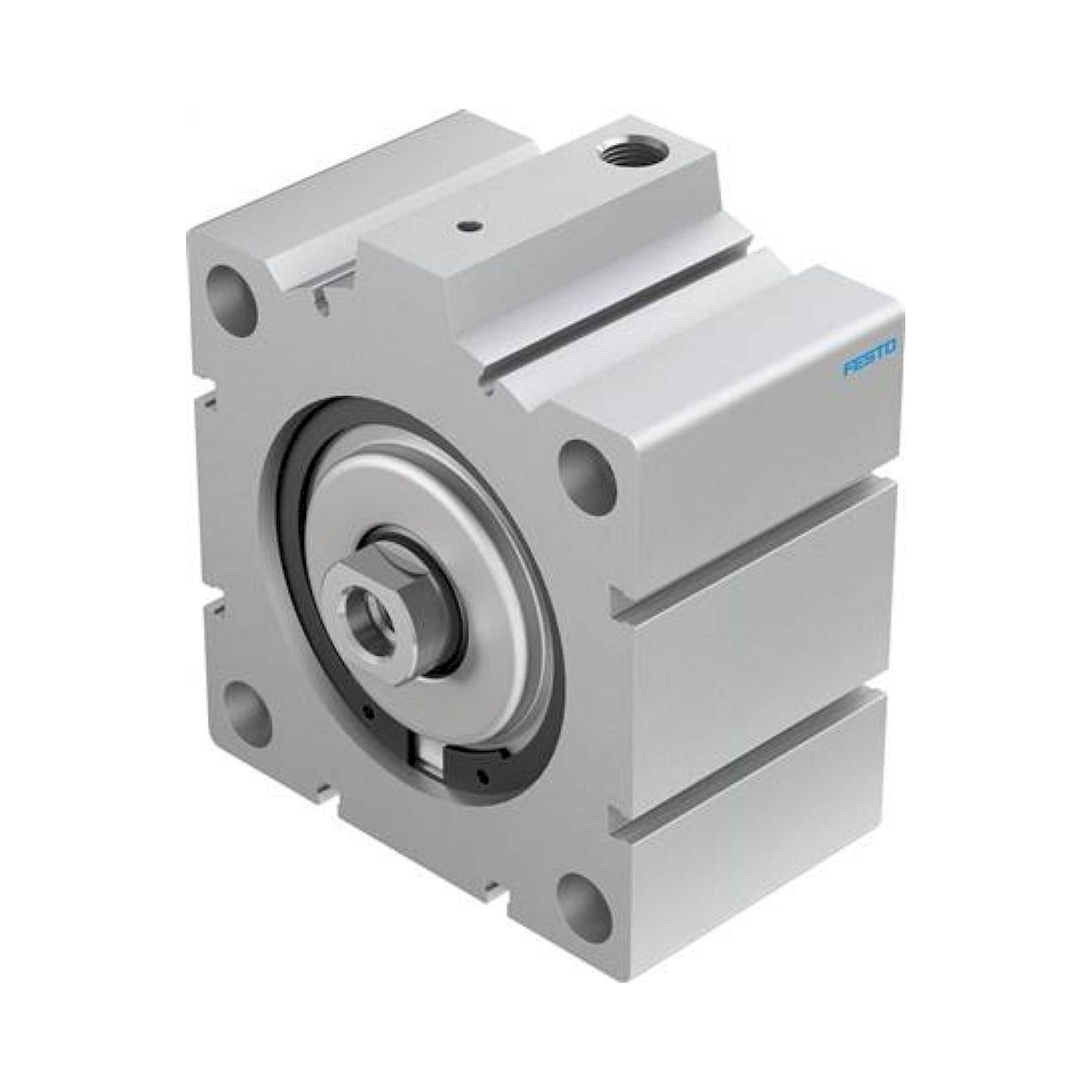

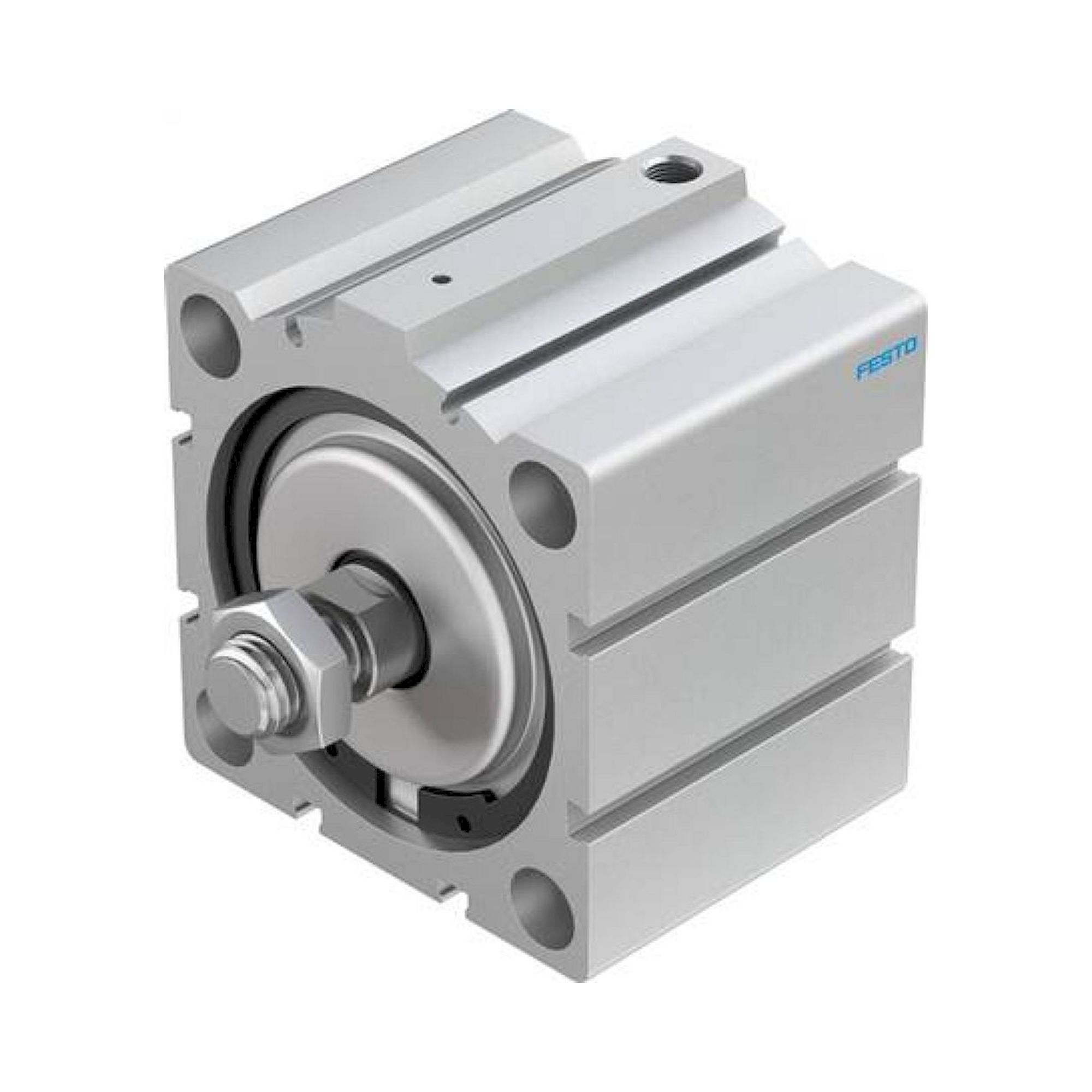

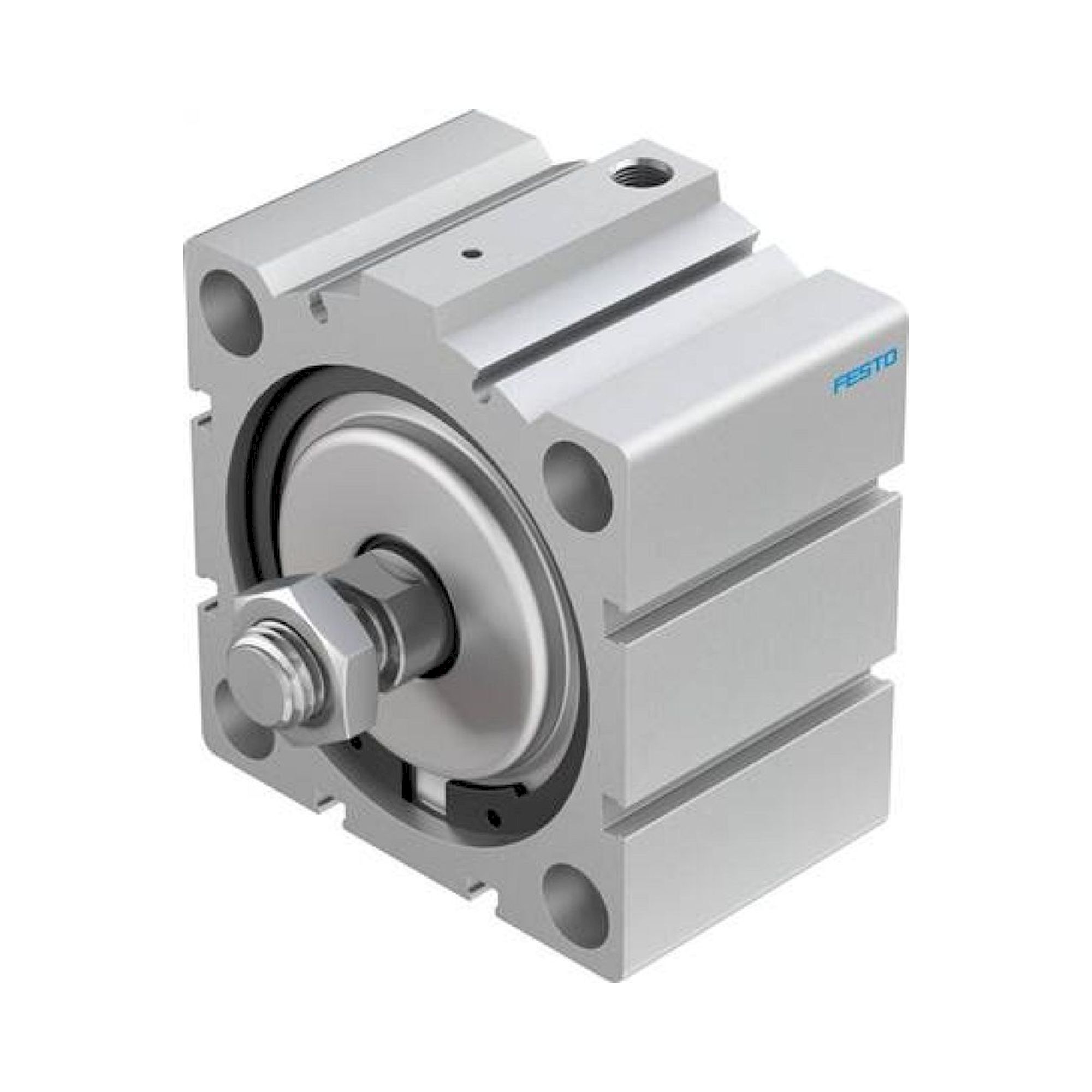

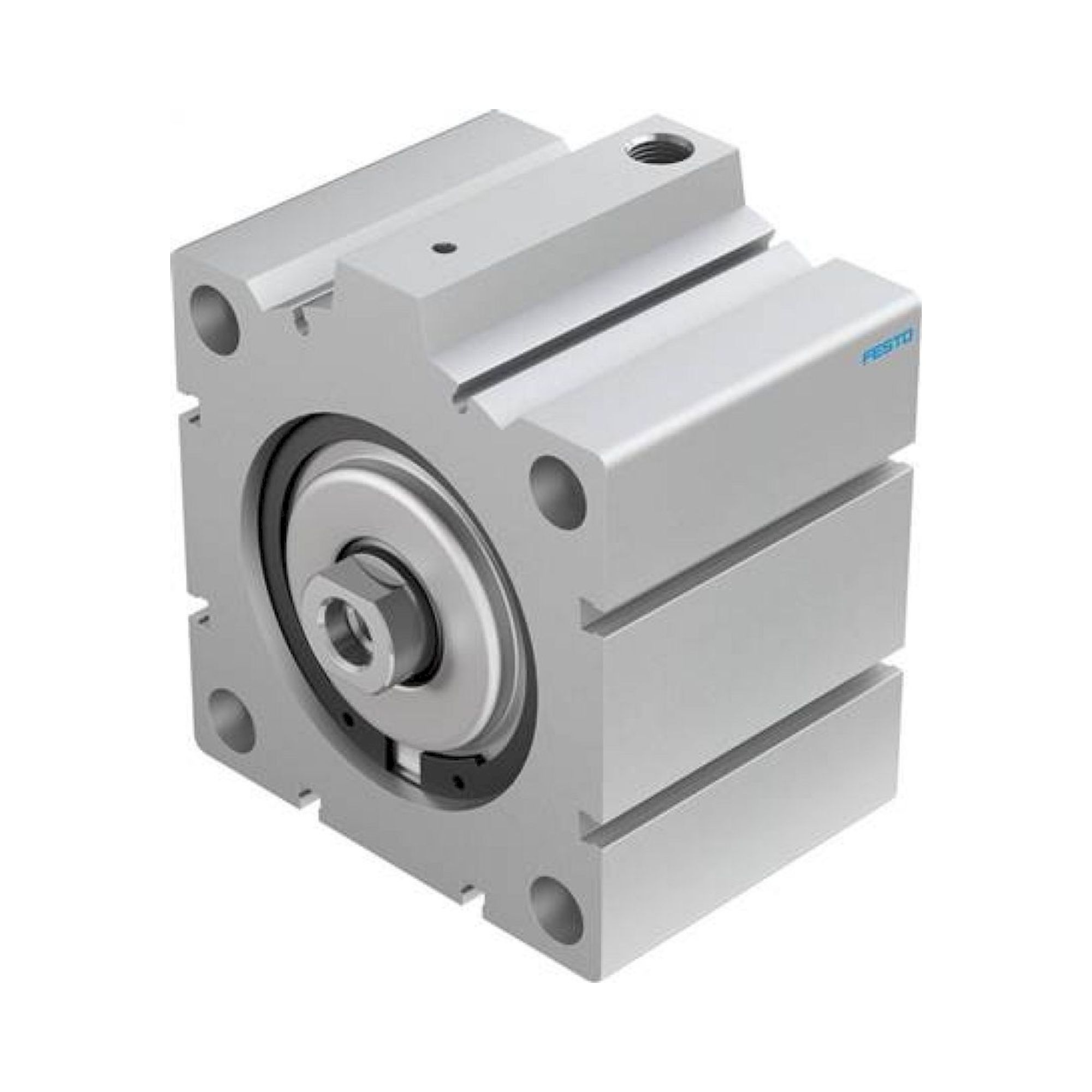

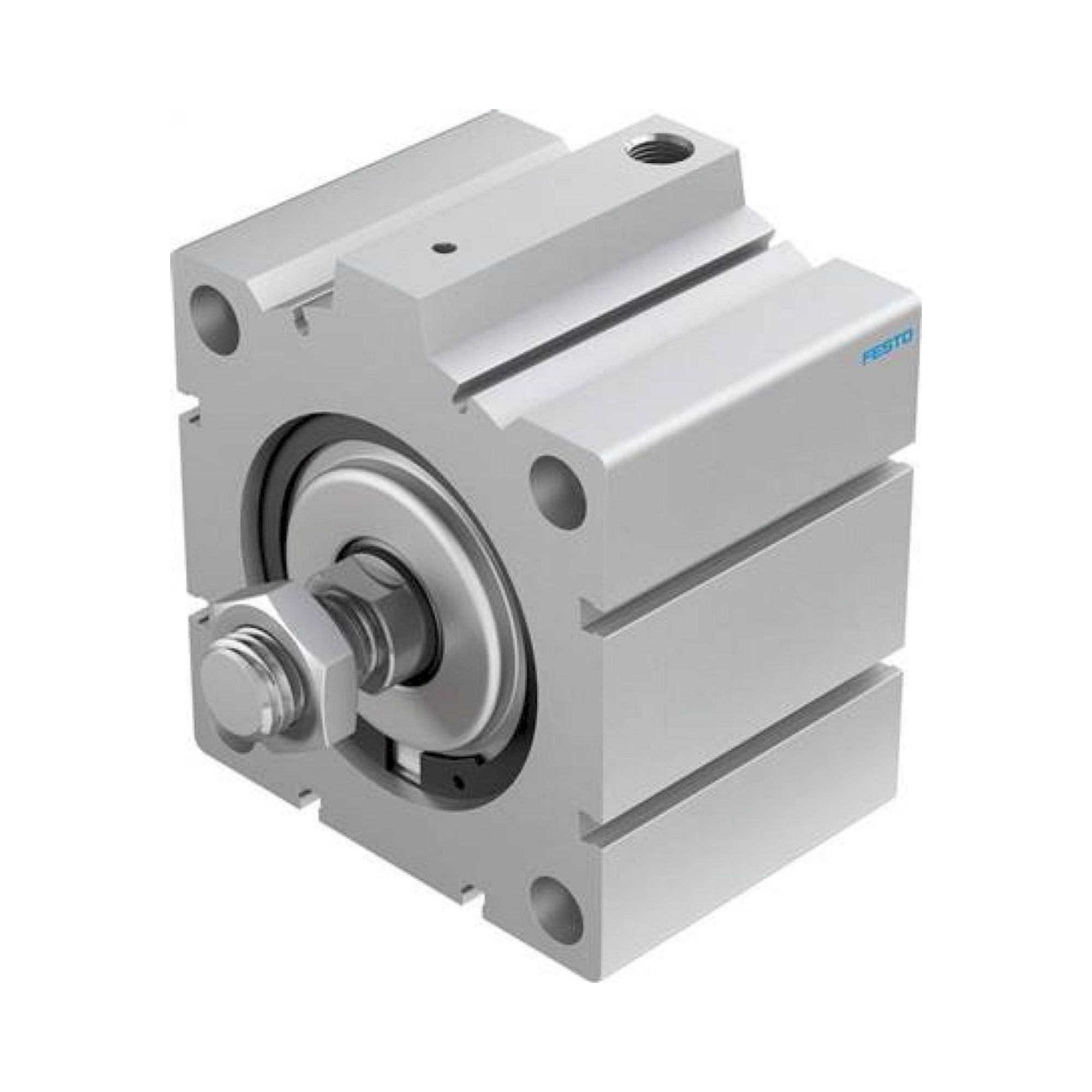

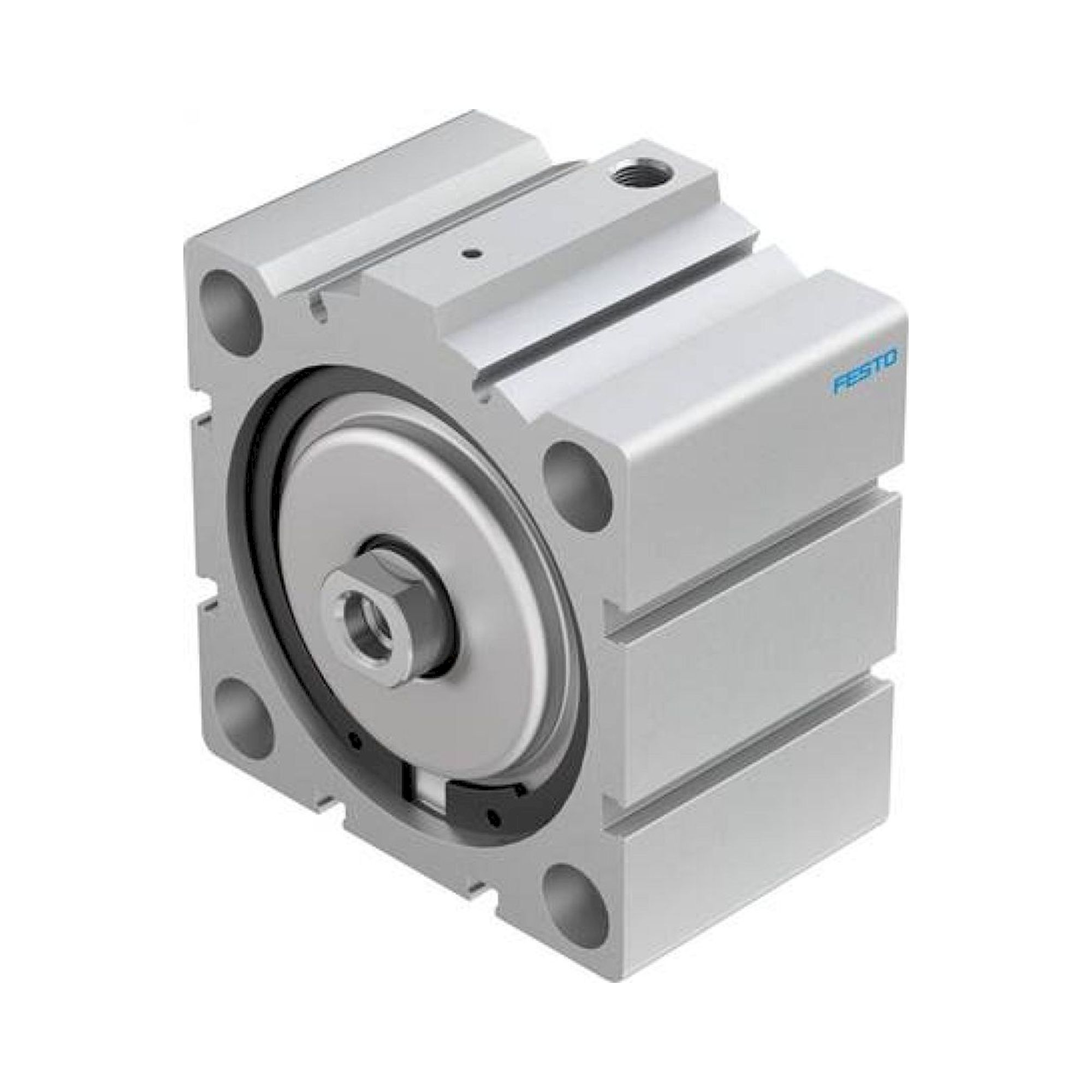

⬡ AEVC variant - single-acting spring return for fail-safe applications

Type	Bore Ø	Stroke	Rod variant
ADVC-10-5-A-P	10 mm	5 mm	External thread, magnetic piston
ADVC-10-10-I-P-A	10 mm	10 mm	Internal thread, magnetic piston
ADVC-32-...-A-P	32 mm	5-25 mm	External thread, magnetic piston

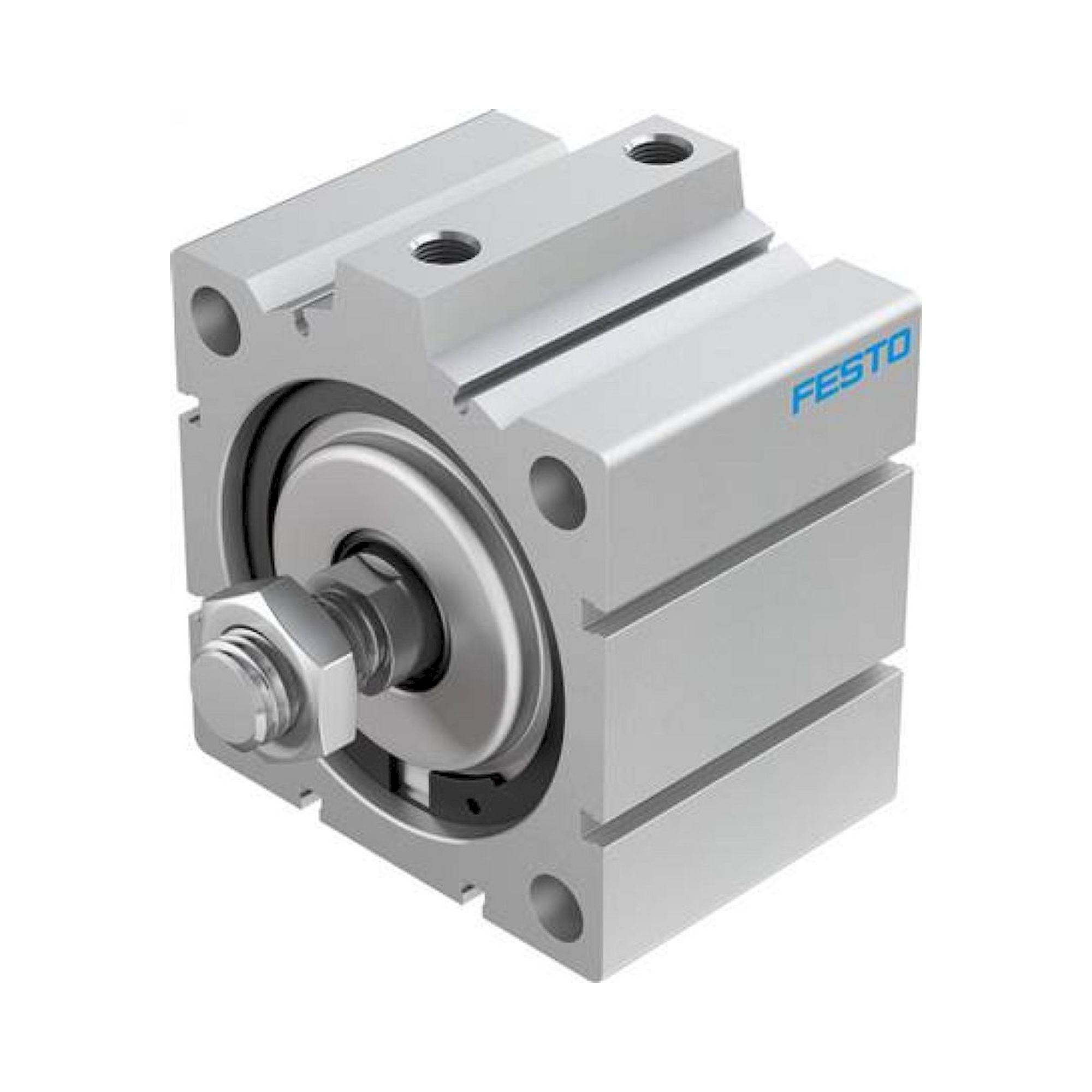

ADVC-100-25-A-P	100 mm	25 mm	External thread, high force

Bore diameter selection is based on required cylinder force at operating pressure; stroke is limited to the application (5, 10, 15, 20 or 25 mm depending on size).

Typical applications: Clamping and holding in assembly lines, locking and latching fixtures, stop buffers in conveying technology, fast sorting and diverter tasks, and miniature automation in electronics manufacturing with confined installation conditions.
