Airtec NAD 100/400. ISO 21287 cylinders, double acting, piston 100 mm, stroke 400 mm
€20,318.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NAD-100/400
Manufacturer Nr.
NAD 100/400
ISO 21287 cylinders, double acting, piston 100 mm, stroke 400 mm
Frequently Bought Together
-
This Item:
€20,318.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAD 100/20. ISO 21287 cylinders, double acting, piston 100 mm, stroke 20 mm
€12,297.00Excl. 19% VAT , excl. Shipping Cost
-

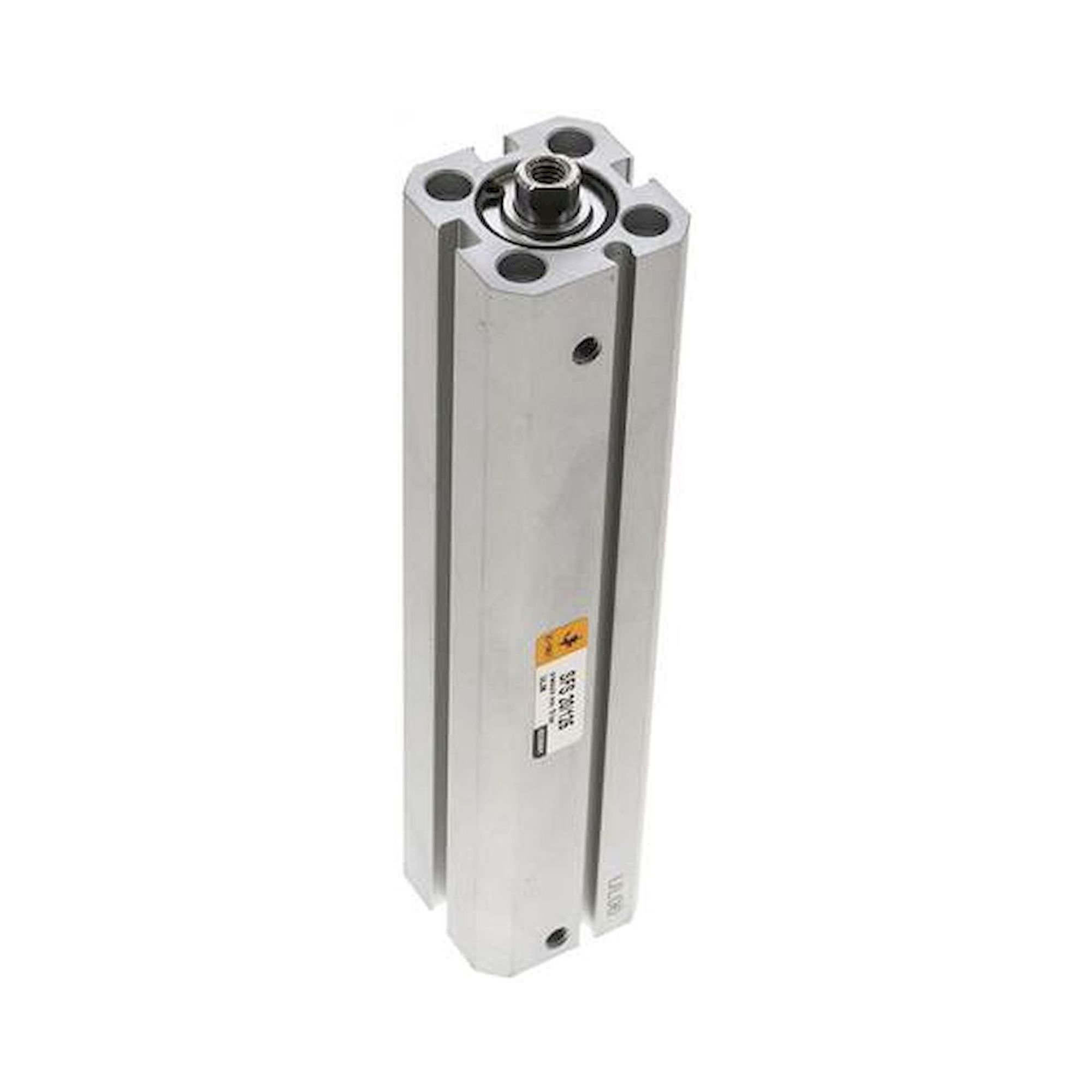

EMC SFS 20/125. ISO 21287 cylinders, double acting, piston 20 mm, stroke 125 mm
€3,251.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 100 |
| Stroke [mm] | 400 |
| Version | Standard |
| KF (piston rod female thread) | M 12 |
| G (compressed air port) | G 1/8" |
| Repair sets | NAD 100 REP |
| A [mm] | 25 |
| AF [mm] | 20 |
| B [mm] | 12 |
| BG [mm] | 19,5 |
| CH [mm] | 21 |
| E [mm] | 113,5 |
| LA [mm] | 3,0 |
| RT | M 10 |
| TG [mm] | 89,0 |
| WH [mm] | 10 |
| ZA [mm] | 67 |
| ZB [mm] | 77 |
| ZC [mm] | 46 |
| Manufacturer Nr. | NAD 100/400 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571516840 |
| Weight | 1.000000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
Airtec NADA 80/400. ISO 21287 cylinders, double acting, piston 80 mm, stroke 400 mm
€22,734.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NADK 80/50. ISO 21287 cylinders, double acting, piston 80 mm, stroke 50 mm
€12,386.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SFSA 25/20. ISO 21287 cylinders, double acting, piston 25 mm, stroke 20 mm
€3,828.00
Excl. 19% VAT ,
excl. Shipping Cost

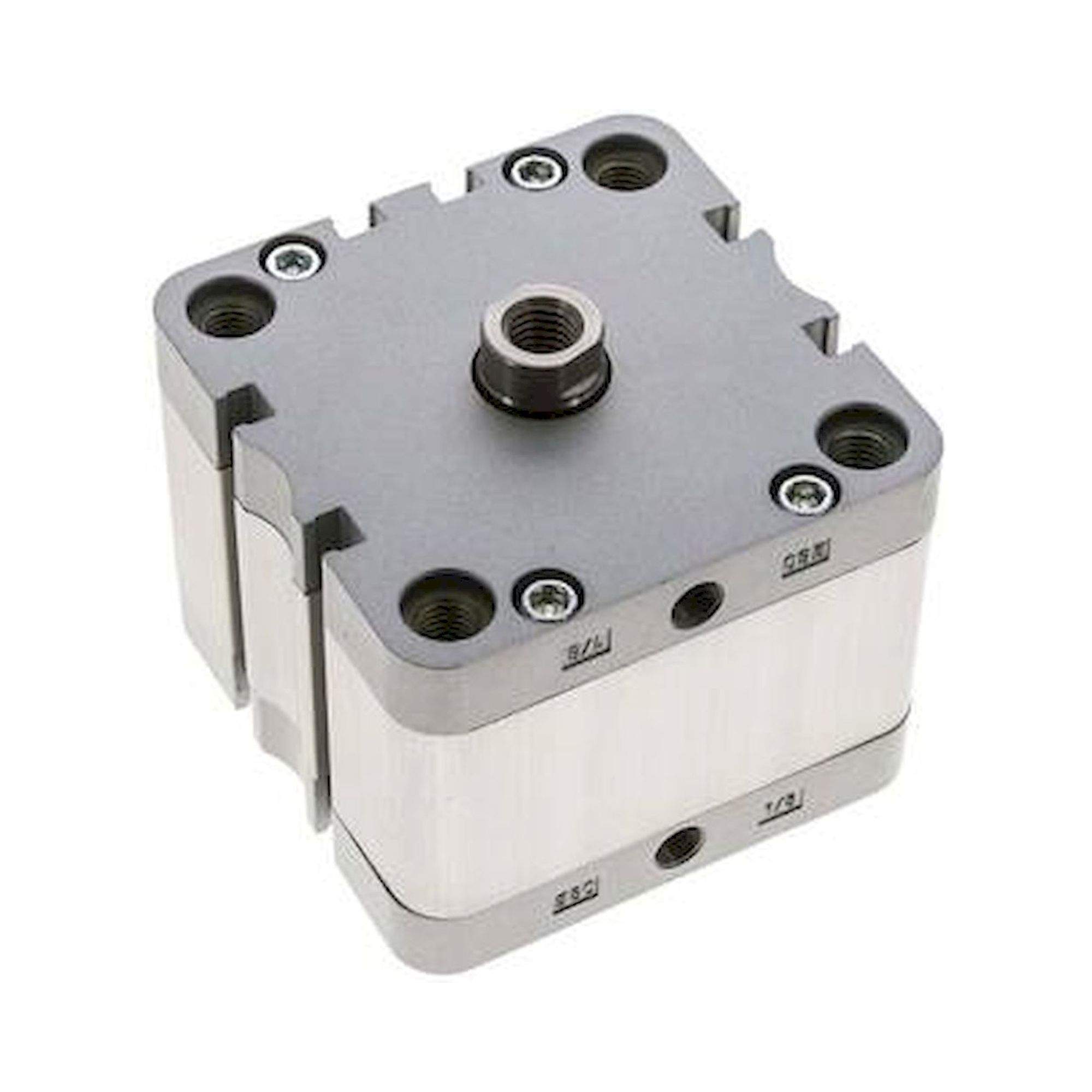

Airtec NAD 80/20. ISO 21287 cylinders, double acting, piston 80 mm, stroke 20 mm
€8,907.00
Excl. 19% VAT ,
excl. Shipping Cost

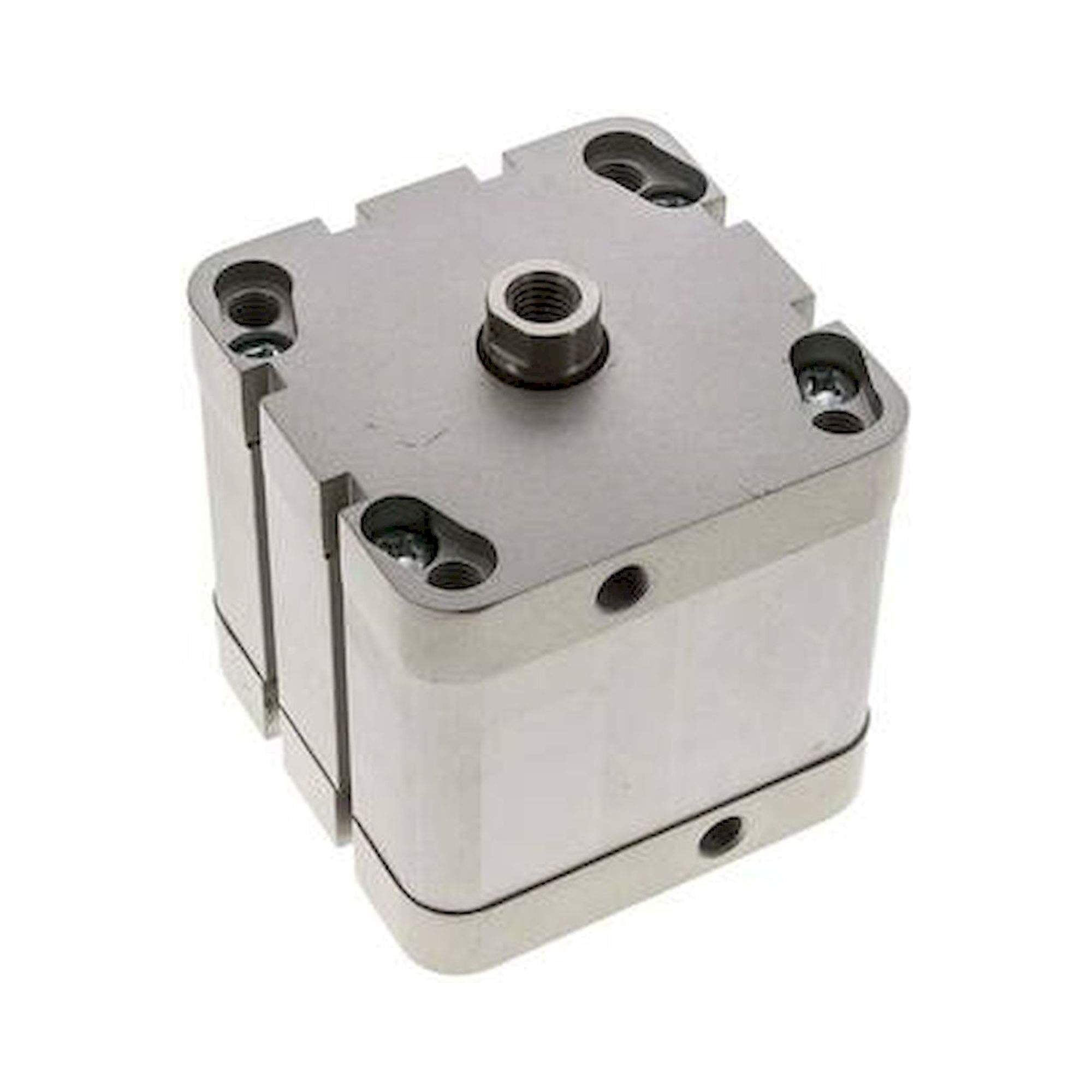

Airtec NAD 80/40. ISO 21287 cylinders, double acting, piston 80 mm, stroke 40 mm
€9,222.00
Excl. 19% VAT ,
excl. Shipping Cost

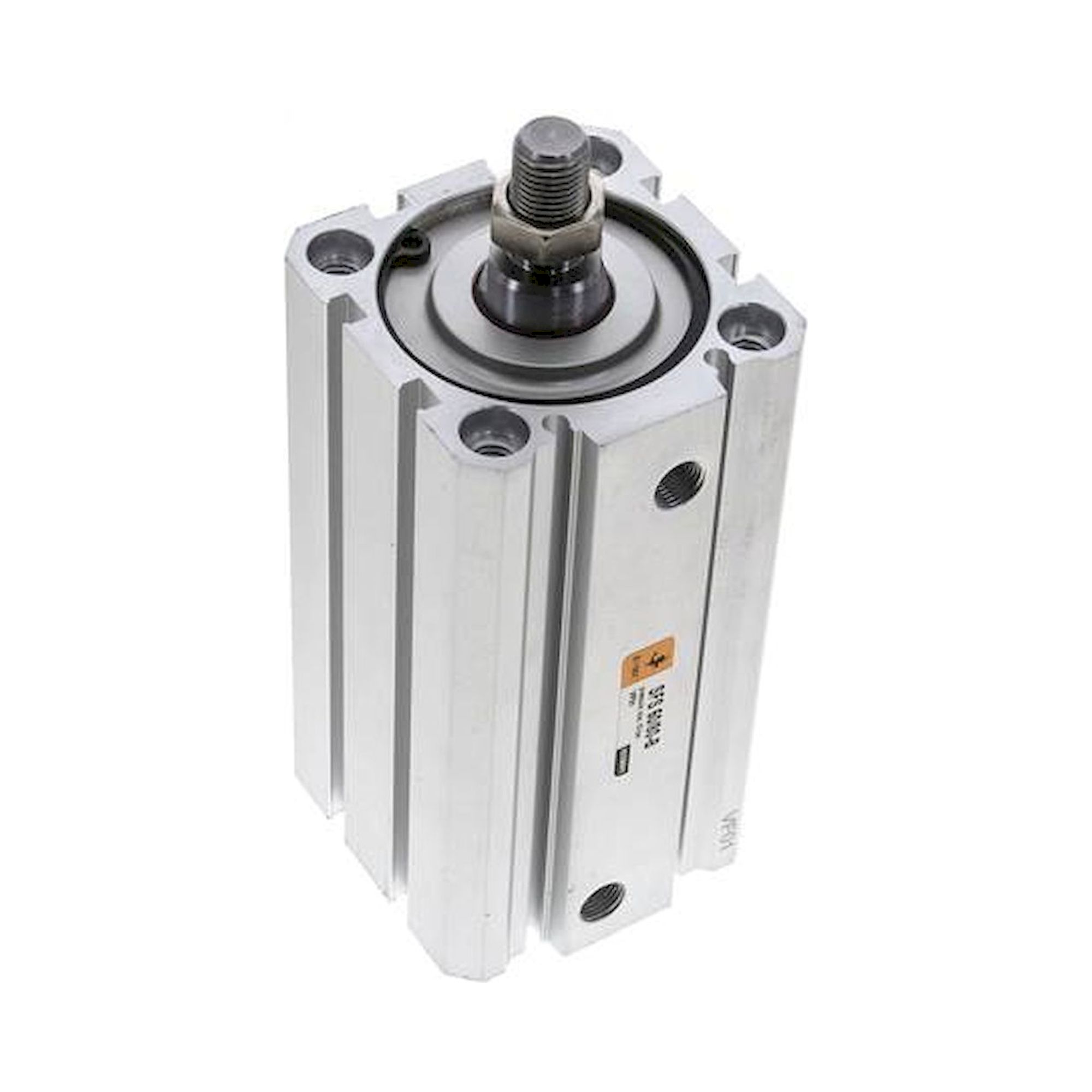

EMC SFS 50/80-B. ISO 21287 cylinders, double acting, piston 50 mm, stroke 80 mm
€4,238.00
Excl. 19% VAT ,
excl. Shipping Cost

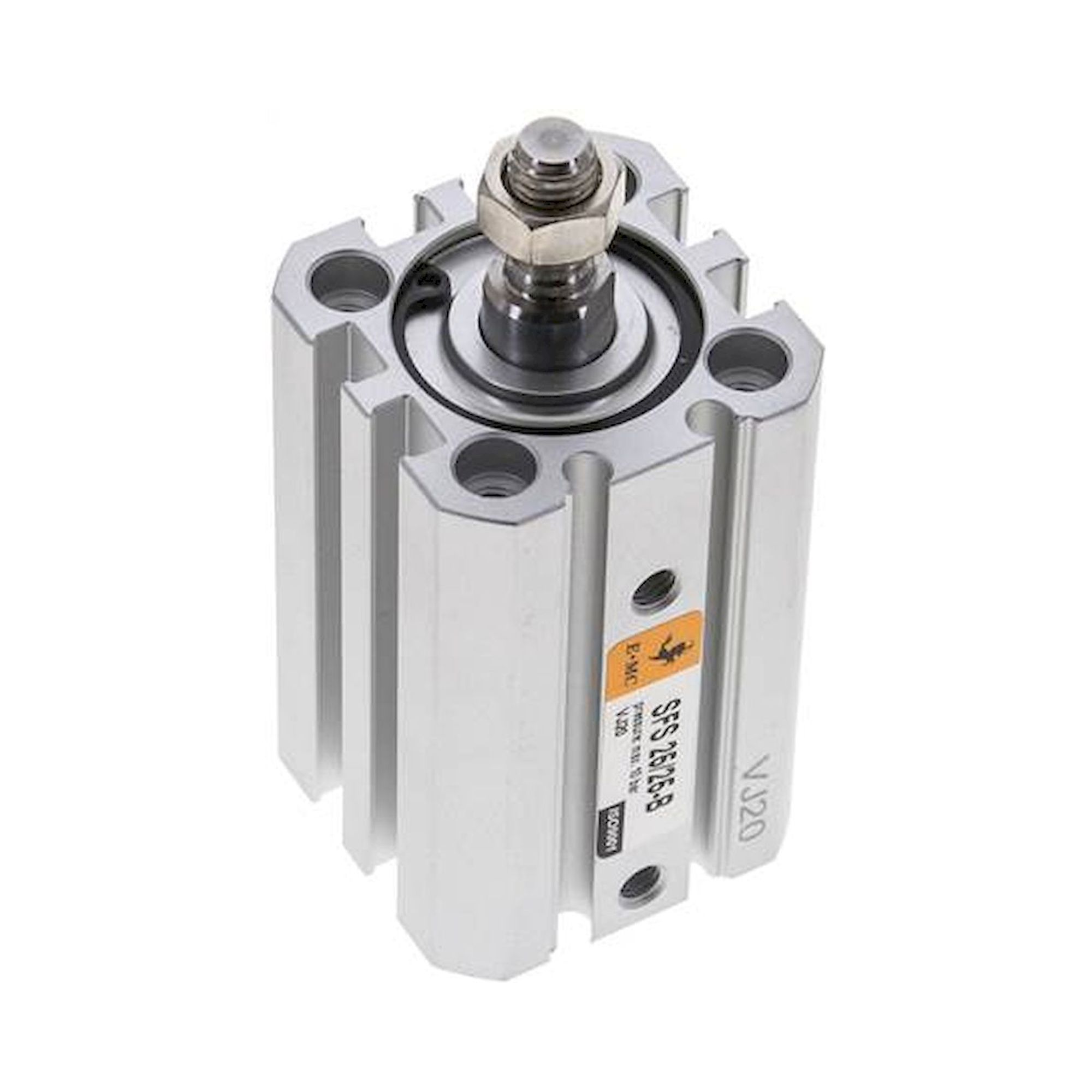

EMC SFS 25/25-B. ISO 21287 cylinders, double acting, piston 25 mm, stroke 25 mm
€2,444.00
Excl. 19% VAT ,
excl. Shipping Cost

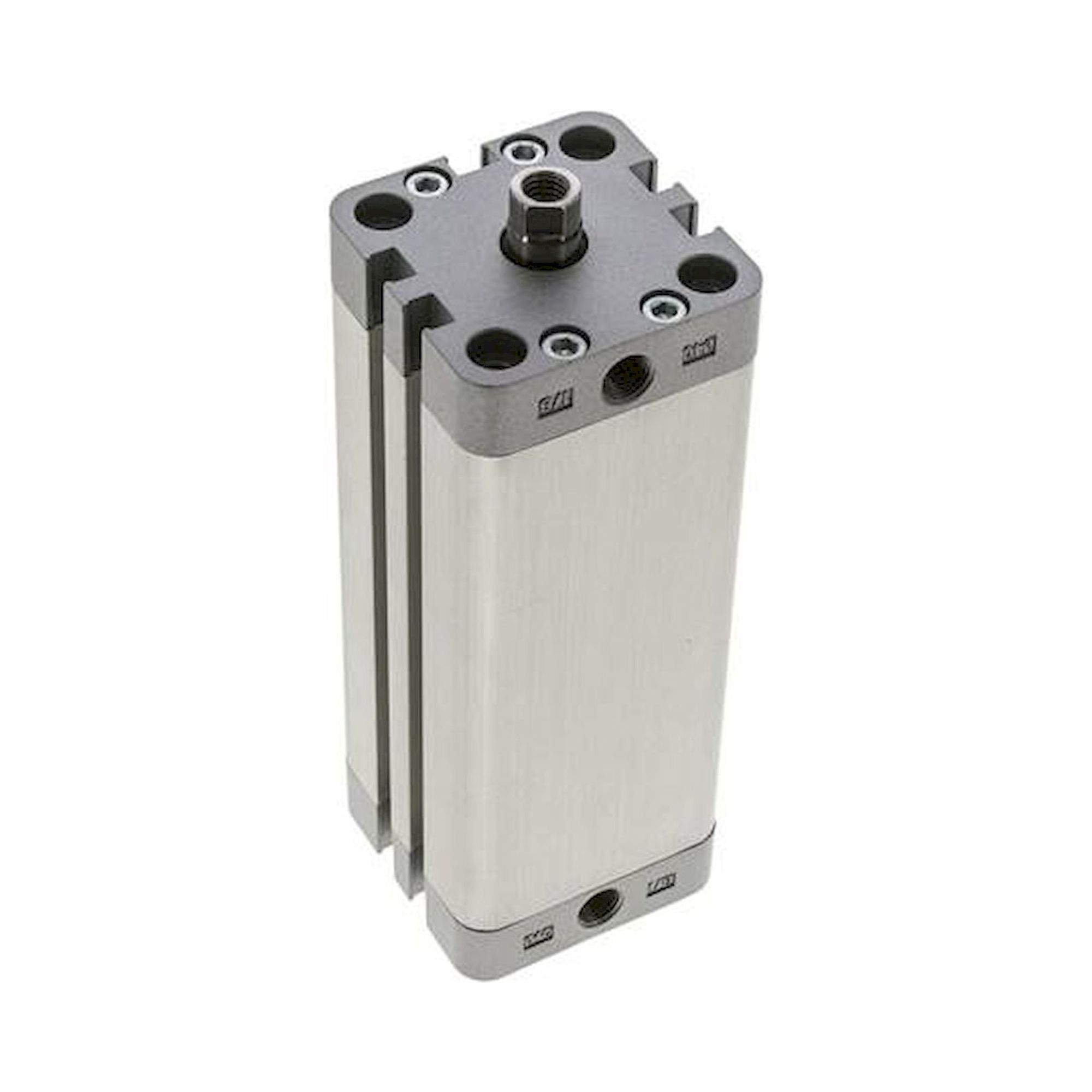

Airtec NAD 40/100. ISO 21287 cylinders, double acting, piston 40 mm, stroke 100 mm
