Airtec NADA 50/125. ISO 21287 cylinders, double acting, piston 50 mm, stroke 125 mm
€10,124.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NADA-50/125
Manufacturer Nr.
NADA 50/125
ISO 21287 cylinders, double acting, piston 50 mm, stroke 125 mm
Frequently Bought Together
-
This Item:
€10,124.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAD 25/15-AG. ISO 21287 cylinders, double acting, piston 25 mm, stroke 15 mm
€3,441.00Excl. 19% VAT , excl. Shipping Cost
-

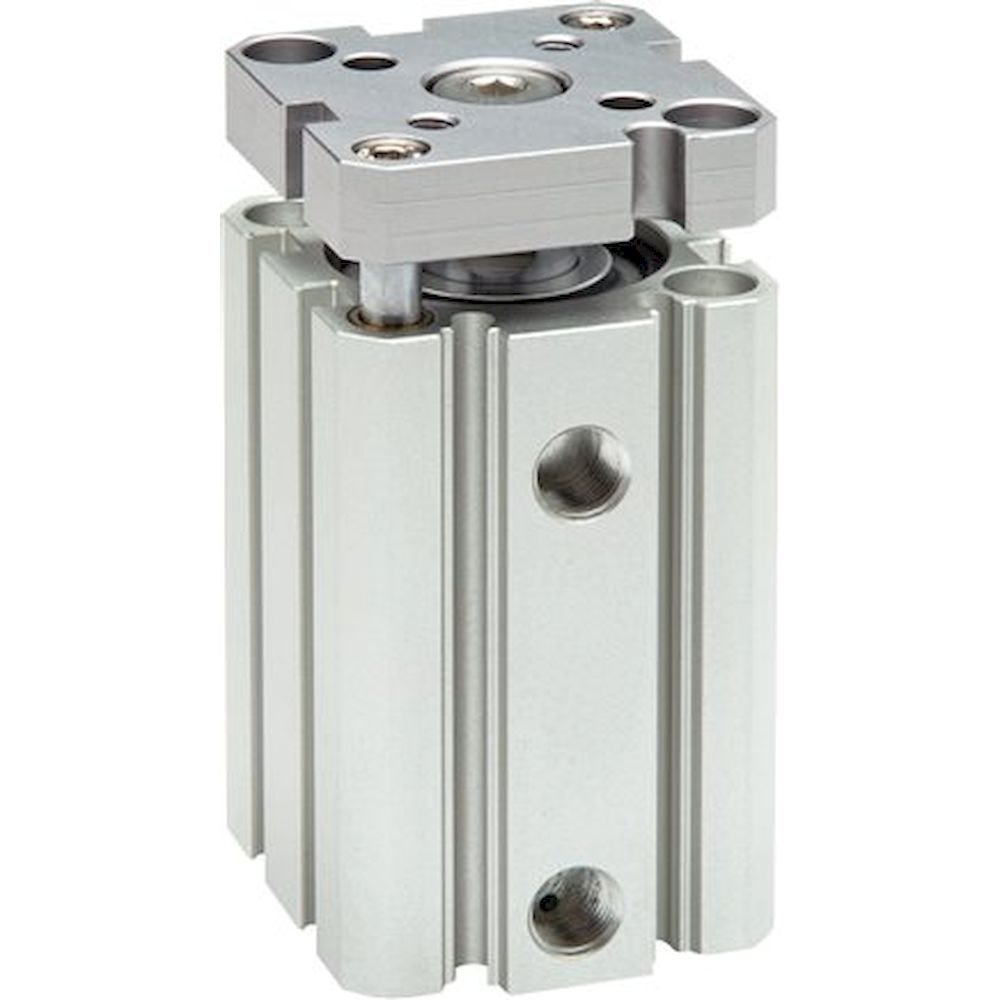

EMC SFSA 20/15. ISO 21287 cylinders, double acting, piston 20 mm, stroke 15 mm
€3,445.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 50 |
| Stroke [mm] | 125 |
| Version | non-rotating piston rod |
| G (compressed air port) | G 1/8" |
| Repair sets | NAD 50 REP |
| A [mm] | 16 |
| B [mm] | 12 |
| BG [mm] | 14,5 |
| CH [mm] | 13 |
| D [mm] | 22 |
| D1 [mm] | 42 |
| D2 | M 6 |
| D3 [mm] | 6 |
| E [mm] | 65,5 |
| LA [mm] | 5,0 |
| RT | M 8 |
| TG [mm] | 46,5 |
| WH [mm] | 8 |
| ZA [mm] | 45 |
| ZC [mm] | 29 |
| ZD [mm] | 65 |
| Manufacturer Nr. | NADA 50/125 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571519988 |
| Weight | 1.000000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de |
| Article authenticity | Original product |
| Condition of article | New |
