Airtec NXD 20/5. Compact cylinders, double acting, piston 20 mm, stroke 5 mm
€437.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NXD-20/5
Manufacturer Nr.
NXD 20/5
Compact cylinders, double acting, piston 20 mm, stroke 5 mm
Frequently Bought Together
-
This Item:
€437.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NXD 100/250-AG. Compact cylinders, double acting, piston 100 mm, stroke 250 mm
€35,106.00Excl. 19% VAT , excl. Shipping Cost
-

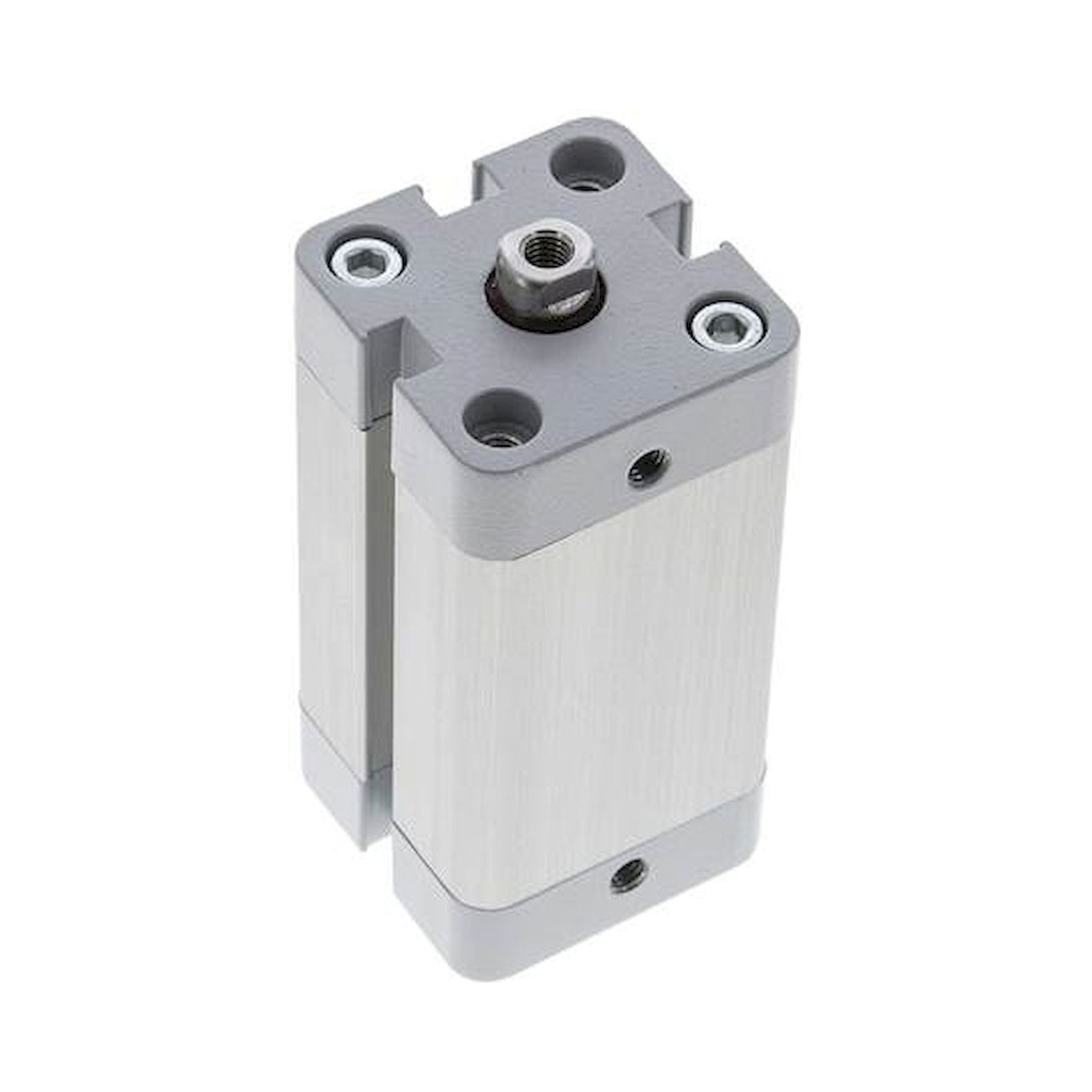

Airtec NXD 25/40. Compact cylinders, double acting, piston 25 mm, stroke 40 mm
€5,429.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 20 |
| Stroke [mm] | 5 |
| Version | Standard |
| G1 (piston rod female thread) | M 5 |
| M (compressed air port) | M 5 |
| Repair sets | NXD 20 REP |
| A [mm] | 36 |
| B [mm] | 10 |
| C [mm] | 6 |
| D [mm] | 4,2 |
| E | M 5 |
| F [mm] | 7,5 |
| J [mm] | 38,0 |
| N [mm] | 8,0 |
| O [mm] | 12,25 |
| P [mm] | 22 |
| Q [mm] | 10 |
| T [mm] | 8 |
| U [mm] | 4,5 |
| Z [mm] | 4,5 |
| Manufacturer Nr. | NXD 20/5 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571527716 |
| Weight | 135.000000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de |
| Article authenticity | Original product |
| Condition of article | New |
