Festo VZBM-1/2-RP-25-D-2-F03-B2B3 (4405648) Ball Valve

Festo
€1,925.00
Excl. 19% VAT , excl. Shipping Cost
Article
FES-4405648

Manufacturer Nr.
VZBM-1/2-RP-25-D-2-F03-B2B3
Ball Valve
Add to Wish List Add to Compare

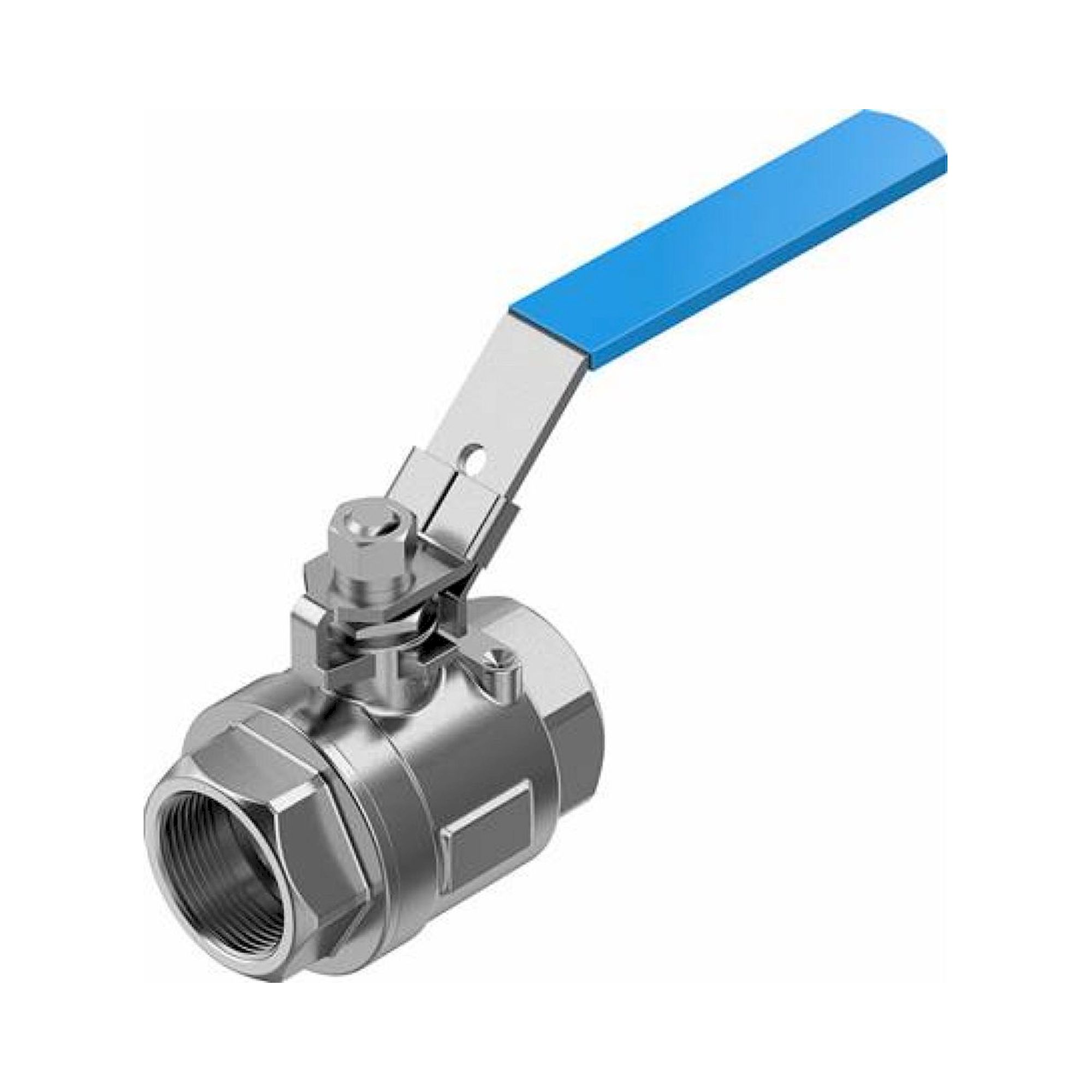

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Construction set up 2-way ball valve
Actuation type Mechanical
Sealing principle Soft
installation position arbitrary
Fastening type pipe installation
Fitting connection Rp1/2
Switching position display Carriage direction = flow direction
Flange drilling screen F03
Inside diameter [mm] 15,0
Nominal width DN 15
Valve function 2/2
Flow direction Reversible
Nominal pressure fitting 25
Break-out torque at a pressure difference nominal fitting pressure PN [Nm] 4,3
Based on standard EN 10226-1
ISO 5211
medium Compressed air to ISO8573-1:2010 [-:-:-]
Inert gases
Neutral liquids
Water - no steam
Medium temperature [°C] -15 to 90
Flow Kv [m³/h] 15,0
Material information LABS containing materials included
RoHs compliant
Housing material brass
nickel-plated
Material number housing CW617N
Seals material FPM
HNBR
PTFE
Ball material brass
Chrome plated
Material number ball CW617N
Shaft material Brass
Material number shaft CW617N
Product weight [g] 206
CE certificate (see declaration of conformity) to EU pressure vessel directive
Corrosion resistant class KBK 1 - low corrosion stress
More Information
Manufacturer Nr. VZBM-1/2-RP-25-D-2-F03-B2B3
Manufacturer Festo
EAN 4052568274498
Weight 0.210000
HS-Code 84818081
GPSR manufacturer information Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Article authenticity Original product
Condition of article New
