SMP EM Aware Monitor for ESD event monitoring - A1-ESD EP0205028

The EM Aware Monitor detects and measures ESD events at a workstation and makes a problematic environment visible. When a user-defined limit value is exceeded, the device triggers an alarm.

Main functions

• Continuous monitoring of ESD events (electrostatic charging and discharging)
• Capture of voltage changes in electrostatic fields
• Monitoring of ionisers with a balance (offset voltage) of ± 40 V or better
• Detects a problematic environment and qualifies tools for handling ESD-sensitive components
• Alarm when a user-defined limit value is exceeded

Technical data

• Interfaces: relay output, Ethernet LAN, connection for external antenna
• Power supply: 7.5 V DC mains adapter
• Weight: 0.64 kg

Scope of delivery

• EM Aware Monitor

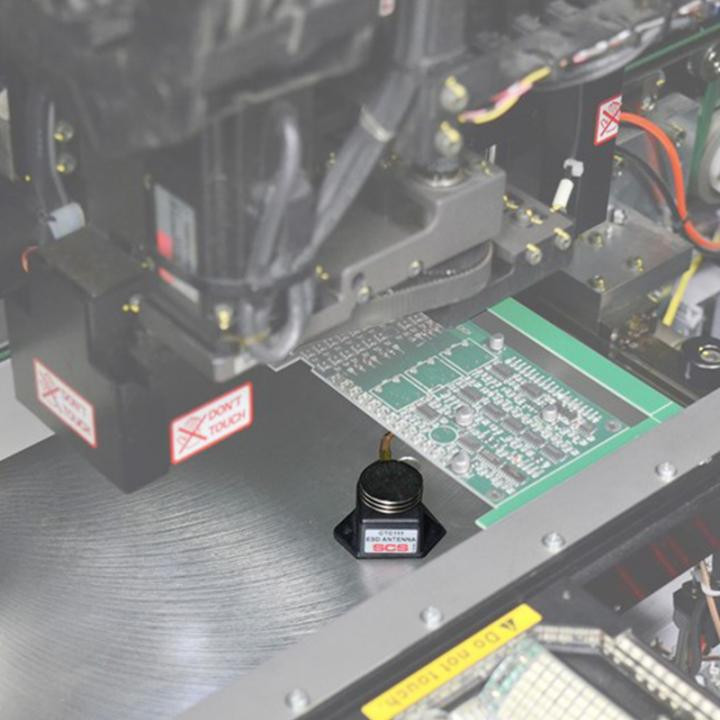

• External antenna

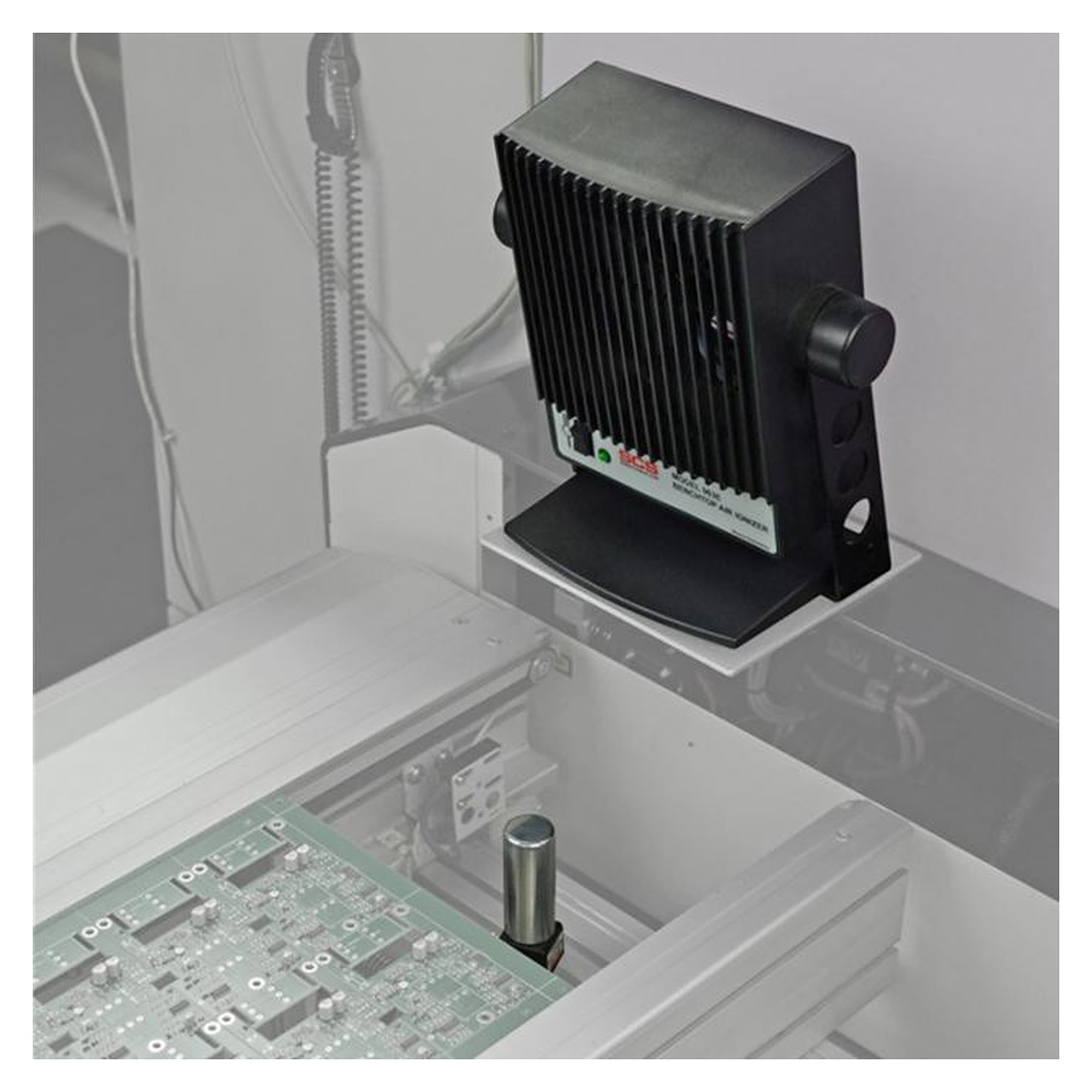

• Replacement antenna for ionisers
• Grounding cable
• 7.5 V DC power supply
• Calibration instructions

Application

Continuous ESD process monitoring at EPA workstations in line with IEC 61340-5-1.
