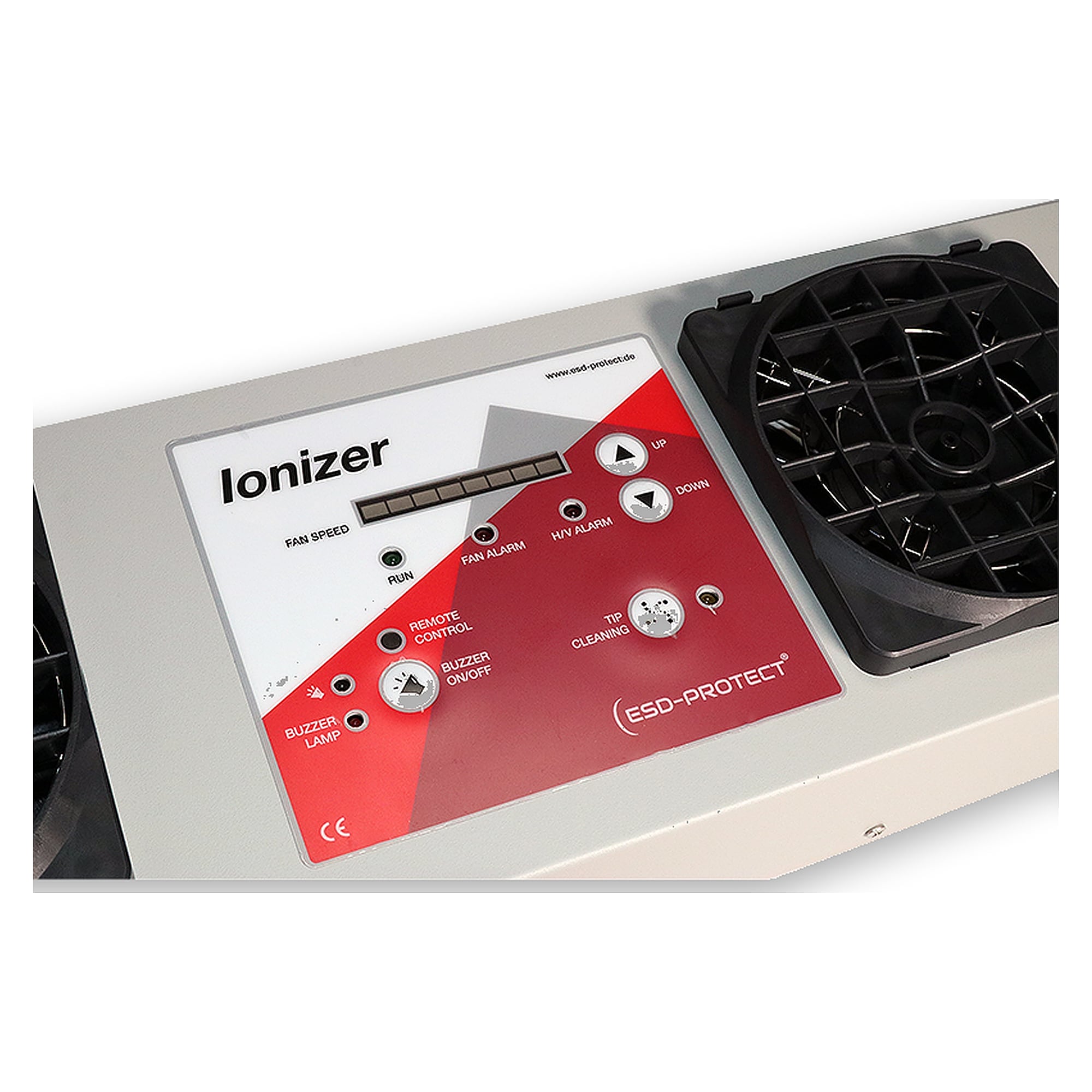

Overhead Ionizer Q133-2 with 2 Fans, DC, Self-Balancing ± 2 V - A1-ESD EP0402010

The ESD-PROTECT Q133-2 overhead ionizer neutralizes electrostatic fields and charges in the room and above workbenches, conveyors and short production sections. Its two fans suit single workstations and protect ungrounded conductors and insulators where direct grounding is not possible.

Benefits

• Steady-state DC ionization with self-balancing to ± 2 V for safe work on sensitive components
• Integrated blower adjustable across four speeds to match airflow to the task
• Automatic self-cleaning of the emitter points lowers maintenance effort
• Function monitoring with audible and visual alarm

Technical data

• Type: overhead ionizer, steady-state DC
• Fans: 2
• Ion balance: self-balancing ± 2 V
• Blower: 4 speed settings
• Dimensions: 757 x 84 x 160 mm (W x H x D)
• Replaceable air filters and emitter points
• Control inputs and alarm output, optional control via PC and PLC
• Mounting bracket and connection cable included

Applications

Suited to single workstations, test and repair stations within EPA areas.

Standards

Meets DIN EN 61340-5-1.
