Glamox C52124103. Interior General Lighting C52-S1500 24000 HF 840 TW MB

Name: Glamox C52124103. Interior General Lighting C52-S1500 24000 HF 840 TW MB
Brand: Glamox
SKU: GL-C52124103
Price: 566.3 EUR
Availability: InStock

Lead time

4 weeks

€566.30

Excl. 19% VAT , excl. Shipping Cost

Article

GL-C52124103

Manufacturer Nr.

C52124103

C52-S1500 24000 HF 840 TW MB

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox C52124103. Interior General Lighting C52-S1500 24000 HF 840 TW MB
€566.30
Excl. 19% VAT , excl. Shipping Cost

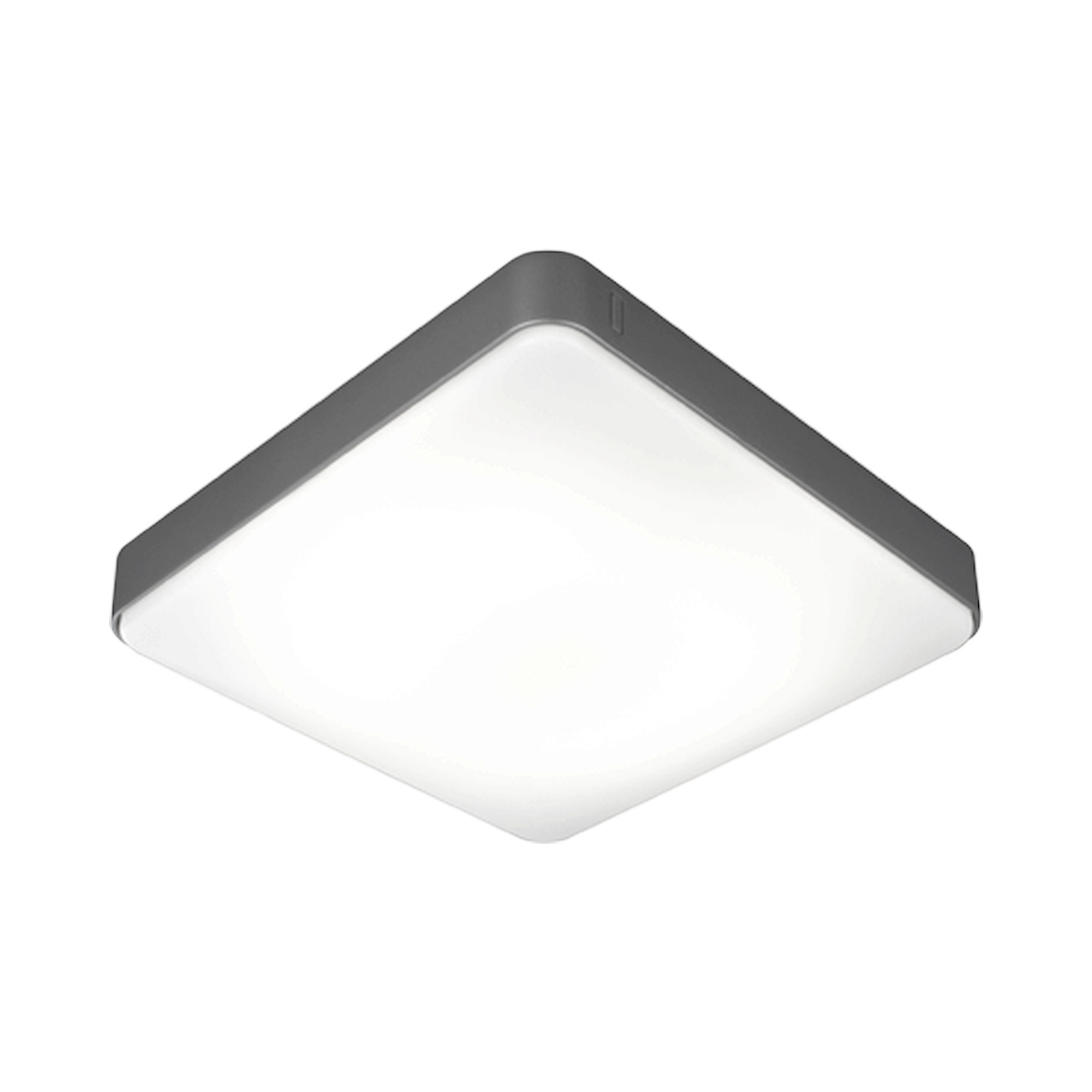

Glamox A20531311. Innenraumleuchten A20-SQ400 LED 2500 WZ 840 MPW-SEN
€345.10
Excl. 19% VAT , excl. Shipping Cost
Glamox C21536348. Interior General Lighting C21-S1250 LED WH 3800 HF 840 BL/ASY
€311.50
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Rectangular
Certificates
1. Certification
  5 year warranty,Ball test,ENEC
Electrical Data
1. Leakage current (mA)
  0.50
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Total consumption (W)
  152
7. IEC Protection Class
  I
8. Number of luminaires on a 10A MCB type B (80% load)
  7
9. Number of luminaires on a 10A MCB type C (80% load)
  10
10. Number of luminaires on a 16A MCB type B (80% load)
  12
11. Number of luminaires on a 16A MCB type C (80% load)
  20
Technical Data
1. Minimum ambient temperature (ºC)
  0
2. Maximum ambient temperature (°C)
  25
3. IK classification
  06
4. IP classification
  20
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  24,318
3. Number of lamps
  1
4. Lumen per Watt (lm/W)
  160
5. Lamp colour temp (K)
  4000
6. CRI Colour rendering index
  80
7. MacAdam step
  3
8. Energy class light source
  D
9. Light source included
  Yes
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  2
Lifetime
1. L70 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED Ta25 (hr)
  100 000
3. L90 Median useful life LED Ta25 (hr)
  50 000
4. L70 Median useful life LED MaxTa (hr)
  100 000
5. L80 Median useful life LED MaxTa (hr)
  100 000
6. Median useful life driver Ta25 (hr)
  100,000

Optic
1. Optic
  MB - Medium beam
Housing
1. Main body material
  Aluminium
2. Body colour
  White
3. Main body colour name
  Traffic white
4. Main body colour RAL code
  RAL 9016
5. End cap material
  Aluminium
6. End Cap colour
  White
Dimensions
1. Length (mm)
  1,464
2. Width (mm)
  216
3. Height (mm)
  43
4. CC max
  1,347
5. Net weight (kg)
  8.13
Termination
1. Termination
  3x2.5mm2 Push In
2. Type of through wiring
  3x2.5
Cable Inlet
1. Cable gland
  Grommet
2. Number of cable entries
  8
3. Max cable diameter (mm)
  16
Mounting
1. Product mounting
  Ceiling Surface
Logistic Data
1. Item gross weight (kg)
  8.84

Information

More Information
Manufacturer Nr.	C52124103
Manufacturer	Glamox
EAN	5903531241032
Lead time	4 weeks
Weight	8.840000
Colour	4000K
Lenght	1464
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
