Glamox I10093938. Industry Lighting i10-1200 LED 8000 DALI E3/DALI 840 MB

Name: Glamox I10093938. Industry Lighting i10-1200 LED 8000 DALI E3/DALI 840 MB
Brand: Glamox
SKU: GL-I10093938
Price: 411.6 EUR
Availability: InStock

Lead time

4 weeks

€411.60

Excl. 19% VAT , excl. Shipping Cost

Article

GL-I10093938

Manufacturer Nr.

I10093938

i10-1200 LED 8000 DALI E3/DALI 840 MB

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox I10093938. Industry Lighting i10-1200 LED 8000 DALI E3/DALI 840 MB
€411.60
Excl. 19% VAT , excl. Shipping Cost

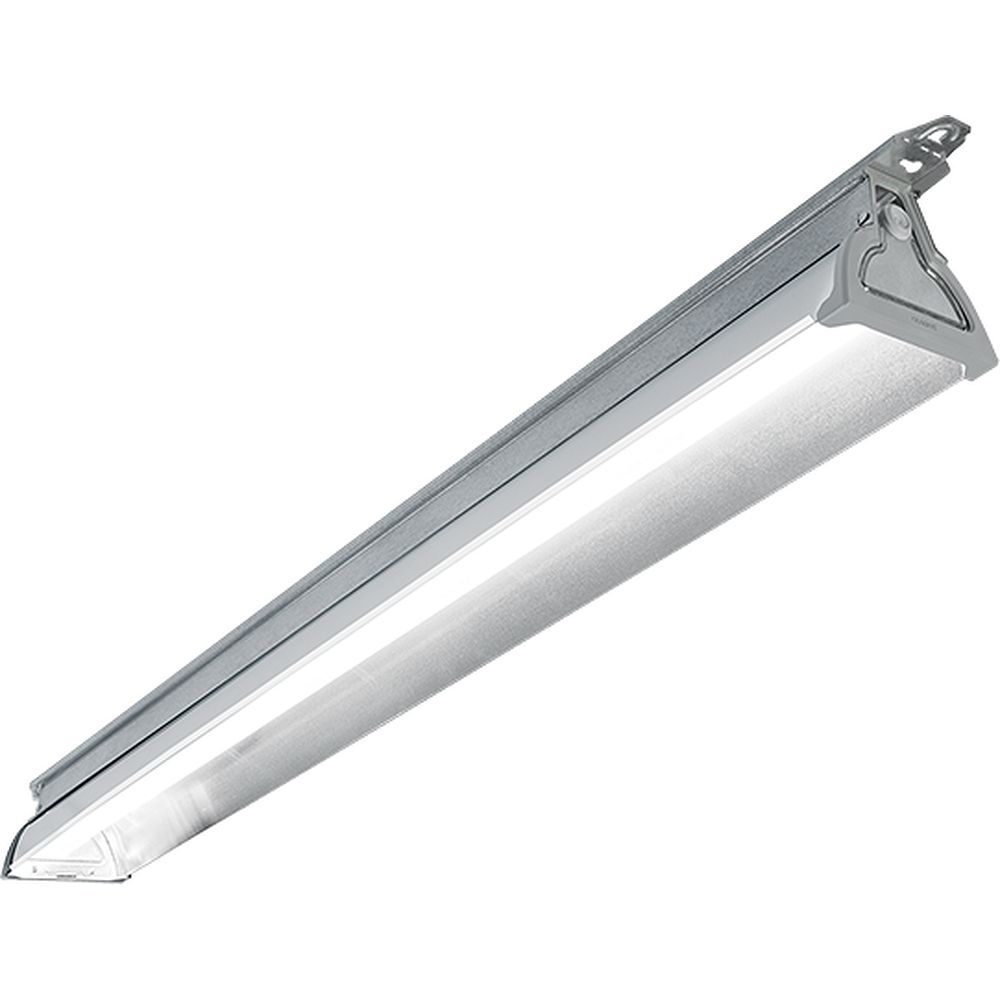

Glamox I10094018. Industry Lighting i10-1500 LED 16000 DALI 840 MB
€317.10
Excl. 19% VAT , excl. Shipping Cost

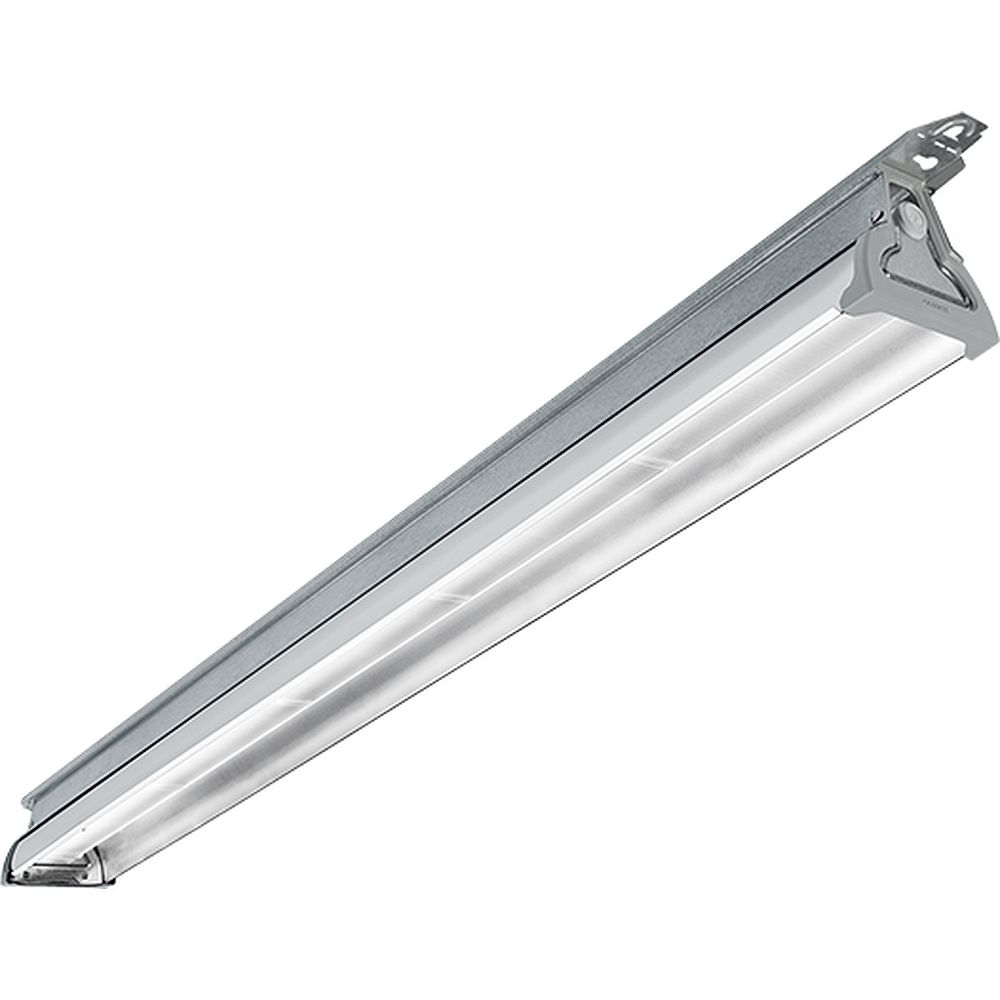

Glamox I10093161. Industry Lighting i10-1500 LED 16000 HF 840 WB
€285.60
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Linear
Certificates
1. Certification
  ENEC
Electrical Data
1. Leakage current (mA)
  0.30
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Main Feed DC (V) Min
  180
7. Main Feed DC (V) Max
  270
8. Total consumption (W)
  57
9. Number of luminaires on a 10A MCB type B (80% load)
  13
10. Number of luminaires on a 10A MCB type C (80% load)
  21
11. Number of luminaires on a 16A MCB type B (80% load)
  21
12. Number of luminaires on a 16A MCB type C (80% load)
  35
LMS System
1. Number of DALI addresses
  2
2. LMS Protocol
  DALI
Technical Data
1. Minimum ambient temperature (ºC)
  0
2. Maximum ambient temperature (°C)
  25
3. IP classification
  23
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  8,003
3. Lumen per Watt (lm/W)
  143
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
2. Number of Driver
  1

Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Median useful life driver Ta25 (hr)
  100,000
4. Median useful life driver Ta45 (hr)
  50,000
5. Luminous flux decline (LLMF) 50.000h Ta25
  0.90
Emergency
1. Type of emergency
  DALI
2. Duration in battery mode (hrs)
  3
3. Charging power consumption (Emg) (W)
  1.50
4. Output in battery mode (%)
  14
Optic
1. Optic
  MB - Medium beam
2. Material of reflector
  Silver-coated aluminium
Housing
1. Main body material
  Aluminium/zinc-treated steel
2. Body colour
  Unpainted
3. Main body colour name
  Unpainted
Dimensions
1. Length (mm)
  1,279
2. Width (mm)
  161
3. Height (mm)
  136
Termination
1. Termination
  7x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Surface

Information

More Information
Execution	TEC
Manufacturer Nr.	I10093938
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	7054130939382
Lead time	4 weeks
Weight	0.009900
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
