EMC EU 20/5. Direct assembly cylinder, Piston 20mm, stroke 5mm, Standard

Name: EMC EU 20/5. Direct assembly cylinder, Piston 20mm, stroke 5mm, Standard
Brand: E.MC
SKU: FL-EU-20/5
Price: 3256 EUR
Availability: InStock

€3,256.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-EU-20/5

Manufacturer Nr.

EU 20/5

Direct assembly cylinder, Piston 20mm,stroke 5mm, Standard

Skip to the end of the images gallery

Skip to the beginning of the images gallery

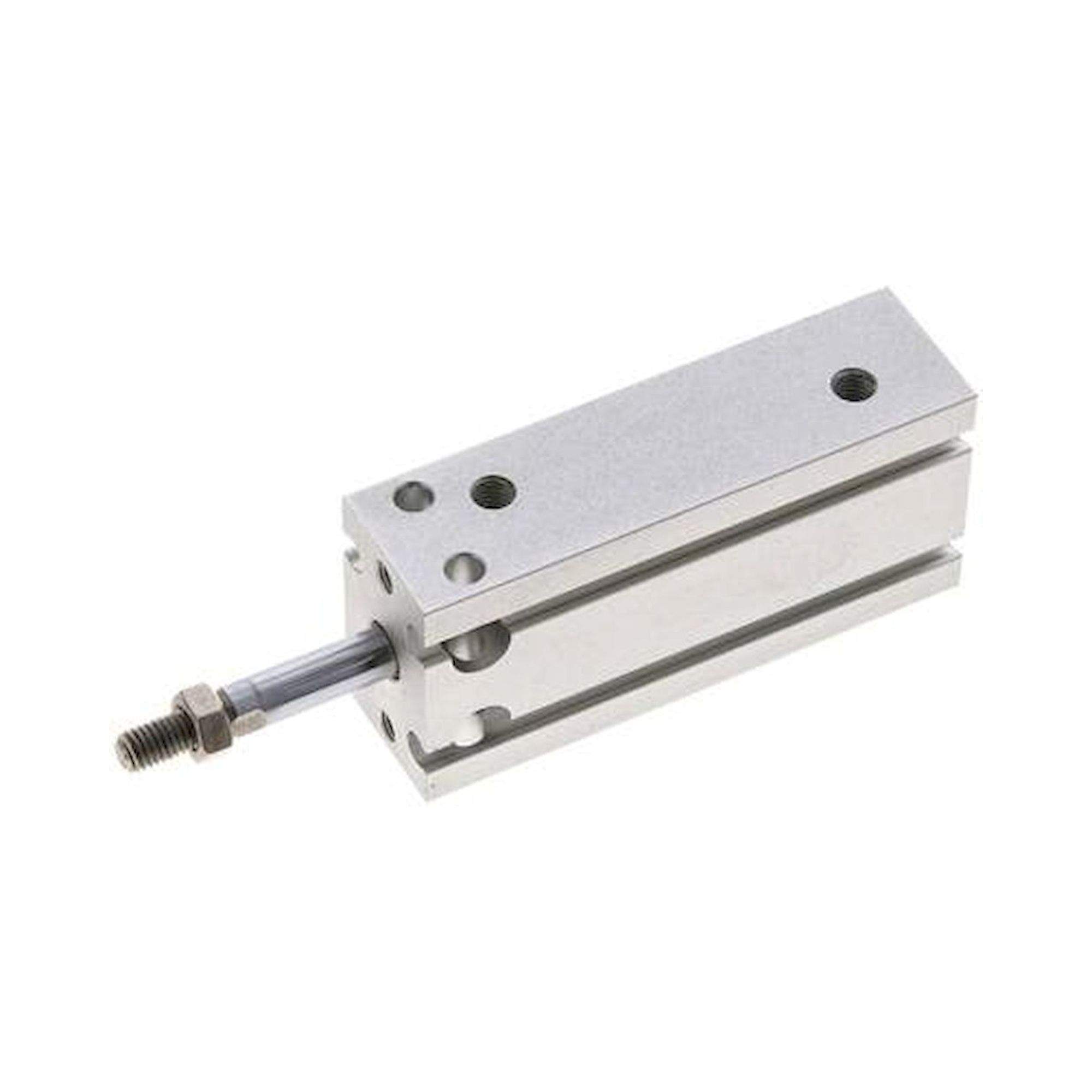

The product may differ from the illustration

Frequently Bought Together

This Item: EMC EU 20/5. Direct assembly cylinder, Piston 20mm, stroke 5mm, Standard
€3,256.00
Excl. 19% VAT , excl. Shipping Cost
EMC EUK 25/30. Direct assembly cylinder, Piston 25mm, stroke 30mm, non-rotating piston rod
€5,767.00
Excl. 19% VAT , excl. Shipping Cost
EMC EU 10 REP. Direktmontagezylinder Reparatursatz
€494.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 7 bar

Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod

Cylinder switch type:
D

Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK

Piston diameter [mm]	20
Stroke [mm]	5
Version	Standard
E (piston rod thread)	M 6
G (compressed air port)	M 5
Repair sets	EU 20 REP
A1 [mm]	46
A2 [mm]	65
B [mm]	26
C [mm]	40
D [mm]	8
D1 [mm]	19
E1 [mm]	12,0
E2 [mm]	14,0
G1 [mm]	21,0
G2 [mm]	10,0
G3 [mm]	4,5
G4 [mm]	5,5
H [mm]	9.5 (8.0 deep)
H1 [mm]	5,5
H2 [mm]	16
H3 [mm]	9
H4 [mm]	16
J	M 5
J1 [mm]	30
J2 [mm]	8
SW [mm]	6
