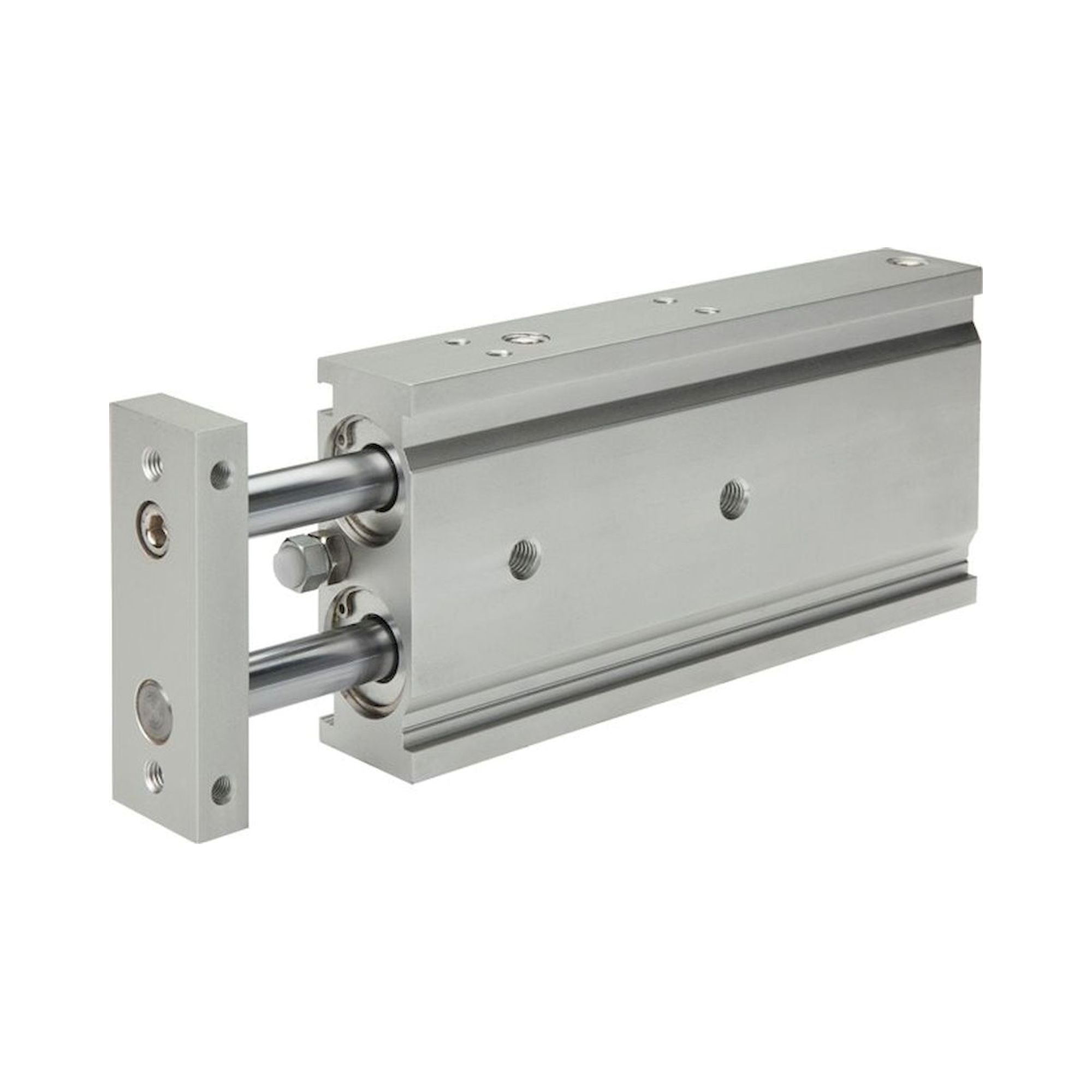

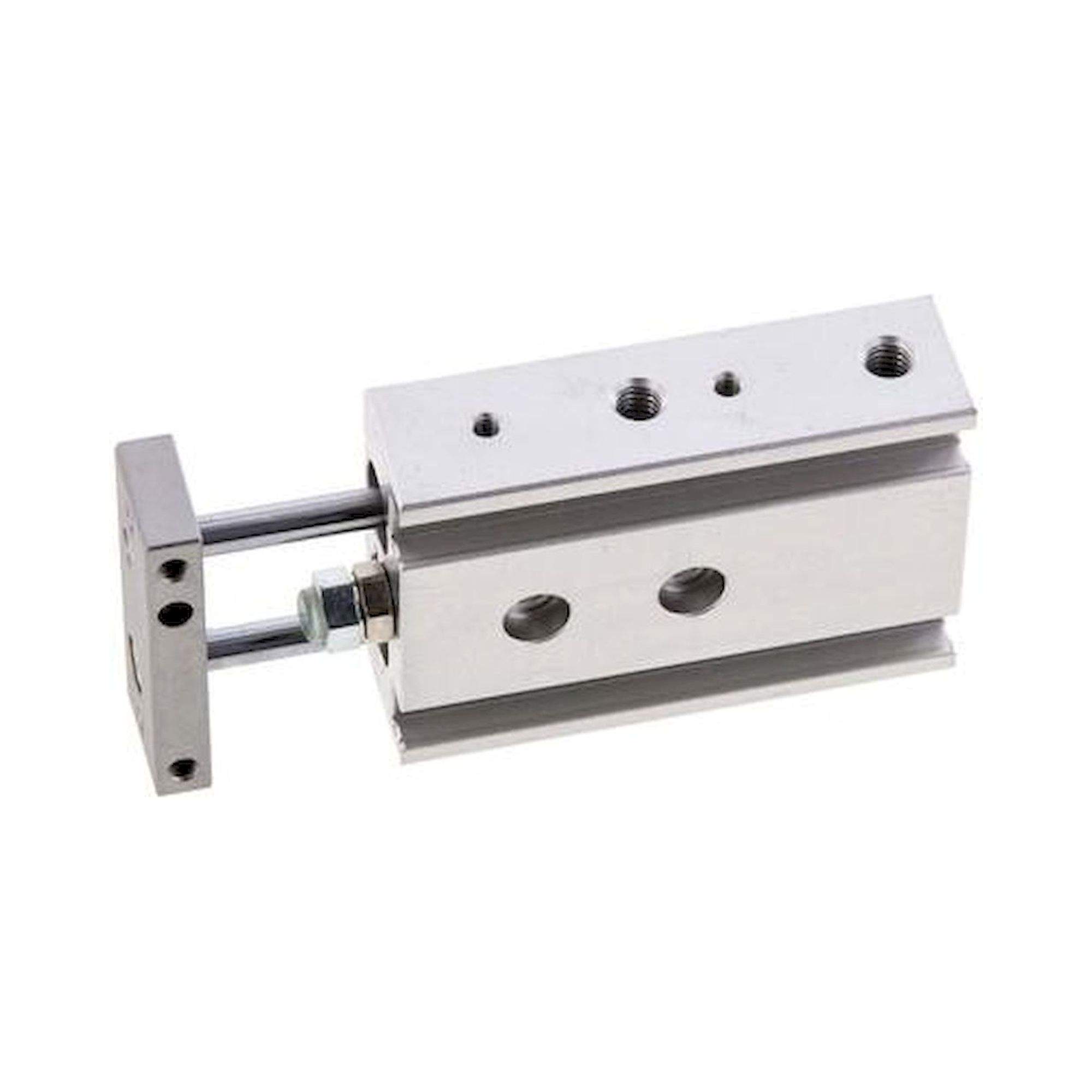

EMC EXSM 32/125. Double piston cylinder, piston 32mm, stroke 125mm

Name: EMC EXSM 32/125. Double piston cylinder, piston 32mm, stroke 125mm
Brand: E.MC
SKU: FL-EXSM-32/125
Price: 27842 EUR
Availability: InStock

€27,842.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-EXSM-32/125

Manufacturer Nr.

EXSM 32/125

Double piston cylinder, piston 32mm, stroke 125mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: EMC EXSM 32/125. Double piston cylinder, piston 32mm, stroke 125mm
€27,842.00
Excl. 19% VAT , excl. Shipping Cost
EMC EXSM 16/70. Double piston cylinder, piston 16mm, stroke 70mm
€1,396.00
Excl. 19% VAT , excl. Shipping Cost
EMC EXSM 16/20. Double piston cylinder, piston 16mm, stroke 20mm
€10,931.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Body and plate: Anodized aluminium, piston rods: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 7 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•Guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.2° (±),
•ideal for Pick-and-Place applications,
•stroke adjustment range 0 to -5 mm,
•air connection from the top or below (closed with stopper plugs),
•main installation dimensions identical to SMC series CXS

Piston diameter [mm]	32
Stroke [mm]	125
Stroke (adjustment range) [mm]	120 - 125
Version	Double piston cylinder
G (compressed air port)	G 1/8"
Repair sets	EXSM 32 REP
lateral force permissible [N]	6,8
A [mm]	112,0
B [mm]	30,0
C [mm]	82
D [mm]	90
D1	90
E [mm]	30
E1 [mm]	30
F [mm]	76,0
H [mm]	14
I [mm]	44
K [mm]	75
L [mm]	96
M [mm]	36
N1 [mm]	53,0
N2 [mm]	10,0
R [mm]	11,5
S [mm]	98
T [mm]	38
V [mm]	16
W [mm]	20,0
P1	11.0 (6.3 deep)
P2	M 8
P3	M 6
P4	M 5
P5 [mm]	6,8
P6	M 5
Q2 [mm]	12
Q4 [mm]	8,0
Q6 [mm]	7,0
