LE 32/250 CG. Guide unit for ISO15552-32mm, stroke 250mm

Name: LE 32/250 CG. Guide unit for ISO15552-32mm, stroke 250mm
Brand: Fluidics equipment
SKU: FL-LE-32/250-CG
Price: 21231 EUR
Availability: InStock

€21,231.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-LE-32/250-CG

Manufacturer Nr.

LE 32/250 CG

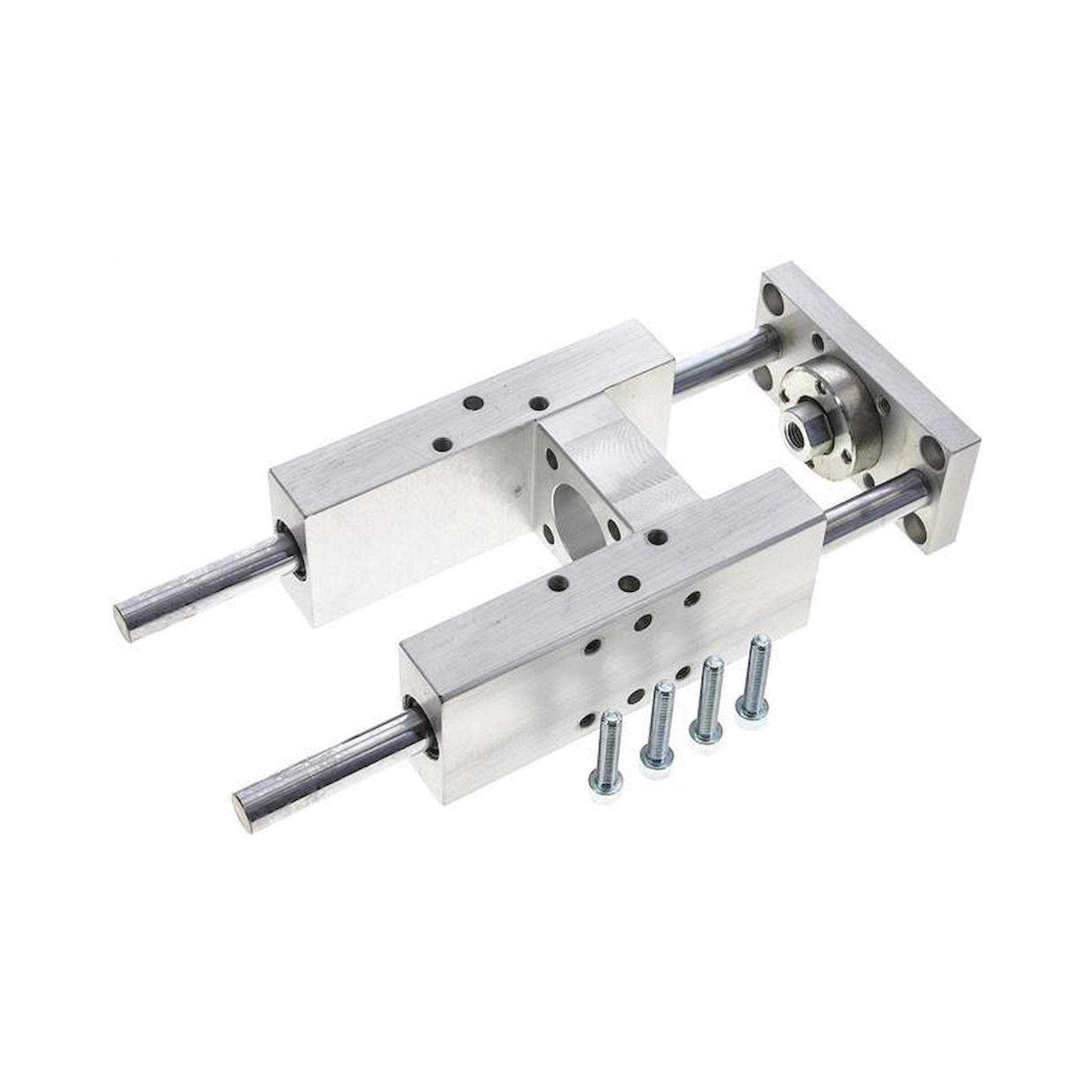

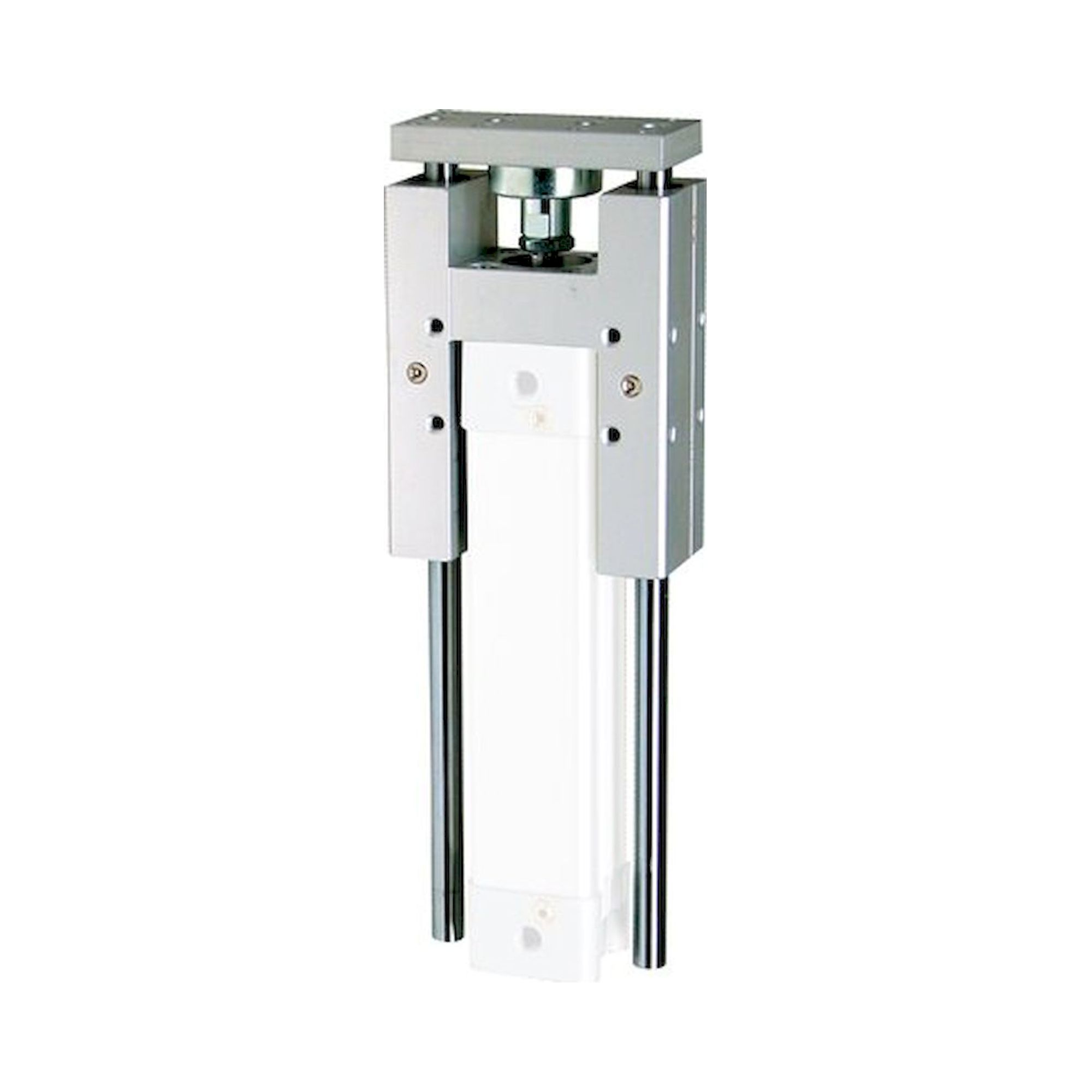

Guide unit for ISO15552-Ø 32mm, stroke 250mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: LE 32/250 CG. Guide unit for ISO15552-32mm, stroke 250mm
€21,231.00
Excl. 19% VAT , excl. Shipping Cost
LE 63/200 HK. Guide unit for ISO15552-63mm, stroke 200mm
€4,947.00
Excl. 19% VAT , excl. Shipping Cost
LE 50/100 CG. Guide unit for ISO15552-50mm, stroke 100mm
€25,506.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Function:
Guide units are used for anti-rotation safety and absorbing side forces with standard cylinders.

Materials:
Body: anodized aluminium, guide rods: hard chromium plated steel, wiper: NBR, bearing: steel or sintered bronze

Temperature range:
-30 to +100 °C

Version	C with sliding guide
for piston diameter [mm]	32
Stroke [mm]	250
MA / MB* [Nm]	13 / 12
A [mm]	97
B [mm]	49
C [mm]	51,0
CH [mm]	15
D1 [mm]	17
E1 [mm]	9,25
E2 [mm]	32,5
E3 [mm]	9,25
F [mm]	93
G [mm]	45
H [mm]	12
I [mm]	12
L6 [mm]	120
L7 [mm]	54
L8 [mm]	48
N [mm]	6,6
O [mm]	12
P [mm]	11
Q [mm]	6,5
S	M 6
T [mm]	78
U [mm]	61
V [mm]	32,5
Z [mm]	74

Information

More Information
Manufacturer Nr.	LE 32/250 CG
Manufacturer	Fluidics equipment
EAN	4050571464615
Weight	1.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
