Pneumatic cylinders ISO 15552
Cylinder
Pneumatic cylinders to ISO 15552 are the most widely used design for medium and large bore sizes in industrial pneumatics. The standard defines bore diameters from 32 to 320 mm, port dimensions, mounting threads and attachment dimensions for swivel accessories, enabling cross-manufacturer substitution without redesigning the machine. The range includes double-acting cylinders in steel and stainless steel, together with a comprehensive mounting programme: foot plates, flange mountings, six types of swivel mounting, bearing blocks, clevis connectors, guide units and locking units.
For demanding conditions, stainless-steel profile cylinders TM (grade 1.4301) are available for corrosive environments. The accessories programme covers all ISO 15552-specified mounting configurations from simple foot plates to centre swivel mountings XL and bolts for spherical lugs.
Bolts for swivel mountingsFF 50-250 mm, zinc-plated steel and stainless 1.4401
Bolt for spherical lugFFQ bolts 32-250 mm (spherical), zinc-plated steel
Flange mountingsTB flange 32-250 mm, steel and stainless

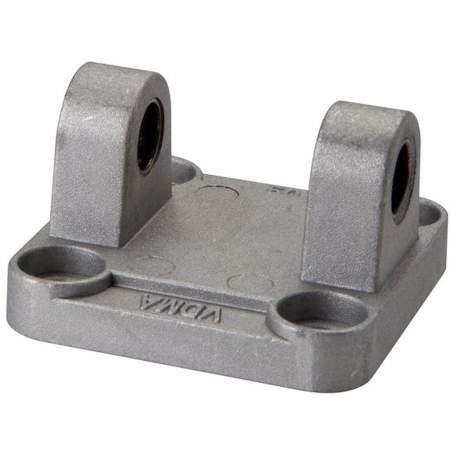

Swivel mounts forkTC fork swivel, aluminium, steel and stainless
Swivel mountings 90° bracketTD swivel 90°, aluminium and steel

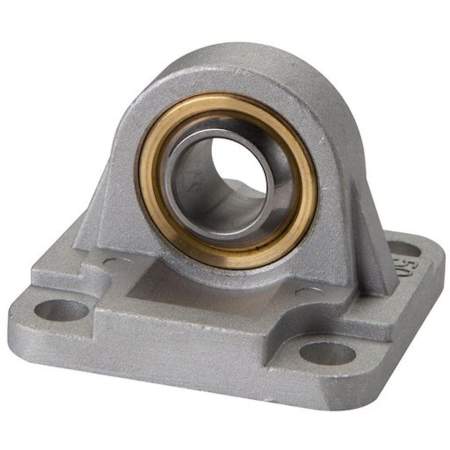

Swivel mountings spherical bracketTE swivel with spherical lug, for 3D movement

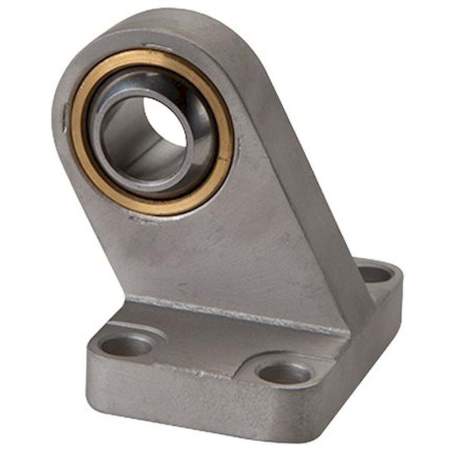

Swivel mountings 90° spherical bracketTF type, combines 90° arrangement with spherical lug
Swivel mountings BracketTG lug swivel for ISO 15552
Center pivot mounts (XL)TJX centre swivel for ISO 15552, extended version

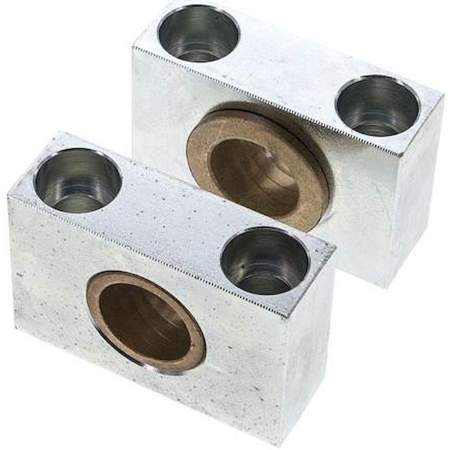

Bearing blocksRear swivel mounting for ISO 15552 cylinders

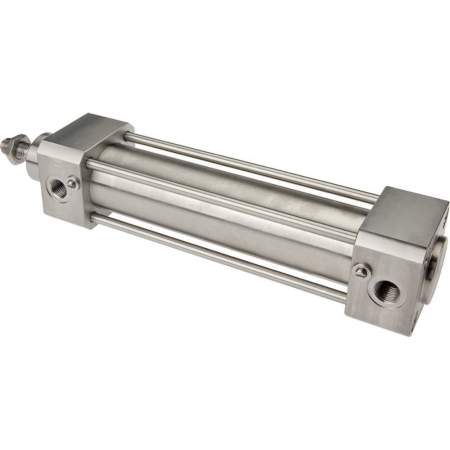

Stainless steel pneumatic cylinder, double-actingTM stainless cylinder 1.4301, ISO 15552
Pneumatic cylinder, double-acting 32-125 mmISO 15552, bore 32-125 mm, standard profile cylinder

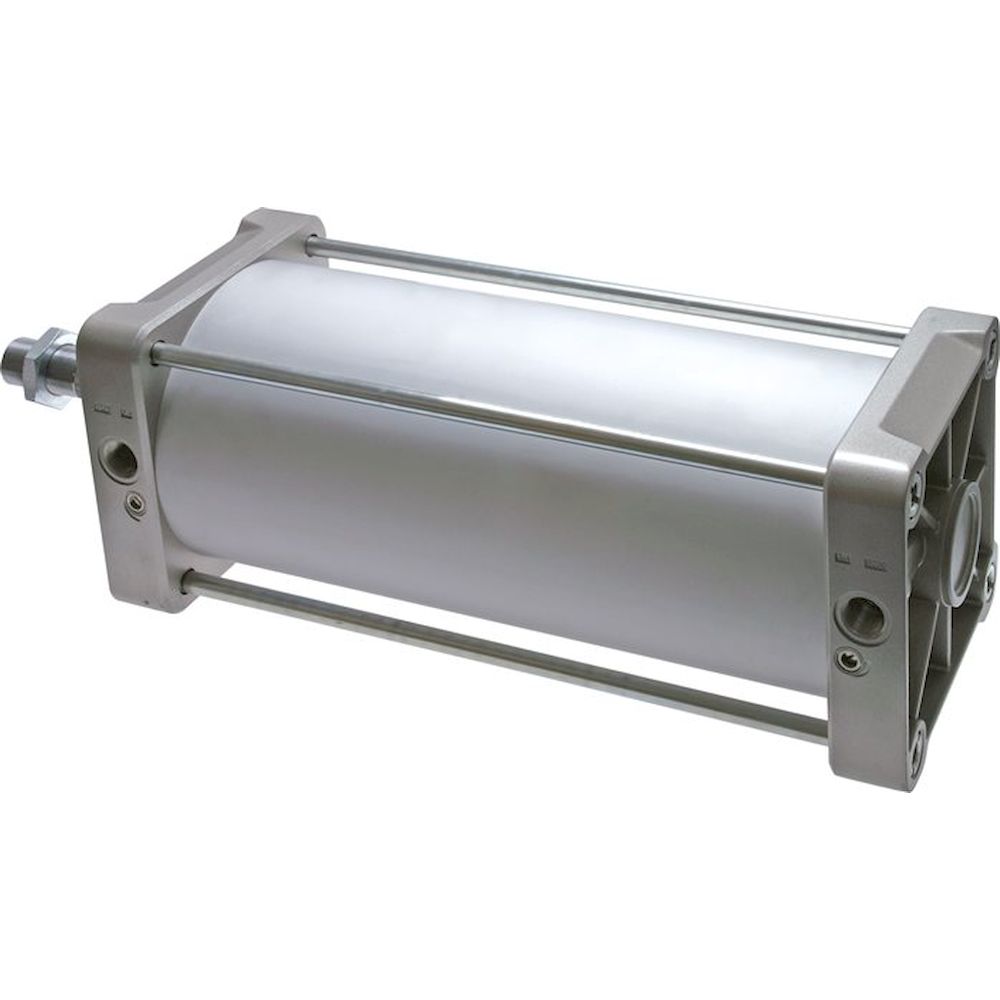

Pneumatic cylinder, double-acting 32-320 mmISO 15552, bore 32-320 mm, extended size range
Management unitsLateral force absorption for ISO 15552 profile cylinders
Foot fixingsTA foot plates for ISO 15552, steel and stainless
Complete swivel mountings 90° bracketTH swivel mounting with 90° lug for ISO 15552

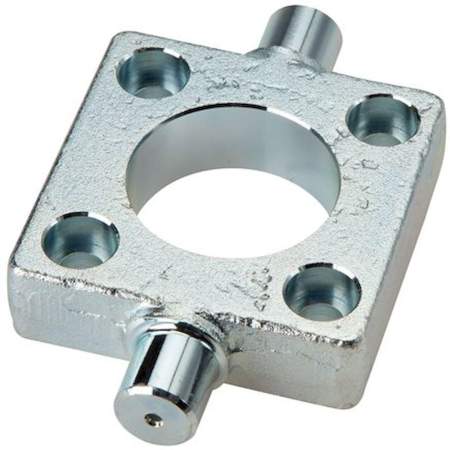

Flange swivel mountingsTJF flange swivel for ISO 15552

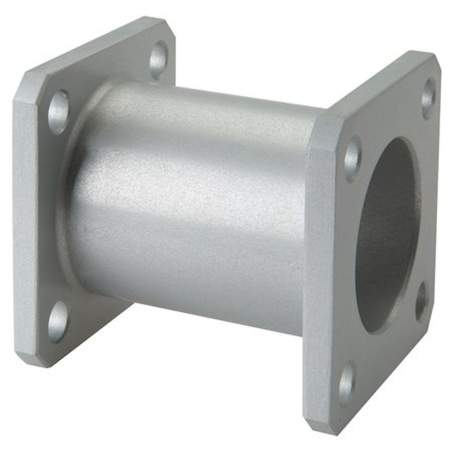

ConnectorsTN rod connectors for ISO 15552
Swivel mountings Fork for spherical bracketTQ fork swivel with spherical lug

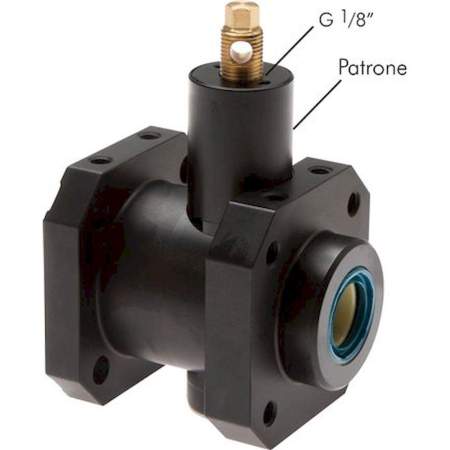

Locking unitsXL BREMS clamping units for ISO 15552 cylinders
| Type | Mounting method | Application |
|---|---|---|
| TA (foot plate) | Rigid foot mounting | Fixed axis direction, simple installation |
| TB (flange) | End-face flange mounting | Axial mounting in plates |
| TC (fork) | Fork swivel, freely rotating | Articulation with angular movement |
| TD (90° lug) | Lug swivel 90° | Swivel mounting perpendicular to axis |
| TE (spherical lug) | Ball-joint swivel | Three-dimensional angular movement |
| FF / FFQ (bolt) | Bolt for swivel accessories | Connection of swivel bearing to bracket |
Typical applications: General machine automation with medium force requirements, fixture and clamping machine construction, conveying and lifting systems, food and pharmaceutical production (stainless TM cylinders), installations with frequent cylinder replacement (ISO 15552 standardisation ensures manufacturer independence).
