LE 50/320 CG. Guide unit for ISO15552-50mm, stroke 320mm

Name: LE 50/320 CG. Guide unit for ISO15552-50mm, stroke 320mm
Brand: Fluidics equipment
SKU: FL-LE-50/320-CG
Price: 27238 EUR
Availability: InStock

€27,238.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-LE-50/320-CG

Manufacturer Nr.

LE 50/320 CG

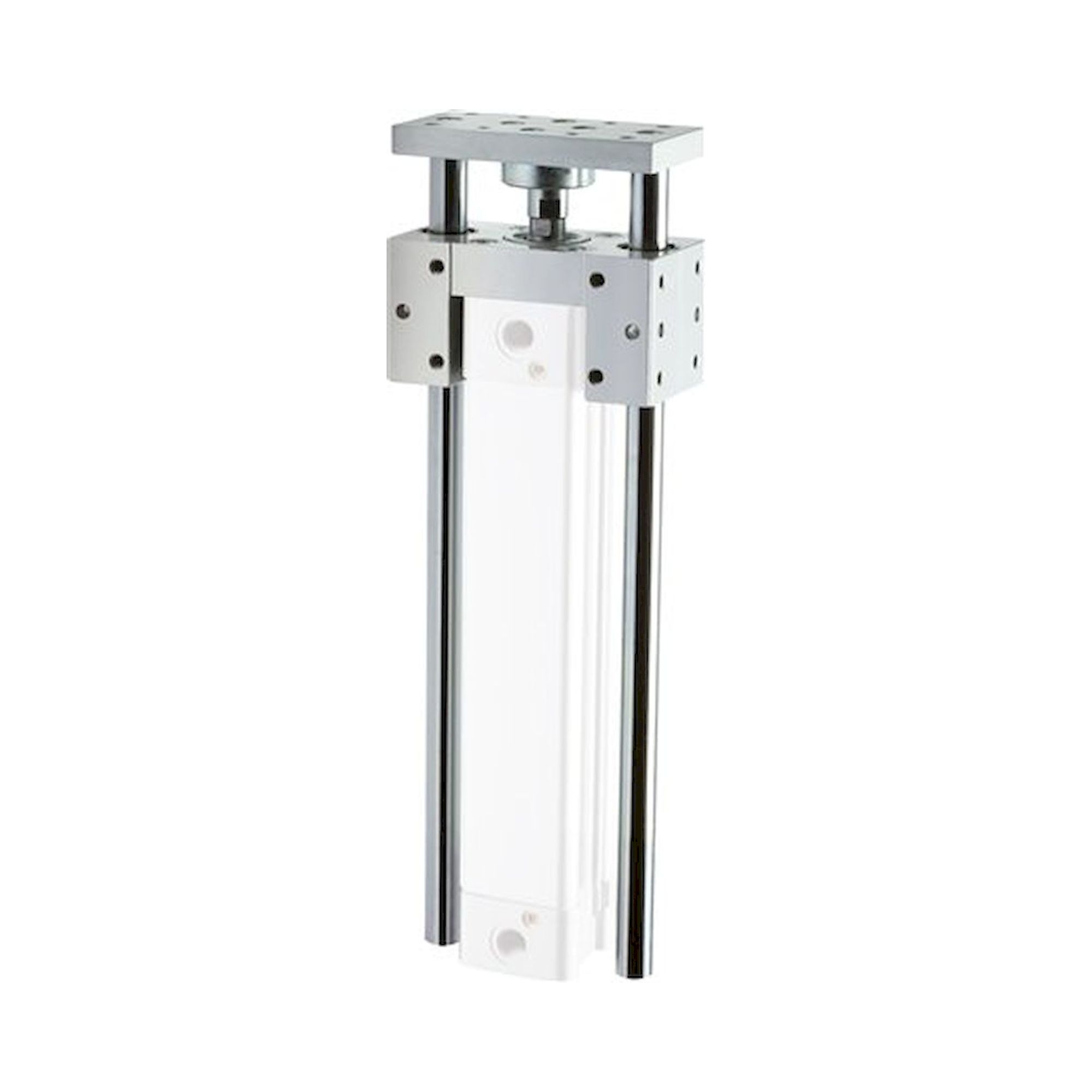

Guide unit for ISO15552-Ø 50mm, stroke 320mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: LE 50/320 CG. Guide unit for ISO15552-50mm, stroke 320mm
€27,238.00
Excl. 19% VAT , excl. Shipping Cost
LE 80/400 HK. Guide unit for ISO15552-80mm, stroke 400mm
€76,313.00
Excl. 19% VAT , excl. Shipping Cost
LE 32/200 HG. Guide unit for ISO15552-32mm, stroke 200mm
€23,536.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Function:
Guide units are used for anti-rotation safety and absorbing side forces with standard cylinders.

Materials:
Body: anodized aluminium, guide rods: hard chromium plated steel, wiper: NBR, bearing: steel or sintered bronze

Temperature range:
-30 to +100 °C

Version	C with sliding guide
for piston diameter [mm]	50
Stroke [mm]	320
MA / MB* [Nm]	21 / 19
A [mm]	137
B [mm]	70
C [mm]	70,2
CH [mm]	20
D1 [mm]	25
E1 [mm]	18,80
E2 [mm]	56,5
E3 [mm]	18,80
F [mm]	134
G [mm]	65
H [mm]	15
I [mm]	20
L6 [mm]	143
L7 [mm]	64
L8 [mm]	59
N [mm]	9,0
O [mm]	16
P [mm]	15
Q [mm]	8,5
S	M 8
T [mm]	100
U [mm]	85
V [mm]	46,5
Z [mm]	104

Information

More Information
Manufacturer Nr.	LE 50/320 CG
Manufacturer	Fluidics equipment
EAN	4050571465391
Weight	38.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
