LE 80/320 HG. Guide unit for ISO15552-80mm, stroke 320mm

Name: LE 80/320 HG. Guide unit for ISO15552-80mm, stroke 320mm
Brand: Fluidics equipment
SKU: FL-LE-80/320-HG
Price: 58084 EUR
Availability: InStock

€58,084.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-LE-80/320-HG

Manufacturer Nr.

LE 80/320 HG

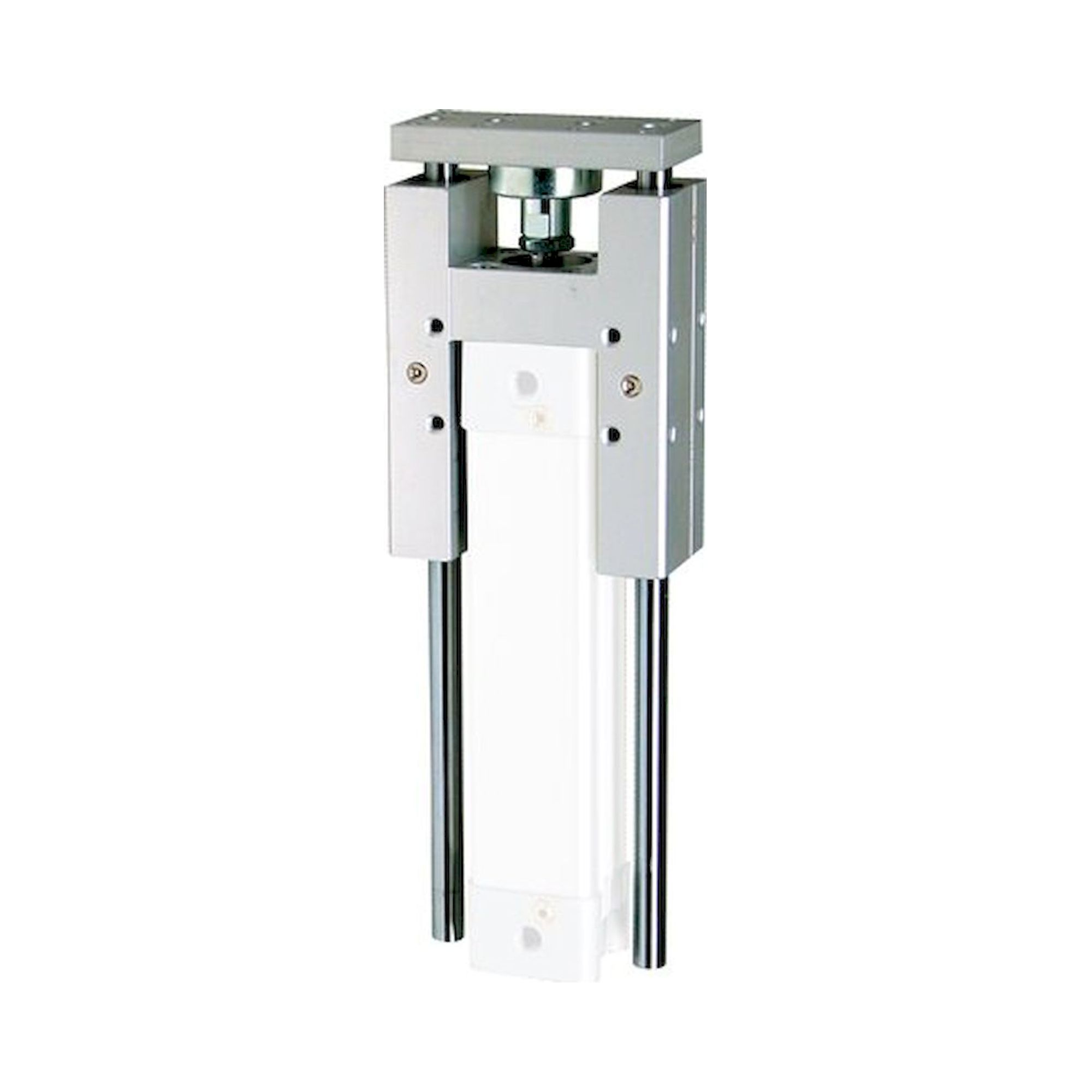

Guide unit for ISO15552-Ø 80mm, stroke 320mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: LE 80/320 HG. Guide unit for ISO15552-80mm, stroke 320mm
€58,084.00
Excl. 19% VAT , excl. Shipping Cost
LE 63/200 HK. Guide unit for ISO15552-63mm, stroke 200mm
€4,947.00
Excl. 19% VAT , excl. Shipping Cost
LE 63/100 HK. Guide unit for ISO15552-63mm, stroke 100mm
€47,483.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Function:
Guide units are used for anti-rotation safety and absorbing side forces with standard cylinders.

Materials:
Body: anodized aluminium, guide rods: hard chromium plated steel, wiper: NBR, bearing: steel or sintered bronze

Temperature range:
-30 to +100 °C

Version	H with sliding guide
for piston diameter [mm]	80
Stroke [mm]	320
MA / MB* [Nm]	72 / 65
A [mm]	189
B [mm]	105
C [mm]	105,5
CH [mm]	26
D [mm]	50
E [mm]	25,0
F [mm]	180
G [mm]	100
H [mm]	20
I [mm]	25
L1 [mm]	267
L2 [mm]	23
L3 [mm]	111
L4 [mm]	195
N [mm]	11,0
O [mm]	20
P [mm]	18
Q [mm]	11,0
S	M 10
T [mm]	130
U [mm]	130
V [mm]	72,0
Z [mm]	148

Information

More Information
Manufacturer Nr.	LE 80/320 HG
Manufacturer	Fluidics equipment
EAN	4050571466015
Weight	1.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
