Airtec NAD 20/25. ISO 21287 cylinders, double acting, piston 20 mm, stroke 25 mm
€3,341.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NAD-20/25
Manufacturer Nr.
NAD 20/25
ISO 21287 cylinders, double acting, piston 20 mm, stroke 25 mm
Frequently Bought Together
-
This Item:
€3,341.00Excl. 19% VAT , excl. Shipping Cost
-

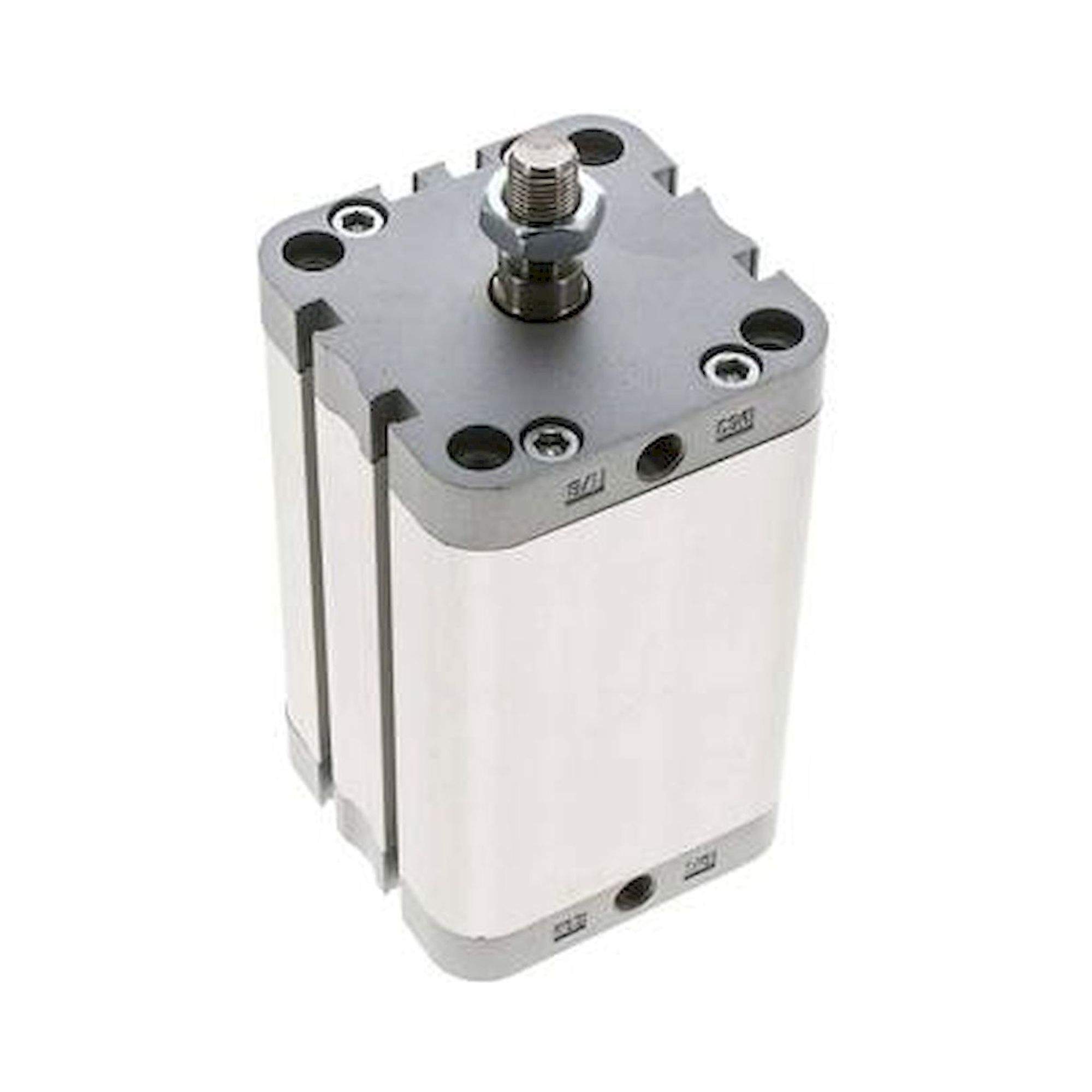

Airtec NAD 63/80-AG. ISO 21287 cylinders, double acting, piston 63 mm, stroke 80 mm
€7,662.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAD 32/60. ISO 21287 cylinders, double acting, piston 32 mm, stroke 60 mm
€4,485.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 20 |
| Stroke [mm] | 25 |
| Version | Standard |
| KF (piston rod female thread) | M 6 |
| G (compressed air port) | M 5 |
| Repair sets | NAD 20 REP |
| A [mm] | 10 |
| AF [mm] | 10 |
| B [mm] | 9 |
| BG [mm] | 19,5 |
| CH [mm] | 9 |
| E [mm] | 36,0 |
| LA [mm] | 4,5 |
| RT | M 5 |
| TG [mm] | 22,0 |
| WH [mm] | 6 |
| ZA [mm] | 37 |
| ZB [mm] | 43 |
| ZC [mm] | 22 |
| Manufacturer Nr. | NAD 20/25 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571517083 |
| Weight | 18.000000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
EMC SFS 40/60. ISO 21287 cylinders, double acting, piston 40 mm, stroke 60 mm
€3,236.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAD 63/150. ISO 21287 cylinders, double acting, piston 63 mm, stroke 150 mm
€8,768.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAD 25/15. ISO 21287 cylinders, double acting, piston 25 mm, stroke 15 mm
€3,441.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SFSA 32/100. ISO 21287 cylinders, double acting, piston 32 mm, stroke 100 mm
€5,345.00
Excl. 19% VAT ,
excl. Shipping Cost

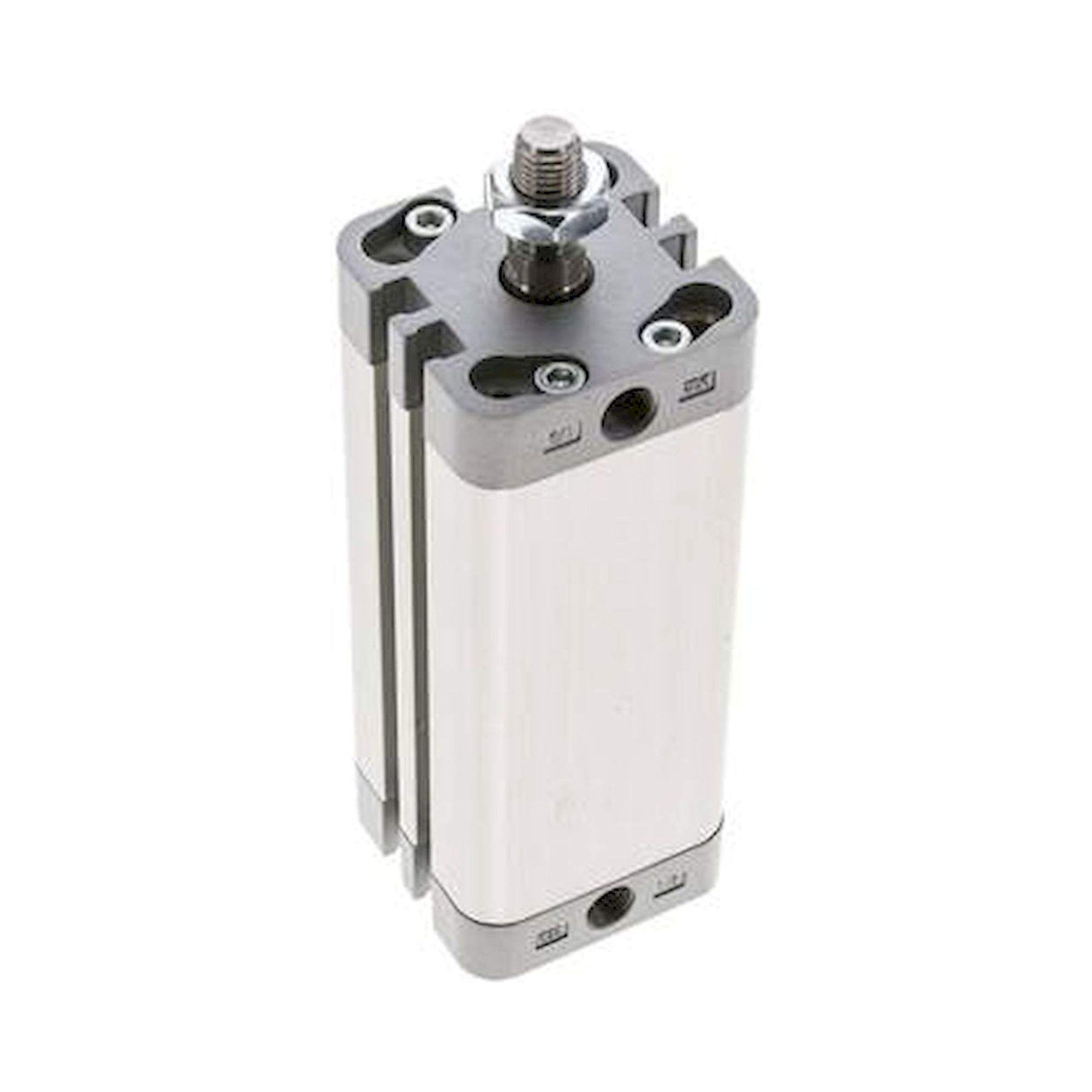

Airtec NAD 32/80-AG. ISO 21287 cylinders, double acting, piston 32 mm, stroke 80 mm
€4,627.00
Excl. 19% VAT ,
excl. Shipping Cost

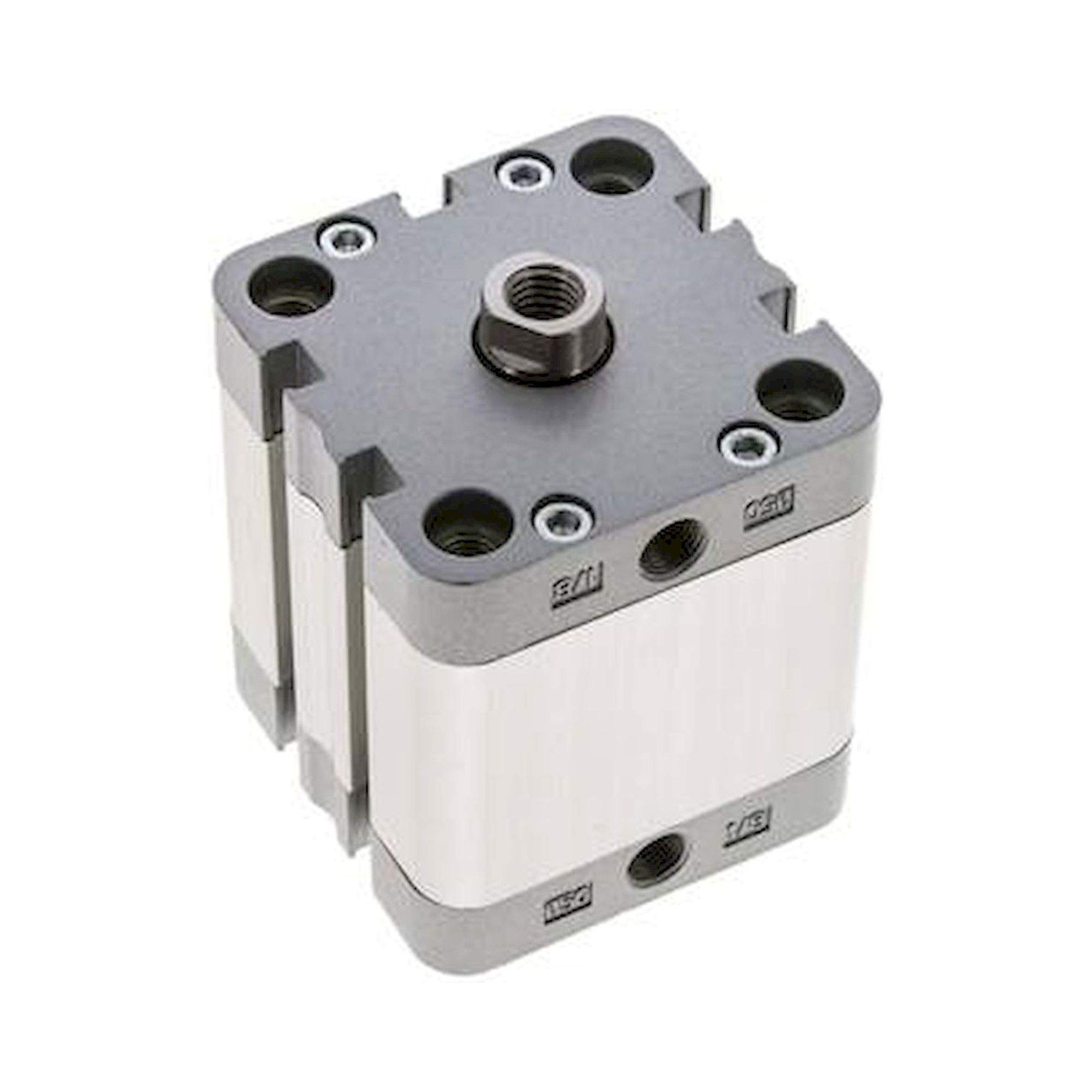

Airtec NAD 50/30. ISO 21287 cylinders, double acting, piston 50 mm, stroke 30 mm
