Airtec NADA 100/80. ISO 21287 cylinders, double acting, piston 100 mm, stroke 80 mm
€19,671.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NADA-100/80
Manufacturer Nr.
NADA 100/80
ISO 21287 cylinders, double acting, piston 100 mm, stroke 80 mm
Frequently Bought Together
-
This Item:
€19,671.00Excl. 19% VAT , excl. Shipping Cost
-

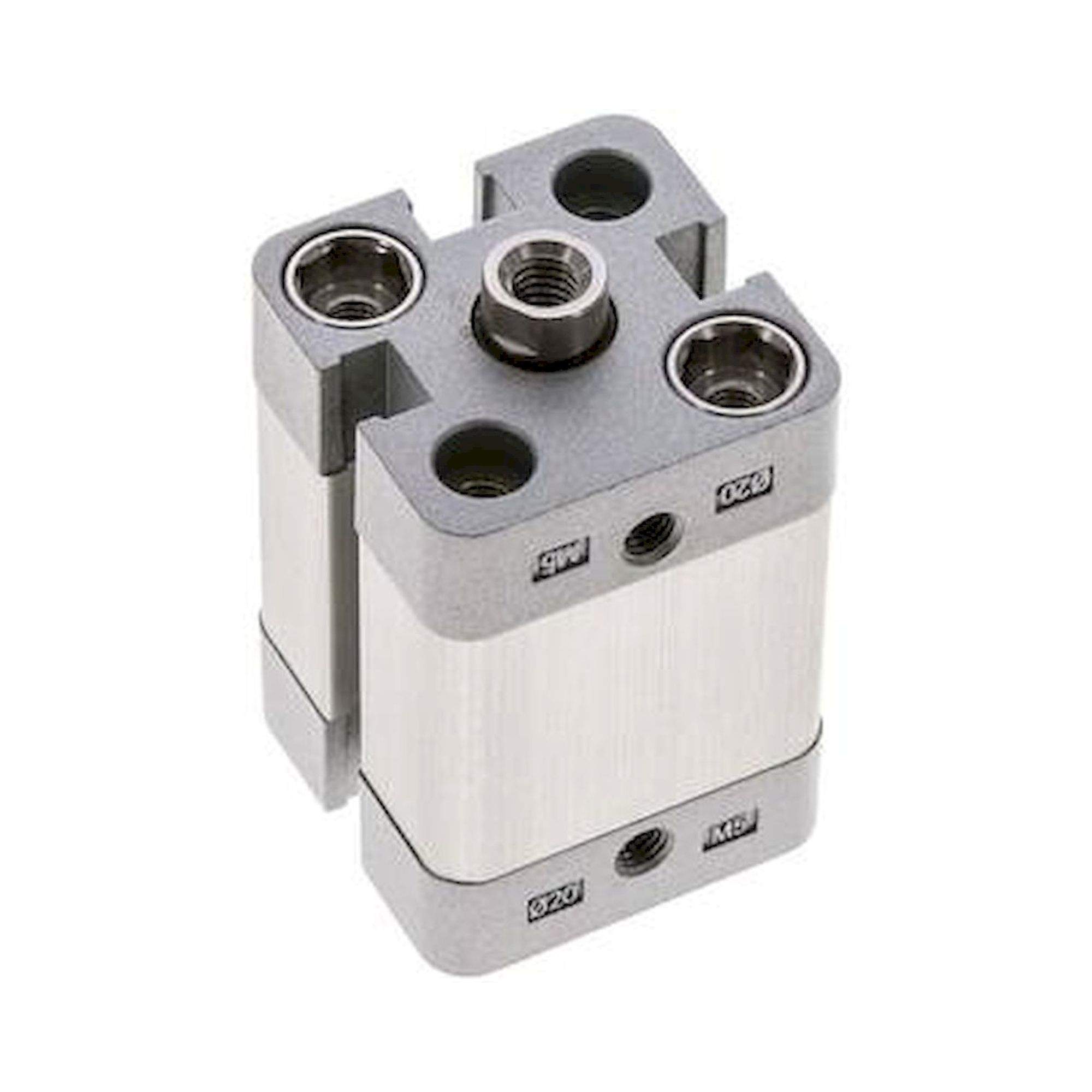

Airtec NAD 20/15. ISO 21287 cylinders, double acting, piston 20 mm, stroke 15 mm
€3,287.00Excl. 19% VAT , excl. Shipping Cost
-
EMC SFSA 32/50. ISO 21287 cylinders, double acting, piston 32 mm, stroke 50 mm
€474.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 100 |
| Stroke [mm] | 80 |
| Version | non-rotating piston rod |
| G (compressed air port) | G 1/8" |
| Repair sets | NAD 100 REP |
| A [mm] | 25 |
| B [mm] | 12 |
| BG [mm] | 19,5 |
| CH [mm] | 21 |
| D [mm] | 30 |
| D1 [mm] | 80 |
| D2 | M 10 |
| D3 [mm] | 10 |
| E [mm] | 113,5 |
| LA [mm] | 3,0 |
| RT | M 10 |
| TG [mm] | 89,0 |
| WH [mm] | 10 |
| ZA [mm] | 67 |
| ZC [mm] | 46 |
| ZD [mm] | 91 |
| Manufacturer Nr. | NADA 100/80 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571519377 |
| Weight | 35.000000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
Airtec NADA 32/60. ISO 21287 cylinders, double acting, piston 32 mm, stroke 60 mm
€7,112.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAD 100/80-AG. ISO 21287 cylinders, double acting, piston 100 mm, stroke 80 mm
€13,563.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SFSA 40/50. ISO 21287 cylinders, double acting, piston 40 mm, stroke 50 mm
€5,227.00
Excl. 19% VAT ,
excl. Shipping Cost

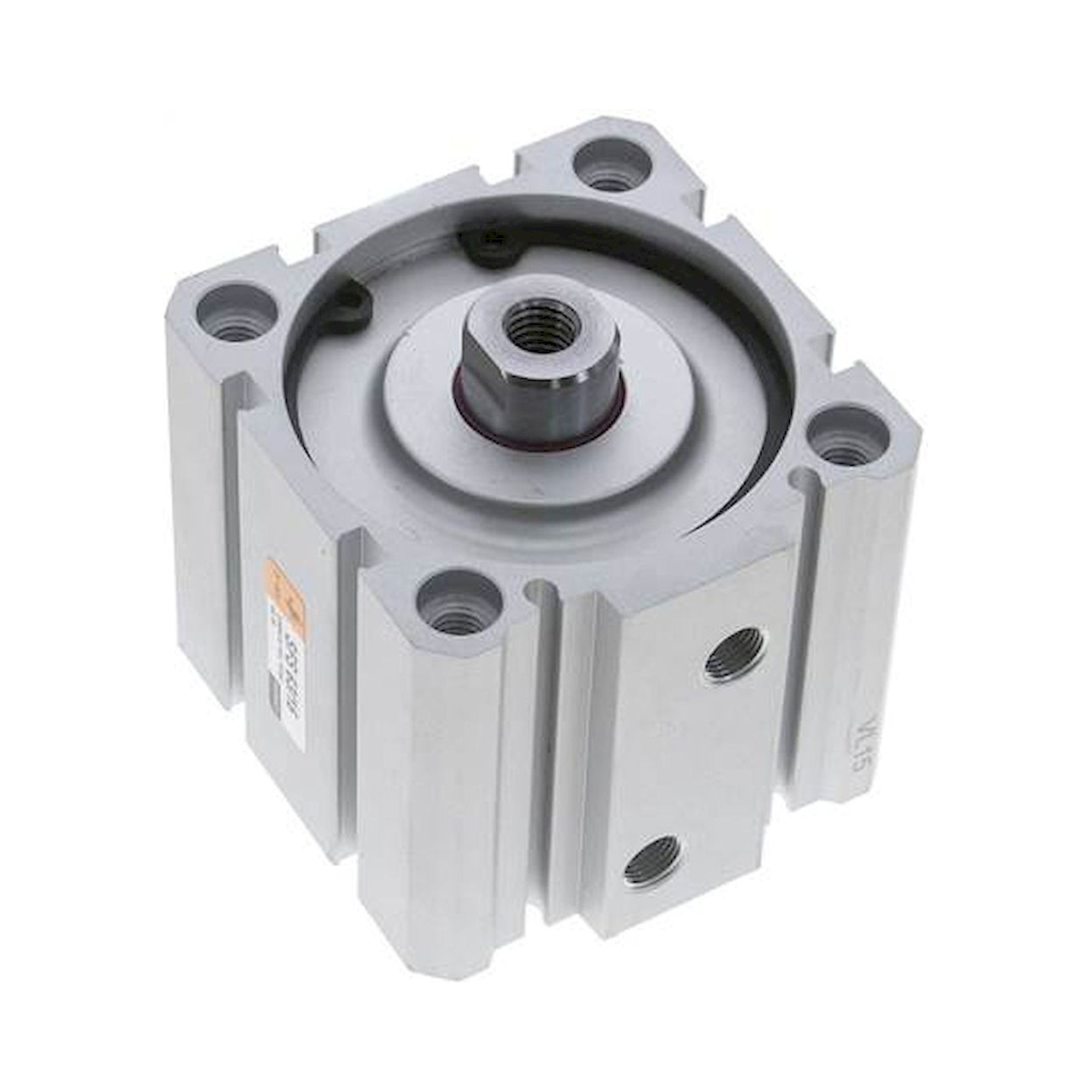

EMC SFS 63/15. ISO 21287 cylinders, double acting, piston 63 mm, stroke 15 mm
€3,956.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SFS 63/30-B. ISO 21287 cylinders, double acting, piston 63 mm, stroke 30 mm
€4,266.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAD 32/150-AG. ISO 21287 cylinders, double acting, piston 32 mm, stroke 150 mm
€5,128.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SFSA 32/15. ISO 21287 cylinders, double acting, piston 32 mm, stroke 15 mm
€4,348.00
Excl. 19% VAT ,
excl. Shipping Cost

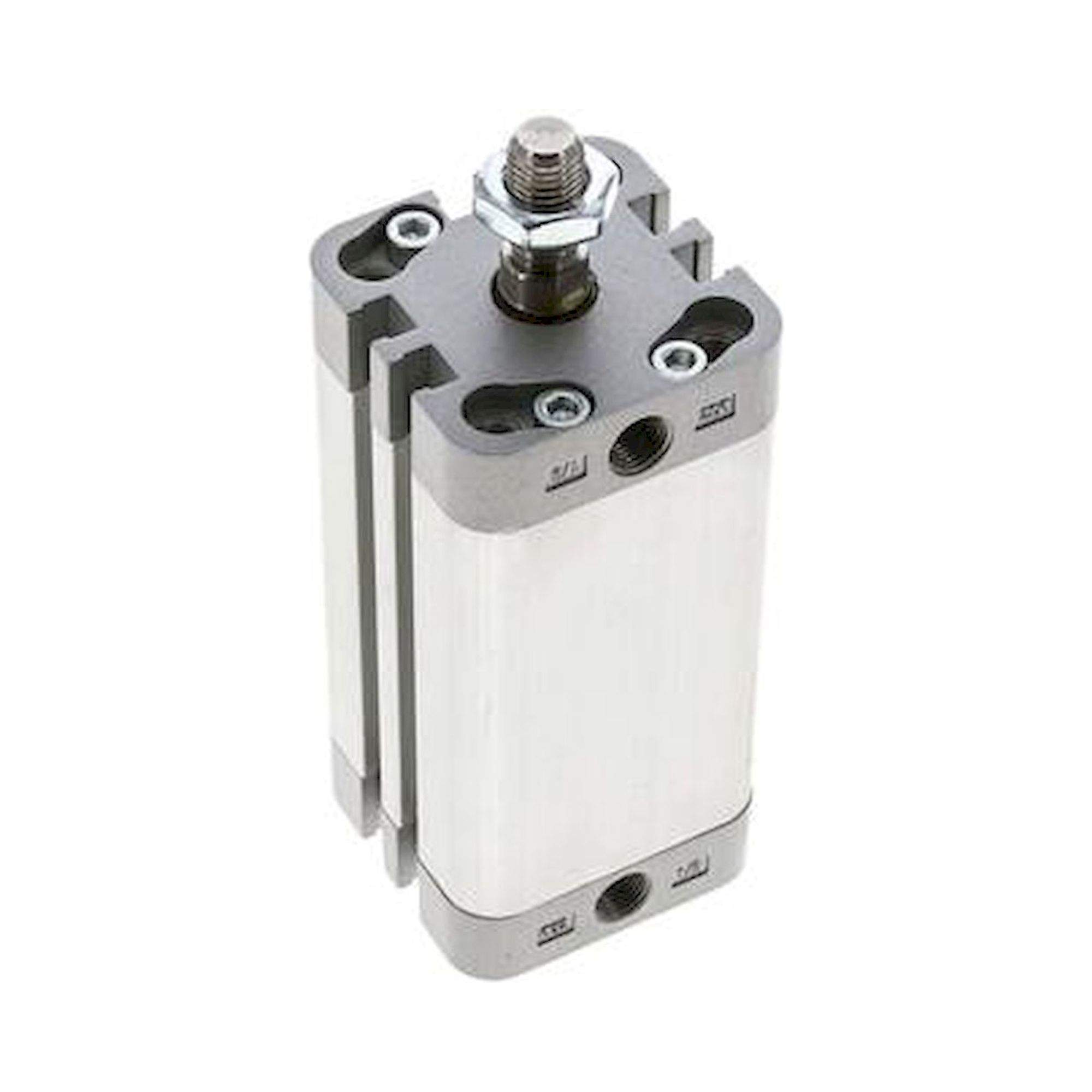

Airtec NAD 32/60-AG. ISO 21287 cylinders, double acting, piston 32 mm, stroke 60 mm
