ND 100/100. Short-stroke cylinders, double acting, piston 100 mm, stroke 100 mm

Name: ND 100/100. Short-stroke cylinders, double acting, piston 100 mm, stroke 100 mm
Brand: Fluidics equipment
SKU: FL-ND-100/100
Price: 23298 EUR
Availability: InStock

€23,298.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-ND-100/100

Manufacturer Nr.

ND 100/100

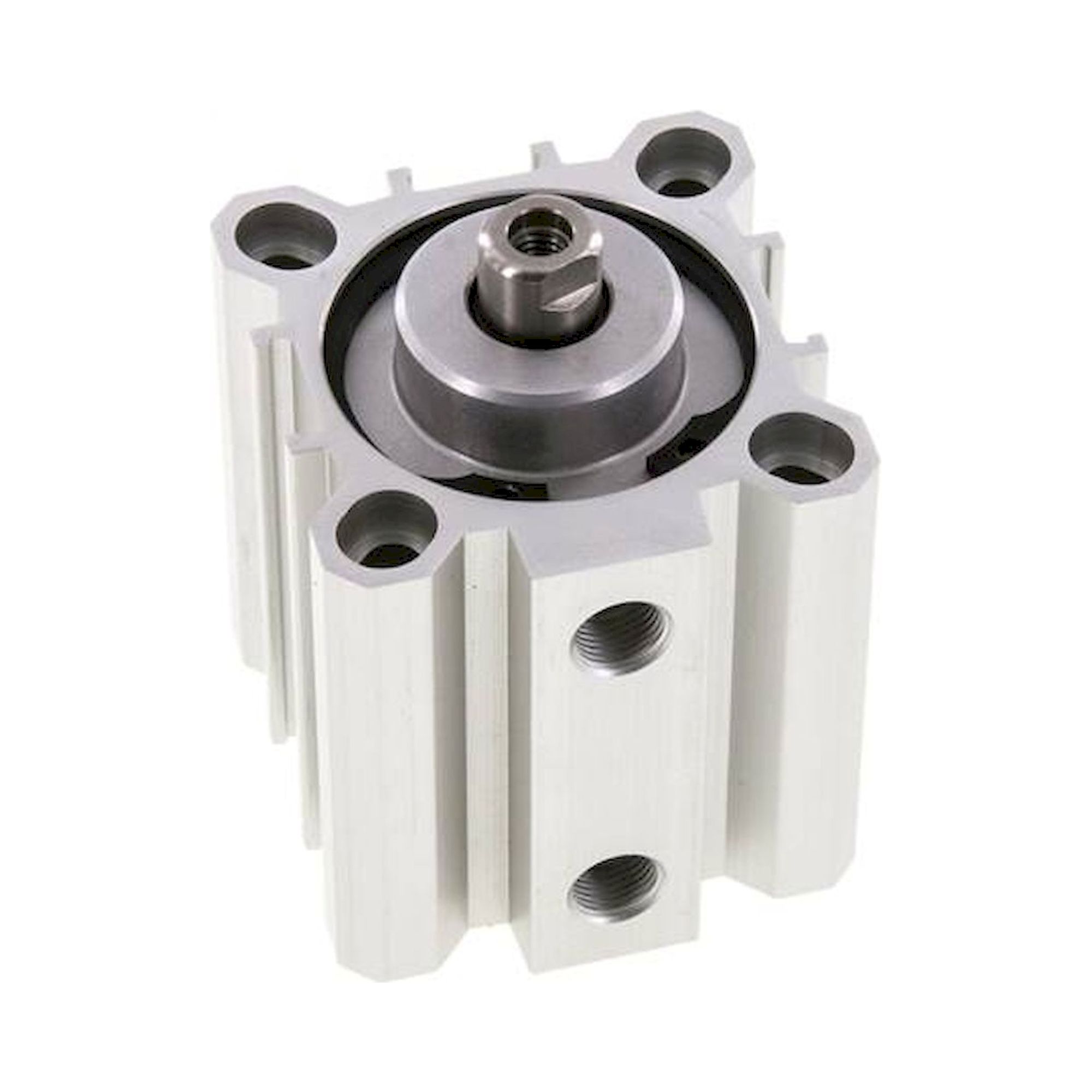

Short-stroke cylinders, double acting, piston 100 mm, stroke 100 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: ND 100/100. Short-stroke cylinders, double acting, piston 100 mm, stroke 100 mm
€23,298.00
Excl. 19% VAT , excl. Shipping Cost
NDM 32/30. Short-stroke cylinders, double acting, piston 32 mm, stroke 30 mm
€6,492.00
Excl. 19% VAT , excl. Shipping Cost
NDM 50/30. Short-stroke cylinders, double acting, piston 50 mm, stroke 30 mm
€8,972.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Cylinder switch type:
G

Piston diameter [mm]	100
Stroke [mm]	100
Version	without magnetic piston
C1 (piston rod thread)	M 12
P (compressed air port)	G 1/4"
Repair sets	ND 100 REP
A [mm]	131,0
B [mm]	124
D [mm]	25
F [mm]	11,0
G [mm]	17,2
H [mm]	69,0
I [mm]	103
J [mm]	16,0
K [mm]	103,0
L [mm]	56,0
N [mm]	94,0
Q [mm]	11,0
S [mm]	124,0
T [mm]	20
V [mm]	22
W [mm]	10,0
X [mm]	80
Y [mm]	30
Z [mm]	50
AA [mm]	20,5
AB [mm]	14

Information

More Information
Manufacturer Nr.	ND 100/100
Manufacturer	Fluidics equipment
EAN	4050571522667
Weight	33.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
