ND 80/50. Short-stroke cylinders, double acting, piston 80 mm, stroke 50 mm

Name: ND 80/50. Short-stroke cylinders, double acting, piston 80 mm, stroke 50 mm
Brand: Fluidics equipment
SKU: FL-ND-80/50
Price: 15129 EUR
Availability: InStock

€15,129.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-ND-80/50

Manufacturer Nr.

ND 80/50

Short-stroke cylinders, double acting, piston 80 mm, stroke 50 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: ND 80/50. Short-stroke cylinders, double acting, piston 80 mm, stroke 50 mm
€15,129.00
Excl. 19% VAT , excl. Shipping Cost
NDM 63/100. Short-stroke cylinders, double acting, piston 63 mm, stroke 100 mm
€13,032.00
Excl. 19% VAT , excl. Shipping Cost

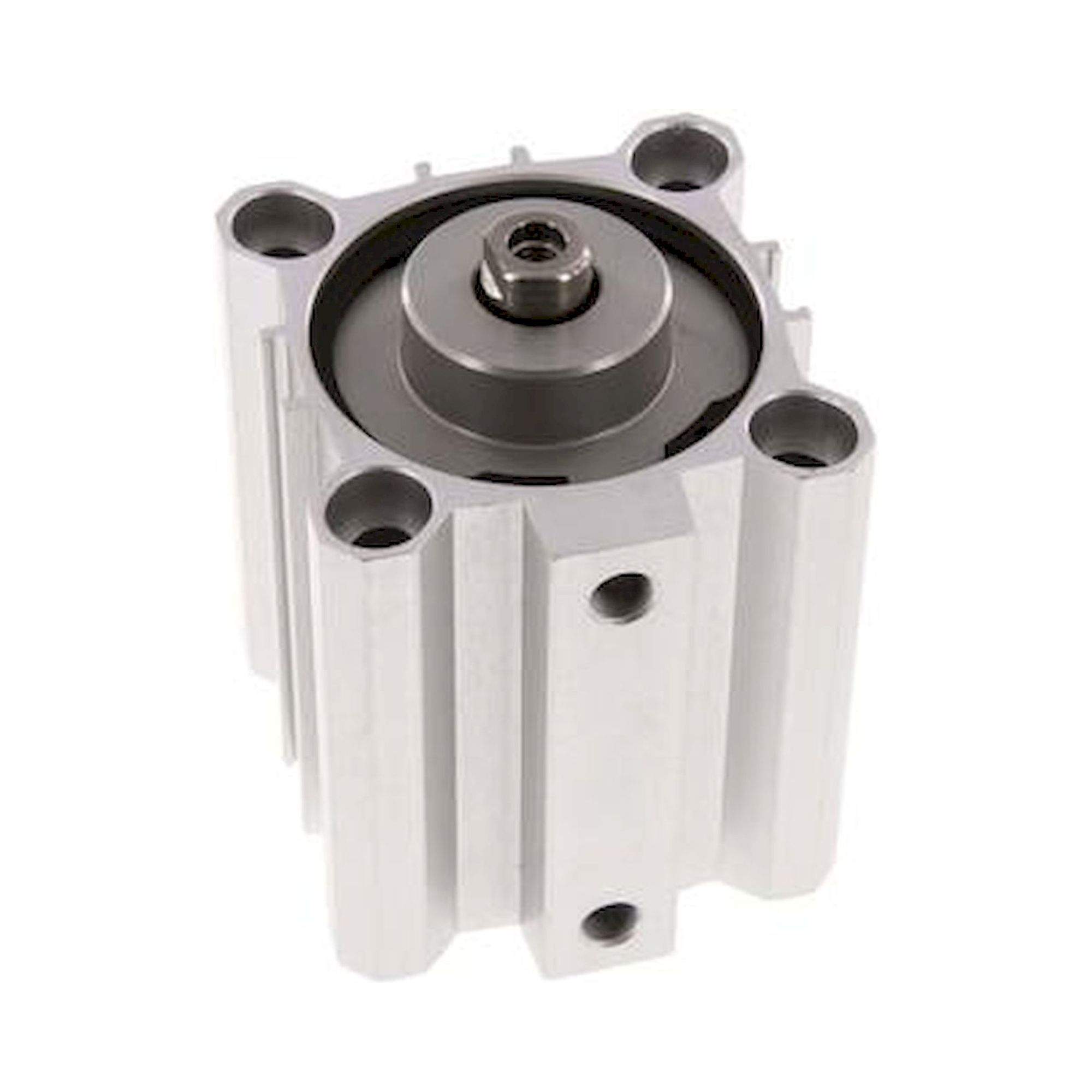

NDM 63/50. Short-stroke cylinders, double acting, piston 63 mm, stroke 50 mm
€11,802.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Cylinder switch type:
G

Piston diameter [mm]	80
Stroke [mm]	50
Version	without magnetic piston
C1 (piston rod thread)	M 10
P (compressed air port)	G 1/4"
Repair sets	ND 80 REP
A [mm]	105,0
B [mm]	100
D [mm]	20
F [mm]	9,0
G [mm]	14,0
H [mm]	55,0
I [mm]	82
J [mm]	14,0
K [mm]	82,0
L [mm]	46,0
N [mm]	77,0
Q [mm]	9,0
S [mm]	100,0
T [mm]	15
V [mm]	17
W [mm]	8,0
X [mm]	65
Y [mm]	28
Z [mm]	50
AA [mm]	18,0
AB [mm]	14

Information

More Information
Manufacturer Nr.	ND 80/50
Manufacturer	Fluidics equipment
EAN	4050571523640
Weight	15.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
