NDM 100/15. Short-stroke cylinders, double acting, piston 100 mm, stroke 15 mm

Name: NDM 100/15. Short-stroke cylinders, double acting, piston 100 mm, stroke 15 mm
Brand: Fluidics equipment
SKU: FL-NDM-100/15
Price: 19822 EUR
Availability: InStock

€19,822.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-NDM-100/15

Manufacturer Nr.

NDM 100/15

Short-stroke cylinders, double acting, piston 100 mm, stroke 15 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: NDM 100/15. Short-stroke cylinders, double acting, piston 100 mm, stroke 15 mm
€19,822.00
Excl. 19% VAT , excl. Shipping Cost
ND 100/80. Short-stroke cylinders, double acting, piston 100 mm, stroke 80 mm
€21,901.00
Excl. 19% VAT , excl. Shipping Cost

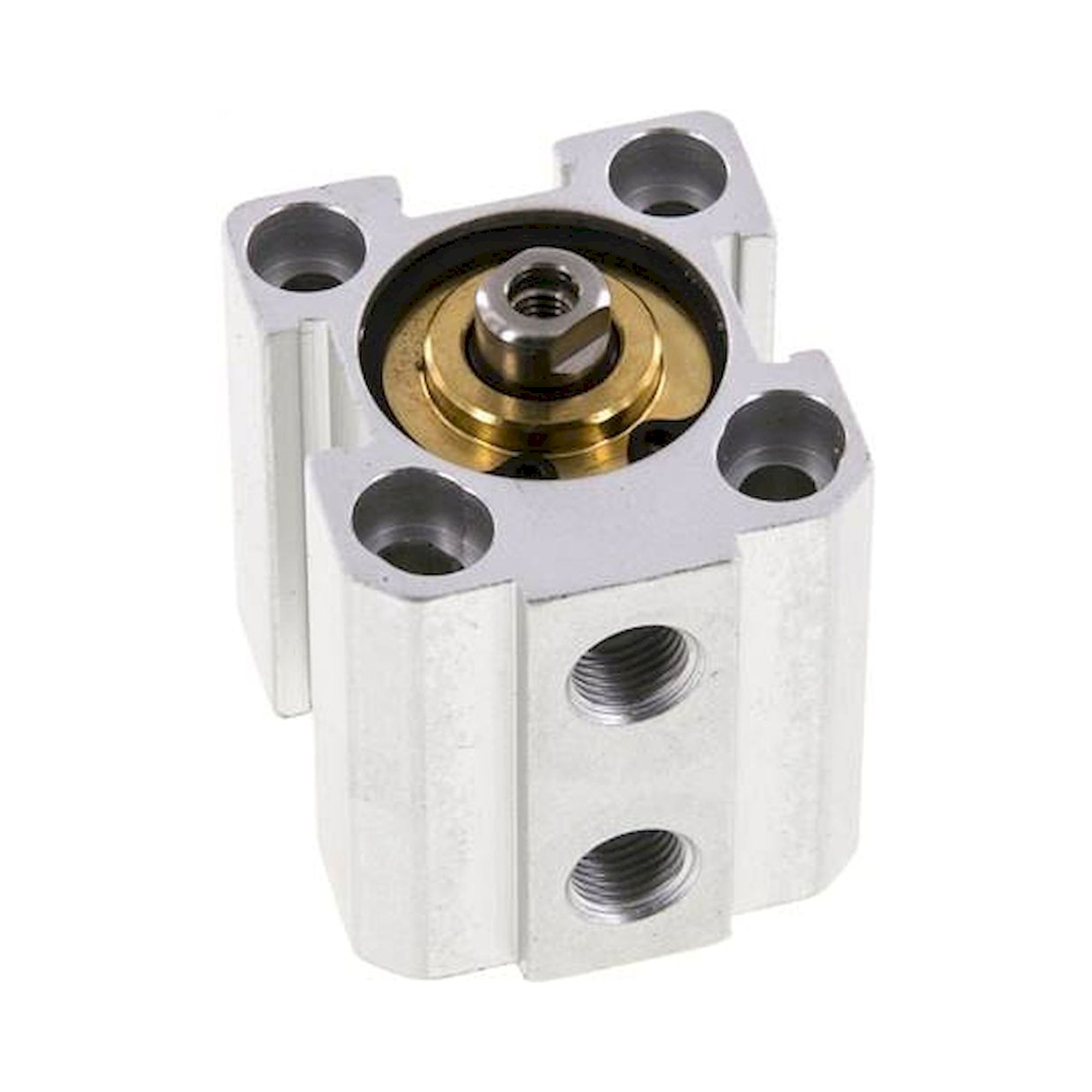

ND 25/15. Short-stroke cylinders, double acting, piston 25 mm, stroke 15 mm
€455.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Cylinder switch type:
G

Piston diameter [mm]	100
Stroke [mm]	15
Version	with magnetic piston
C1 (piston rod thread)	M 12
P (compressed air port)	G 1/4"
Repair sets	ND 100 REP
A [mm]	131,0
B [mm]	124
D [mm]	25
E [mm]	56,0
F [mm]	11,0
G [mm]	17,2
H [mm]	69,0
I [mm]	103
J [mm]	16,0
K [mm]	103,0
L [mm]	56,0
N [mm]	94,0
Q [mm]	11,0
S [mm]	124,0
T [mm]	20
U [mm]	10,5
V [mm]	22
W [mm]	10,0
X [mm]	80
Y [mm]	30
Z [mm]	50
AA [mm]	20,5
AB [mm]	14

Information

More Information
Manufacturer Nr.	NDM 100/15
Manufacturer	Fluidics equipment
EAN	4050571523718
Weight	21.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
