Airtec NXD 100/250. Compact cylinders, double acting, piston 100 mm, stroke 250 mm

Airtec
€35,106.00
Excl. 19% VAT , excl. Shipping Cost
Article
FL-NXD-100/250

Manufacturer Nr.
NXD 100/250
Compact cylinders, double acting, piston 100 mm, stroke 250 mm
Add to Wish List Add to Compare
main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread

Piston diameter [mm] 100
Stroke [mm] 250
Version Standard
G1 (piston rod female thread) M 12
M (compressed air port) G 1/4"

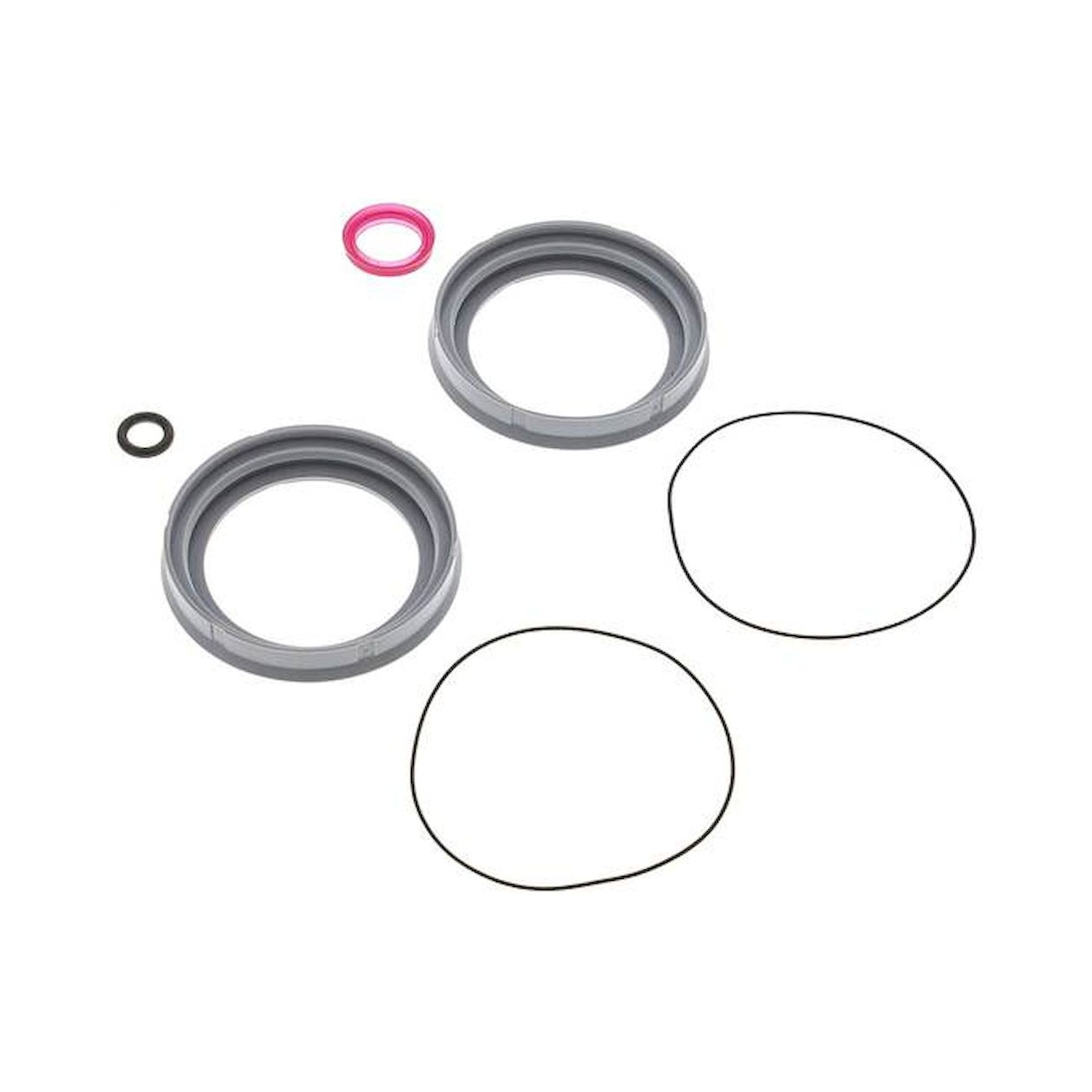

Repair sets NXD 100 REP
A [mm] 124
B [mm] 25
C [mm] 8
D [mm] 8,5
E M 10
F [mm] 13,5
J [mm] 66,5
L [mm] 0
N [mm] 10,5
O [mm] 19,25
P [mm] 103
Q [mm] 20
T [mm] 22
U [mm] 8,5
Z [mm] 10,0
More Information
Manufacturer Nr. NXD 100/250
Manufacturer Airtec
EAN 4050571526818
Weight 6.000000
HS-Code 84799070
GPSR manufacturer information AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity Original product
Condition of article New
