Airtec NXD 40/70. Compact cylinders, double acting, piston 40 mm, stroke 70 mm
€948.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NXD-40/70
Manufacturer Nr.
NXD 40/70
Compact cylinders, double acting, piston 40 mm, stroke 70 mm
Frequently Bought Together
-
This Item:
€948.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NXD 50/160. Compact cylinders, double acting, piston 50 mm, stroke 160 mm
€13,868.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NXD 12/70. Compact cylinders, double acting, piston 12 mm, stroke 70 mm
€5,477.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 40 |
| Stroke [mm] | 70 |
| Version | Standard |
| G1 (piston rod female thread) | M 6 |
| M (compressed air port) | G 1/8" |
| Repair sets | NXD 40 REP |
| A [mm] | 58 |
| B [mm] | 12 |
| C [mm] | 6 |
| D [mm] | 5,2 |
| E | M 6 |
| F [mm] | 9,0 |
| J [mm] | 45,5 |
| L [mm] | 3 |
| N [mm] | 8,0 |
| O [mm] | 14,75 |
| P [mm] | 42 |
| Q [mm] | 12 |
| T [mm] | 10 |
| U [mm] | 5,5 |
| Z [mm] | 6,5 |
| Manufacturer Nr. | NXD 40/70 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571528751 |
| Weight | 6.000000 |
| HS-Code | 84799070 |
| GPSR manufacturer information | AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
EMC SES 32/80. Compact cylinders, double acting, piston 32 mm, stroke 80 mm
€4,309.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NXD 80/90. Compact cylinders, double acting, piston 80 mm, stroke 90 mm
€19,404.00
Excl. 19% VAT ,
excl. Shipping Cost

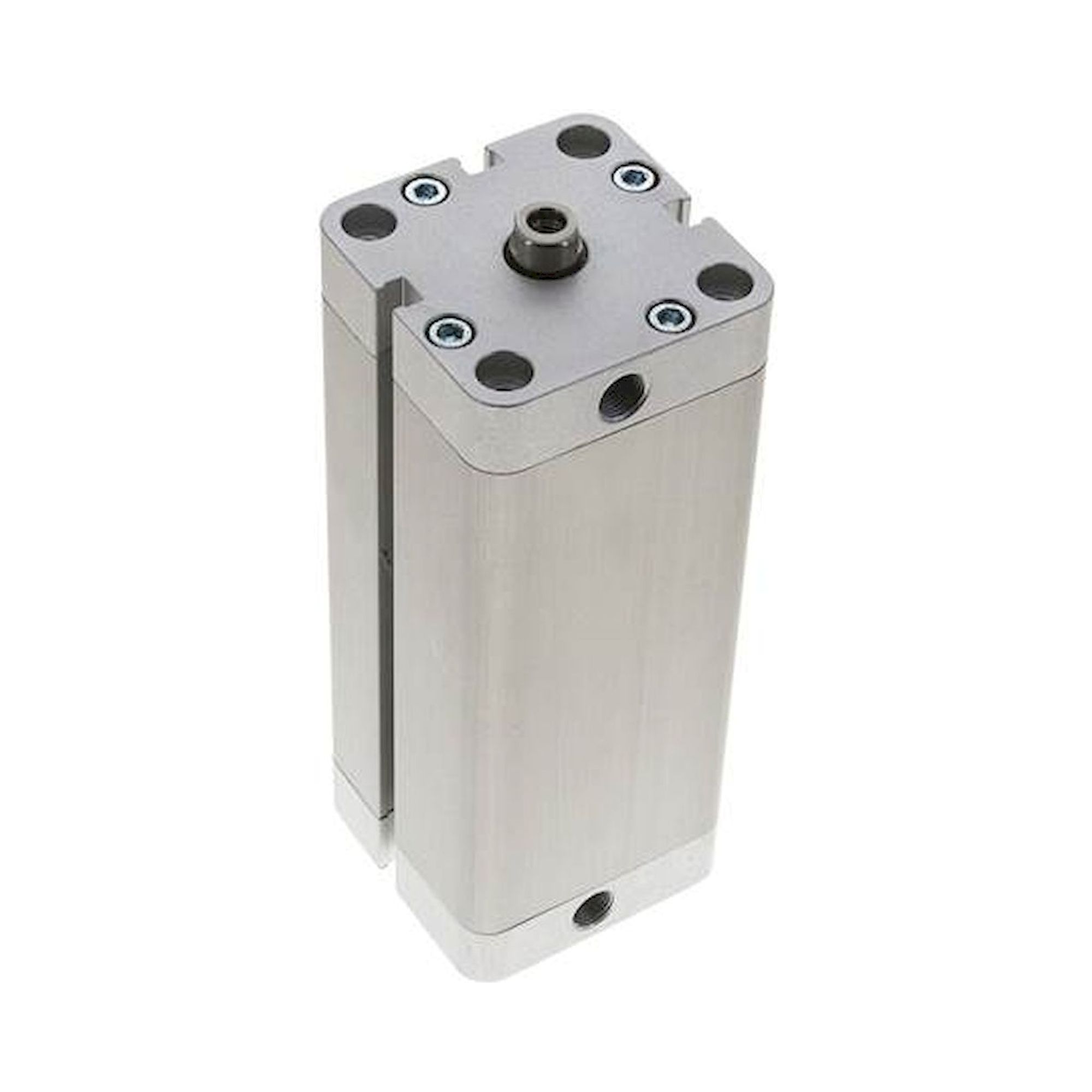

Airtec NXD 40/100. Compact cylinders, double acting, piston 40 mm, stroke 100 mm
