Airtec NXD 80/10-AG. Compact cylinders, double acting, piston 80 mm, stroke 10 mm

Airtec
€13,038.00
Excl. 19% VAT , excl. Shipping Cost
Article
FL-NXD-80/10-AG

Manufacturer Nr.
NXD 80/10-AG
Compact cylinders, double acting, piston 80 mm, stroke 10 mm
Add to Wish List Add to Compare

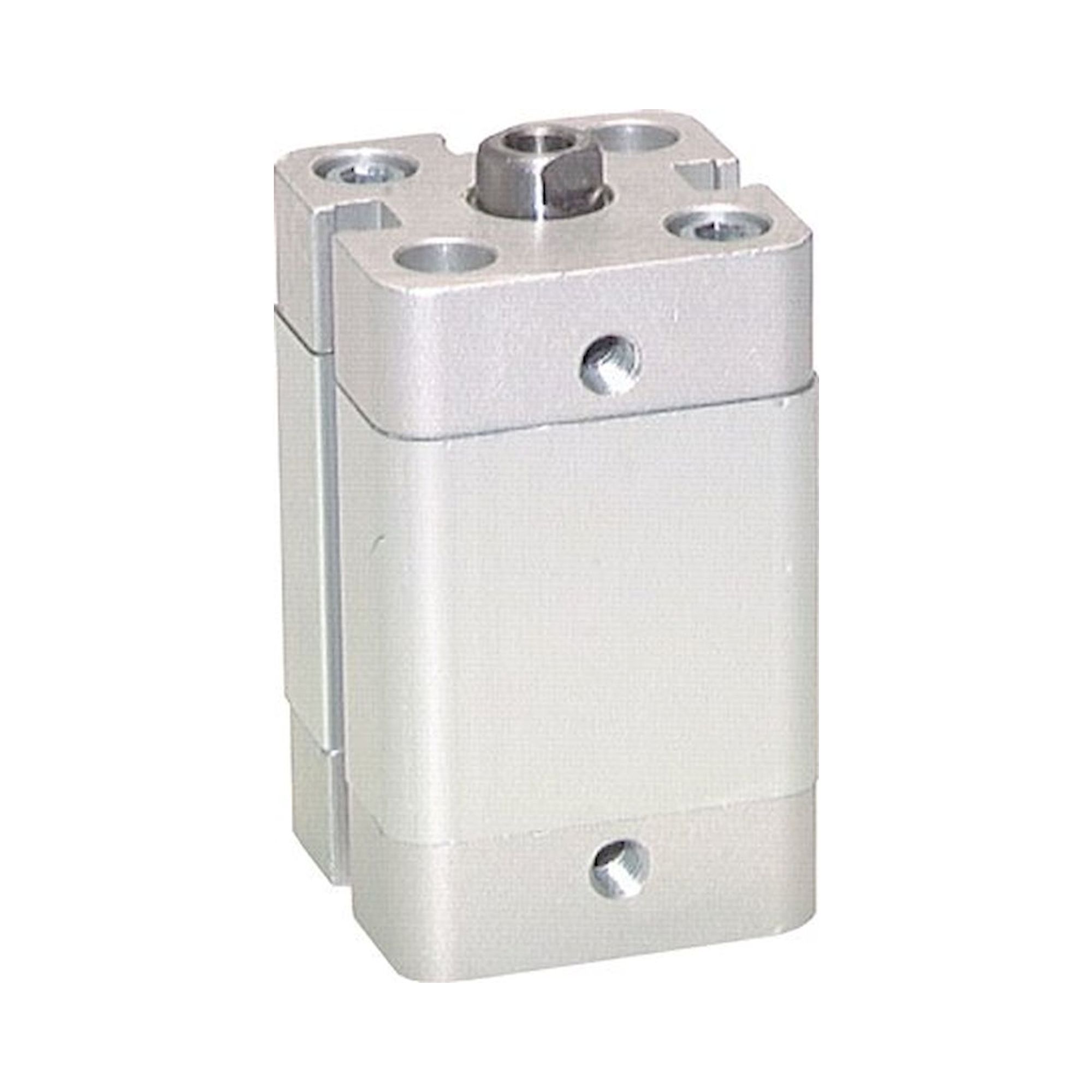

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread

Piston diameter [mm] 80
Stroke [mm] 10
Version Piston rod with male thread
G2 (piston rod male thread) M 16x1,5
M (compressed air port) G 1/8"
Repair sets NXD 80 REP
A [mm] 100
C [mm] 8
D [mm] 8,5
E M 10
F [mm] 13,5
J [mm] 56,0
L [mm] 0
N [mm] 8,5
O [mm] 16,00
P [mm] 82
Q [mm] 15
T [mm] 17
U [mm] 8,5
V [mm] 32
Z [mm] 8,0
More Information
Manufacturer Nr. NXD 80/10-AG
Manufacturer Airtec
EAN 4050571529512
Weight 14.000000
HS-Code 84123100
GPSR manufacturer information AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity Original product
Condition of article New
