Airtec NXDK 20/125. Compact cylinders, double acting, piston 20 mm, stroke 125 mm
€8,458.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NXDK-20/125
Manufacturer Nr.
NXDK 20/125
Compact cylinders, double acting, piston 20 mm, stroke 125 mm
Frequently Bought Together
-
This Item:
€8,458.00Excl. 19% VAT , excl. Shipping Cost
-

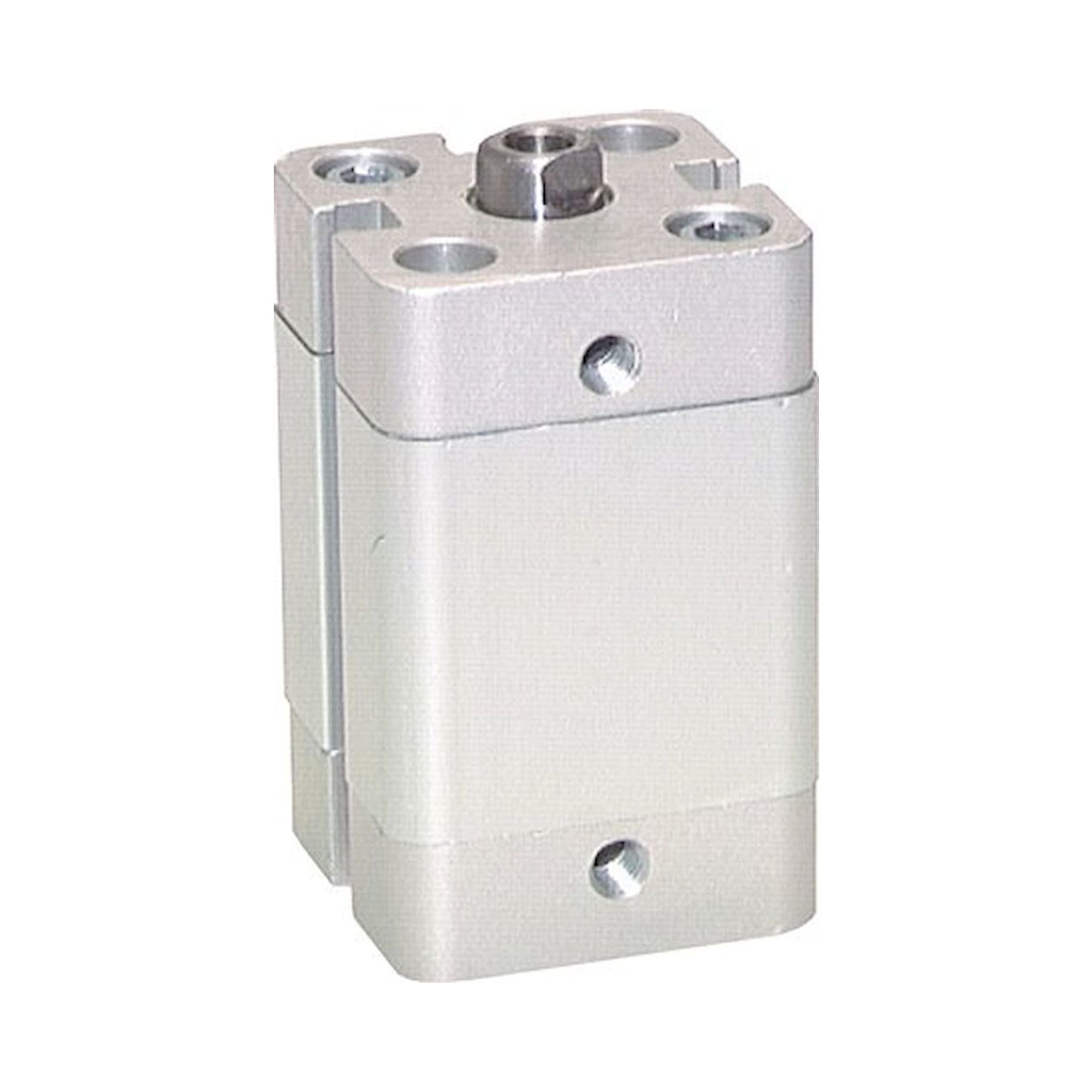

Airtec NXDK 20/20. Compact cylinders, double acting, piston 20 mm, stroke 20 mm
€6,041.00Excl. 19% VAT , excl. Shipping Cost
-

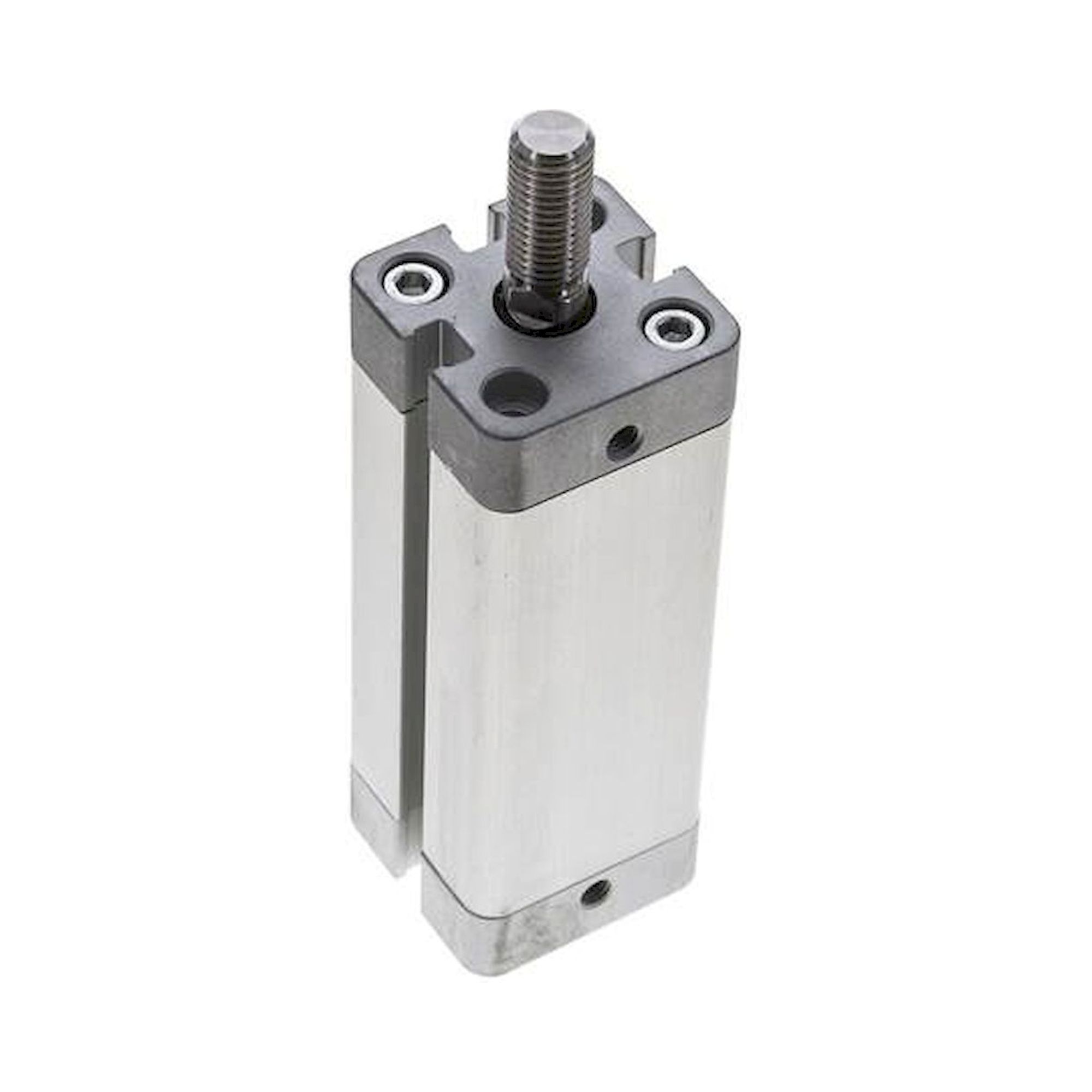

Airtec NXD 20/60-AG. Compact cylinders, double acting, piston 20 mm, stroke 60 mm
€5,933.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 20 |
| Stroke [mm] | 125 |
| Version | continuous piston rod |
| G1 (piston rod female thread) | M 5 |
| M (compressed air port) | M 5 |
| Repair sets | NXD 20 REP |
| A [mm] | 36 |
| B [mm] | 10 |
| C [mm] | 6 |
| D [mm] | 4,2 |
| E | M 5 |
| F [mm] | 7,5 |
| J [mm] | 38,0 |
| N [mm] | 8,0 |
| O [mm] | 12,25 |
| P [mm] | 22 |
| Q [mm] | 10 |
| T [mm] | 8 |
| U [mm] | 4,5 |
| Z [mm] | 4,5 |
| Manufacturer Nr. | NXDK 20/125 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571531584 |
| Weight | 1.000000 |
| HS-Code | 84799070 |
| GPSR manufacturer information | AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
Airtec NXD 12/5. Compact cylinders, double acting, piston 12 mm, stroke 5 mm
€4,036.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SES 40/100-B. Compact cylinders, double acting, piston 40 mm, stroke 100 mm
€5,512.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NXDA 20/90. Compact cylinders, double acting, piston 20 mm, stroke 90 mm
€922.00
Excl. 19% VAT ,
excl. Shipping Cost

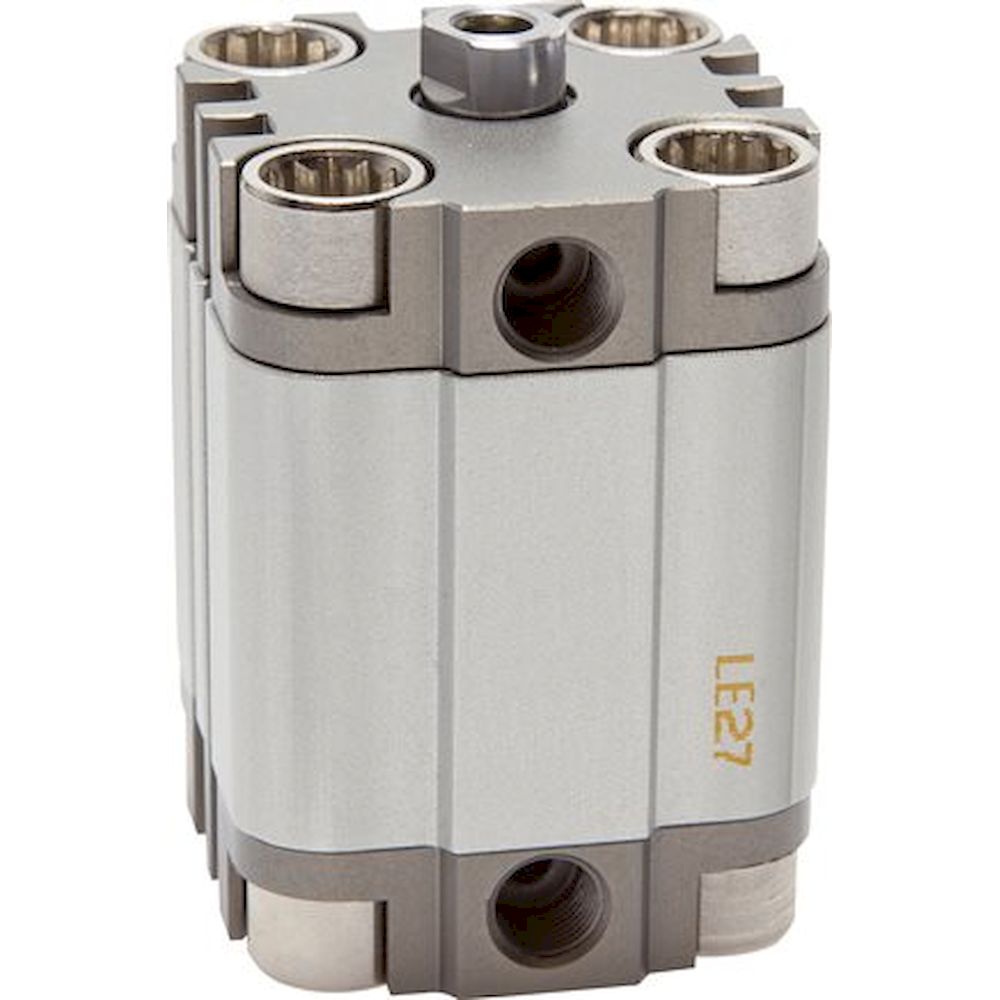

EMC SES 12/30. Compact cylinders, double acting, piston 12 mm, stroke 30 mm
€2,706.00
Excl. 19% VAT ,
excl. Shipping Cost

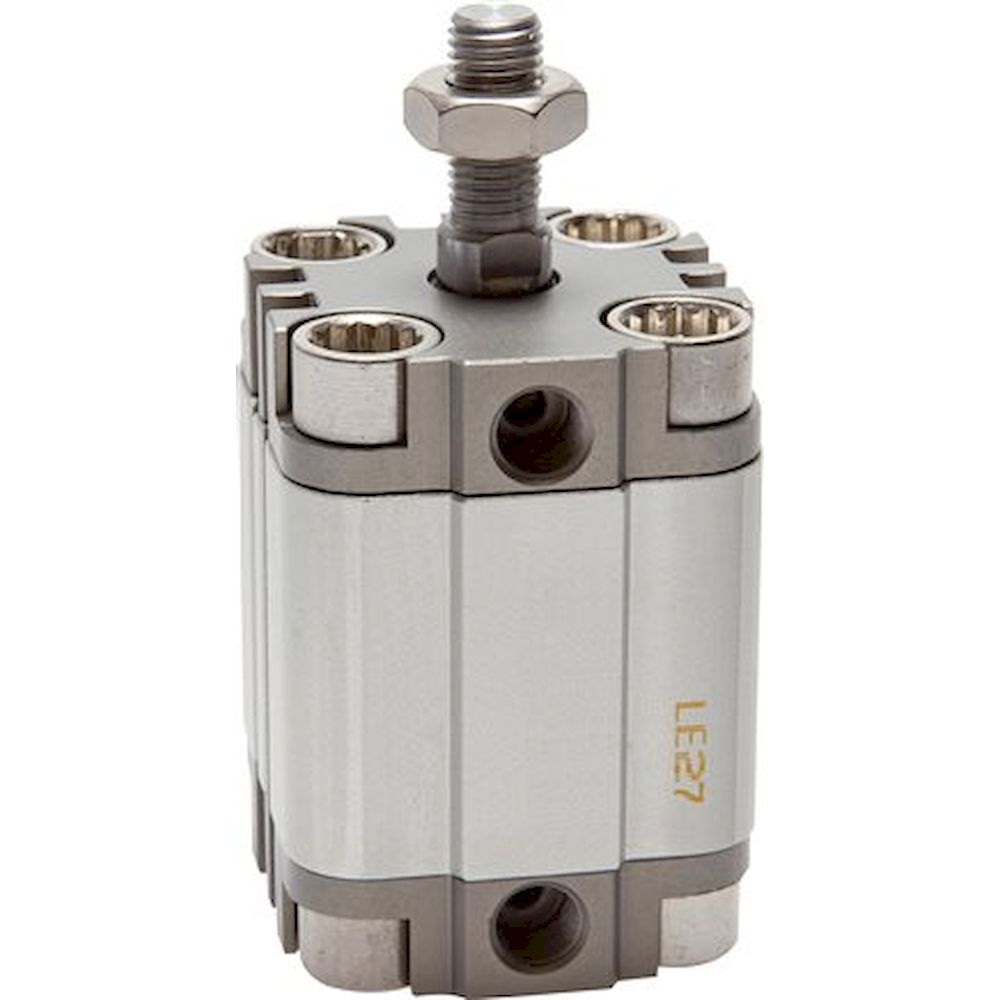

EMC SES 25/60-B. Compact cylinders, double acting, piston 25 mm, stroke 60 mm
€3,615.00
Excl. 19% VAT ,
excl. Shipping Cost

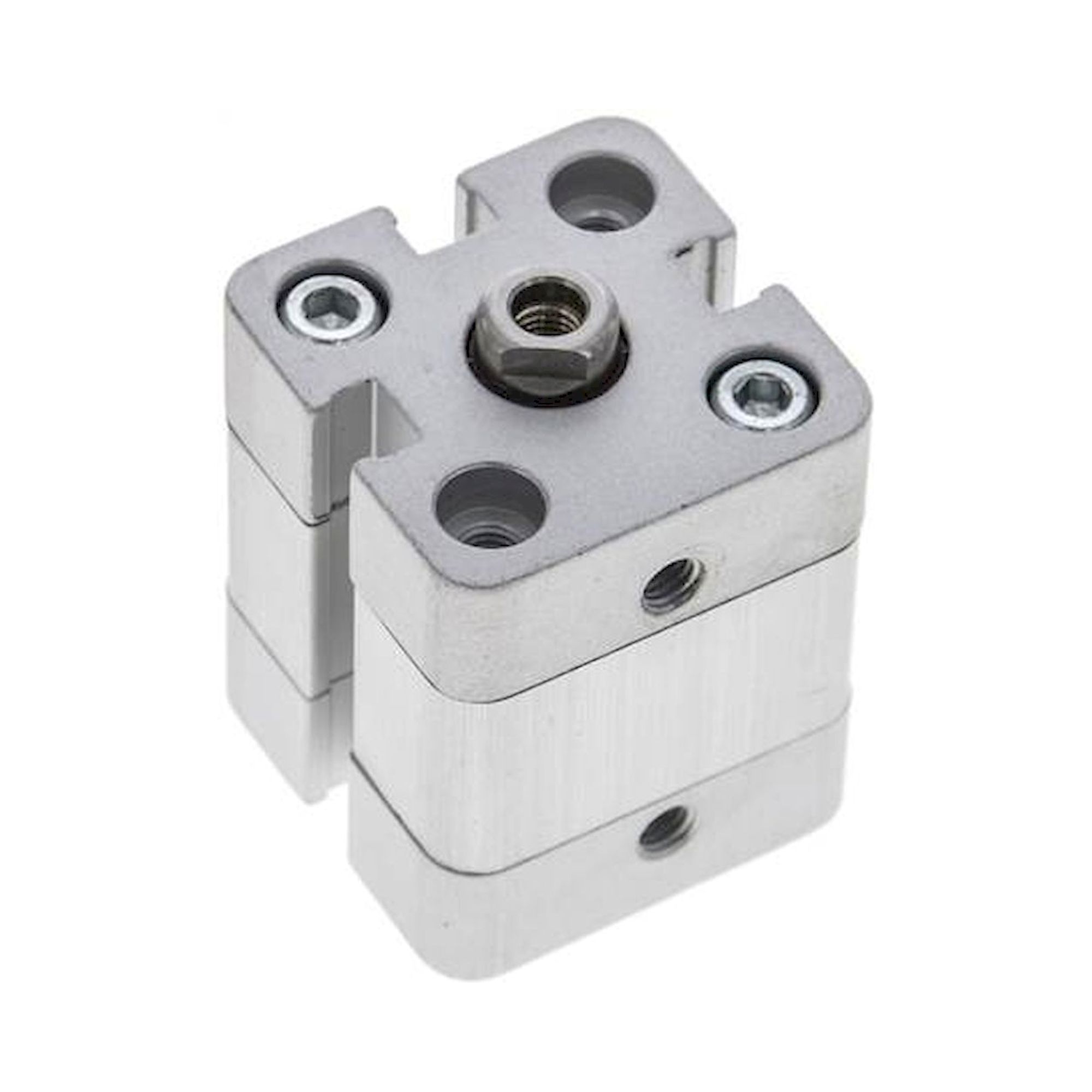

Airtec NXD 20/5. Compact cylinders, double acting, piston 20 mm, stroke 5 mm
€437.00
Excl. 19% VAT ,
excl. Shipping Cost

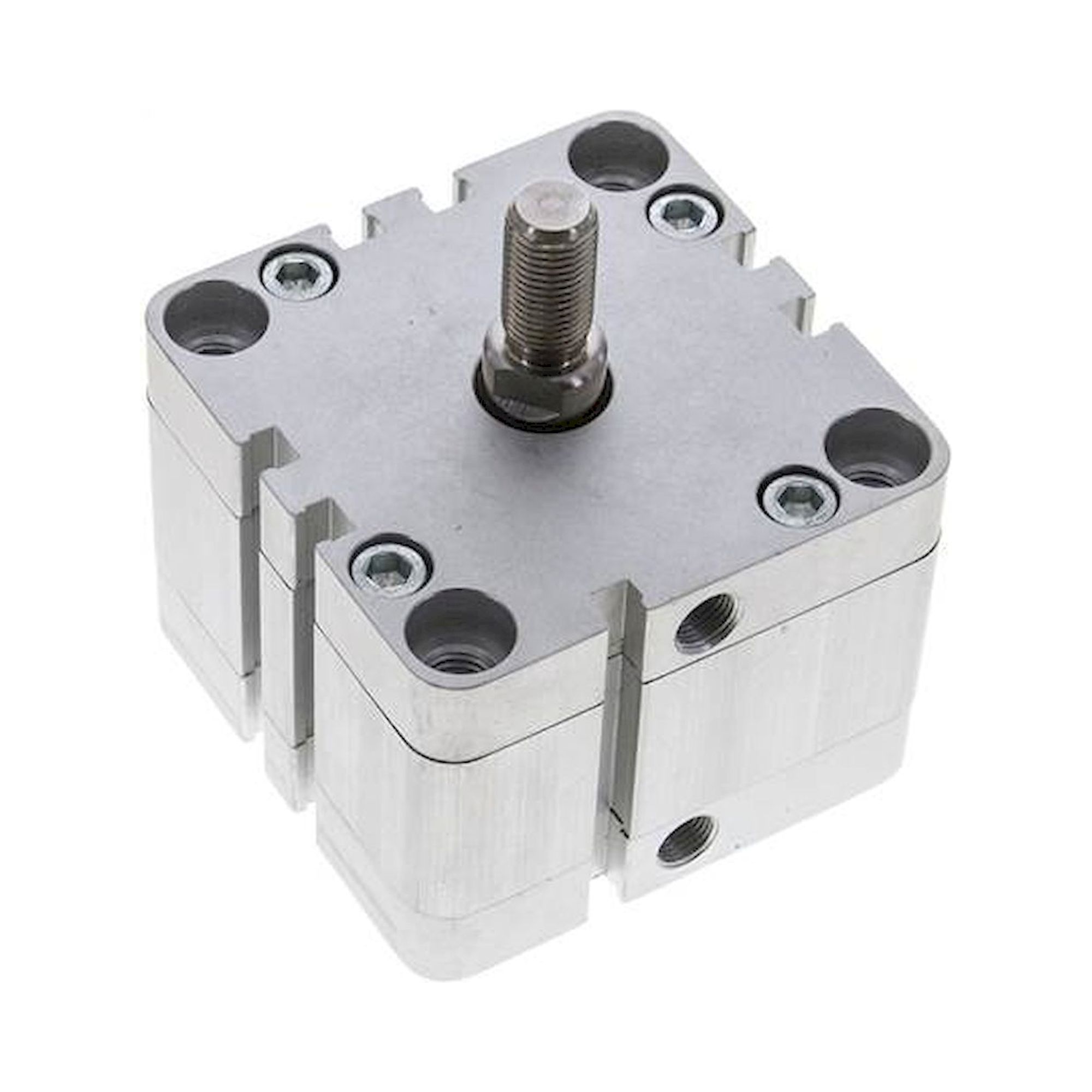

Airtec NXD 63/10-AG. Compact cylinders, double acting, piston 63 mm, stroke 10 mm
