Airtec NXE 20/10. Compact cylinders, single acting, piston 20 mm, stroke 10 mm

Name: Airtec NXE 20/10. Compact cylinders, single acting, piston 20 mm, stroke 10 mm
Brand: Airtec
SKU: FL-NXE-20/10
Price: 4422 EUR
Availability: InStock

€4,422.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-NXE-20/10

Manufacturer Nr.

NXE 20/10

Compact cylinders, single acting, piston 20 mm, stroke 10 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Airtec NXE 20/10. Compact cylinders, single acting, piston 20 mm, stroke 10 mm
€4,422.00
Excl. 19% VAT , excl. Shipping Cost
Airtec NXE 16/15-AG. Compact cylinders, single acting, piston 16 mm, stroke 15 mm
€4,297.00
Excl. 19% VAT , excl. Shipping Cost

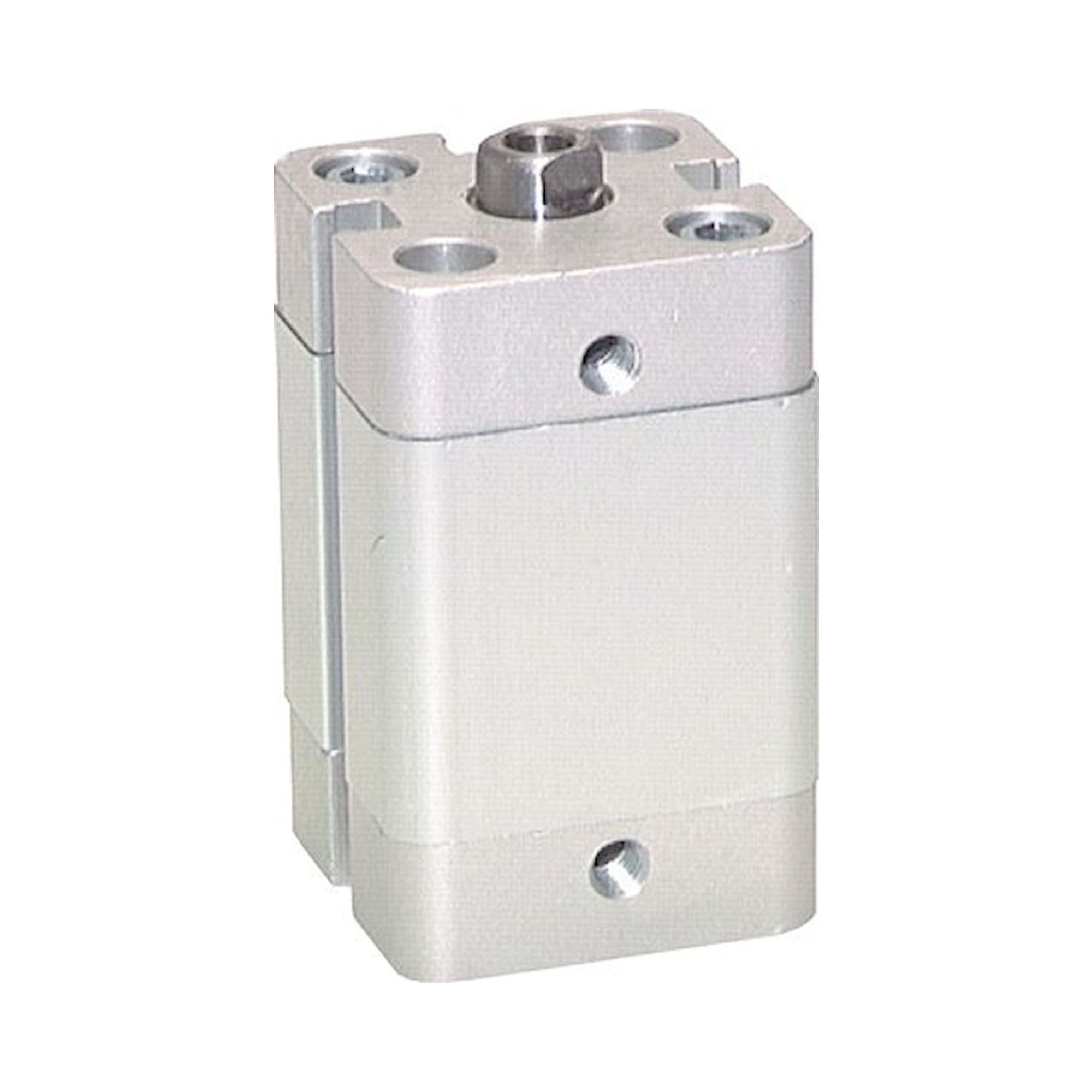

Airtec NXE 12 REP. Reparatursatz für NXE-Zylinder 12mm
€1,661.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread

Piston diameter [mm]	20
Stroke [mm]	10
Version	Standard
G1 (piston rod female thread)	M 5
M (compressed air port)	M 5
Repair sets	NXE 20 REP
A [mm]	36
B [mm]	10
C [mm]	6
D [mm]	4,2
E	M 5
F [mm]	7,5
J [mm]	38,0
L [mm]	0
N [mm]	8,0
O [mm]	12,25
P [mm]	22
Q [mm]	10
T [mm]	8
U [mm]	4,5
Z [mm]	4,5

Information

More Information
Manufacturer Nr.	NXE 20/10
Manufacturer	Airtec
EAN	4050571532208
Weight	145.000000
HS-Code	84799070
GPSR manufacturer information	AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity	Original product
Condition of article	New
